Toyota Dyna 150

1995-05 → 2001-10 · chassis LY21#,YY211 · catalogue 731260 · Europe

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

11 part groups · 2 illustrations

Illustrations

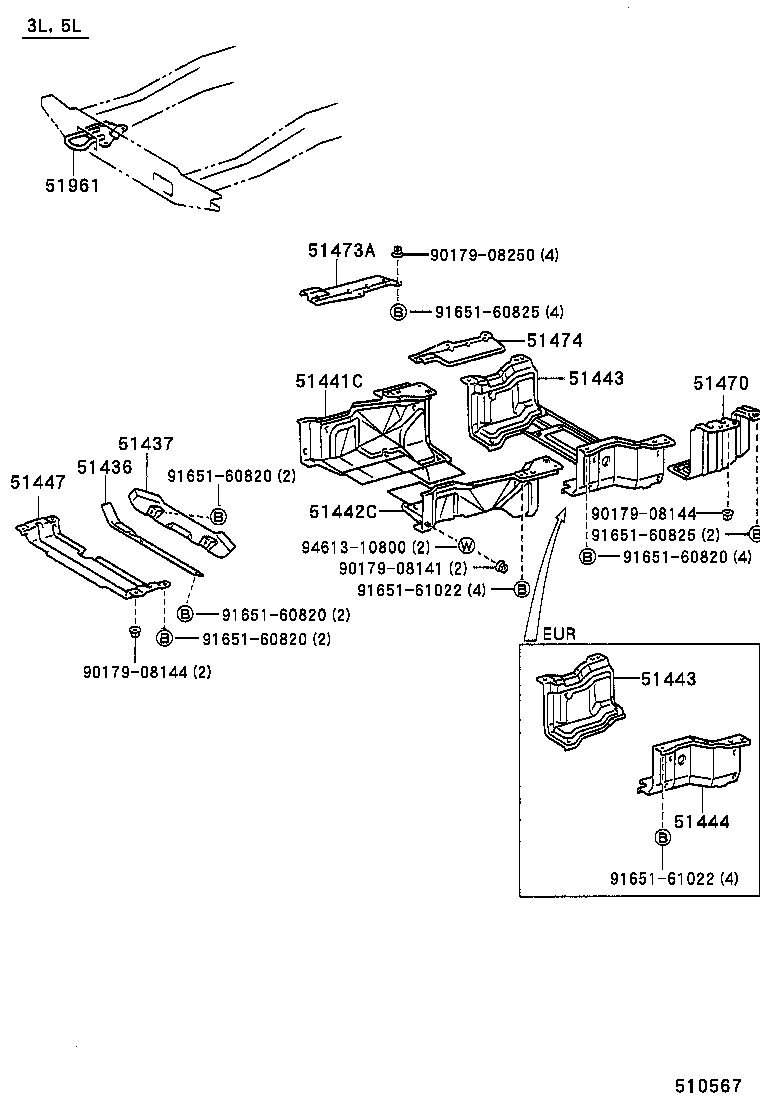

Figure MBZ214A MBZ214A 1995-05 → — Figure 510567 510567 1995-05 → —

Part groups

PNCDescription
51436 Protector, Engine Front Support
51437 Bracket, Engine Front Support, Lower RH
51441C Cover, Engine Under, RH
51442C Cover, Engine Under, LH
51443 Cover, Engine Under, Rear RH
51444 Cover, Engine Under, Rear LH
51447 Guide, Engine Under Cover Air
51470 Cover Assy, Transmission Under
51473A Cover Sub-assy, Engine Side, RH
51474 Cover Sub-assy, Engine Side, LH
51961 Hook, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
