Toyota Dyna 150

1995-05 → 2001-10 · chassis LY21#,YY211 · catalogue 731260 · Europe

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

3 part groups · 2 illustrations

Illustrations

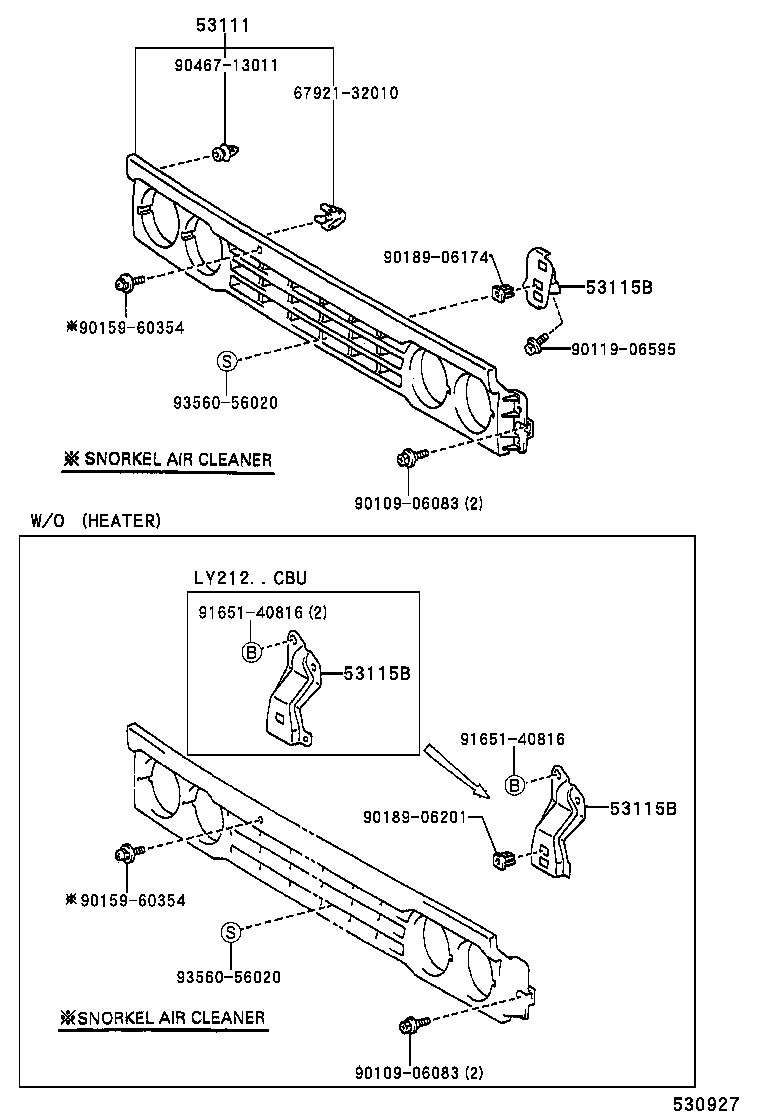

Figure 530471A 530471A 1995-05 → — Figure 530927 530927 1995-05 → —

Part groups

PNCDescription
53111 Grille, Radiator
53115B Bracket, Radiator Grille
53145B Clip, Radiator Grille Garnish
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
