Toyota Dyna 150

1995-05 → 2001-10 · chassis LY21#,YY211 · catalogue 731260 · Europe

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Guard Frame & Tail Gate

24 part groups · 3 illustrations

Illustrations

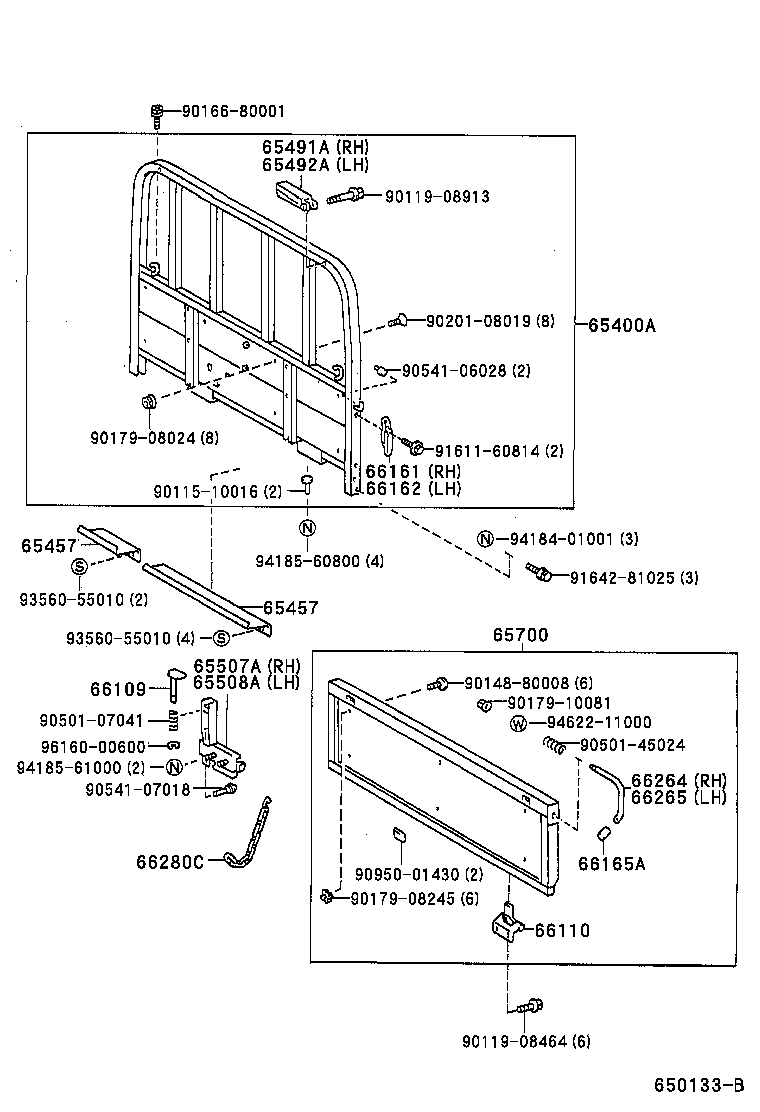

Figure 650132C 650132C 1995-05 → — Figure 650129A 650129A 1995-05 → — Figure 650133B 650133B 1995-05 → 1999-05

Part groups

PNCDescription
65400A Guard Assy, Rear Body
65457 Plate, Baffle Dust Rear Body
65474 Insulator, Header
65476 Insulator, Header Board, NO.2
65491A Stop, Guard Frame Load Slide, RH
65492A Stop, Guard Frame Load Slide, LH
65507A Support Sub-assy, Corner, RH
65508A Support Sub-assy, Corner, LH
65700 Gate Assy, Rear Body Tail
66109 Handle Sub-assy, Side Gate Support Corner
66110 Hinge Assy, Tail Gate
66115B Retainer, Gate Hinge
66121A Bolt, Tail Gate Male
66161 Handle, Side Gate Latch, RH
66162 Handle, Side Gate Latch, LH
66165A Cap, Gate Latch Handle
66170 Latch Assy, Rear Body Tail Gate
66264 Handle, Tail Gate Latch, RH
66265 Handle, Tail Gate Latch, LH
66280C Chain Assy, Tail Gate
66311D Hook, Rope
66311J Hook, Rope
66411 Bracket, Guard Frame, RH
66412 Bracket, Guard Frame, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
