Toyota Dyna 150

1995-05 → 2001-10 · chassis LY21#,YY211 · catalogue 731260 · Europe

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Side Panel

27 part groups · 3 illustrations

Illustrations

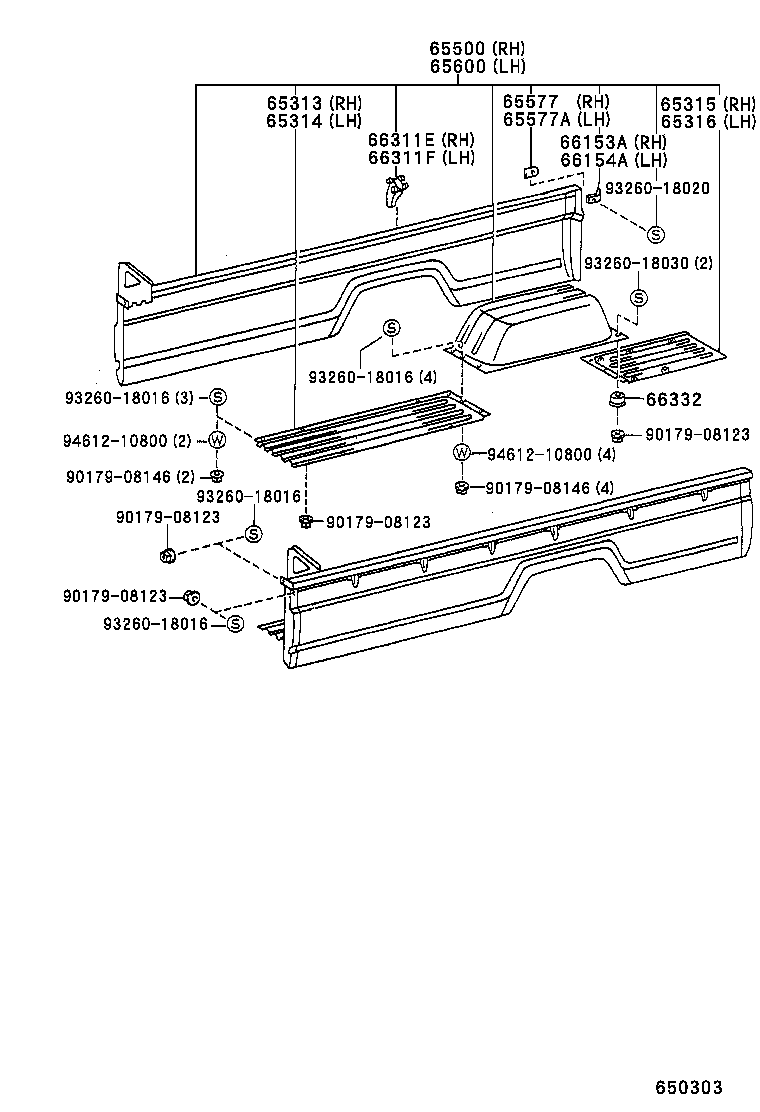

Figure 650121B 650121B 1995-05 → — Figure 650303 650303 1995-05 → — Figure 651240 651240 1995-05 → 1999-05

Part groups

PNCDescription
65313 Panel, Floor Front Corner, RH
65314 Panel, Floor Front Corner, LH
65315 Panel, Floor Rear Corner, RH
65316 Panel, Floor Rear Corner, LH
65500 Panel Assy, Rear Body Side, RH
65500G Bolt, W/Washer(FOR SIDE GATE, RH)
65577 Retainer, Tail Gate Latch Female
65577A Retainer, Tail Gate Female
65600 Panel Assy, Rear Body Side, LH
65600H Bolt, W/Washer(FOR SIDE GATE, LH)
65679A Seal, Side Gate
65679E Seal, Side Gate
66013A Support Sub-assy, Side Gate, RH
66014 Support Sub-assy, Corner, LH
66021A Handle Sub-assy, Side Gate Support Corner, RH
66022A Handle Sub-assy, Side Gate Support Corner, LH
66110C Hinge Assy, Side Gate, NO.1 RH
66115C Retainer, Gate Hinge
66120C Hinge Assy, Side Gate, NO.1 LH
66153A Latch, Tail Gate Female, RH
66154A Latch, Tail Gate Female, LH
66187 Handle, Side Gate Latch, Center NO.2
66311E Hook, Rope
66311F Hook, Rope, NO.2
66332 Cushion, Rubber
66783 Bracket, Side Gate Support, RH
66784 Bracket, Side Gate Support, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
