Toyota Dyna 150

1995-05 → 2001-10 · chassis LY21#,YY211 · catalogue 731260 · Europe

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Lock & Handle

18 part groups · 2 illustrations

Illustrations

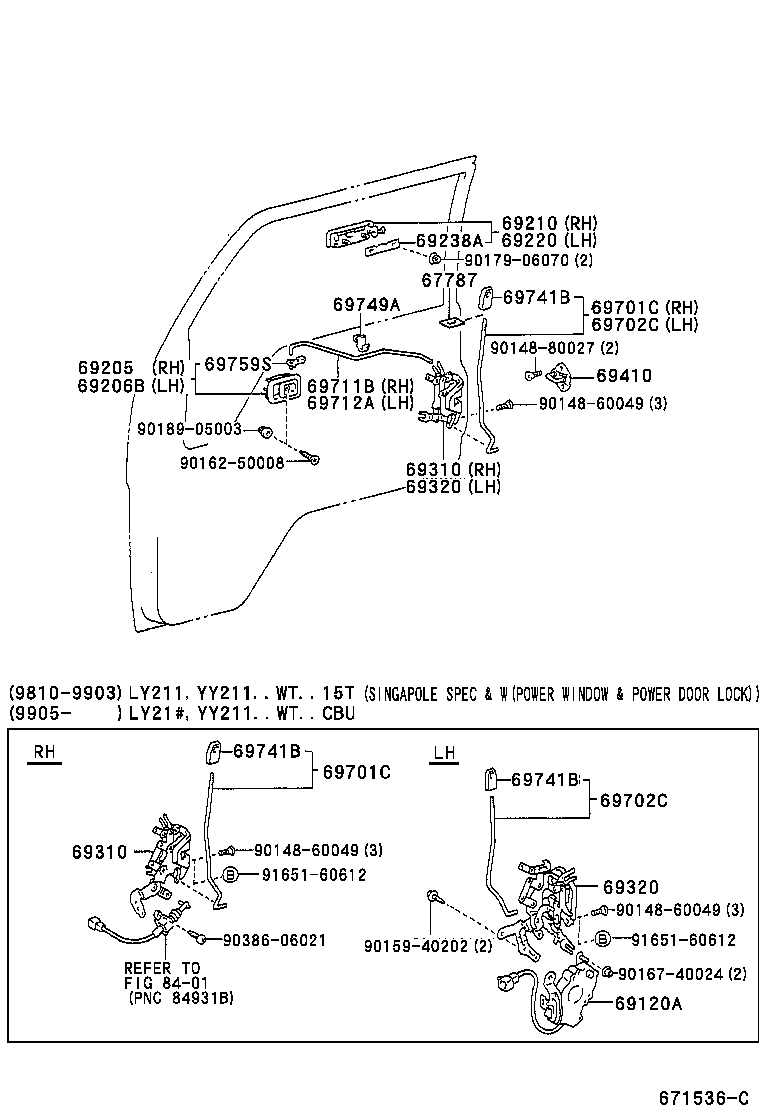

Figure 671020B 671020B 1995-05 → — Figure 671536C 671536C 1995-05 → —

Part groups

PNCDescription
67787 Silencer, Front Door Locking Button Knob
69110 Actuator Assy, Front Door Lock, RH
69120A Actuator Assy, Front Door Lock, LH
69205 Handle Sub-assy, Front Door Inside, RH
69206B Handle Sub-assy, Front Door Inside, LH
69210 Handle Assy, Front Door, Outside RH
69220 Handle Assy, Front Door Outside, LH
69238A Pad, Door Outside Handle
69310 Lock Assy, Front Door, RH
69320 Lock Assy, Front Door, LH
69410 Plate Assy, Front Door Lock Striker
69701C Link Sub-assy, Front Door Lock Control, RH
69702C Link Sub-assy, Front Door Lock Control, LH
69711B Link, Front Door Lock Remote Control, RH
69712A Link, Front Door Lock Remote Control, LH
69741B Knob, Front Door Lock Control
69749A Clamp, Front Door Lock Link, NO.1
69759S Snap, Front Door Inside Handle
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
