Toyota Dyna 150
1995-05 → 2001-10 · chassis LY21#,YY211 · catalogue 731260 · Europe
Discontinued model
Data version 2002-04

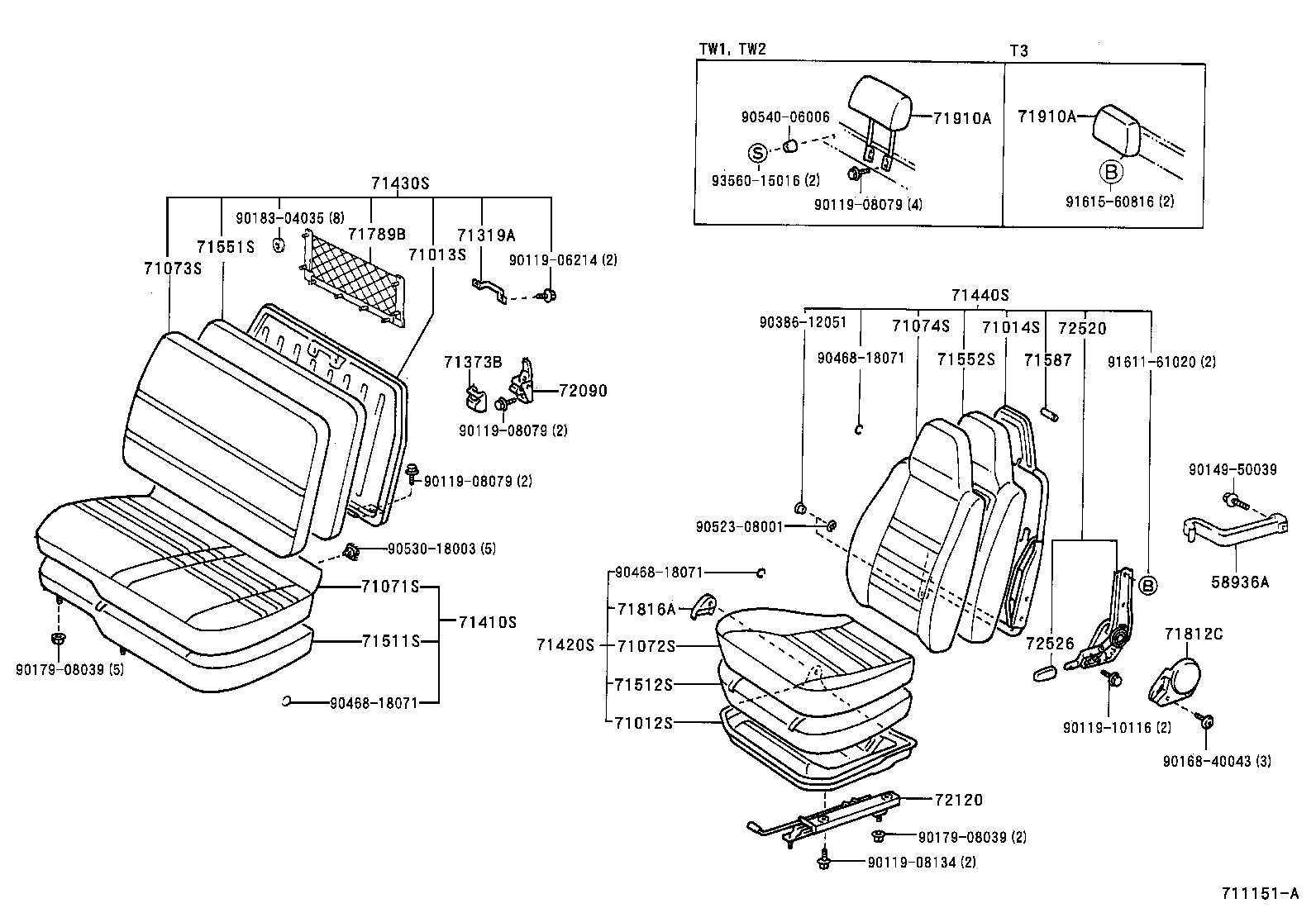

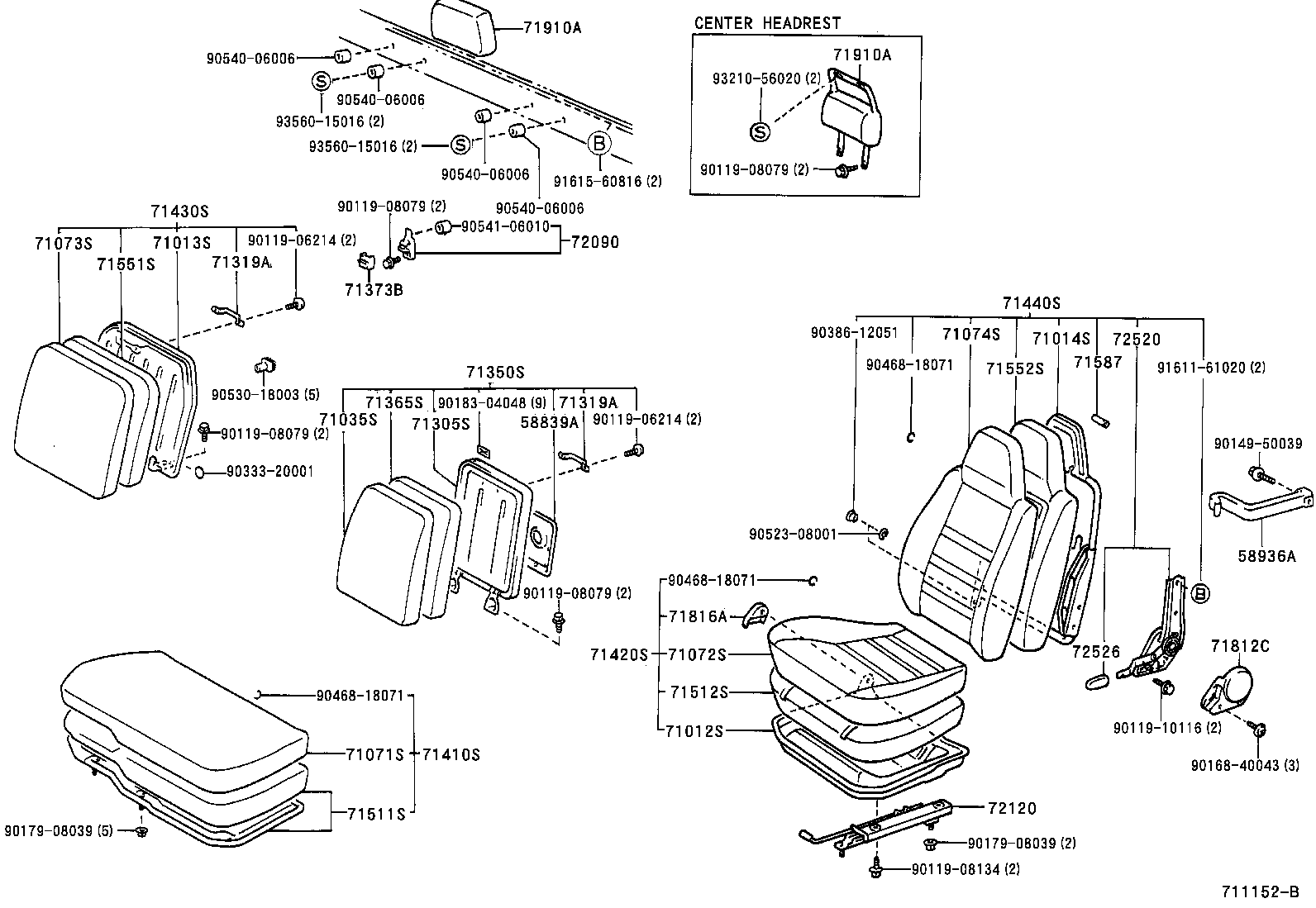

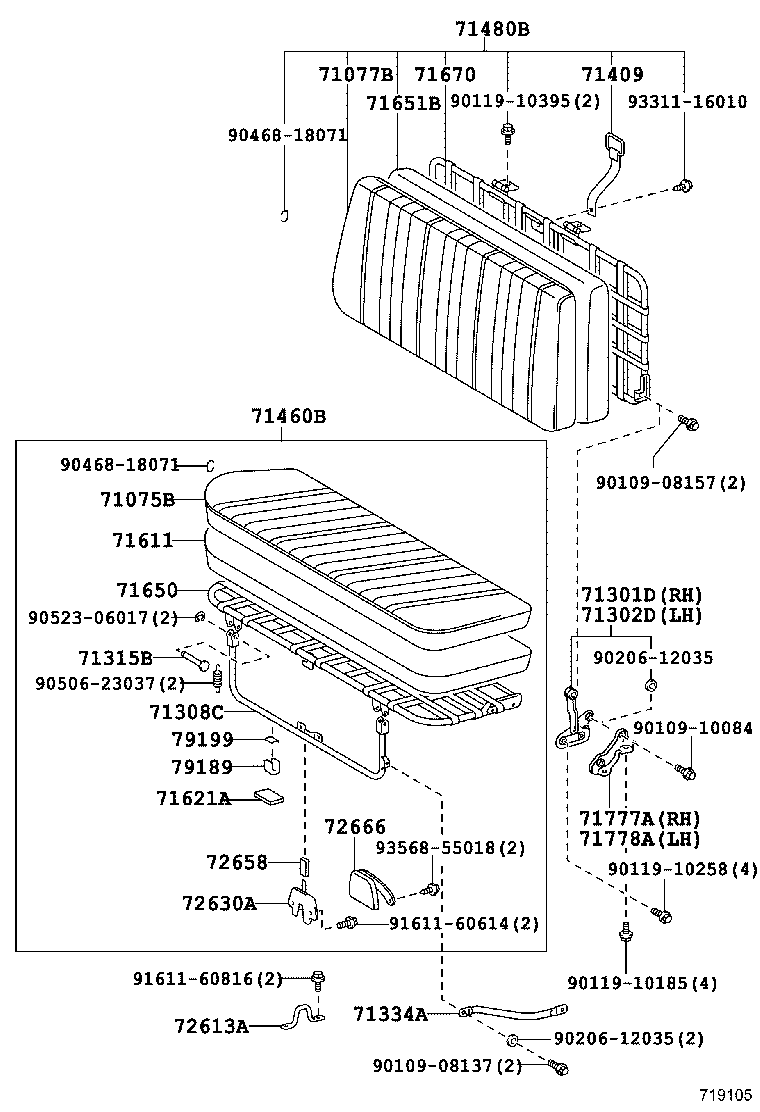

Seat & Seat Track
65 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 58839A | Cover, Console Box Hole |
| 58936A | Band, Engine Service Hole Cover Support |
| 71011S | Frame Sub-assy, Front Seat Cushion, RH |
| 71012S | Frame Sub-assy, Front Seat Cushion, LH |
| 71013S | Frame Sub-assy, Front Seatback, RH |
| 71014S | Frame Sub-assy, Front Seatback, LH |
| 71035S | Cover, Front Seatback, Center |
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71075B | Cover, Rear Seat Cushion (FOR BENCH TYPE) |
| 71077B | Cover, Rear Seatback (FOR BENCH TYPE) |
| 71301D | Hinge Sub-assy, Rear Seat, RH |
| 71302D | Hinge Sub-assy, Rear Seat, LH |
| 71305S | Frame Sub-assy, Center Seatback |
| 71308C | Leg Sub-assy, Rear Seat, Front |
| 71315B | Pin, Rear Seat Hinge |
| 71319A | Striker, Front Seatback |
| 71334A | Stopper, Rear Seat Leg |
| 71350S | Back Assy, Front Seat, Center |
| 71365S | Pad, Center Seatback |
| 71373B | Cover, Front Seatback Lock |
| 71409 | Stopper Sub-assy, Rear Seatback |
| 71410S | Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71420S | Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE) |
| 71430S | Back Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71440S | Back Assy, Front Seat, LH(FOR SEPARATE TYPE) |
| 71460B | Cushion Assy, Rear Seat (FOR BENCH TYPE) |
| 71480B | Back Assy, Rear Seat (FOR BENCH TYPE) |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71551S | Pad, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71552S | Pad, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71587 | Protector, Front Seatback Edge |
| 71611 | Pad, Rear Seat Cushion |
| 71621A | Pad, Rear Seat Cushion Silencer, A |
| 71650 | Spring Assy, Rear Seat Cushion |
| 71651B | Pad, Rear Seatback(FOR BENCH TYPE) |
| 71670 | Spring Assy, Rear Seatback(FOR BENCH SEAT) |
| 71777A | Plate, Rear Side Seat Hinge, Lower RH |
| 71778A | Plate, Rear Side Seat Hinge, Lower LH |
| 71789B | Pocket, Front Seatback Board |
| 71811C | Cover, Reclining Adjuster, RH |
| 71812C | Cover, Reclining Adjuster, LH |
| 71815A | Cover, Front Seat Cushion Hinge, RH |
| 71816A | Cover, Front Seat Cushion Hinge, LH |
| 71910A | Headrest Assy, Front Seat |
| 72090 | Lock Assy, Front Seatback |
| 72110A | Track Assy, Front Seat, Outer RH |
| 72111A | Rail, Front Inner Seat Track, Upper |
| 72120 | Track Assy, Front Seat, Outer LH |
| 72130A | Track Assy, Front Seat, Inner RH |
| 72510 | Adjuster Assy, Reclining Seatback, RH |
| 72520 | Adjuster Assy, Reclining Seatback, LH |
| 72525A | Handle, Reclining Adjuster Release, RH |
| 72526 | Handle, Reclining Adjuster Release, LH |
| 72613A | Striker, Front Seat Lock |
| 72630A | Lock Assy, Rear NO.1 Seat |
| 72658 | Knob, Rear Seat Handle |
| 72666 | Cover, Rear Seatback Lock, LH |
| 73810A | Suspension Assy, Seat, LH |
| 73888 | Handle, Seat Suspension Control |
| 79189 | Stopper, NO.1 Seat Leg |
| 79199 | Holder, NO.1 Seat Leg Stopper |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
