Toyota Dyna 150

1995-05 → 2001-10 · chassis LY21#,YY211 · catalogue 731260 · Europe

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

12 part groups · 2 illustrations

Illustrations

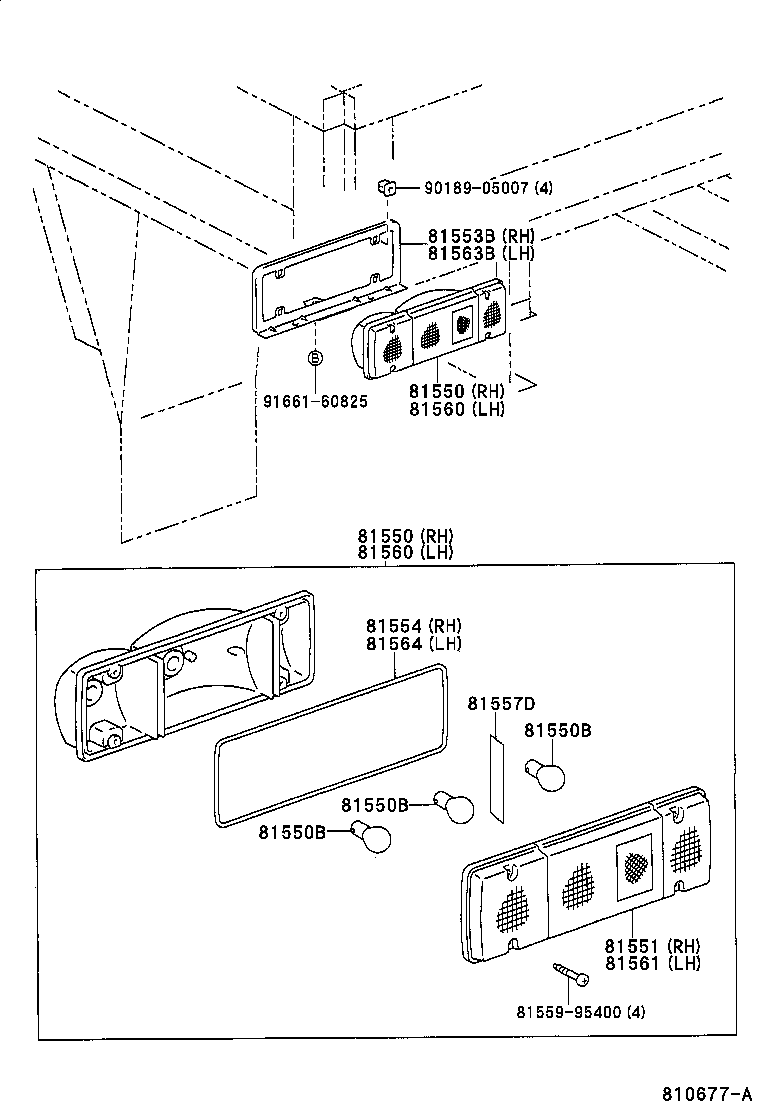

Figure 810676B 810676B 1995-05 → — Figure 810677A 810677A 1995-05 → —

Part groups

PNCDescription
81550 Lamp Assy, Rear Combination, RH
81550B Bulb(FOR REAR COMBINATION LAMP)
81551 Lens, Rear Combination Lamp, RH
81553B Bracket Sub-assy, RR Comb Lamp, RH
81554 Gasket, Rear Combination Lamp Body, RH
81557D Reflector, Rear Combination Lamp
81558 Shade, Rear Combination Lamp, NO.1 RH
81560 Lamp Assy, Rear Combination, LH
81561 Lens, Rear Combination Lamp, LH
81563B Bracket Sub-assy, RR Comb Lamp, LH
81564 Gasket, Rear Combination Lamp Body, LH
81568 Shade, Rear Combination Lamp, NO.1 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
