Toyota Dyna 150

1995-05 → 2001-10 · chassis LY21#,YY211 · catalogue 731260 · Europe

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

18 part groups · 8 illustrations

Illustrations

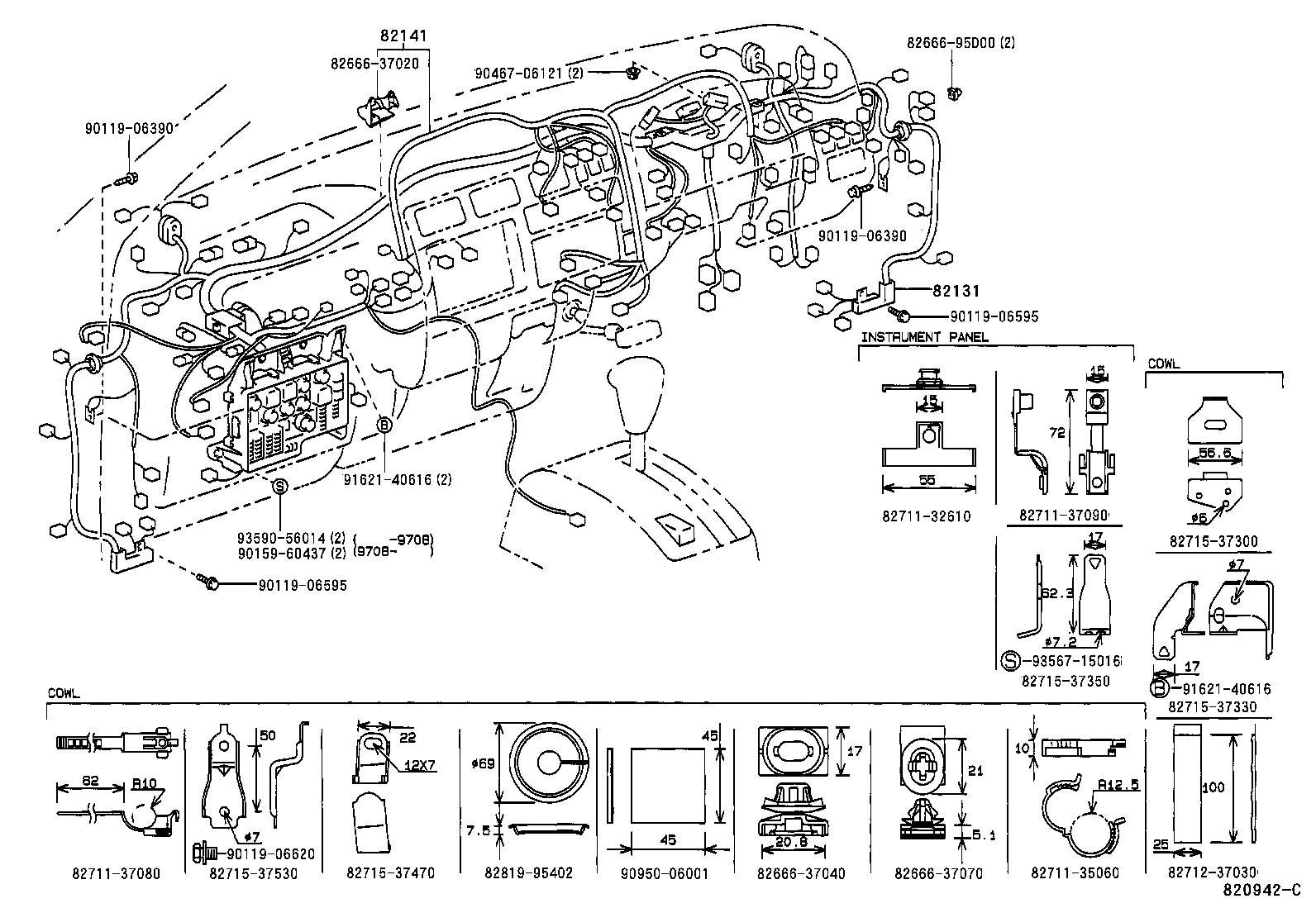

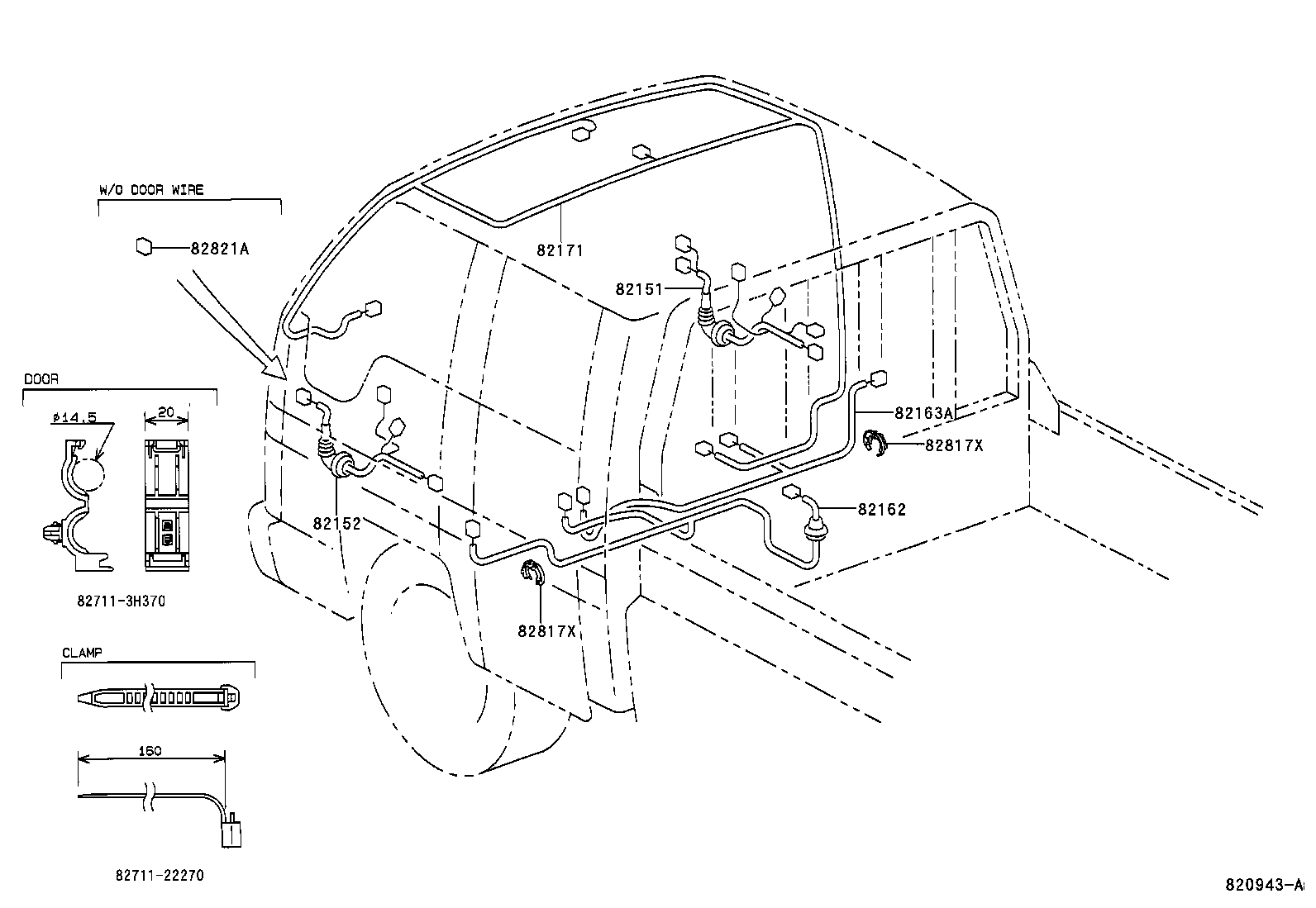

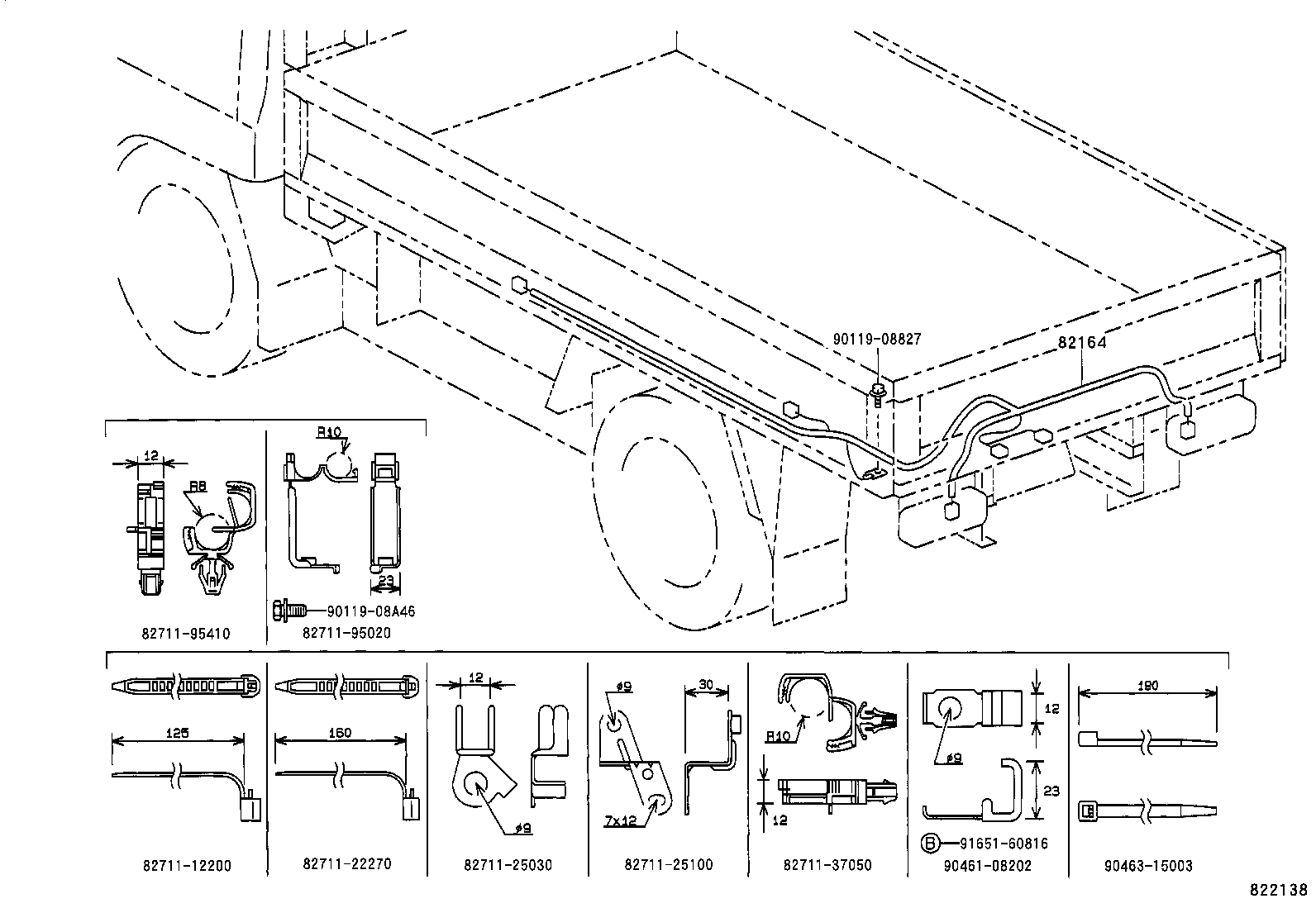

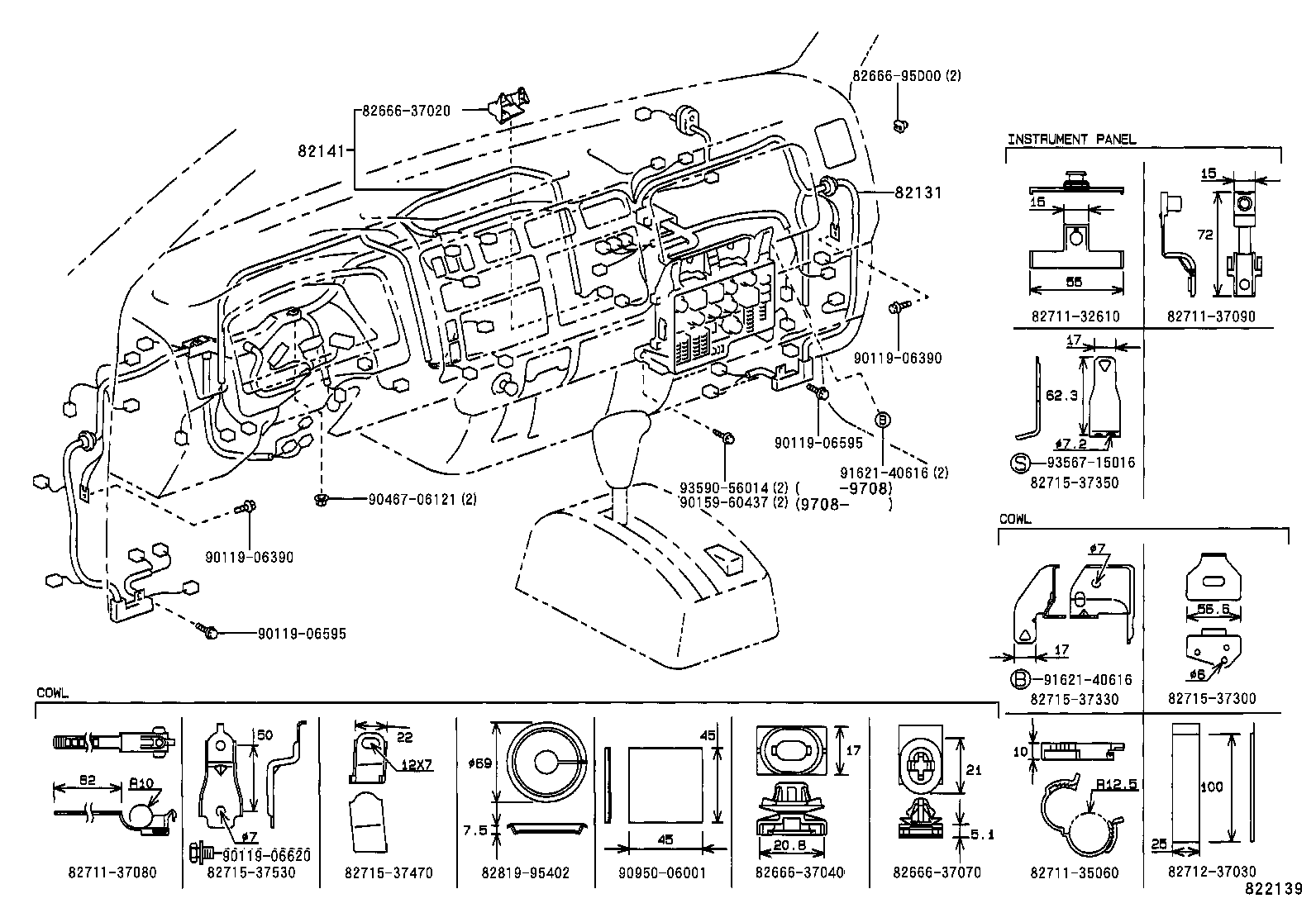

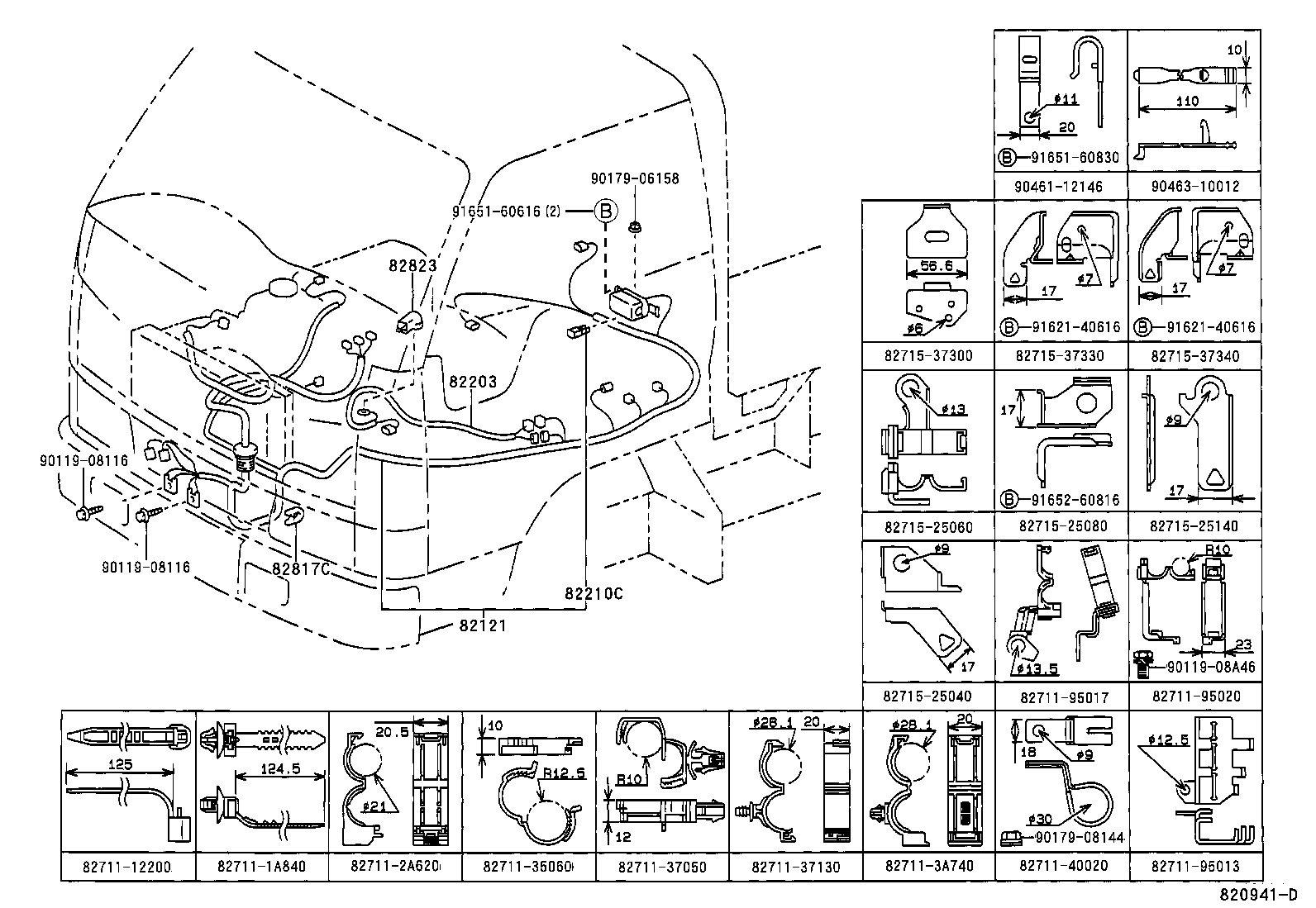

Figure 821533E 821533E 1995-05 → — Figure 820941D 820941D 1995-05 → — Figure 820942C 820942C 1995-05 → — Figure 822139 822139 1995-05 → — Figure 820943A 820943A 1995-05 → — Figure 822138 822138 1995-05 → — Figure 821262A 821262A 1995-05 → — Figure 820934A 820934A 1995-05 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82060A Wire Assy, Engine, NO.2
82121 Wire, Engine
82131 Wire, Cowl
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82162 Wire, Floor, NO.2
82163A Wire, Floor, NO.4
82164 Wire, Frame
82171 Wire, Roof, NO.1
82203 Wire Sub-assy, Alternator
82210C Fusible Link
82261A Wire, Alternator
82817C Protector, Wiring Harness, NO.4
82817X Protector, Wiring Harness, NO.17
82821A Cover, Connector
82823 Cap, Terminal, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
