Toyota Dyna 150

1995-05 → 2001-10 · chassis LY21#,YY211 · catalogue 731260 · Europe

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

13 part groups · 3 illustrations

Illustrations

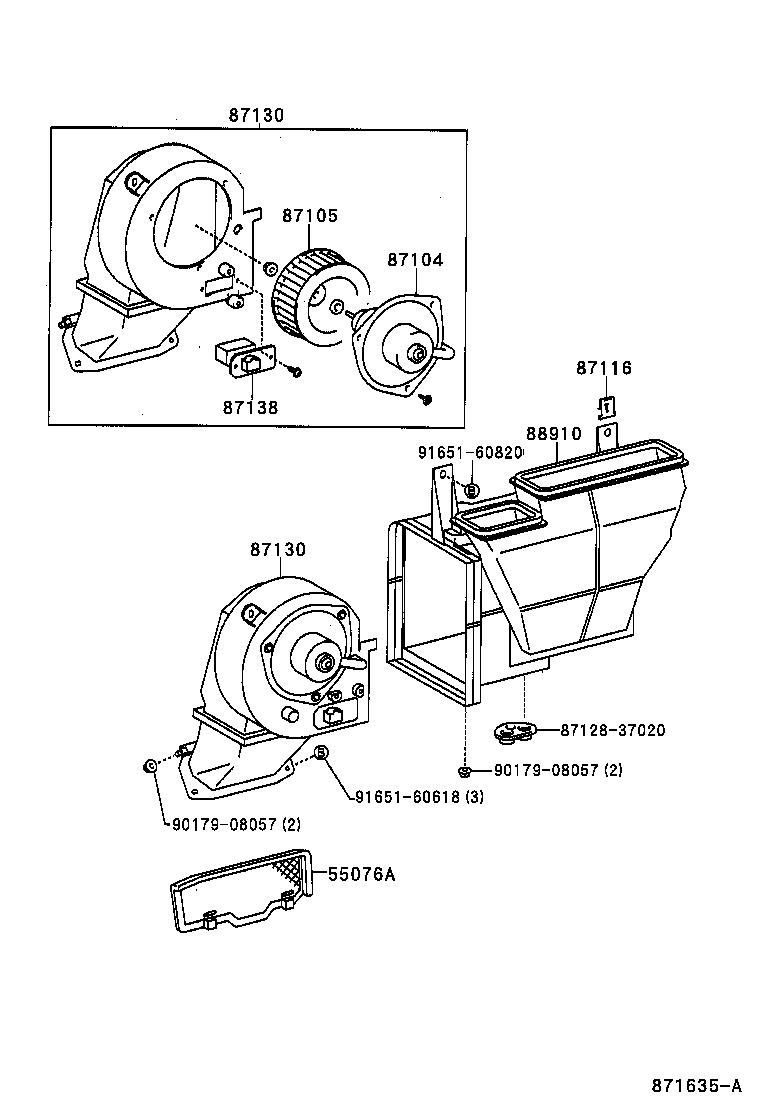

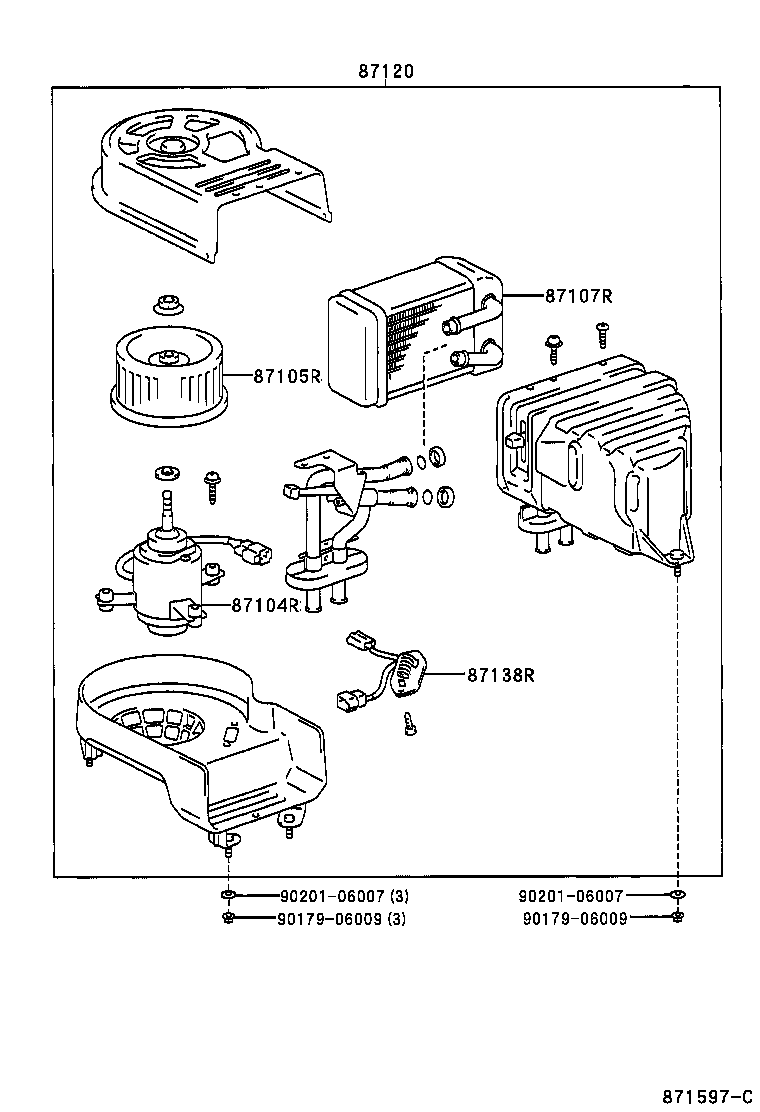

Figure 873503 873503 1995-05 → — Figure 871635A 871635A 1995-05 → — Figure 871597C 871597C 1995-05 → —

Part groups

PNCDescription
55076A Net Sub-assy, Air Duct
87104 Motor Sub-assy, Heater Blower
87104R Motor Sub-assy, Rear Heater Blower
87105 Fan Sub-assy, Heater Blower
87105R Fan Sub-assy, Rear Heater Blower
87107R Unit Sub-assy, Rear Heater
87116 Spring, Heater Case Fastening
87120 Heater Assy, Rear
87130 Blower Assy, Heater, Front
87138 Resistor, Heater Blower
87138R Resistor, Rear Heater Blower
87150 Radiator Assy, Heater
88910 Ventilator Assy, Boost
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
