Toyota Dyna 150

1995-05 → 2001-10 · chassis LY21#,YY211 · catalogue 731260 · Europe

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

17 part groups · 3 illustrations

Illustrations

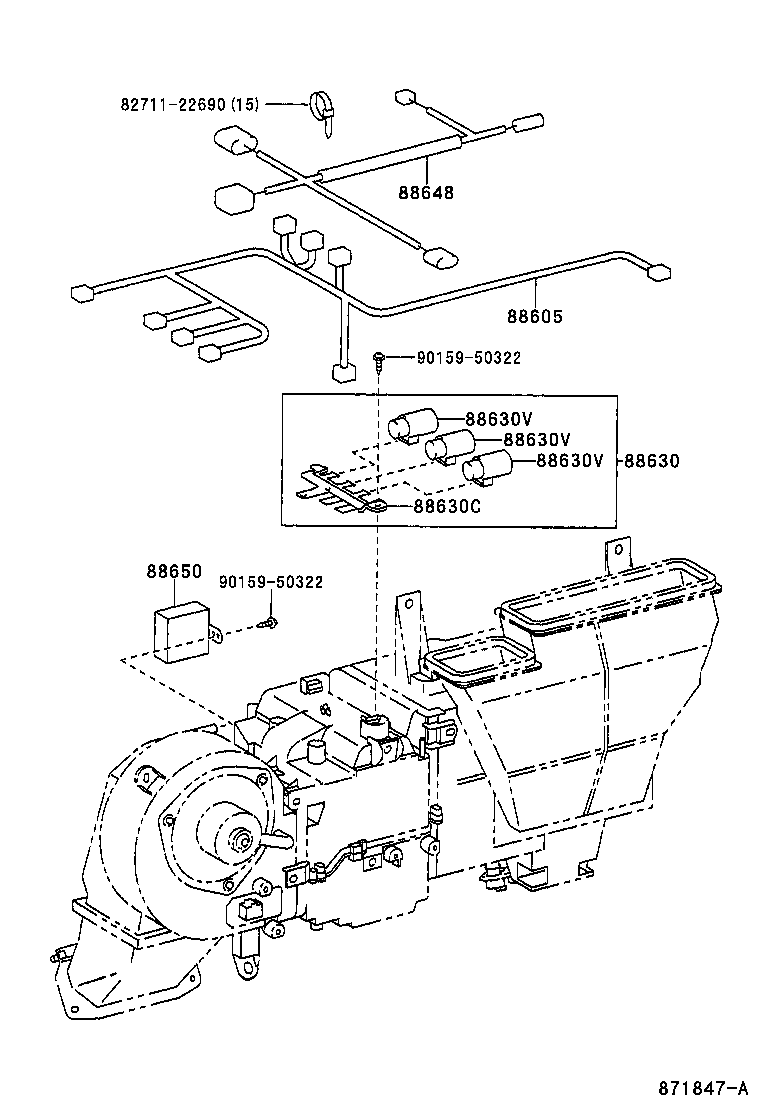

Figure 872784C 872784C 1995-05 → — Figure 871847A 871847A 1995-05 → — Figure MEX571 MEX571 1995-05 → —

Part groups

PNCDescription
82630B Holder Assy, Fuse
82650E Breaker Assy, Wiring Circuit
87116A Spring, Holding (FOR COOLER UNIT CASE)
88501 Evaporator Sub-assy, Cooler, NO.1
88510 Unit Assy, Cooler
88515 Valve, Cooler Expansion
88539 Hose, Cooler Unit Drain, NO.1
88578B Packing, Cooling Unit, NO.1
88605 Harness Sub-assy, Cooler Wiring, NO.1
88625 Thermistor, Cooler, NO.1
88626A Holder, Thermistor
88630 Relay Assy, Cooler
88630C Bracket, Cooler Relay
88630V Relay Assy
88648 Wiring, Cooler, NO.1
88650 Amplifier Assy, Cooler Stabilizer
88710A Tube Assy, Air Conditioner
