Toyota Dyna 150

1995-05 → 2001-10 · chassis LY21#,YY211 · catalogue 731260 · Europe

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

16 part groups · 2 illustrations

Illustrations

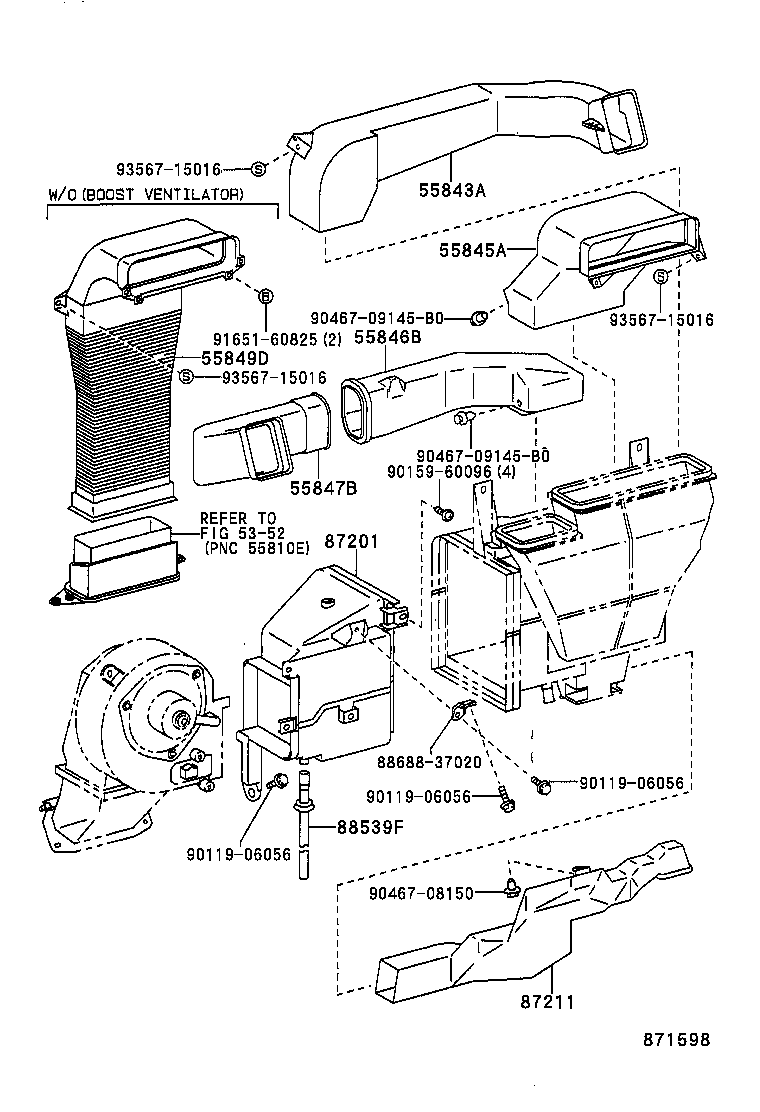

Figure 873523A 873523A 1995-05 → — Figure 871598 871598 1995-05 → —

Part groups

PNCDescription
55519 Plate, Heater Control Name
55843A Duct, Heater TO Register, NO.1
55845A Duct, Heater TO Register, NO.3
55846B Duct, Heater TO Register, NO.4
55847B Duct, Heater TO Register, NO.5
55849D Duct, Heater TO Register, NO.7
55905A Knob, Heater Control
55906 Cable Sub-assy, Heater Control
55907A Cable Sub-assy, Water Valve Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
87201 Duct Sub-assy, Air, NO.1
87211 Duct, Air, NO.1
87284 Resistor Sub-assy, Variable
88539F Hose, Drain
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
