Toyota Dyna 150

1995-05 → 2001-10 · chassis LY21#,YY211 · catalogue 731260 · Europe

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

20 part groups · 3 illustrations

Illustrations

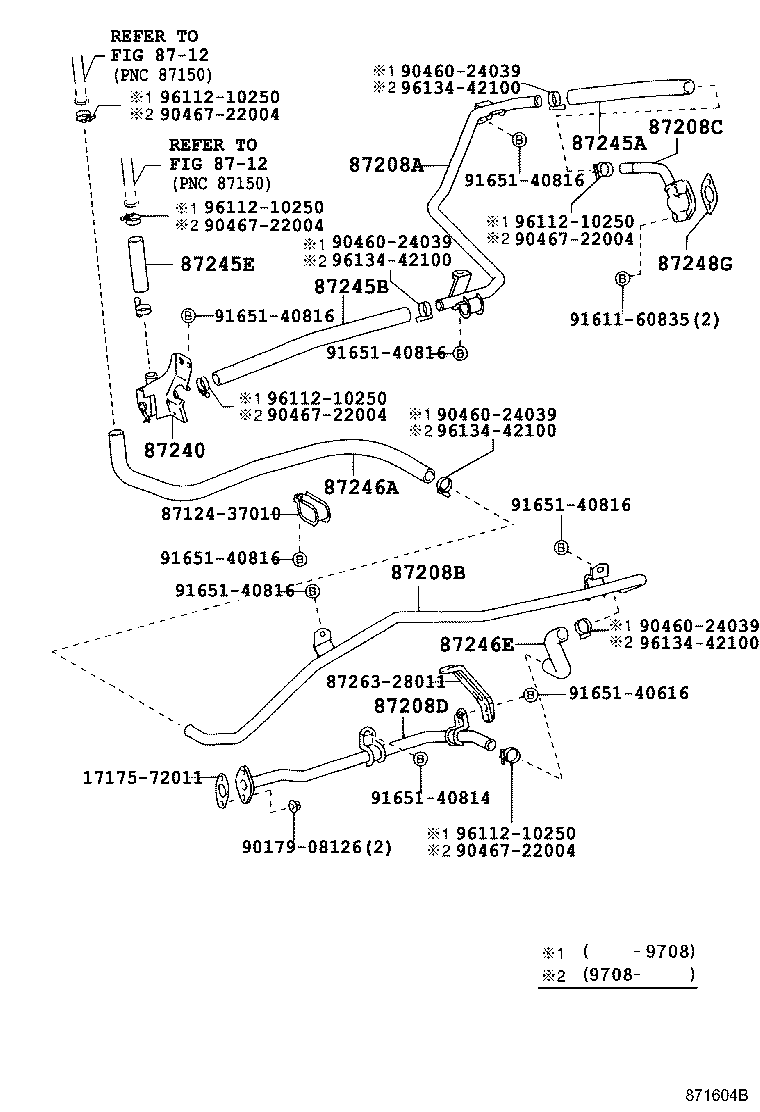

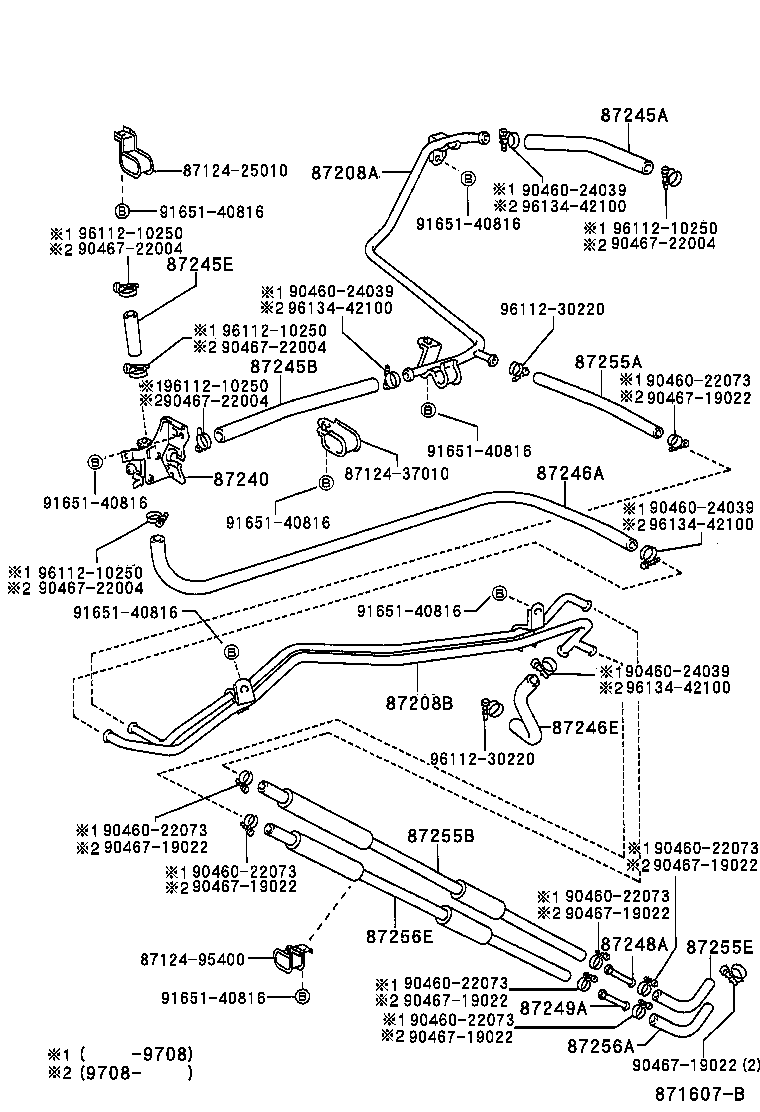

Figure 873504A 873504A 1995-05 → — Figure 871604B 871604B 1995-05 → — Figure 871607B 871607B 1995-05 → —

Part groups

PNCDescription
87208 Pipe Sub-assy, Heater Water
87208A Pipe Sub-assy, Heater Water, A
87208B Pipe Sub-assy, Heater Water, B
87208C Pipe Sub-assy, Heater Water, C
87208D Pipe Sub-assy, Heater Water, D
87240 Valve Assy, Heater Water
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245E Hose, Heater Water, Inlet E
87246A Hose, Heater Water, Outlet A
87246E Hose, Heater Water, Outlet E
87248A Pipe, Heater Water Inlet, A
87248G Gasket, Water Inlet Pipe
87249A Pipe, Heater Water Outlet, A
87251D Joint, Water, NO.1
87255A Hose, Rear Heater Water Inlet, A(FROM ENGINE)
87255B Hose, Rear Heater Water Inlet, B
87255E Hose, Rear Heater Water Inlet, E(TO HEATER UNIT)
87256A Hose, Rear Heater Water Outlet, A (FROM HEATER UNIT)
87256E Hose, Rear Heater Water Outlet, E (TO ENGINE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
