Toyota Dyna 150

1995-05 → 2001-10 · chassis LY21#,YY211 · catalogue 731260 · Europe

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Vacuum Piping

5 part groups · 4 illustrations

Illustrations

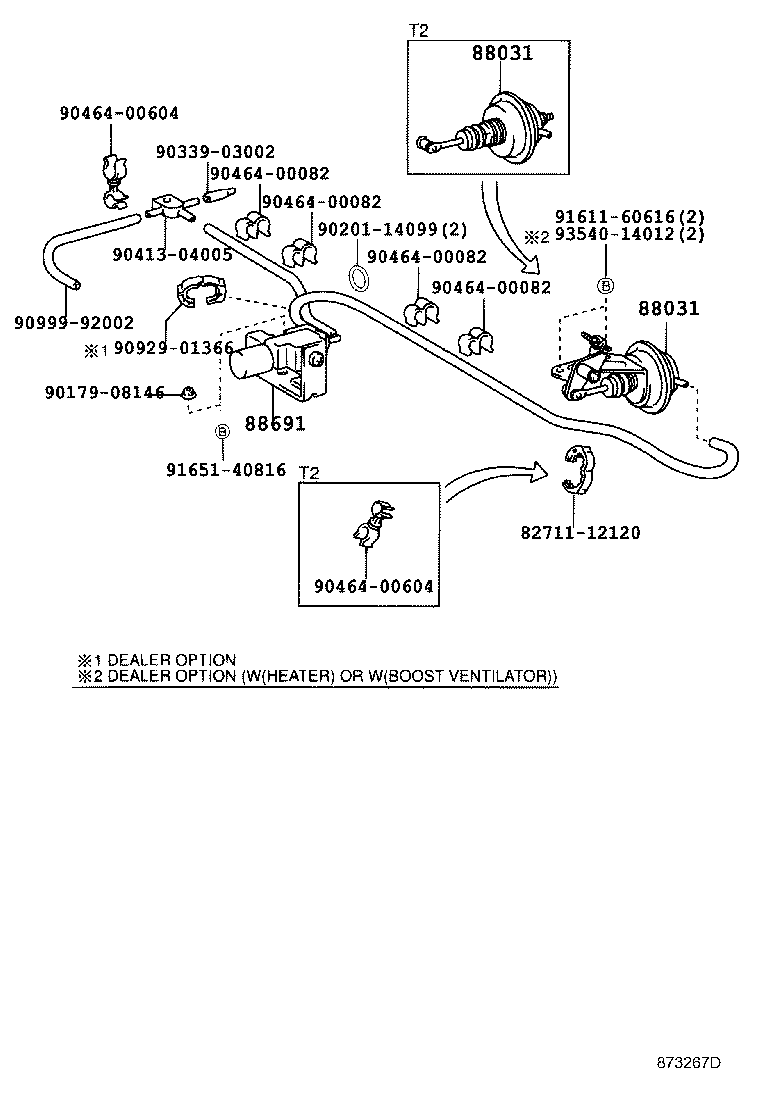

Figure 871610A 871610A 1995-05 → 1999-05 Figure 873267D 873267D 1999-05 → — Figure 871608 871608 1995-05 → — Figure 87E607 87E607 1995-05 → —

Part groups

PNCDescription
88031 Actuator Set, Idle-up
88691 Valve, Magnet (FOR IDLE UP DEVICE)
88691C Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
88691D Hose, Vacuum (FOR IDLE UP DIVICE), NO.2
88691H Valve, Vacuum Transmitting (FOR IDLE UP DIVICE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
