Toyota Dyna 150

1995-05 → 2001-10 · chassis LY21#,YY211 · catalogue 731260 · Europe

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

22 part groups · 5 illustrations

Illustrations

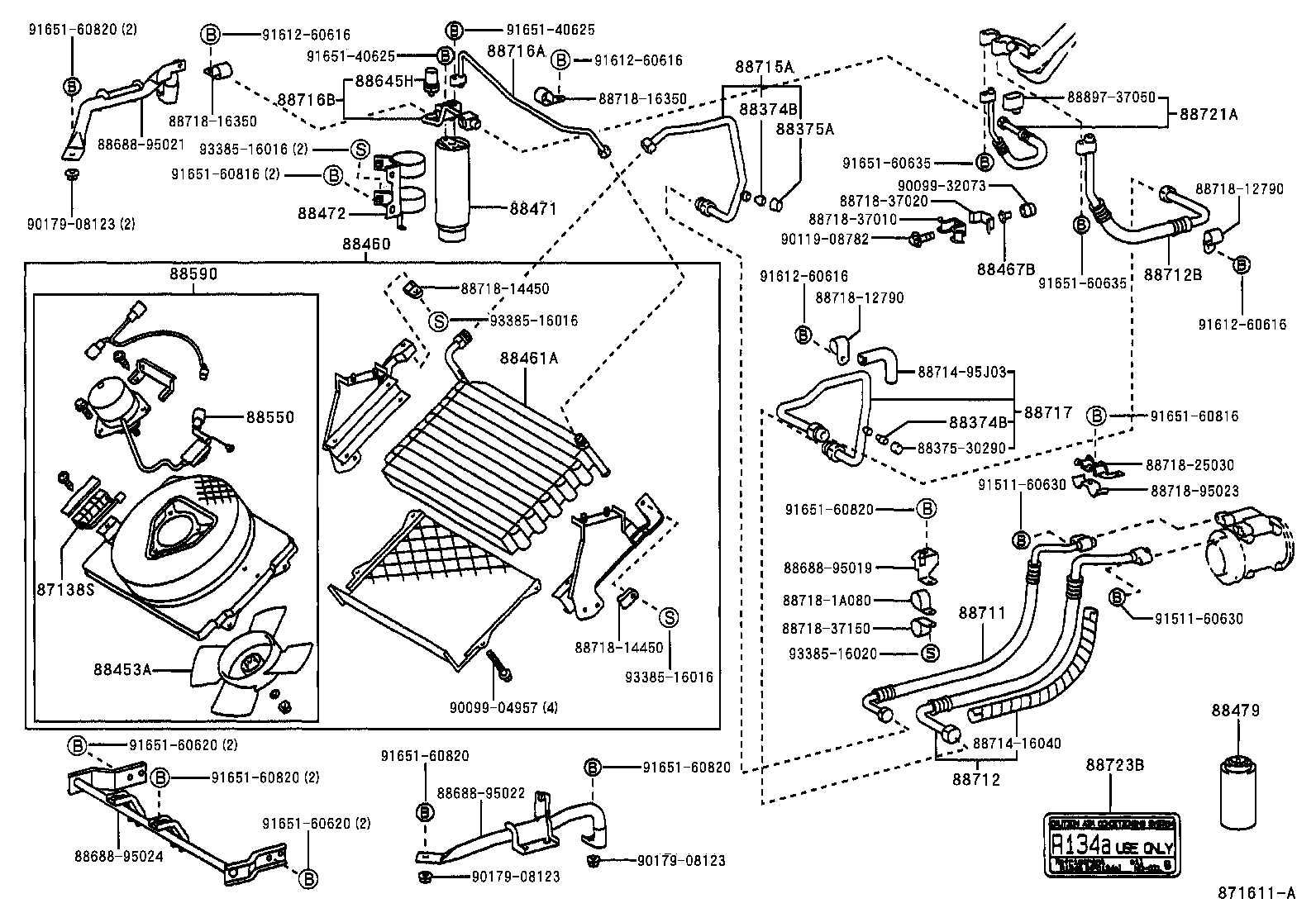

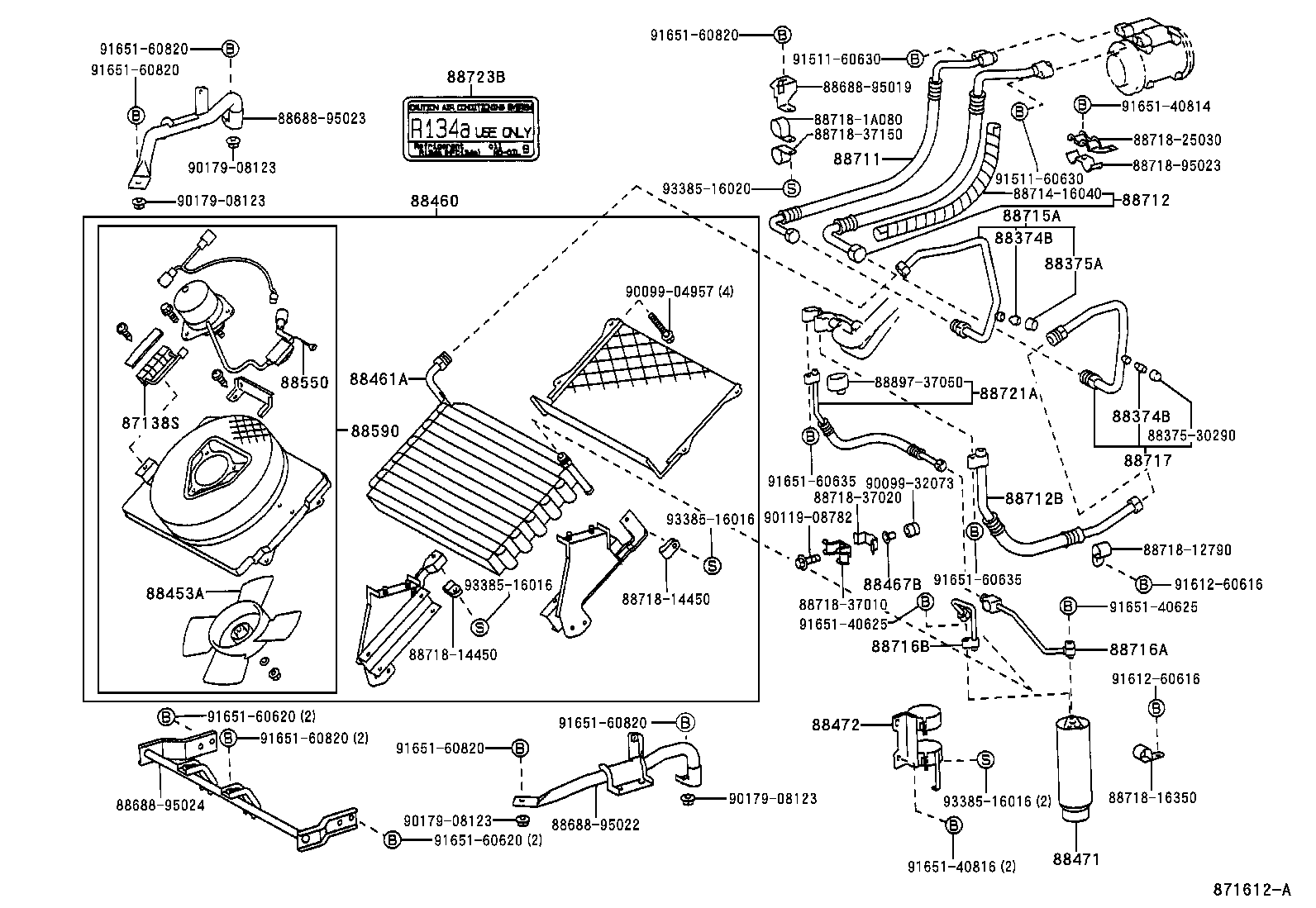

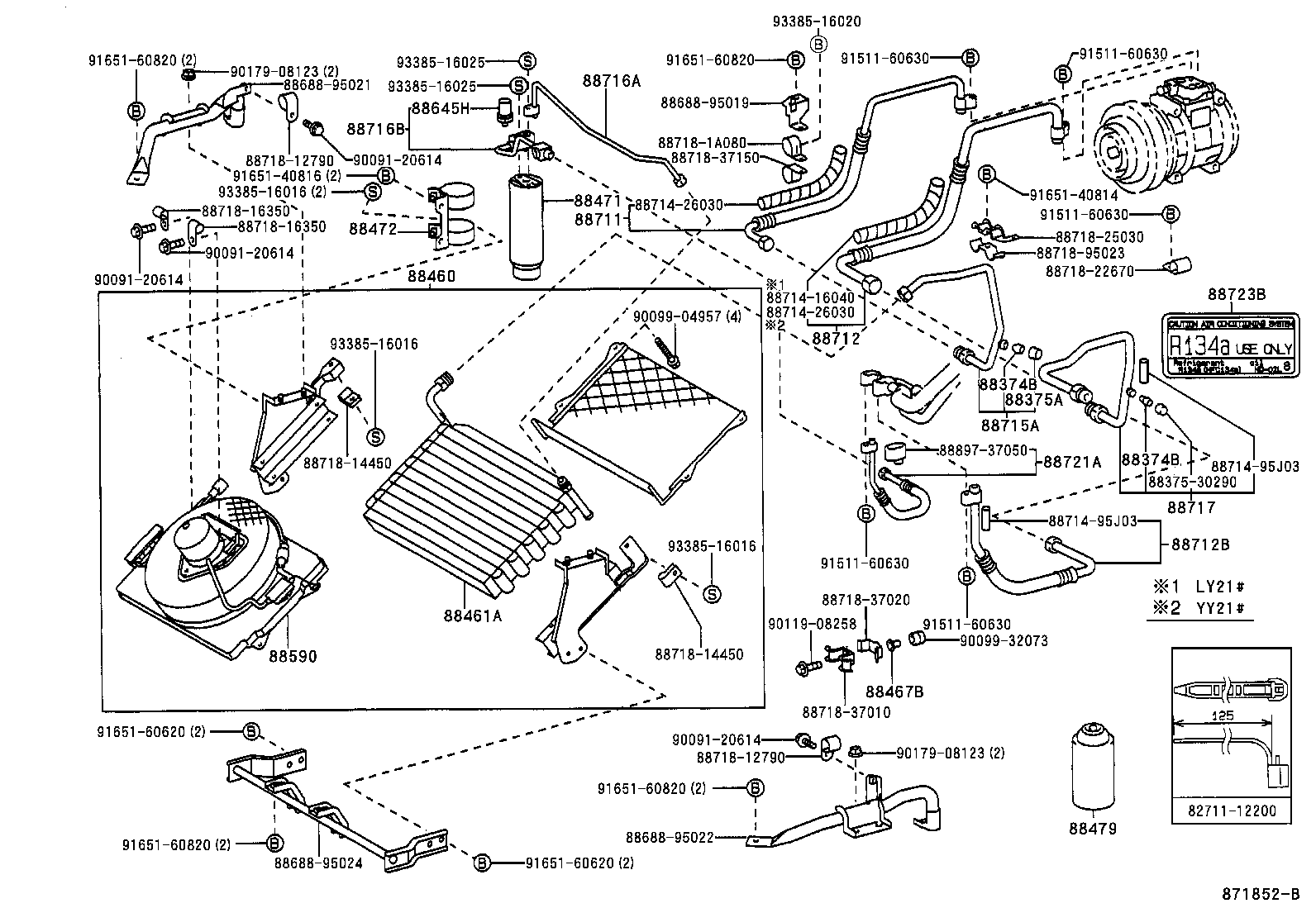

Figure MEY786A MEY786A 1995-05 → — Figure 871852B 871852B 1995-05 → — Figure 871611A 871611A 1995-05 → — Figure 871612A 871612A 1995-05 → — Figure MEX571 MEX571 1995-05 → —

Part groups

PNCDescription
87138S Resistor, Blower
88374B Valve, Service, NO.1
88375A Cap, Service Valve (FOR COOLER PIPE)
88453A Fan, Cooling
88460 Condenser Assy, Cooler
88461A Core, Cooler Condenser
88467B Insulator, Cooler Condenser Mounting
88471 Tank, Receiver Air Conditioner
88472 Bracket, Receiver Tank, NO.1
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88550 Motor Assy, Blower (FOR CONDENSER)
88590 Blower Assy, W/Shroud
88645H Switch, Pressure NO.1
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88712B Hose, Cooler Refrigerant Suction
88715A Pipe, Cooler Refrigerant Discharge, A
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88717 Pipe, Cooler Refrigerant Suction, NO.1
88721A Hose, Liquid, A
88723B Label, Cooler Service Caution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
