Toyota Dyna

2001-07 → 2021-11 · chassis KDY22#,23#,25#,26#,LY2## · catalogue 731270 · Europe

Discontinued model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration 221184F 23741B — CLAMP, INJECTION PIPE (3 parts) 23741B — CLAMP, INJECTION PIPE (3 parts) 23741A — BOLT, STUD(FOR INJECTION PIPE CLAMP) (2 parts) 23703 — PIPE SUB-ASSY, INJECTION, NO.3 (7 parts) 23701 — PIPE SUB-ASSY, INJECTION, NO.1 (7 parts) 23702 — PIPE SUB-ASSY, INJECTION, NO.2 (7 parts) 23704 — PIPE SUB-ASSY, INJECTION, NO.4 (7 parts) 22100 — PUMP ASSY, INJECTION OR SUPPLY (15 parts) 9017908022 — not listed in this catalogue 9092901205 — not listed in this catalogue 9011910699 — not listed in this catalogue 23811 — PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP) (1 parts) 22811 — STAY, INJECTION PUMP, NO.1 (4 parts) 23741 — CLAMP, INJECTION PIPE, NO.1 (3 parts) 7751 — not listed in this catalogue 23271H — HOSE, FUEL, NO.1 (10 parts) 9415180600 — not listed in this catalogue 9164180818 — not listed in this catalogue 9613251300 — not listed in this catalogue 9613251300 — not listed in this catalogue

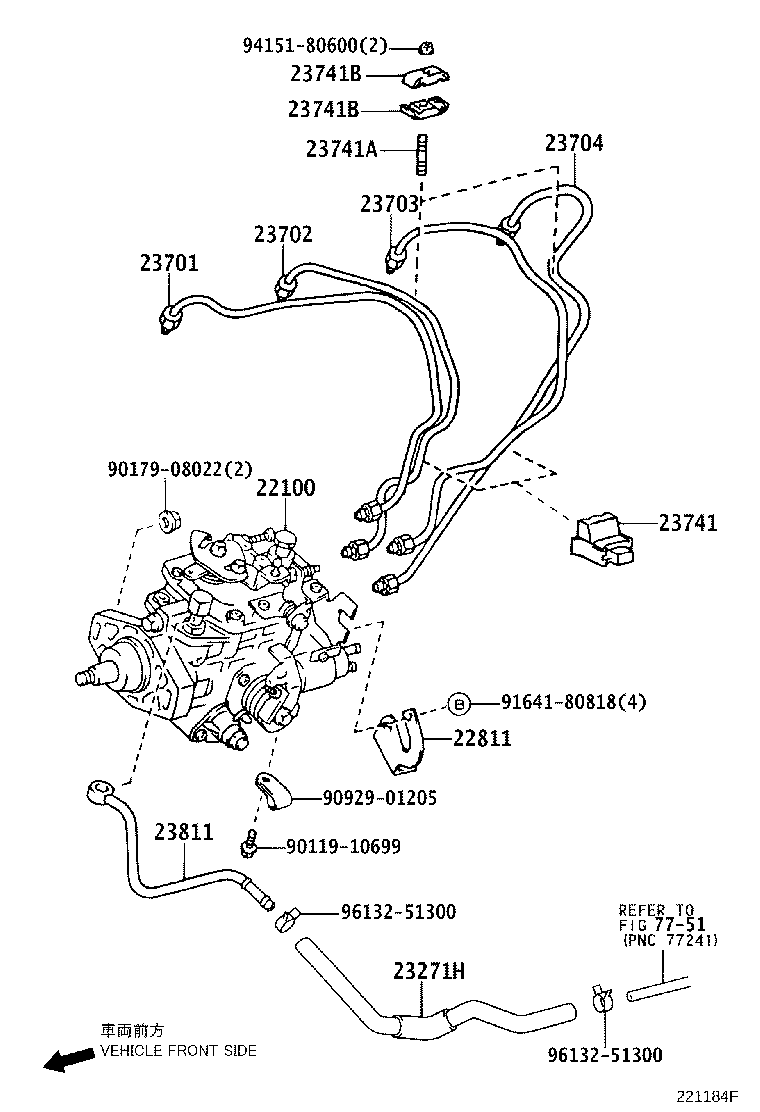

221184F · 12 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
66 parts on this figure
Part number Description Fitment Price
22100 — Pump Assy, Injection OR Supply
22100-30020 Pump Assy, Injection OR Supply
2001-08 → 2002-02 ended
2KDFTV KDY220,230,250,260 —
22100-30021 Pump Assy, Injection OR Supply
2002-02 → 2006-10 ended
2KDFTV KDY220,230,250,260 —
22100-30040 note Pump Assy, Injection OR Supply
2006-09 → 2009-05 ended
1KDFTV KDY221,231,251,261 EUR —
22100-30040 note Pump Assy, Injection OR Supply
2006-09 → 2010-06 ended
1KDFTV KDY221,231 GEN —
22100-30090 note Pump Assy, Injection OR Supply
2010-06 → 2013-10 ended
1KDFTV KDY221,231 GEN —
22100-30090 note Pump Assy, Injection OR Supply
2009-05 → 2011-09 ended
1KDFTV KDY221,231,251,261 EUR —
22100-30160 Pump Assy, Injection OR Supply
2011-09 → 2014-10 ended
1KDFTV KDY221,231,251,261 EUR —
22100-30160 Pump Assy, Injection OR Supply
2013-10 → 2014-10 ended
1KDFTV KDY221,231 GEN —
22100-30161 Pump Assy, Injection OR Supply
2014-11 → —
1KDFTV KDY221,231,251,261 —
22100-5D110 Pump Assy, Injection OR Supply
2001-10 → 2009-11 ended
5L LY230 SA —
22100-5D230 Pump Assy, Injection OR Supply
2001-07 → —
5L LY225,235 ST —
22100-5D250 Pump Assy, Injection OR Supply
2001-07 → 2002-08 ended
5L LY220,230 ARL —
22100-5D320 Pump Assy, Injection OR Supply
2001-07 → 2006-09 ended
5L LY235 WT —
22100-5D340 Pump Assy, Injection OR Supply
2002-08 → 2021-11 ended
5L LY220,230 ARL —
22100-5D340 Pump Assy, Injection OR Supply
2009-11 → 2021-11 ended
5L LY230 —
22811 — Stay, Injection Pump, NO.1
22811-05010 Stay, Injection Pump, NO.1
2001-07 → 2002-08 ended
5L LY220,230 ARL —
22811-05010 Stay, Injection Pump, NO.1
2001-07 → 2002-09 ended
5L LY225,23# GEN,SA —
22811-54042 Stay, Injection Pump, NO.1
2002-09 → —
5L LY220,23# —
22811-54042 Stay, Injection Pump, NO.1
2002-09 → 2016-09 ended
5L LY225 —
23271H — Hose, Fuel, NO.1
23271-30040 Hose, Fuel, NO.1
2001-08 → 2005-07 ended
2KDFTV KDY220,230,250,260 —
23271-30041 Hose, Fuel, NO.1
2005-08 → 2006-10 ended
2KDFTV KDY220,230,250,260 —
23271-30160 Hose, Fuel, NO.1
2006-09 → 2011-07 ended
1KDFTV KDY221,231 GEN —
23271-30161 Hose, Fuel, NO.1
2011-08 → 2013-10 ended
1KDFTV KDY221,231 GEN —
23271-30240 Hose, Fuel, NO.1
2006-09 → 2009-05 ended
1KDFTV KDY221,231,251,261 EUR —
23271-30280 Hose, Fuel, NO.1
2009-05 → 2011-09 ended
1KDFTV KDY221,231,251,261 EUR —
23271-30310 Hose, Fuel, NO.1
2011-09 → —
1KDFTV KDY221,231,251,261 EUR —
23271-30310 Hose, Fuel, NO.1
2013-10 → —
1KDFTV KDY221,231 GEN —
23271-54190 Hose, Fuel, NO.1
2001-07 → 2011-07 ended
5L LY22#,23# —
23271-54191 Hose, Fuel, NO.1
2011-08 → 2021-11 ended
5L LY225,23# —
23701 — Pipe Sub-assy, Injection, NO.1
23701-30020 Pipe Sub-assy, Injection, NO.1
2001-08 → 2006-10 ended
2KDFTV KDY220,230,250,260 —
23701-30070 Pipe Sub-assy, Injection, NO.1
2006-09 → 2011-09 ended
1KDFTV KDY221,231,251,261 EUR —
23701-30070 Pipe Sub-assy, Injection, NO.1
2006-09 → 2013-10 ended
1KDFTV KDY221,231 GEN —
23701-30080 Pipe Sub-assy, Injection, NO.1
2011-09 → 2013-04 ended
1KDFTV KDY221,231,251,261 EUR —
23701-30081 Pipe Sub-assy, Injection, NO.1
2013-04 → —
1KDFTV KDY221,231,251,261 EUR —
23701-30081 Pipe Sub-assy, Injection, NO.1
2013-10 → —
1KDFTV KDY221,231 GEN —
23701-54140 Pipe Sub-assy, Injection, NO.1
2001-07 → 2021-11 ended
5L LY22#,23# —
23702 — Pipe Sub-assy, Injection, NO.2
23702-30020 Pipe Sub-assy, Injection, NO.2
2001-08 → 2006-10 ended
2KDFTV KDY220,230,250,260 —
23702-30070 Pipe Sub-assy, Injection, NO.2
2006-09 → 2011-09 ended
1KDFTV KDY221,231,251,261 EUR —
23702-30070 Pipe Sub-assy, Injection, NO.2
2006-09 → 2013-10 ended
1KDFTV KDY221,231 GEN —
23702-30080 Pipe Sub-assy, Injection, NO.2
2011-09 → 2013-04 ended
1KDFTV KDY221,231,251,261 EUR —
23702-30081 Pipe Sub-assy, Injection, NO.2
2013-04 → —
1KDFTV KDY221,231,251,261 EUR —
23702-30081 Pipe Sub-assy, Injection, NO.2
2013-10 → —
1KDFTV KDY221,231 GEN —
23702-54140 Pipe Sub-assy, Injection, NO.2
2001-07 → 2021-11 ended
5L LY22#,23# —
23703 — Pipe Sub-assy, Injection, NO.3
23703-30020 Pipe Sub-assy, Injection, NO.3
2001-08 → 2006-10 ended
2KDFTV KDY220,230,250,260 —
23703-30070 Pipe Sub-assy, Injection, NO.3
2006-09 → 2011-09 ended
1KDFTV KDY221,231,251,261 EUR —
23703-30070 Pipe Sub-assy, Injection, NO.3
2006-09 → 2013-10 ended
1KDFTV KDY221,231 GEN —
23703-30080 Pipe Sub-assy, Injection, NO.3
2011-09 → 2013-04 ended
1KDFTV KDY221,231,251,261 EUR —
23703-30081 Pipe Sub-assy, Injection, NO.3
2013-04 → —
1KDFTV KDY221,231,251,261 EUR —
23703-30081 Pipe Sub-assy, Injection, NO.3
2013-10 → —
1KDFTV KDY221,231 GEN —
23703-54100 Pipe Sub-assy, Injection, NO.3
2001-07 → 2021-11 ended
5L LY22#,23# —
23704 — Pipe Sub-assy, Injection, NO.4
23704-30070 Pipe Sub-assy, Injection, NO.4
2006-09 → 2011-09 ended
1KDFTV KDY221,231,251,261 EUR —
23704-30070 Pipe Sub-assy, Injection, NO.4
2006-09 → 2013-10 ended
1KDFTV KDY221,231 GEN —
23704-30080 Pipe Sub-assy, Injection, NO.4
2011-09 → 2013-04 ended
1KDFTV KDY221,231,251,261 EUR —
23704-30081 Pipe Sub-assy, Injection, NO.4
2013-04 → —
1KDFTV KDY221,231,251,261 EUR —
23704-30081 Pipe Sub-assy, Injection, NO.4
2013-10 → —
1KDFTV KDY221,231 GEN —
23704-39025 Pipe Sub-assy, Injection, NO.4
2001-08 → 2006-10 ended
2KDFTV KDY220,230,250,260 —
23704-54100 Pipe Sub-assy, Injection, NO.4
2001-07 → 2021-11 ended
5L LY22#,23# —
23741 — Clamp, Injection Pipe, NO.1
23741-30010 Clamp, Injection Pipe, NO.1
2001-08 → 2011-09 ended
1KDFTV KDY221,231,251,261 EUR —
23741-30010 Clamp, Injection Pipe, NO.1
2001-08 → 2013-10 ended
1KDFTV KDY221,231 GEN;2KDFTV KDY220,230,250,260 —
23741-54030 Clamp, Injection Pipe, NO.1
2001-07 → 2021-11 ended
5L LY22#,23# —
23741A — Bolt, Stud(FOR INJECTION PIPE CLAMP)
90116-06095 Bolt, Stud(FOR INJECTION PIPE CLAMP)
2001-07 → 2021-11 ended
5L LY230 SA —
90116-06095 Bolt, Stud(FOR INJECTION PIPE CLAMP)
2001-07 → —
5L LY22#,23# ARL,GEN —
23741B — Clamp, Injection Pipe
23741-30010 Clamp, Injection Pipe
2011-09 → —
1KDFTV KDY221,231,251,261 EUR —
23741-30010 Clamp, Injection Pipe
2013-10 → —
1KDFTV KDY221,231 GEN —
23741-56010 Clamp, Injection Pipe
2001-07 → 2021-11 ended
5L LY22#,23# —
23811 — Pipe, Fuel(FOR FUEL FILTER TO INJECTION PUMP)
23811-54160 Pipe, Fuel(FOR FUEL FILTER TO INJECTION PUMP)
2001-07 → 2021-11 ended
5L LY22#,23# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
