Toyota Dyna

2001-07 → 2021-11 · chassis KDY22#,23#,25#,26#,LY2## · catalogue 731270 · Europe

Discontinued model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 14 illustrations

Illustrations

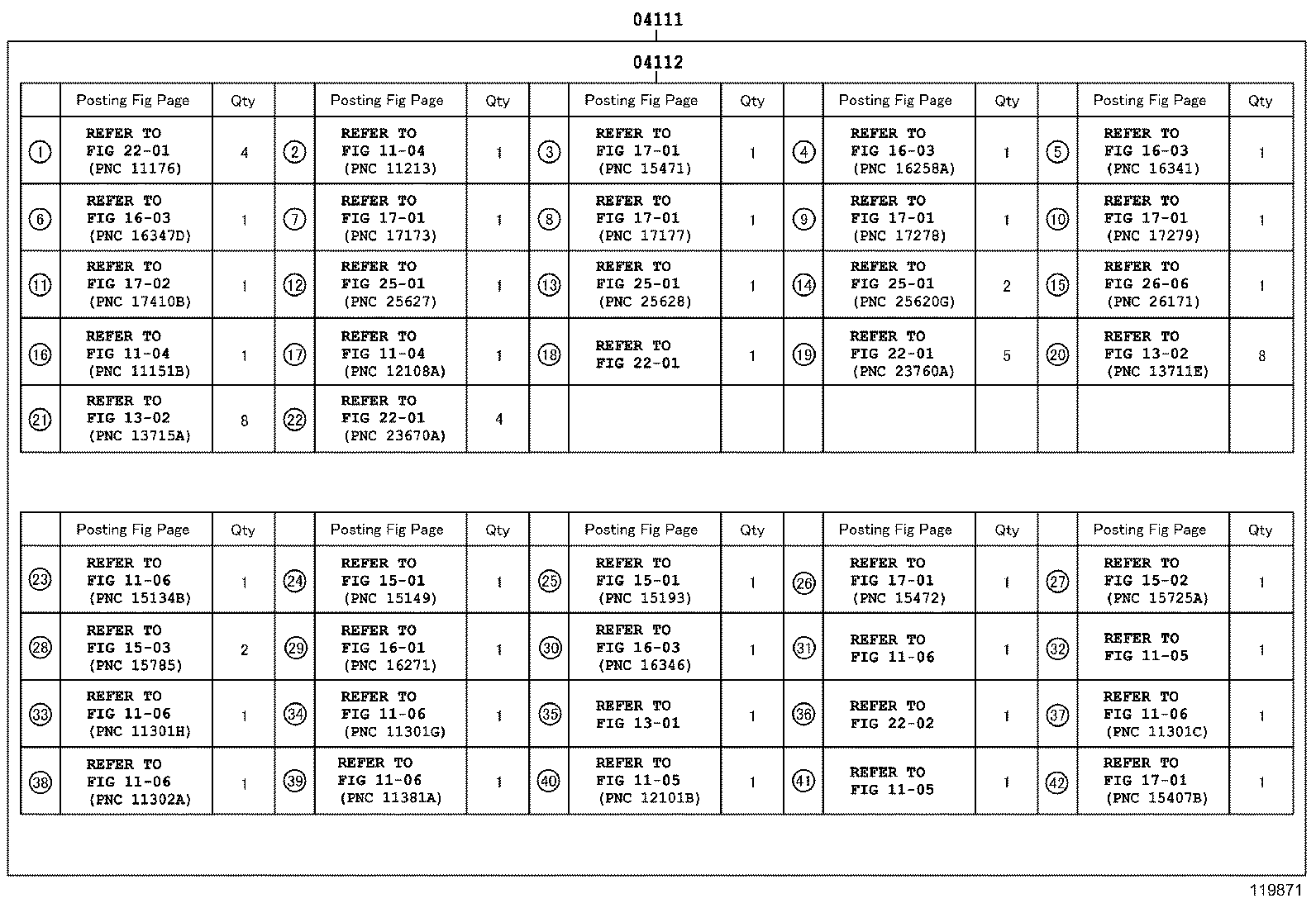

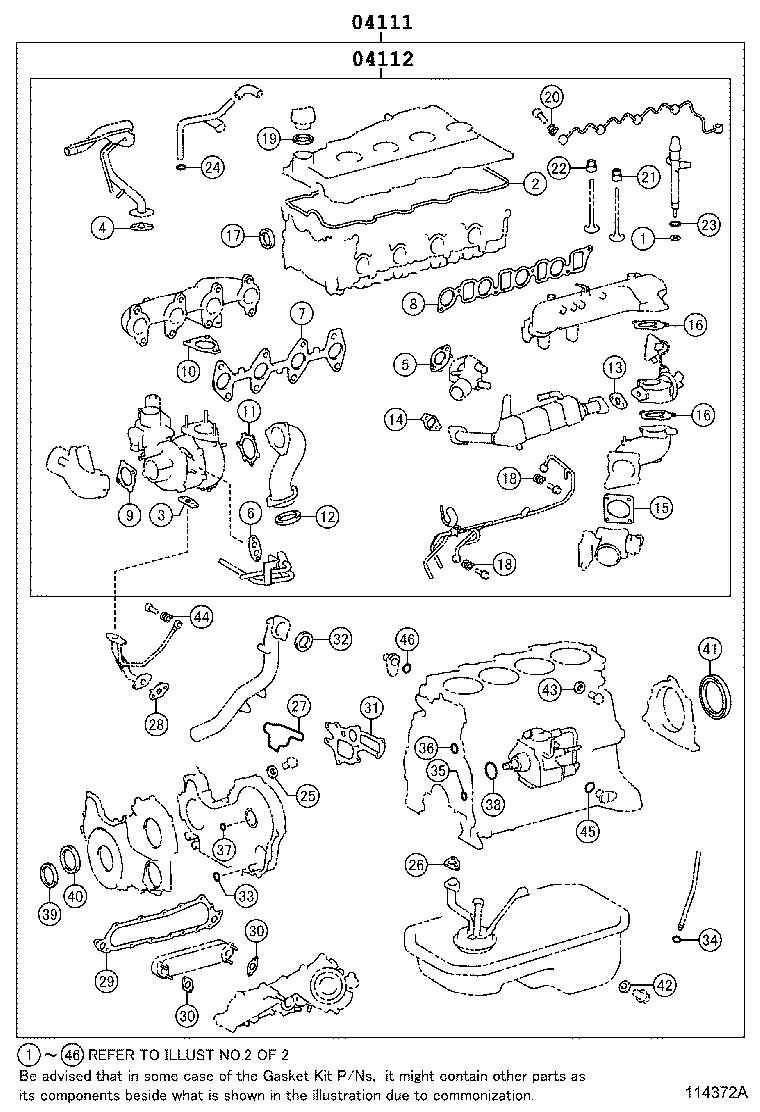

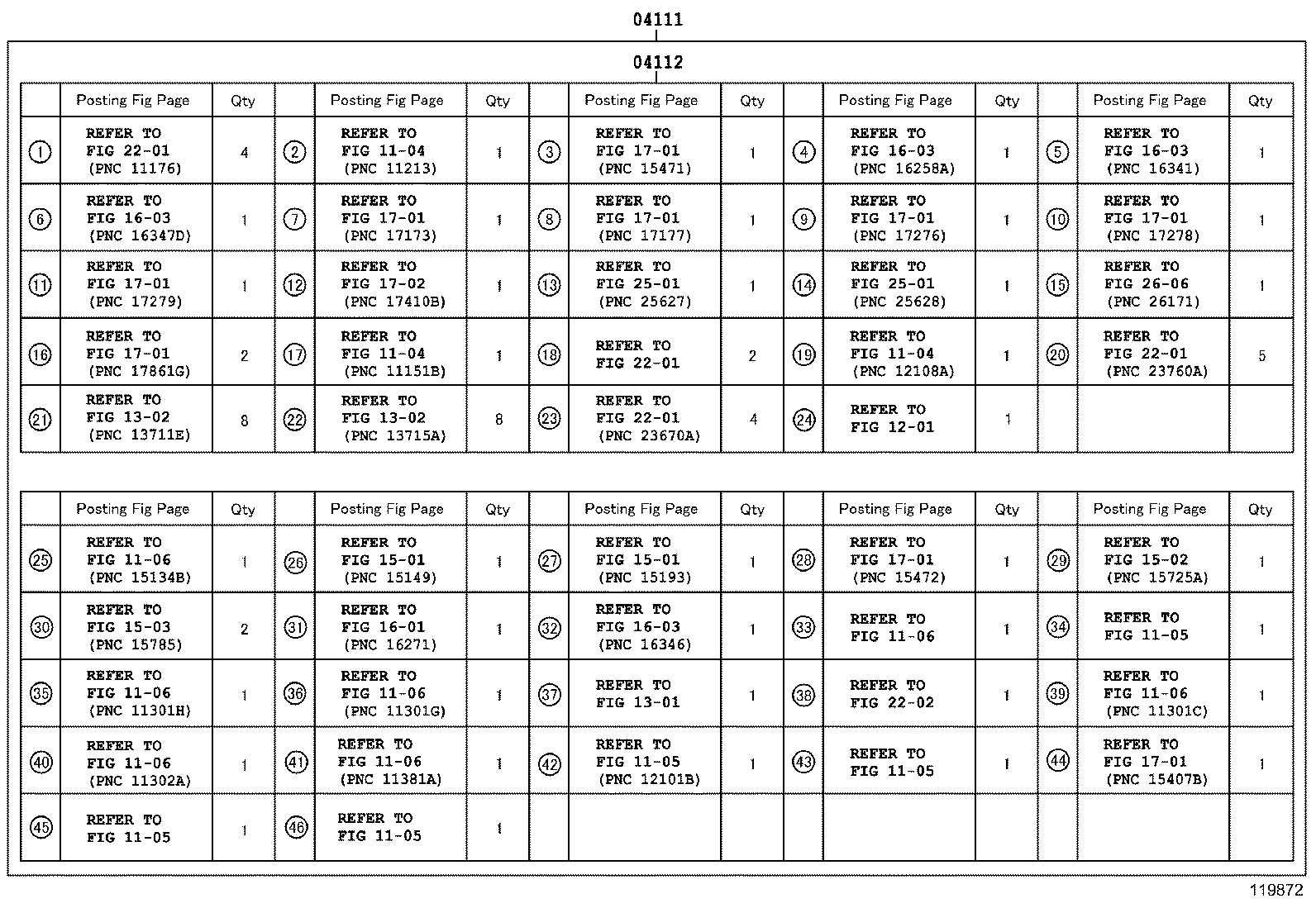

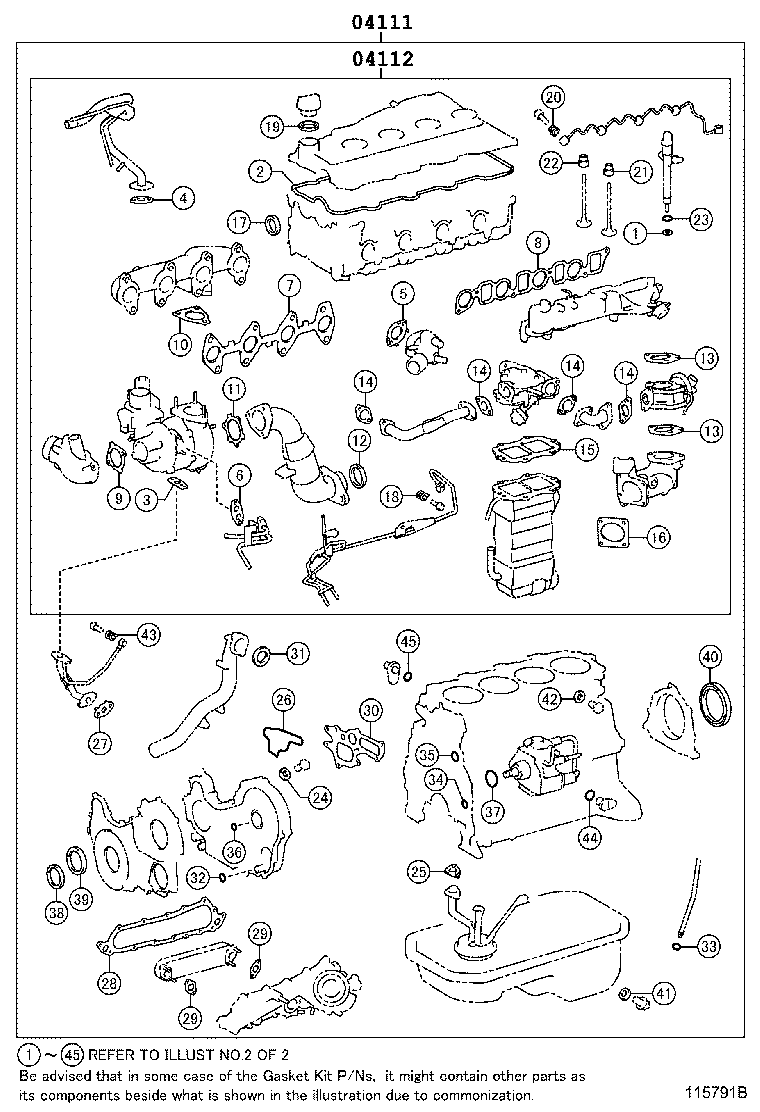

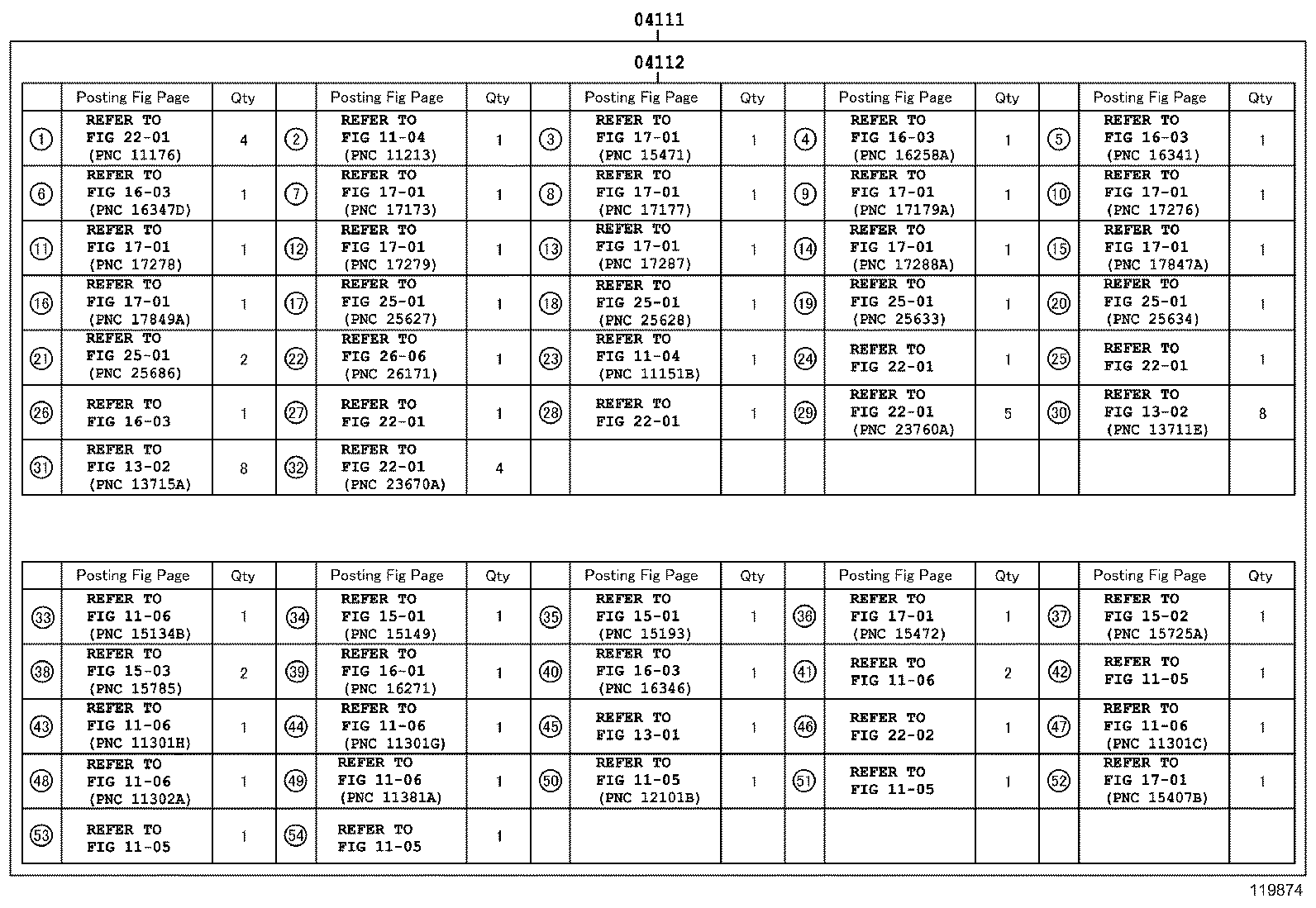

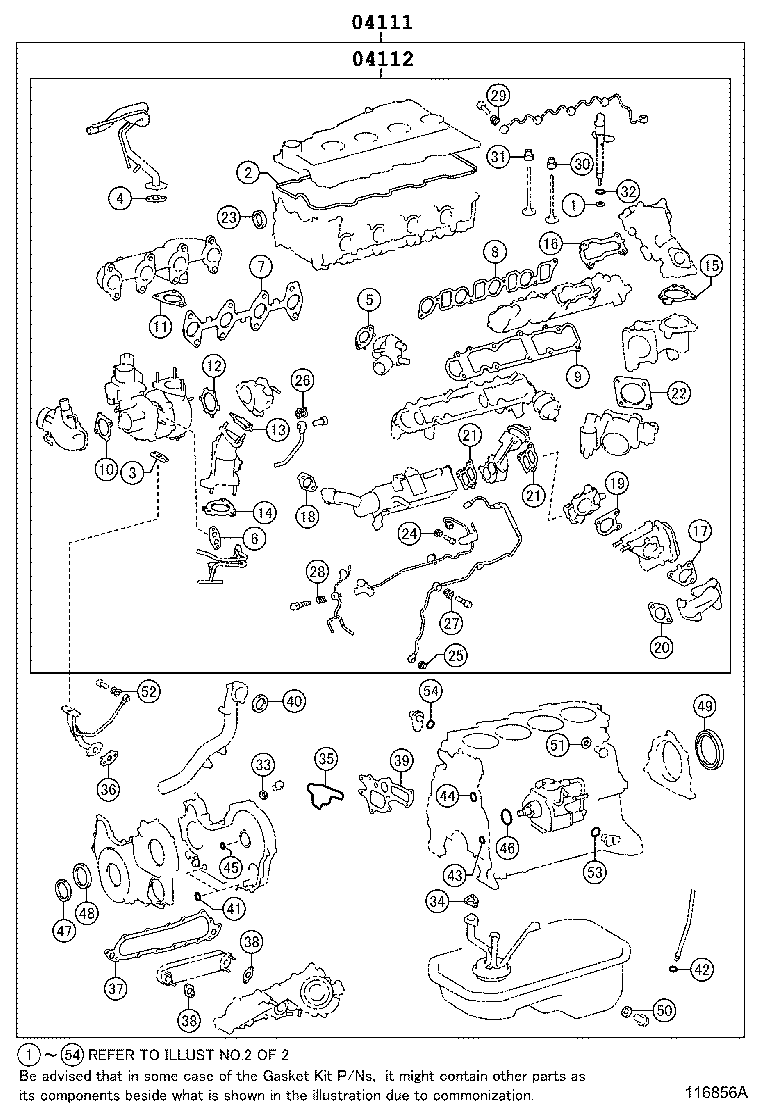

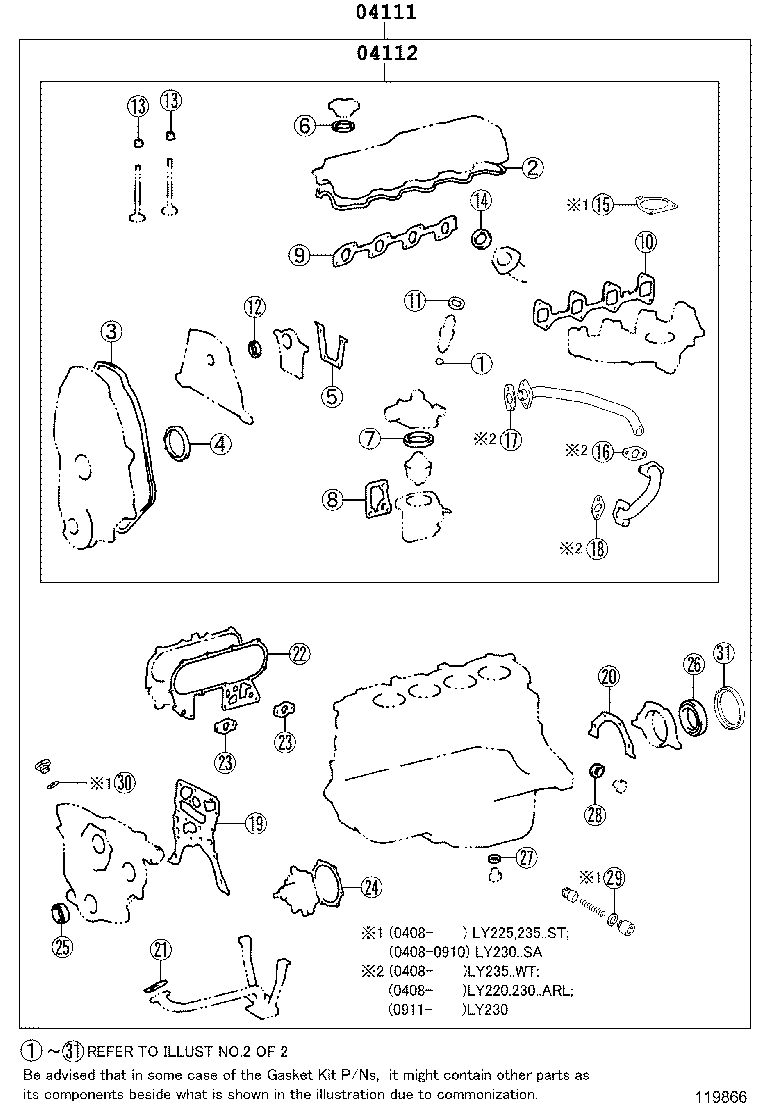

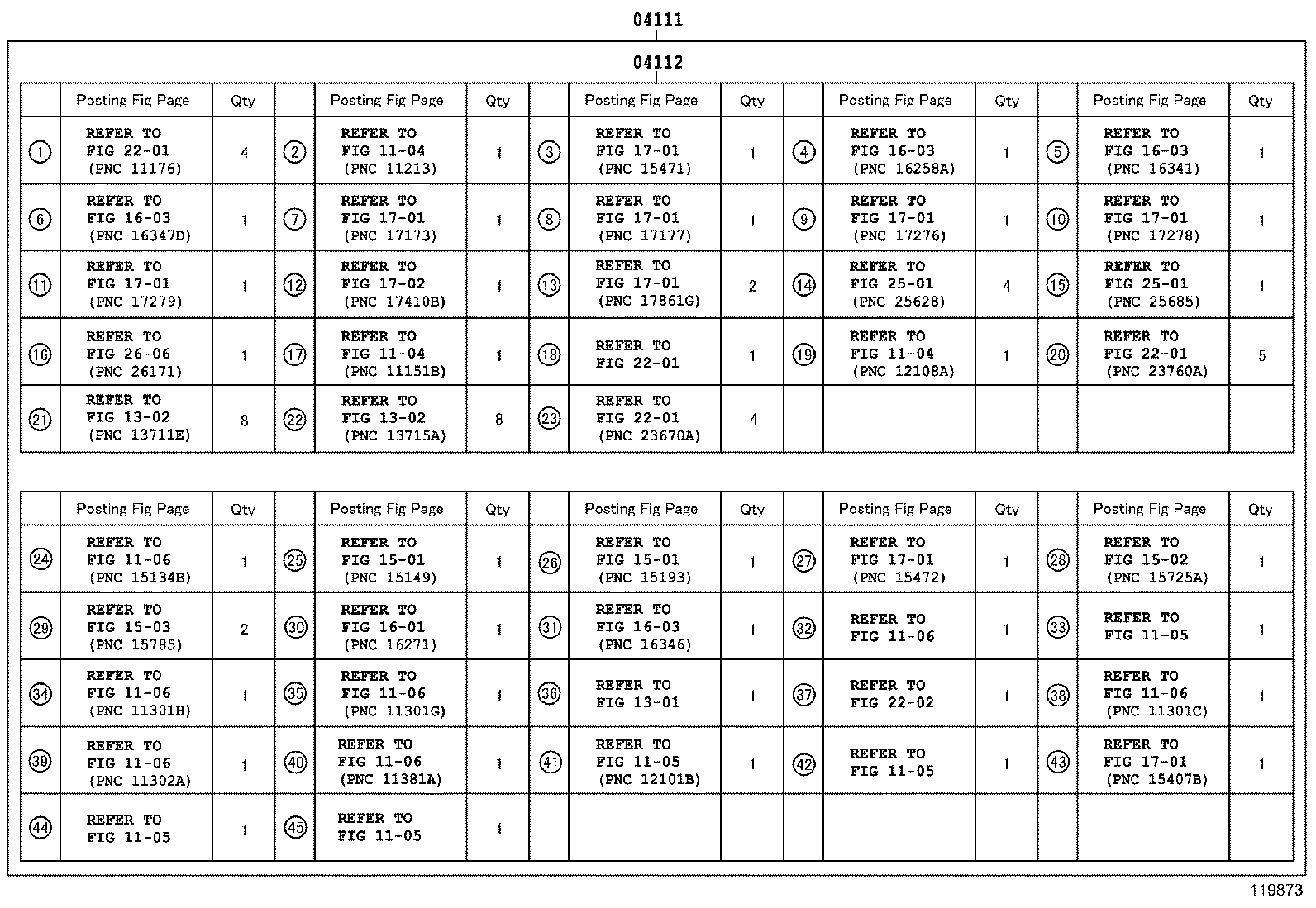

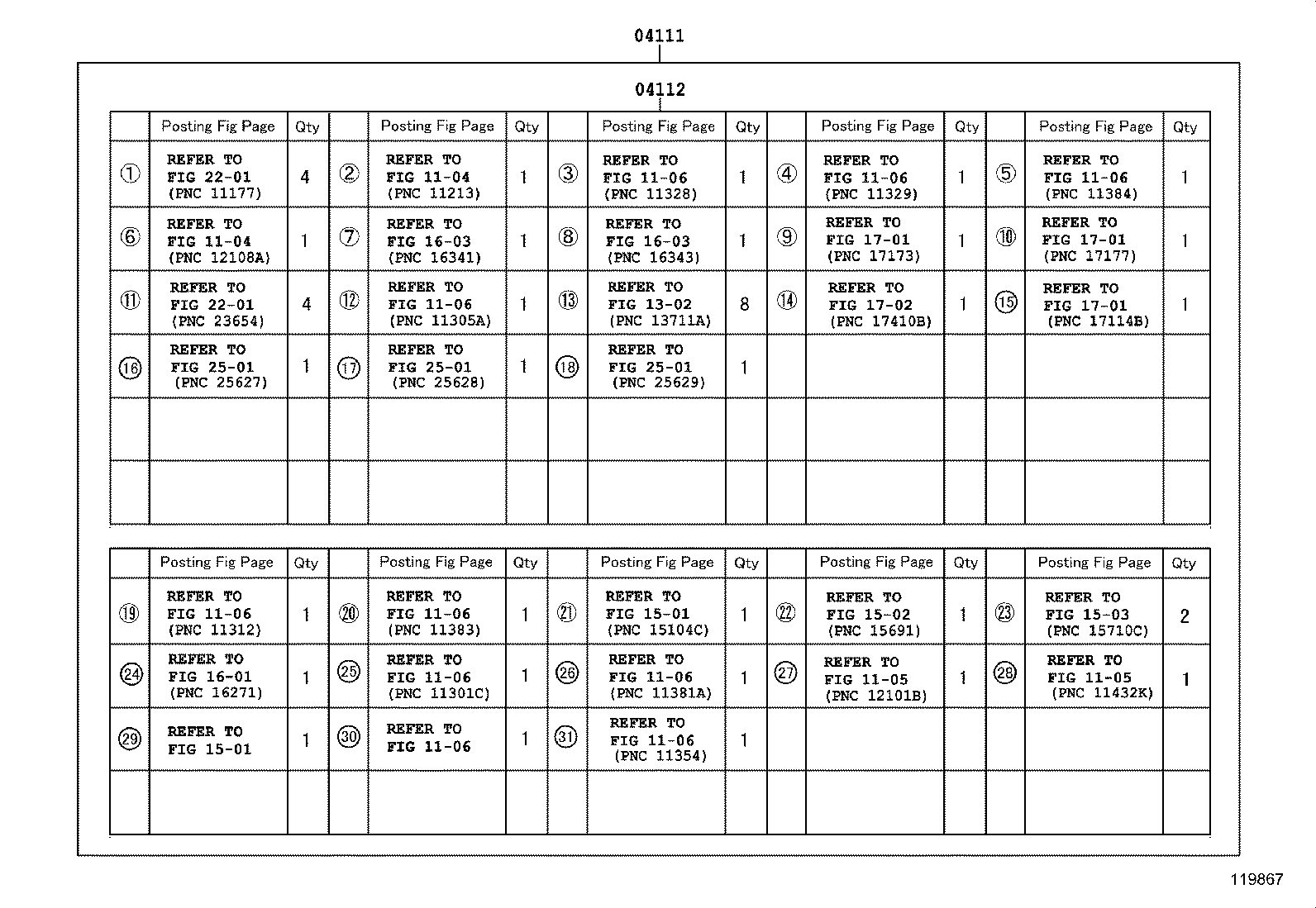

Figure 112136A 112136A 2001-08 → 2006-10 Figure 119871 119871 2001-08 → 2006-10 Figure 114372A 114372A 2006-09 → 2009-05 Figure 114372A 114372A 2009-05 → 2013-10 Figure 119872 119872 2006-09 → 2009-05 Figure 119872 119872 2009-05 → 2013-10 Figure 115791B 115791B 2009-05 → 2011-09 Figure 119873 119873 2009-05 → 2011-09 Figure 116856A 116856A 2011-09 → — Figure 116856A 116856A 2013-10 → — Figure 119874 119874 2011-09 → — Figure 119874 119874 2013-10 → — Figure 119866 119866 2001-07 → — Figure 119867 119867 2001-07 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
