Toyota Dyna
2001-07 → 2021-11 · chassis KDY22#,23#,25#,26#,LY2## · catalogue 731270 · Europe
Discontinued model
Data version 2022-11
Cylinder Block

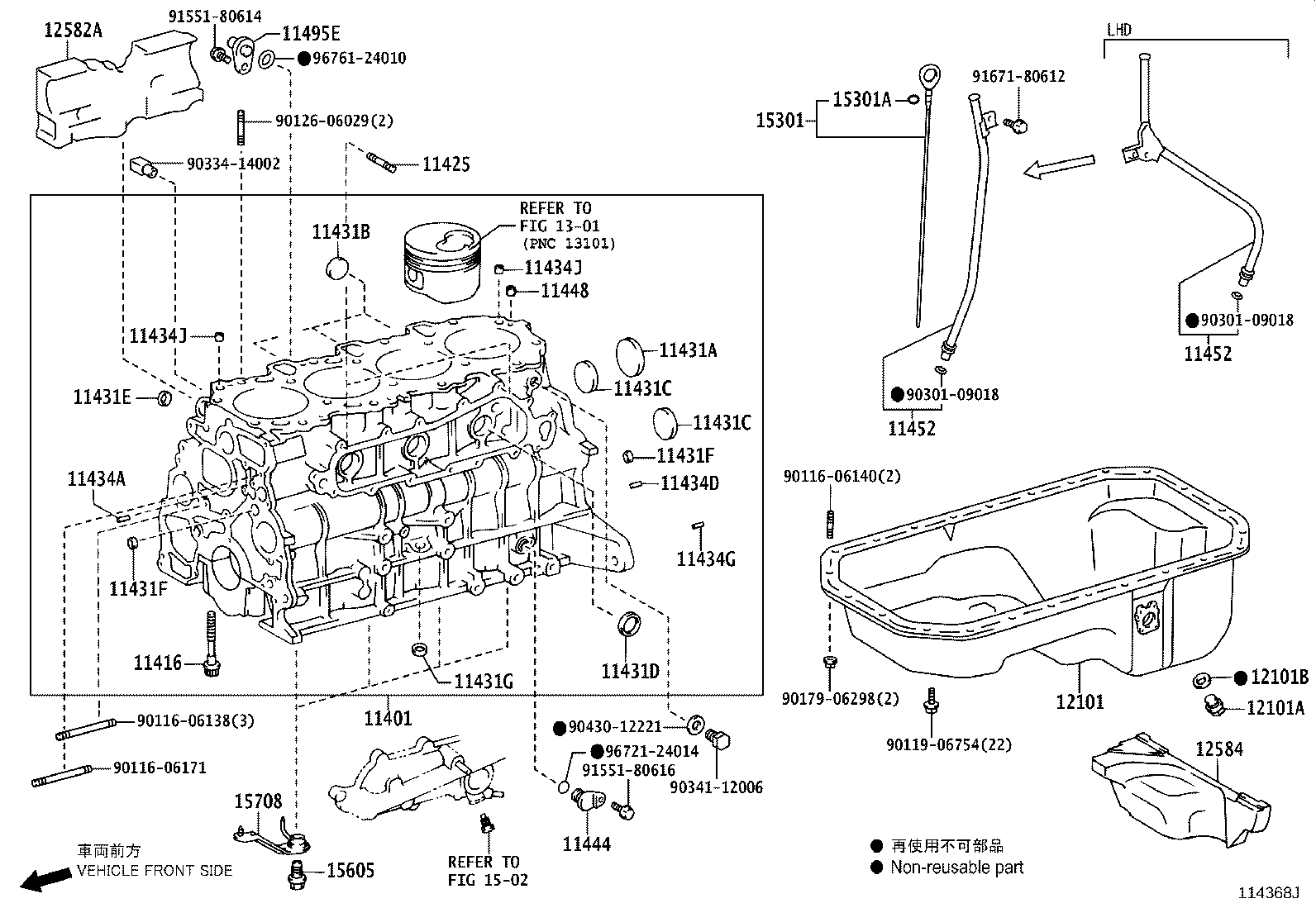

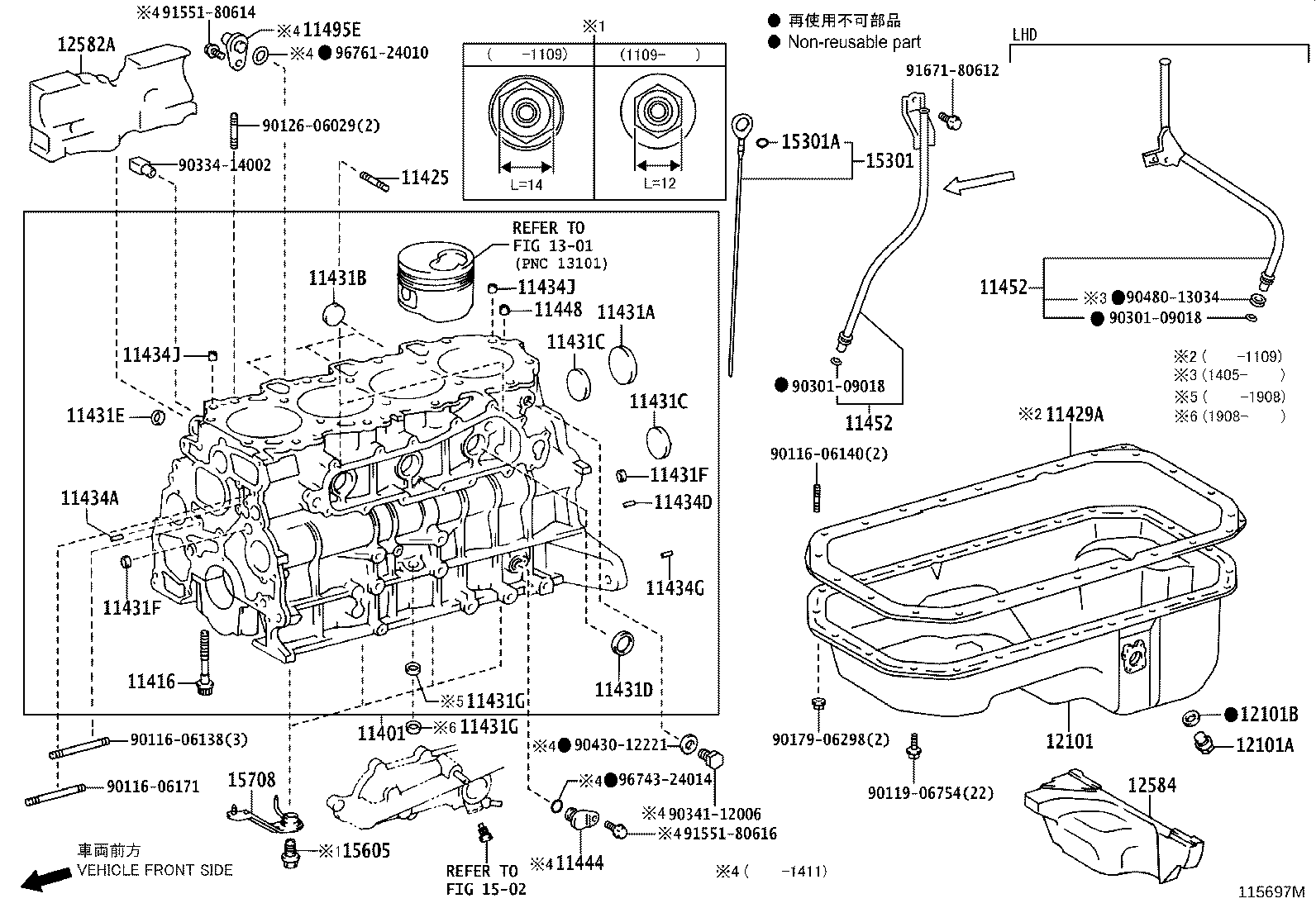

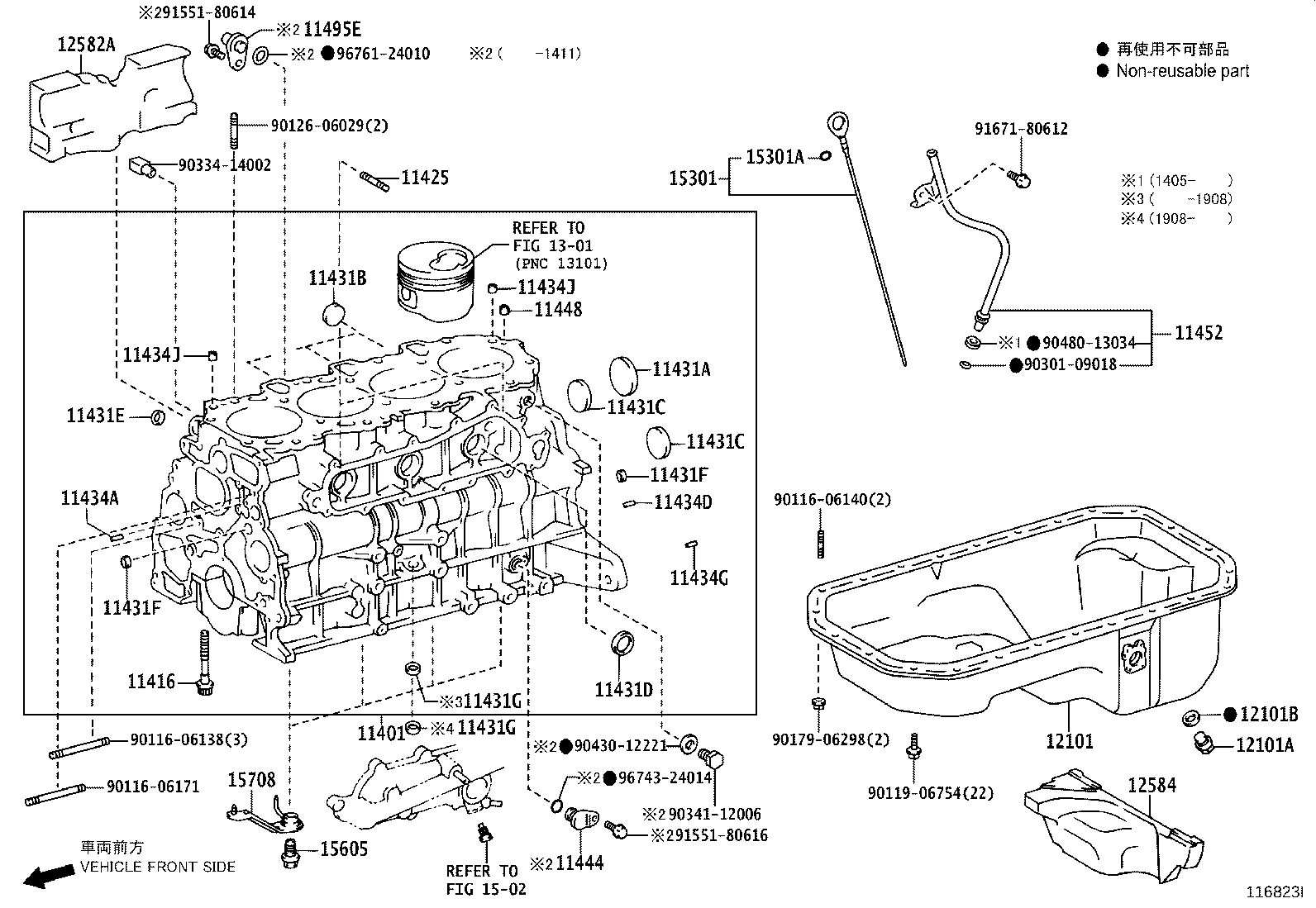

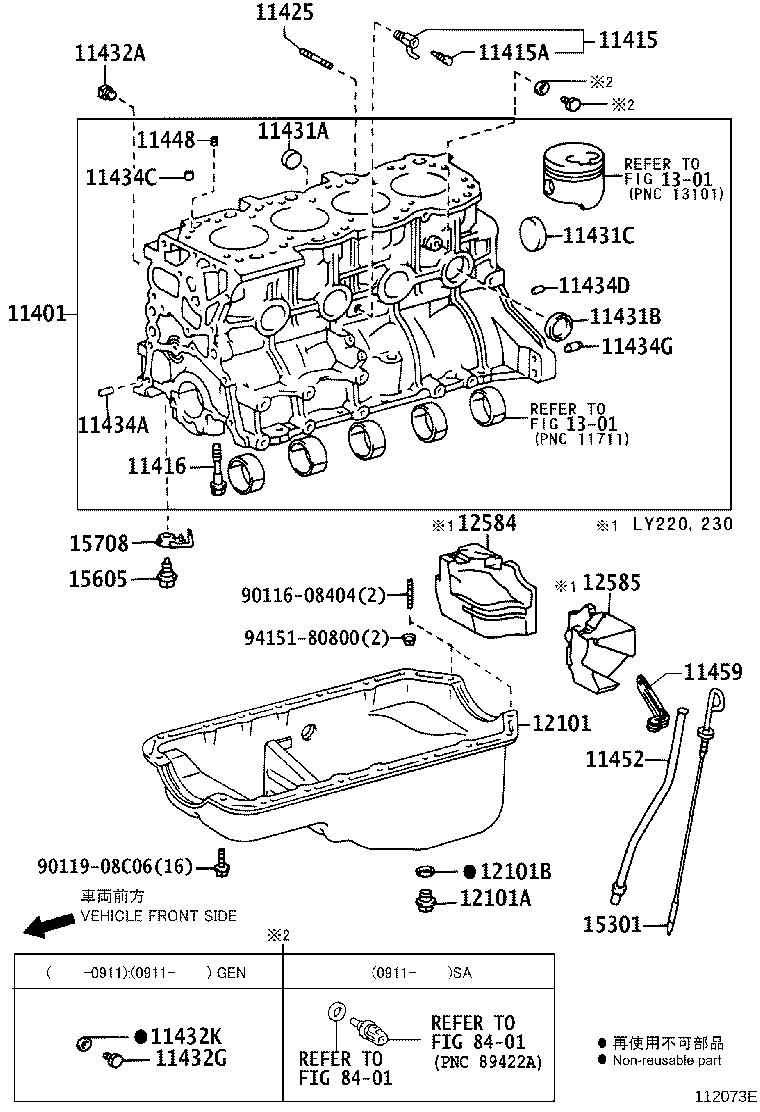

36 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|
| 11401 | Block Sub-assy, Cylinder |
| 11415 | Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK) |
| 11415A | Plug, Water Drain Cock(FOR CYLINDER BLOCK) |
| 11416 | Bolt(FOR CRANKSHAFT BEARING CAP SET) |
| 11425 | Bolt, Stud(FOR OIL FILTER) |
| 11429A | Plate, Cylinder Block Stiffening |
| 11431A | Plug, Tight, NO.1(FOR CYLINDER BLOCK) |
| 11431B | Plug, Tight, NO.2(FOR CYLINDER BLOCK) |
| 11431C | Plug, Tight, NO.3(FOR CYLINDER BLOCK) |
| 11431D | Plug, Tight, NO.4(FOR CYLINDER BLOCK) |
| 11431E | Plug, Tight, NO.5(FOR CYLINDER BLOCK) |
| 11431F | Plug, Tight, NO.6(FOR CYLINDER BLOCK) |
| 11431G | Plug, Tight |
| 11432A | Plug, W/Head Taper Screw, NO.1 |
| 11432G | Plug, W/Head Straight Screw, NO.5 |
| 11432K | Gasket, W/Head Straight Screw Plug |
| 11434A | Pin, Straight(FOR TIMING GEAR COVER SET) |
| 11434C | Pin, Straight (FOR CYLINDER HEAD SET) |
| 11434D | Pin, Straight(FOR ENGINE REAR OIL SEAL) |
| 11434G | Pin, Straight(FOR END PLATE) |
| 11434J | Pin, Ring (FOR CYLINDER HEAD SET) |
| 11444 | Plug, Hole |
| 11448 | Orifice, Cylinder Block Oil |
| 11452 | Guide, Oil Level Gage |
| 11459 | Support, Oil Level Gage Guide |
| 11495E | Plug, Plate |
| 12101 | Pan Sub-assy, Oil |
| 12101A | Plug(FOR OIL PAN DRAIN) |
| 12101B | Gasket(FOR OIL PAN DRAIN PLUG) |
| 12582A | Insulator, Cylinder Block, NO.2 |
| 12584 | Insulator, Cylinder Brock, NO.4 |
| 12585 | Insulator, Cylinder Brock, NO.5 |
| 15301 | Gage Sub-assy, Oil Level |
| 15301A | Ring, O(FOR OIL LEVEL GAGE) |
| 15605 | Valve Sub-assy, Oil Check |
| 15708 | Nozzle Sub-assy, Oil, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
