Toyota Dyna

2001-07 → 2021-11 · chassis KDY22#,23#,25#,26#,LY2## · catalogue 731270 · Europe

Discontinued model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

42 part groups · 7 illustrations

Illustrations

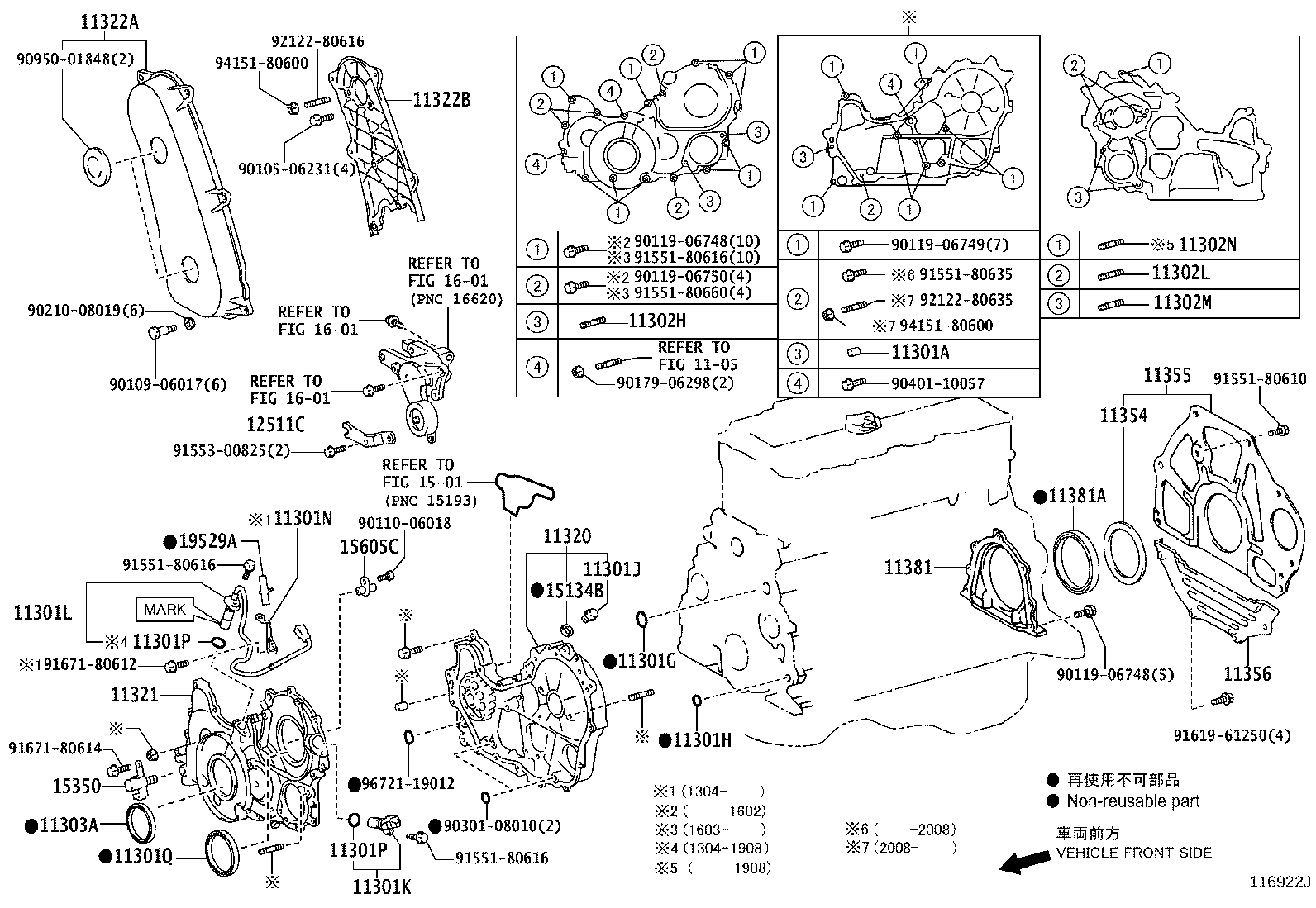

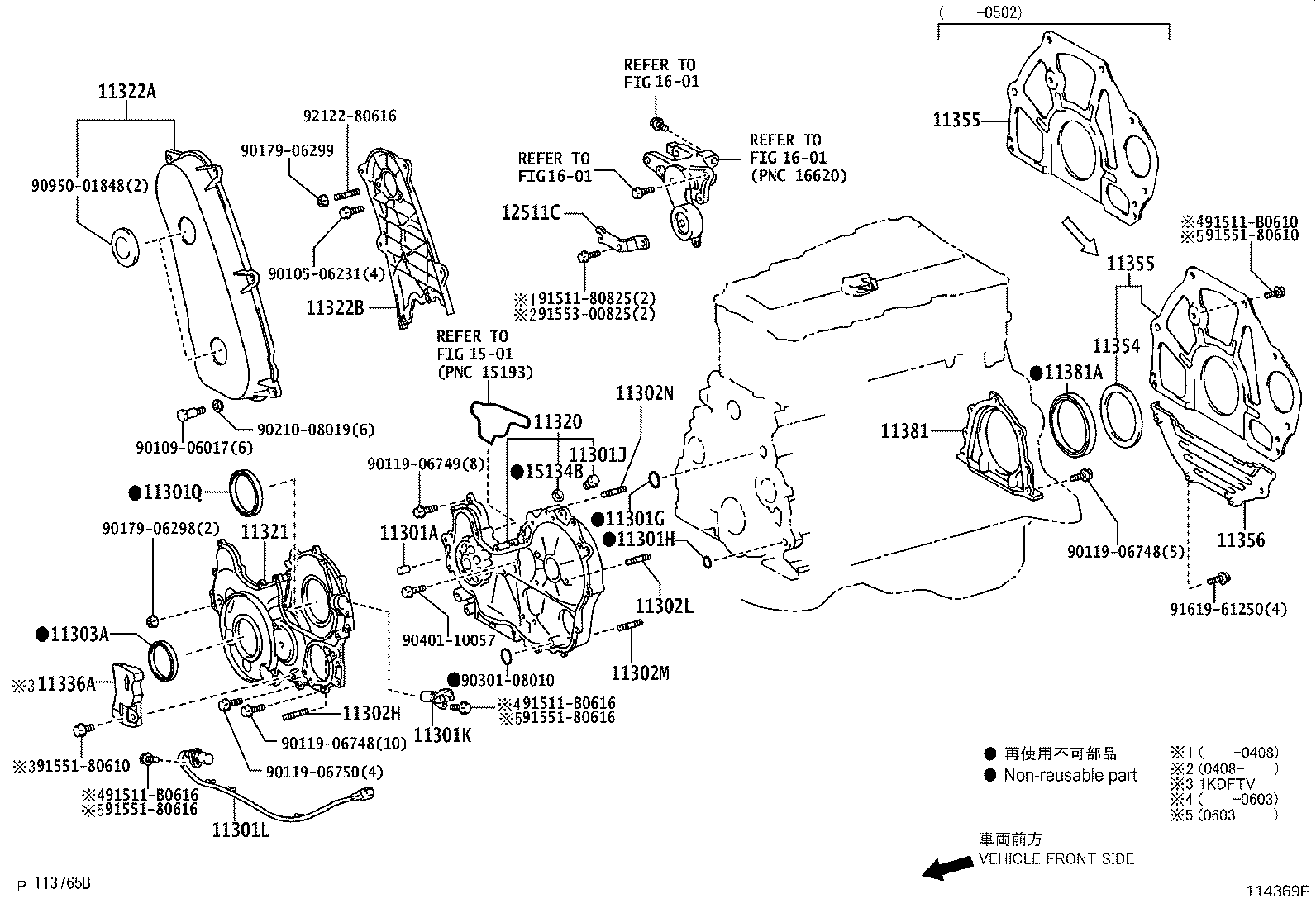

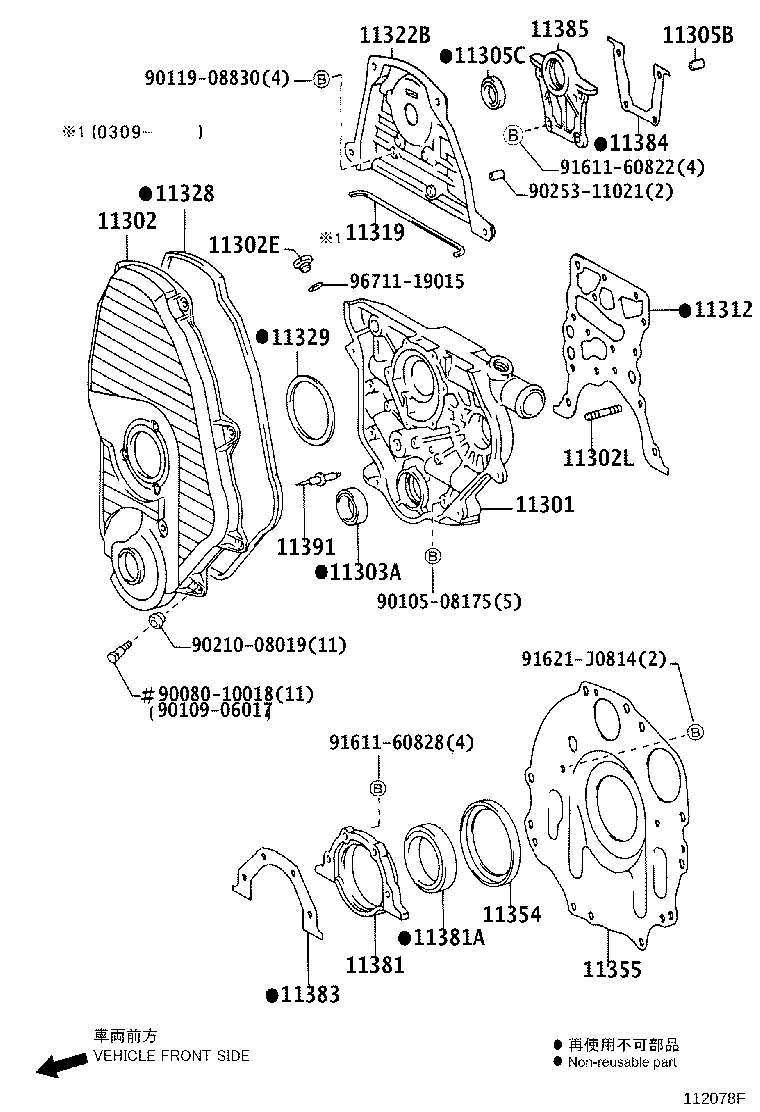

Figure 112173H 112173H 2001-08 → 2004-06 Figure 114369F 114369F 2004-06 → 2006-10 Figure 114369F 114369F 2006-09 → 2011-09 Figure 114369F 114369F 2011-09 → 2013-10 Figure 116922J 116922J 2011-09 → — Figure 116922J 116922J 2013-10 → — Figure 112078F 112078F 2001-07 → —

Part groups

PNCDescription
11301 Case Sub-assy, Timing Gear
11301A Pin, Straight(FOR TIMING GEAR CASE)
11301G Ring, O(FOR TIMING GEAR CASE, UPPER)
11301H Ring, O(FOR TIMING GEAR CASE, LOWER)
11301J Plug, W/Head Straight Screw(FOR TIMING GEAR CASE)
11301K Sensor, Crank Position
11301L Sensor, Crank Position NO.2
11301N Clamp
11301P O Ring, Crank Position Sensor
11301Q Seal, Type T Oil(FOR INJECTION PUMP)
11302 Cover Sub-assy, Timing Chain OR Belt
11302E Plug, Straight(FOR TIMING GEAR COVER)
11302H Bolt, Stud(FOR TIMING GEAR COVER)
11302L Bolt, Stud(FOR INJECTION PUMP)
11302M Bolt, Stud(FOR POWER STEERING VANE PUMP)
11302N Bolt, Stud(FOR VACUUM TRANSMITTING PIPE)
11303A Seal, Oil(FOR CRANKSHAFT FRONT)
11305B Pin, Ring(FOR OIL SEAL RETAINER, NO.2)
11305C Seal, Oil(FOR CAMSHAFT)
11312 Gasket, Front End Plate
11319 Gasket, Timing Belt Cover, NO.3
11320 Case Assy, Timing Gear
11321 Case, Timing Gear
11322A Cover, Timing Belt, NO.1
11322B Cover, Timing Belt, NO.2
11328 Gasket, Timing Gear OR Chain Cover
11329 Gasket, Timing Gear Rear Cover
11336A Insulator, Timing Gear Cover
11354 Seal, Flywheel Housing Dust
11355 Plate, Rear End
11356 Plate, Rear End, NO.2
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
11383 Gasket, Engine Rear Oil Seal Retainer
11384 Gasket, Oil Seal Retainer, NO.2
11385 Retainer, Camshaft Oil Seal
11391 Pointer, Timing
12511C Bracket, Alternator
15134B Gasket, Oil Pump Relief Valve
15350 Valve Assy, Oil Pressure Switching
15605C Valve Sub-assy, Oil Check
19529A Clamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
