Toyota Dyna

2001-07 → 2021-11 · chassis KDY22#,23#,25#,26#,LY2## · catalogue 731270 · Europe

Discontinued model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Filter

14 part groups · 8 illustrations

Illustrations

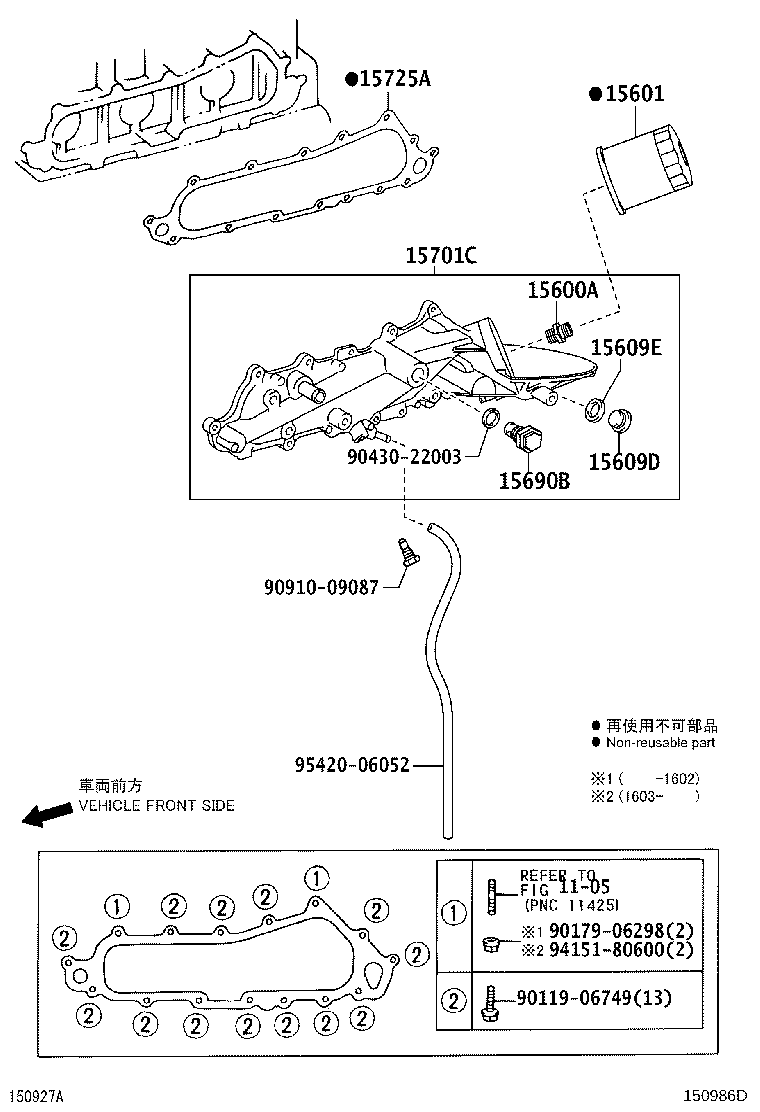

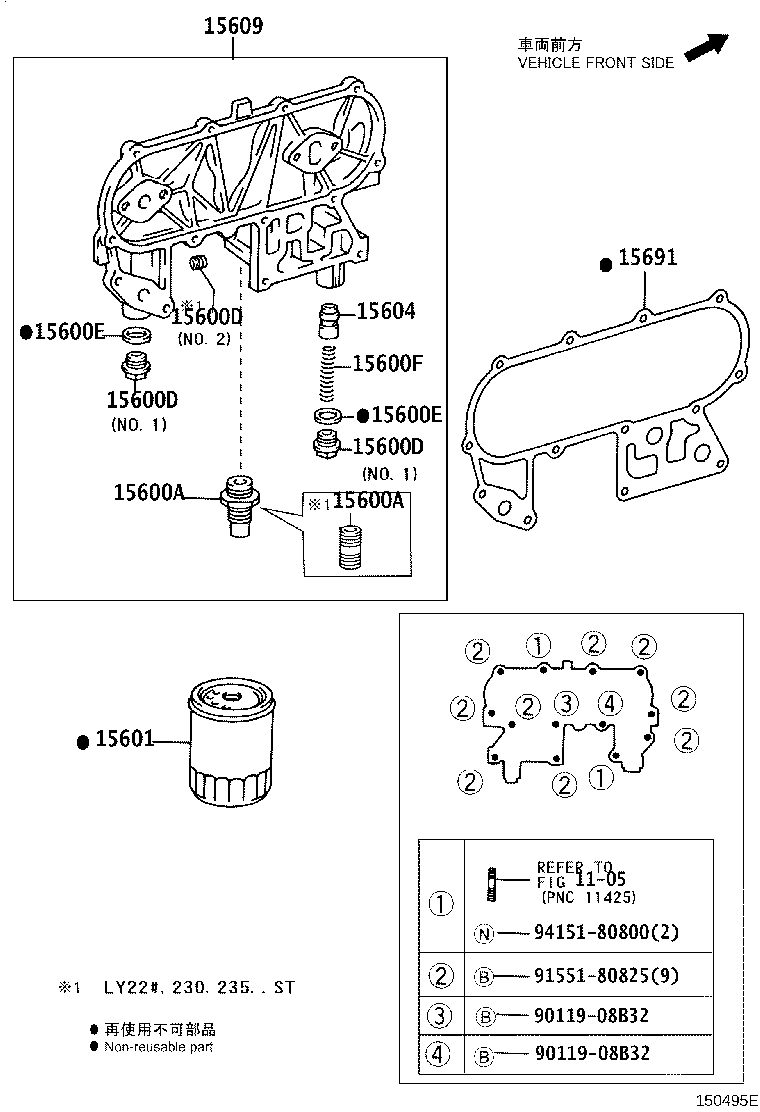

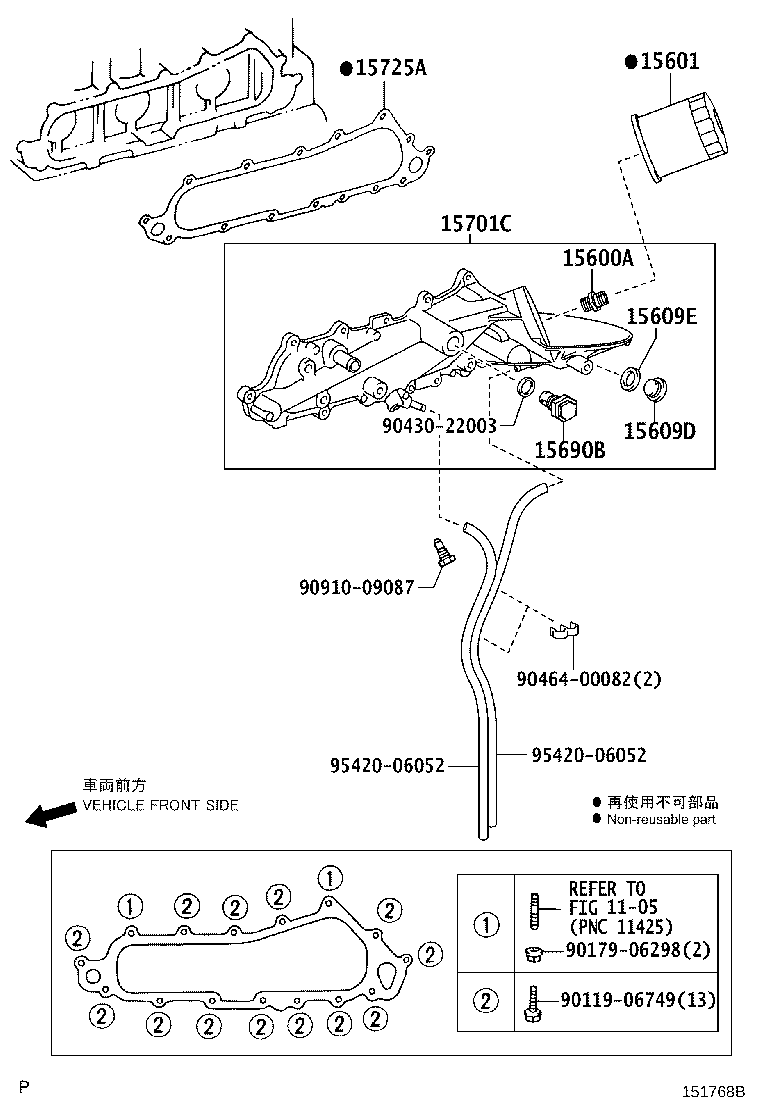

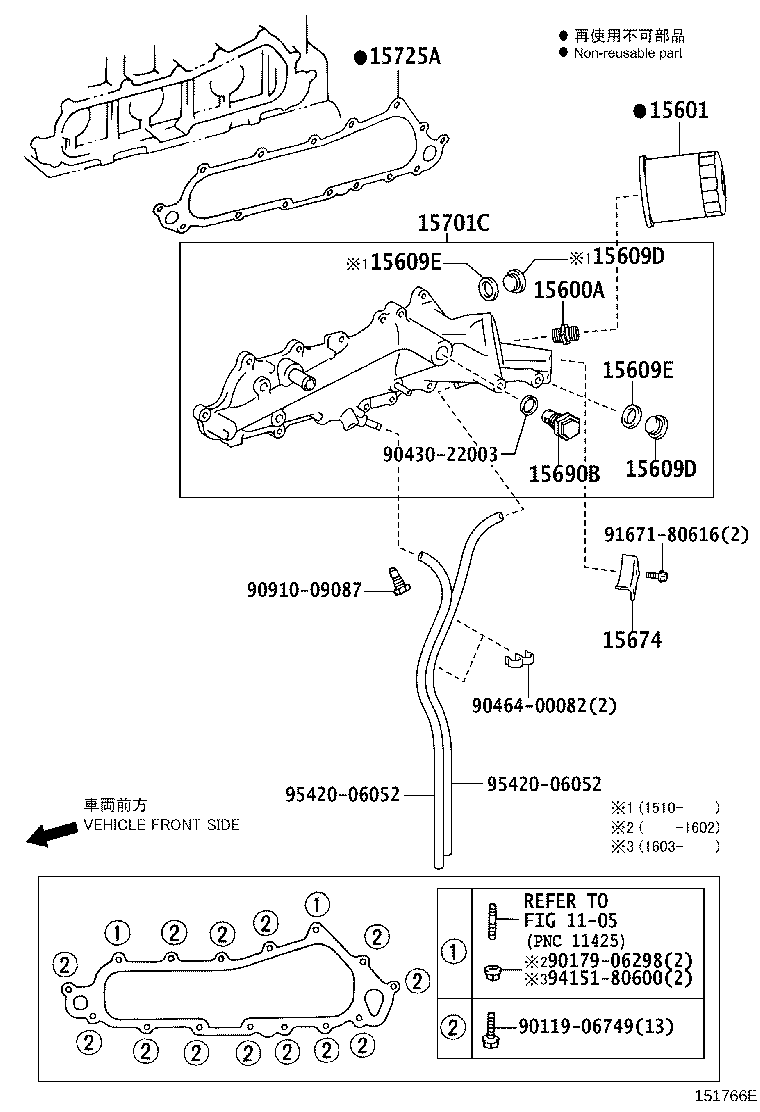

Figure 150537D 150537D 2001-08 → 2004-05 Figure 150986D 150986D 2004-05 → 2006-10 Figure 150986D 150986D 2006-09 → 2009-05 Figure 150986D 150986D 2009-05 → 2013-10 Figure 151768B 151768B 2009-05 → 2011-09 Figure 151766E 151766E 2011-09 → — Figure 151766E 151766E 2013-10 → — Figure 150495E 150495E 2001-07 → —

Part groups

PNCDescription
15600A Union(FOR OIL FILTER)
15600D Plug(FOR OIL FILTER)
15600E Washer(FOR OIL FILTER)
15600F Spring, Compression(FOR OIL FILTER)
15601 Filter Sub-assy, Oil
15604 Valve Sub-assy, Oil Safety
15609 Bracket Sub-assy, Oil Filter
15609D Plug, W/Head Straight Screw(FOR OIL FILTER BRACKET)
15609E Gasket, W/Head Straight Screw Plug
15674 Receiver, Oil Filter
15690B Valve Assy, Oil Cooler Relief
15691 Gasket, Oil Filter
15701C Cover Sub-assy, Oil Cooler
15725A Gasket, Oil Cooler Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
