Toyota Dyna

2001-07 → 2021-11 · chassis KDY22#,23#,25#,26#,LY2## · catalogue 731270 · Europe

Discontinued model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator & Water Outlet

79 part groups · 12 illustrations

Illustrations

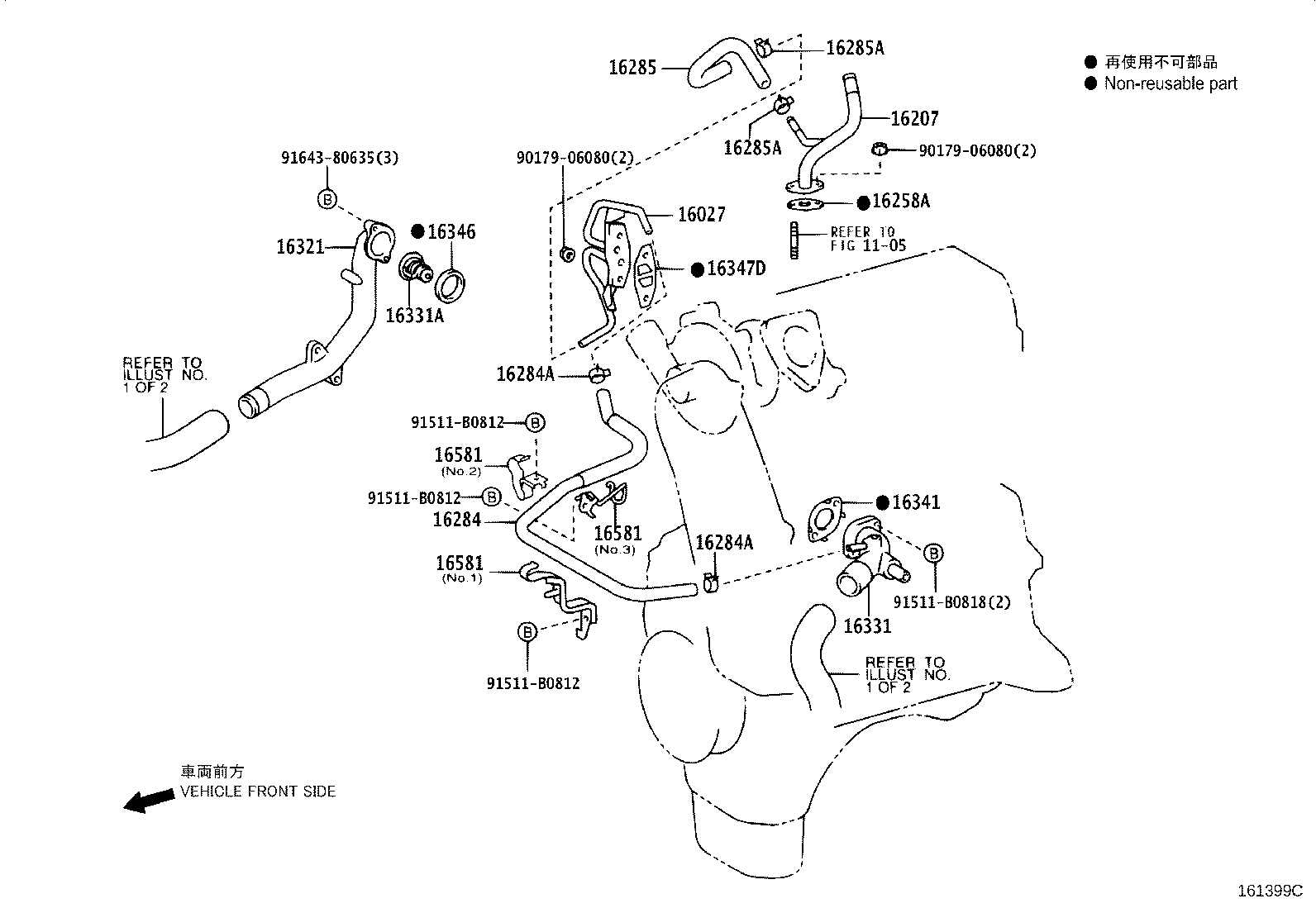

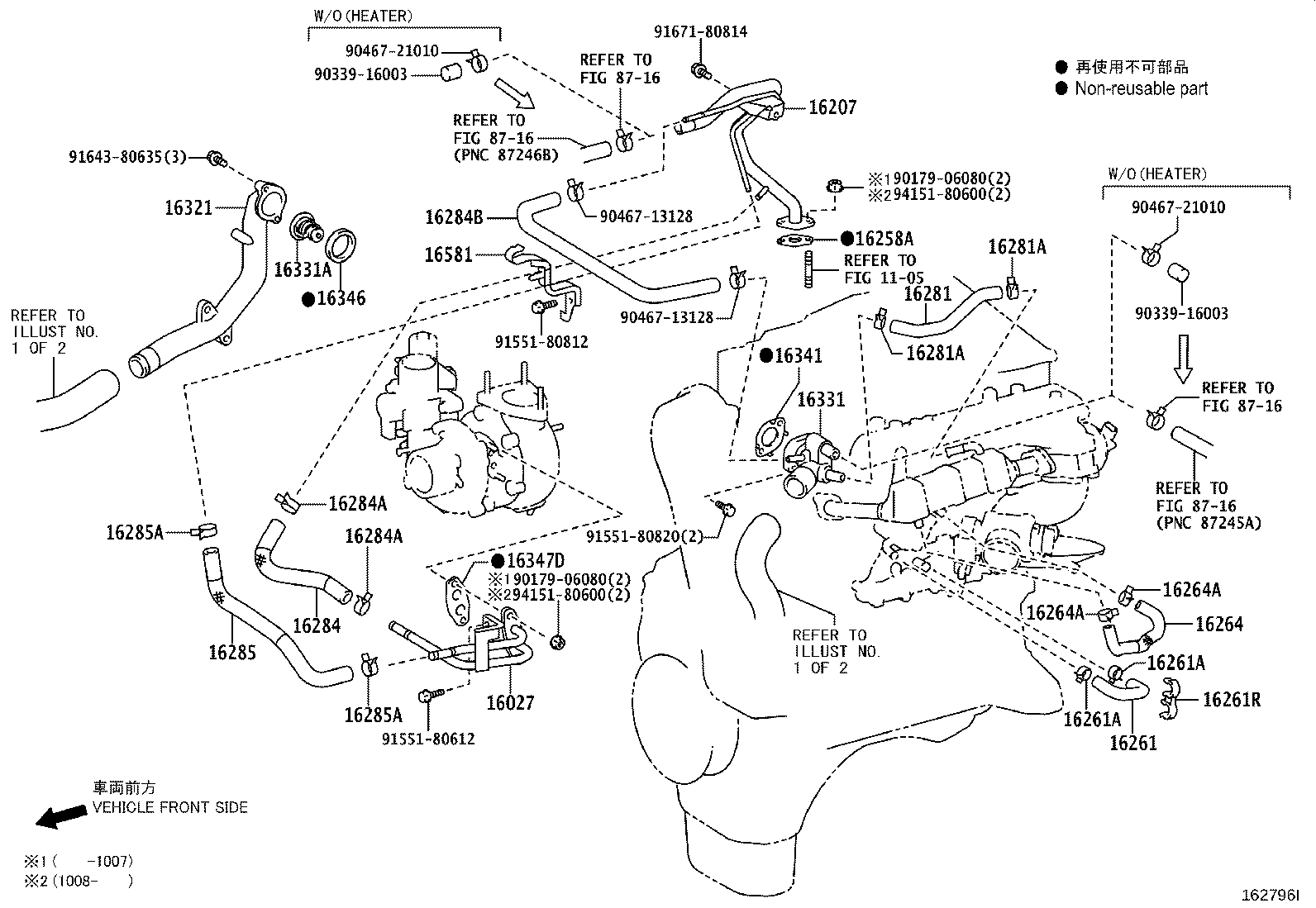

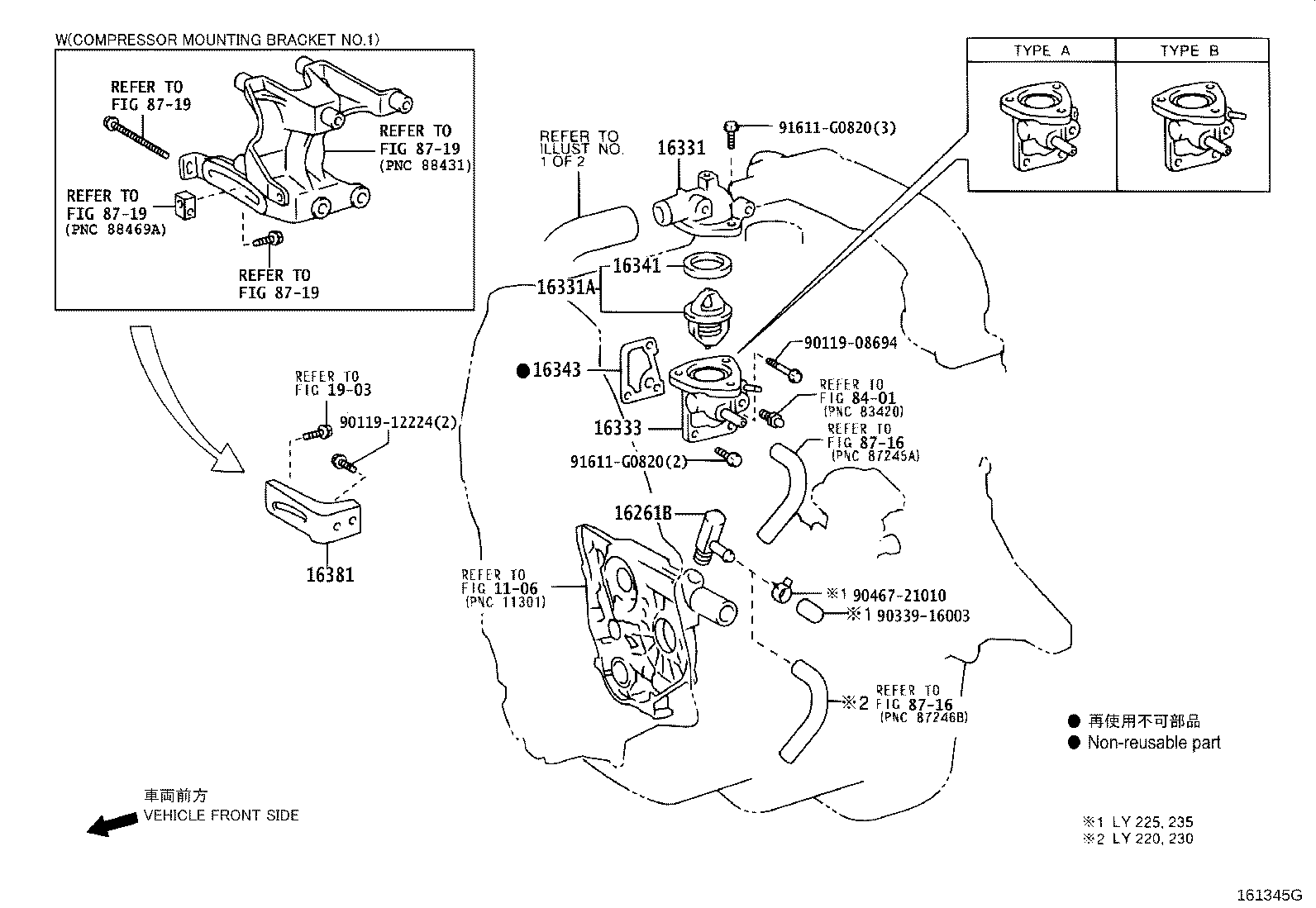

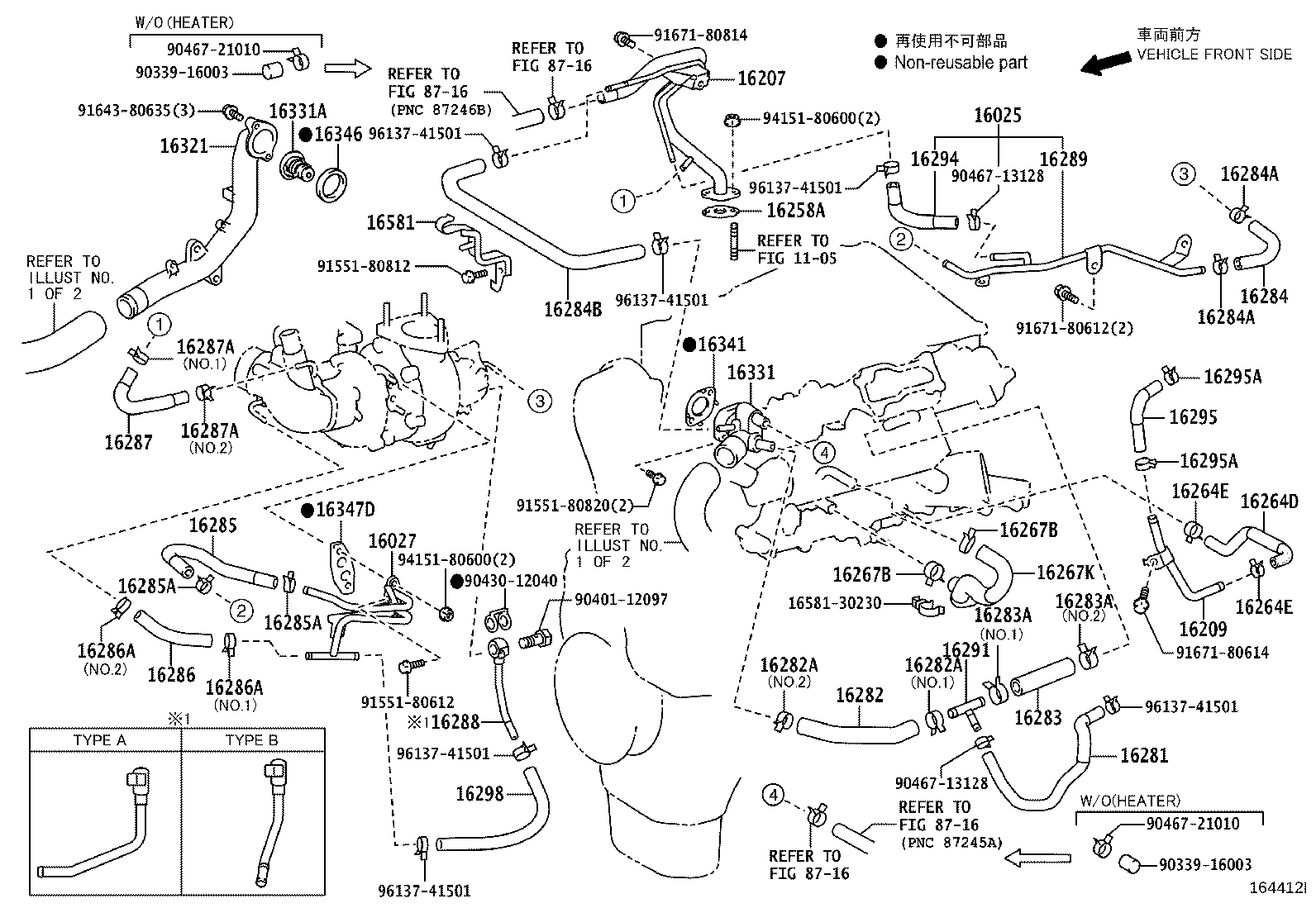

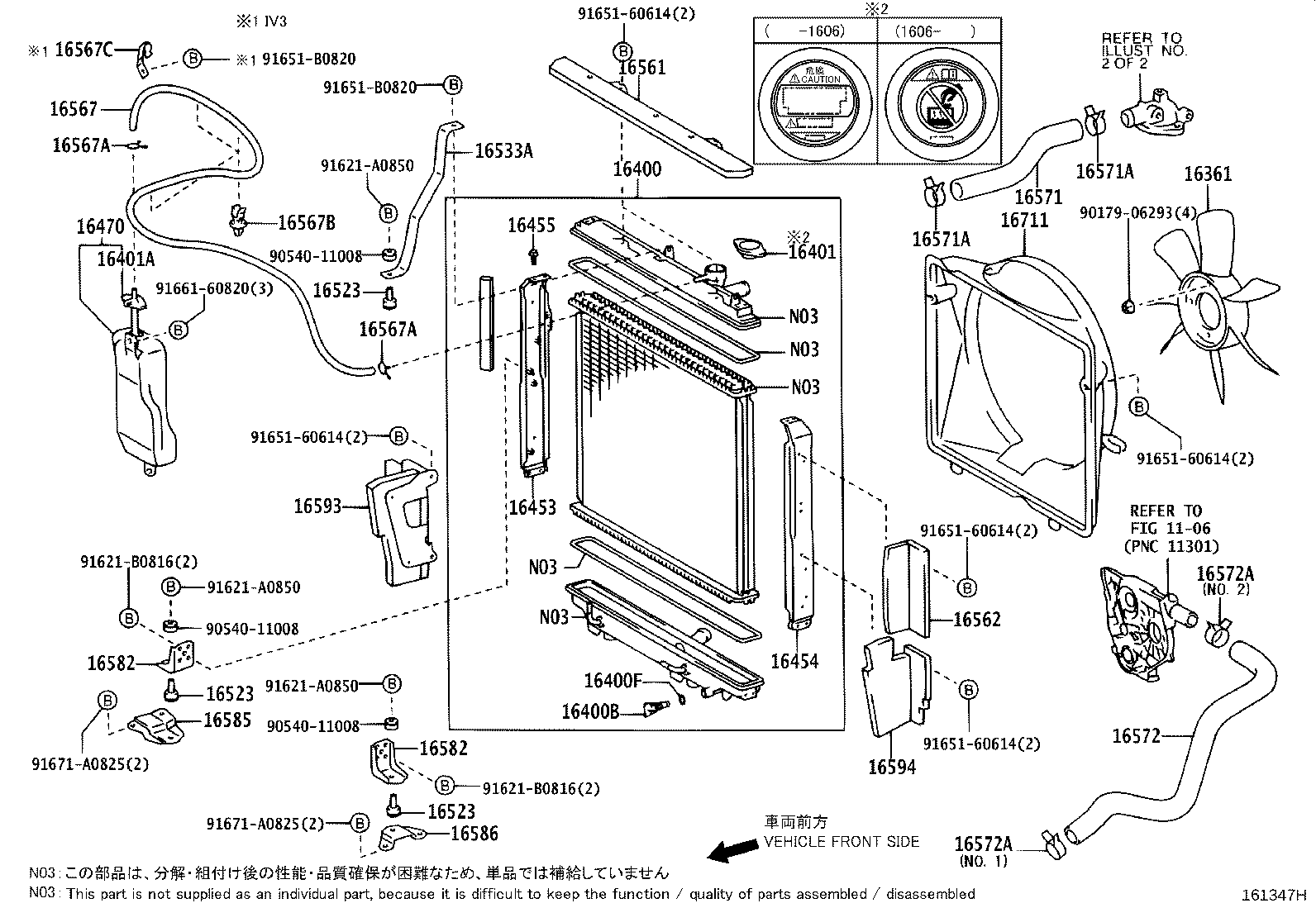

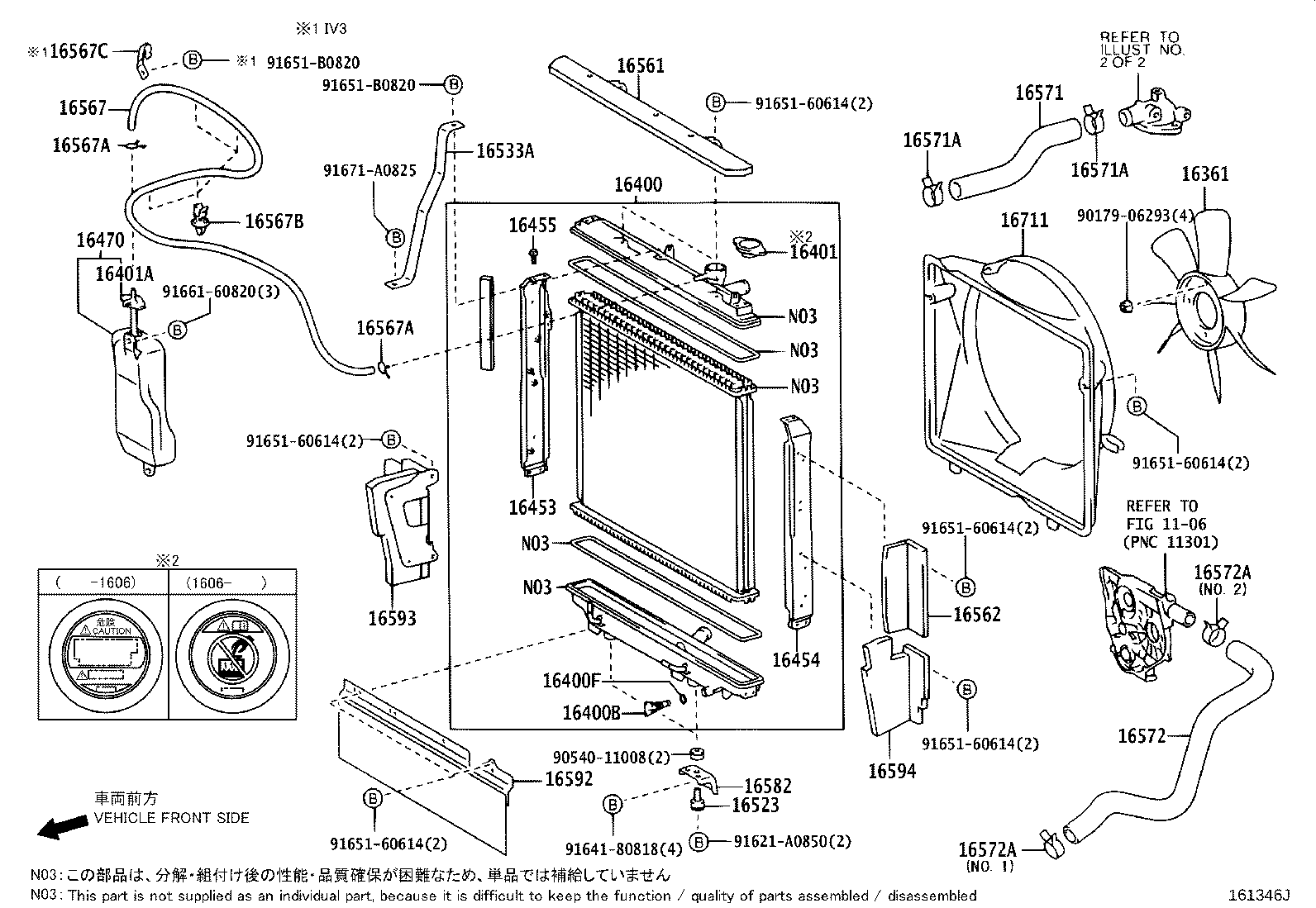

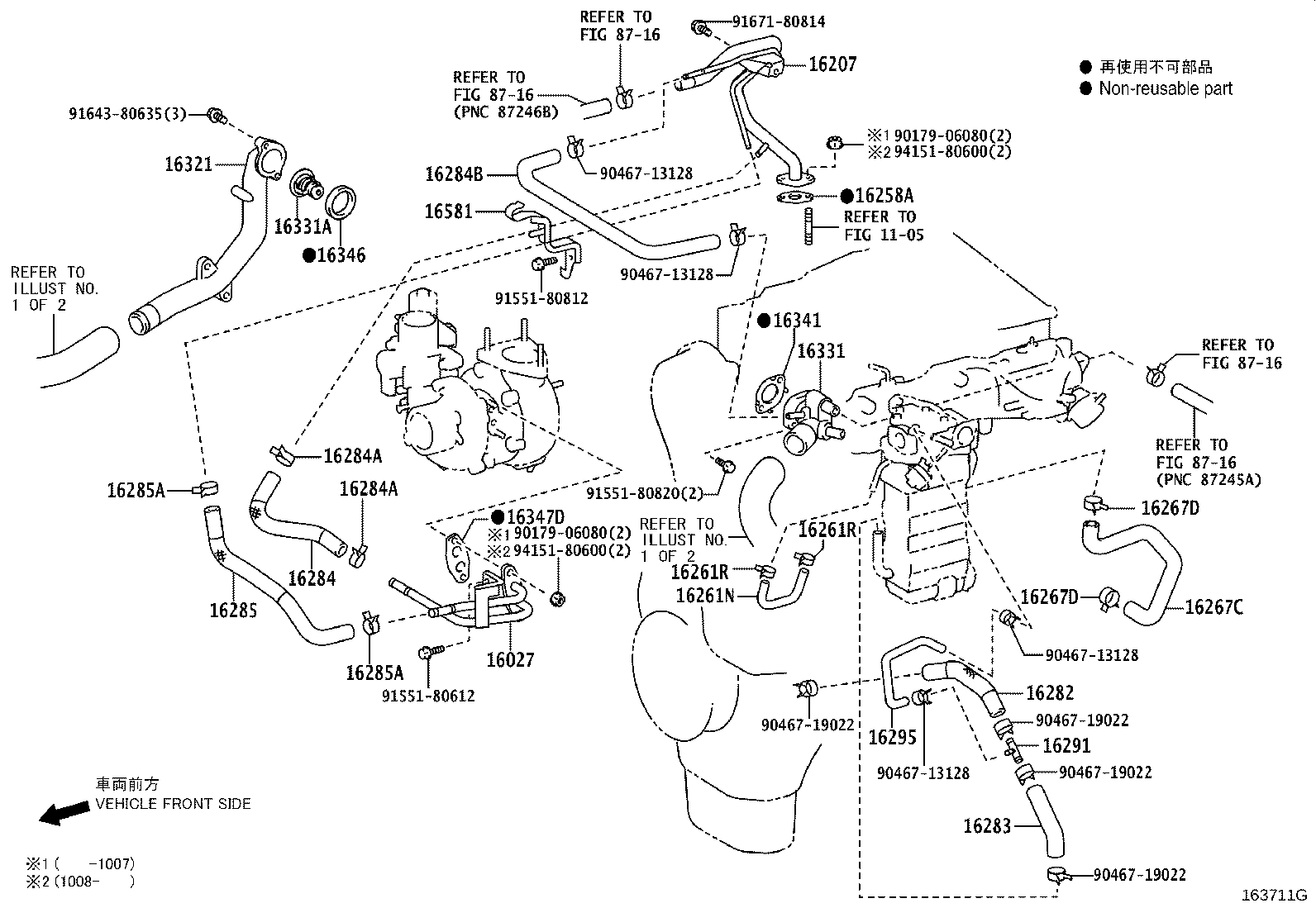

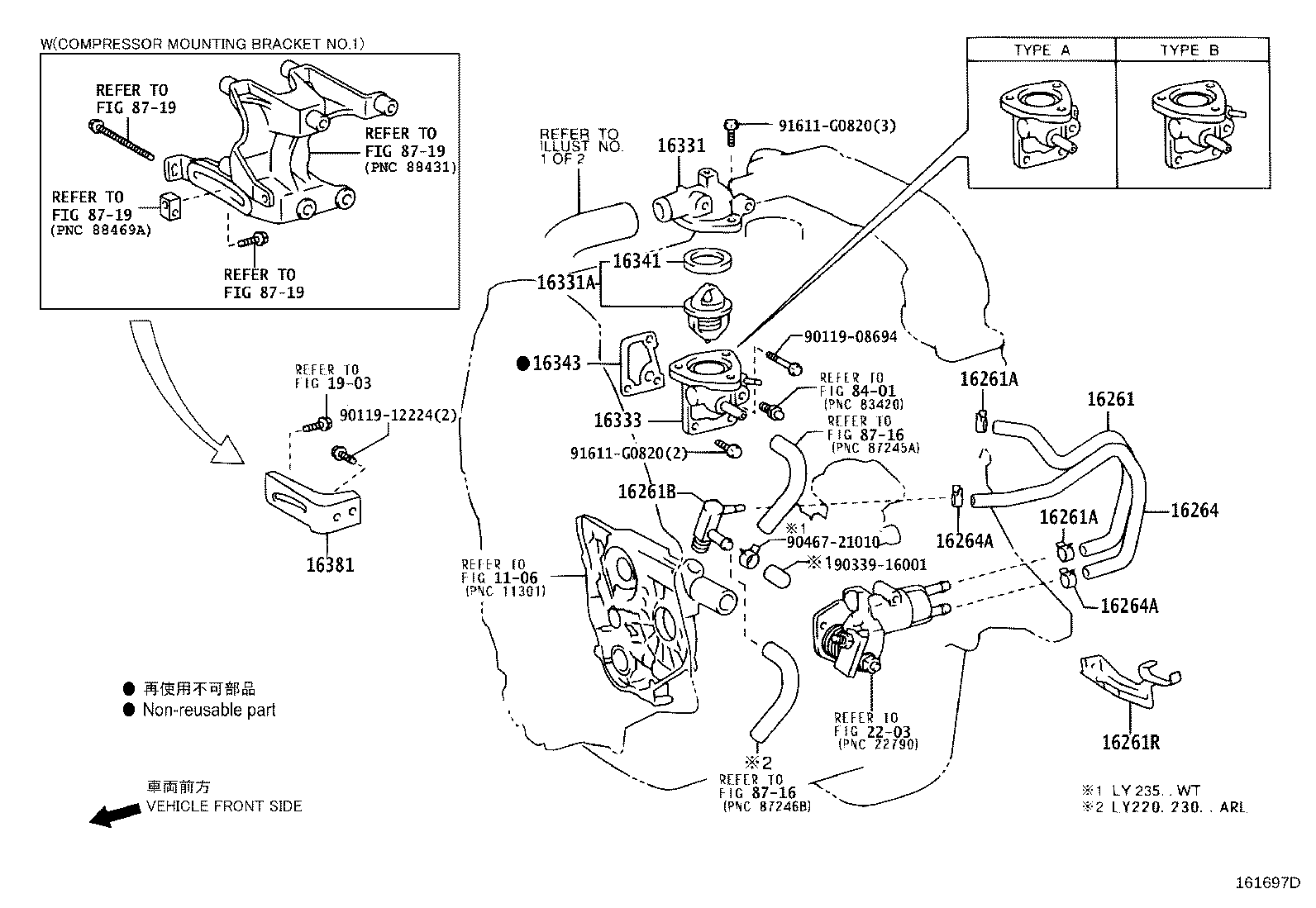

Figure 161398N 161398N 2001-08 → 2006-10 Figure 161398N 161398N 2006-09 → — Figure 161399C 161399C 2001-08 → 2006-10 Figure 162796I 162796I 2006-09 → 2009-05 Figure 162796I 162796I 2009-05 → 2013-10 Figure 163711G 163711G 2009-05 → 2011-09 Figure 164412I 164412I 2011-09 → — Figure 164412I 164412I 2013-10 → — Figure 161346J 161346J 2001-07 → — Figure 161347H 161347H 2001-07 → — Figure 161345G 161345G 2001-07 → — Figure 161697D 161697D 2001-07 → —

Part groups

PNCDescription
16025 Pipe Sub-assy, Water By-pass, NO.5
16027 Pipe Sub-assy, Turbo Water, NO.1
16207 Pipe Sub-assy, Water By-pass, NO.2
16209 Pipe Sub-assy, Water By-pass, NO.4
16258A Gasket(FOR HEATER RETURN)
16261 Hose, Water By-pass
16261A Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
16261B Union(FOR WATER BY-PASS HOSE)
16261N Hose, Water By-pass, NO.2
16261R Clamp OR Clip(FOR WATER BY-PASS HOSE)
16264 Hose, Water By-pass, NO.2
16264A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
16264D Hose, Water By-pass, NO.2
16264E Clip(FOR WATER BY-PASS HOSE NO.2)
16267B Clip(FOR WATER BY-PASS HOSE)
16267C Hose, Water By-pass, NO.4
16267D Clip(FOR WATER BY-PASS HOSE NO.4)
16267K Hose, Water By-pass, NO.3
16281 Hose, Water By-pass, NO.4
16281A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
16282 Hose, Water By-pass, NO.5
16282A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
16283 Hose, Water By-pass, NO.6
16283A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
16284 Hose, Turbo Water, NO.1
16284A Clip(FOR TURBO WATER HOSE NO.1)
16284B Hose, Turbo Water, NO.2
16285 Hose, Turbo Water, NO.2
16285A Clip(FOR TURBO WATER HOSE NO.2)
16286 Hose, Turbo Water, NO.3
16286A Clip(FOR TURBO WATER HOSE NO.3)
16287 Hose, Turbo Water, NO.4
16287A Clip(FOR TURBO WATER HOSE NO.4)
16288 Pipe, Water By-pass, NO.4
16289 Pipe, Water By-pass, NO.5
16291 Joint, Water Hose
16294 Hose, Water By-pass, NO.11
16295 Hose, Water By-pass, NO.7
16295A Clip(FOR WATER BY-PASS HOSE NO.7)
16298 Hose, Water By-pass, NO.12
16321 Inlet, Water
16331 Outlet, Water
16331A Thermostat
16333 Housing, Water Outlet
16341 Gasket, Water Outlet
16343 Gasket, Water Outlet Housing
16346 Gasket, Thermostat
16347D Gasket, Water By-pass
16361 Fan
16381 Bar, Fan Belt Adjusting
16400 Radiator Assy
16400B Plug, Radiator Drain Cock
16400F Packing(FOR RADIATOR DRAIN COCK)
16401 Cap Sub-assy, Radiator
16401A Cap Sub-assy, Radiator Reserve Tank
16453 Plate, Radiator Side
16454 Plate, Radiator Side
16455 Bolt, Radiator Side Support Plate
16470 Tank Assy, Radiator Reserve
16523 Cushion, Sub-radiator Support
16533A Support, Sub-radiator
16561 Seal, Radiator TO Support, NO.1
16562 Seal, Radiator TO Support, NO.2
16567 Hose(FOR RADIATOR RESERVE TANK)
16567A Clip(FOR RADIATOR RESERVE TANK HOSE)
16567B Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE NO.2)
16567C Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE NO.3)
16571 Hose, Radiator, Inlet
16571A Clamp OR Clip, Hose(FOR RADIATOR INLET)
16572 Hose, Radiator, Outlet
16572A Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
16581 Clamp, Hose(FOR WATER HOSE)
16582 Bracket, Radiator, NO.1
16585 Bracket, Radiator, NO.3
16586 Bracket, Radiator, NO.4
16592 Guide, Radiator Air, NO.3
16593 Guide, Radiator Air, NO.1
16594 Guide, Radiator Air, NO.2
16711 Shroud, Fan
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
