Toyota Dyna

2001-07 → 2021-11 · chassis KDY22#,23#,25#,26#,LY2## · catalogue 731270 · Europe

Discontinued model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

50 part groups · 15 illustrations

Illustrations

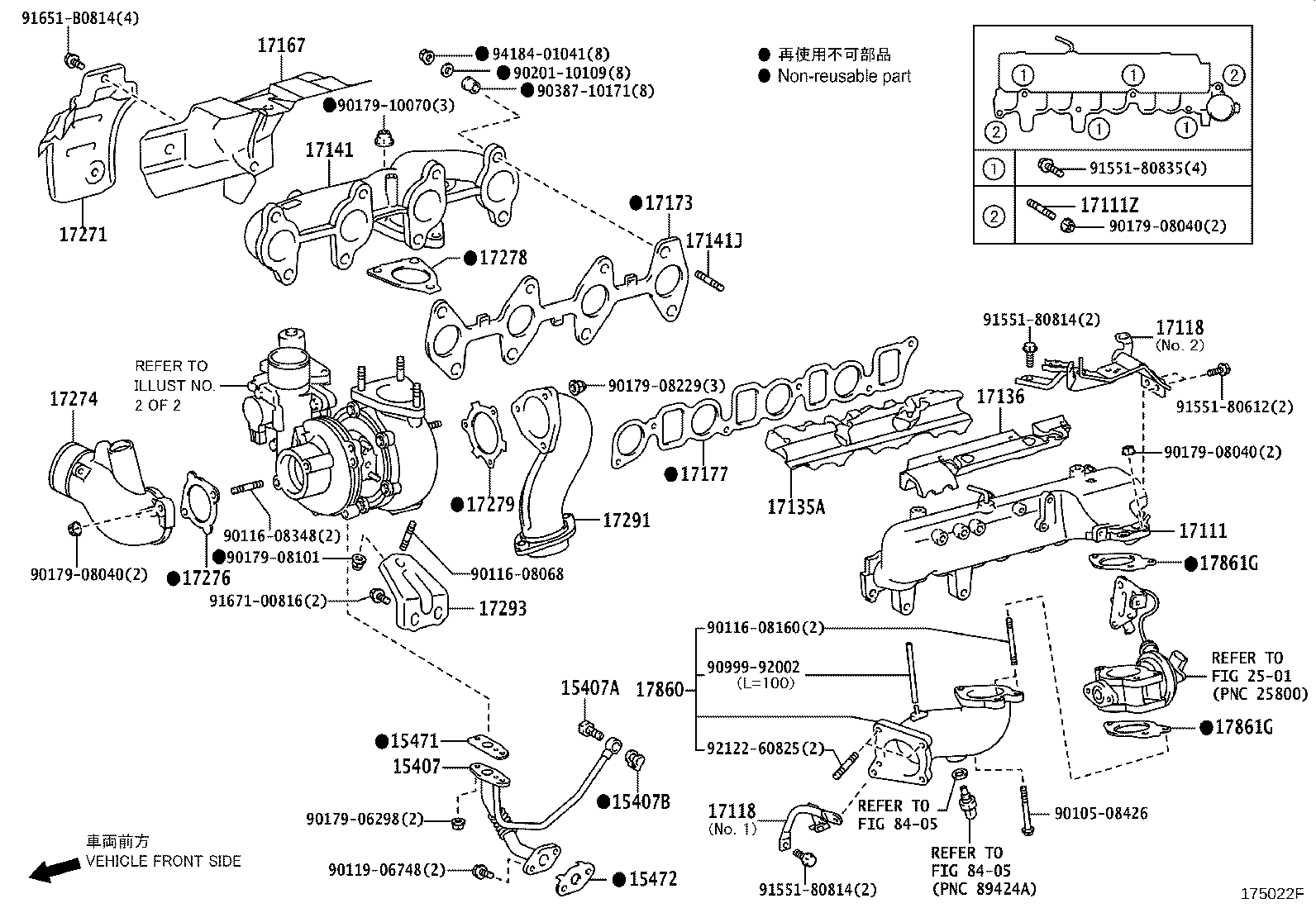

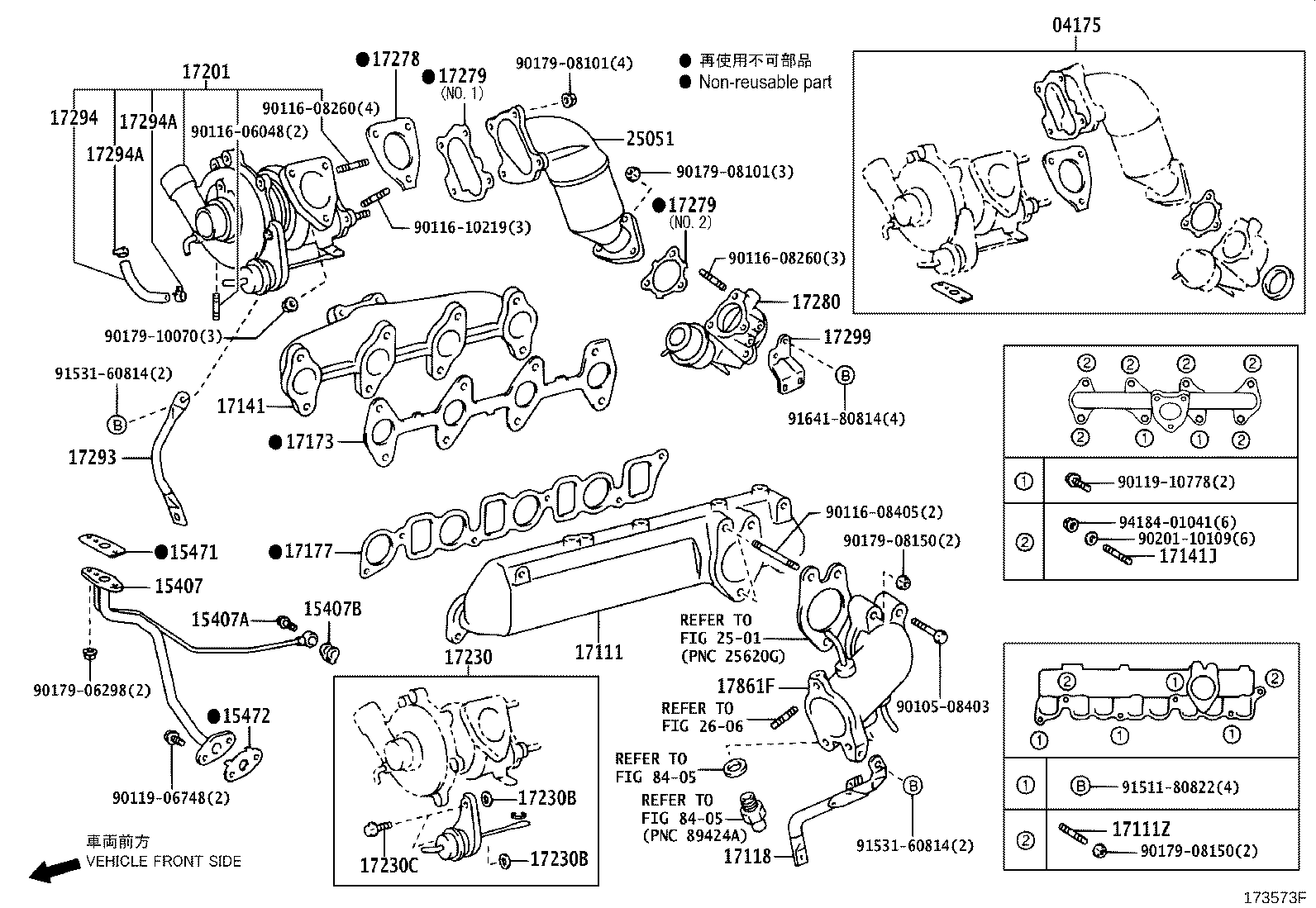

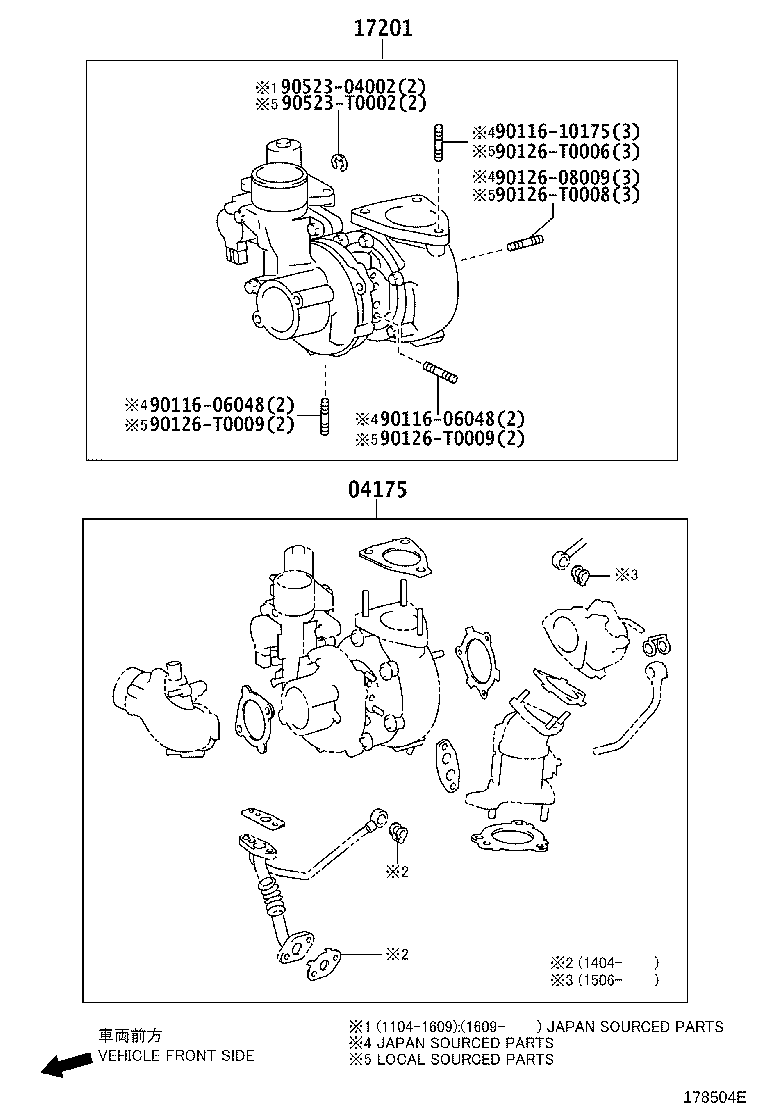

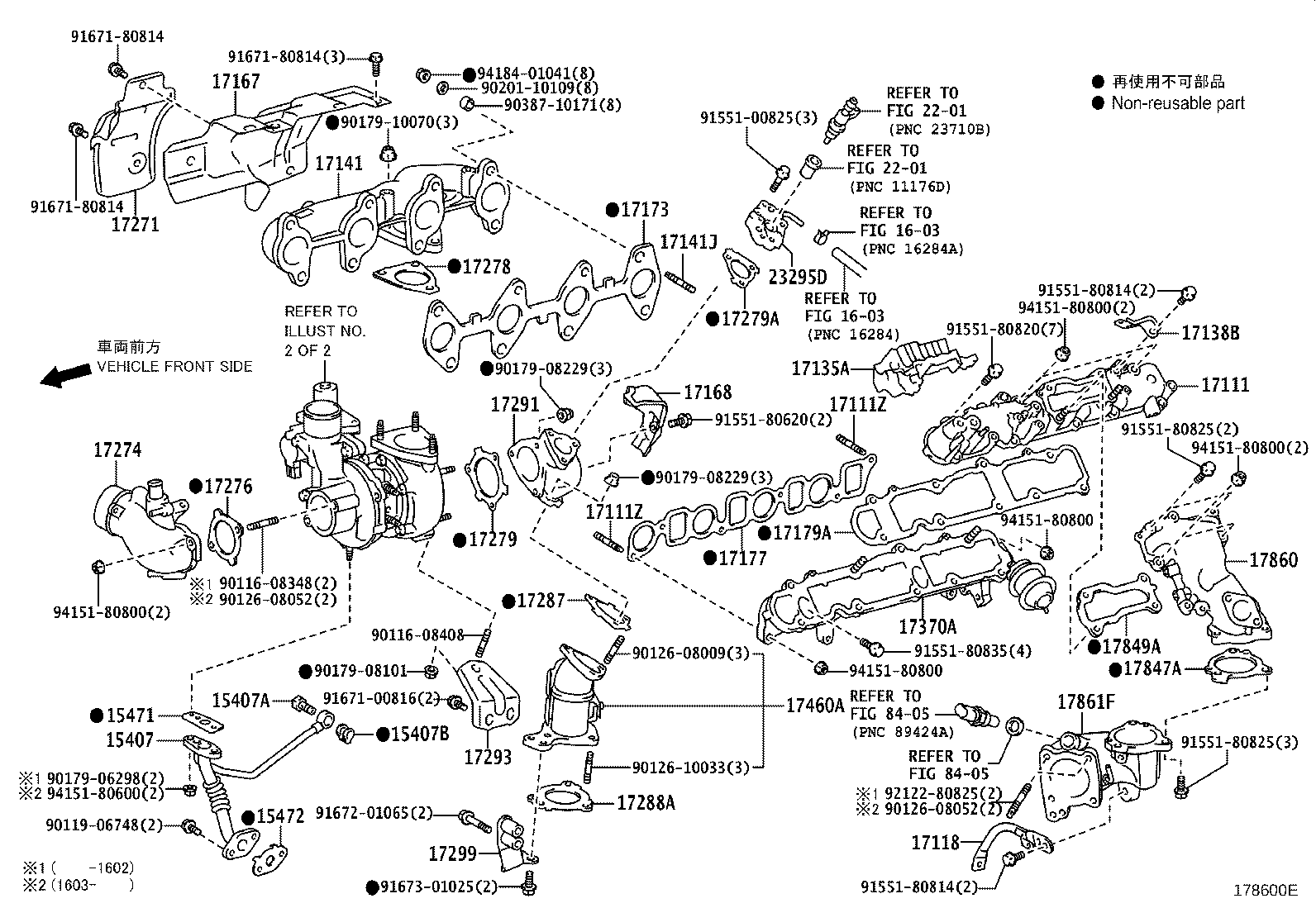

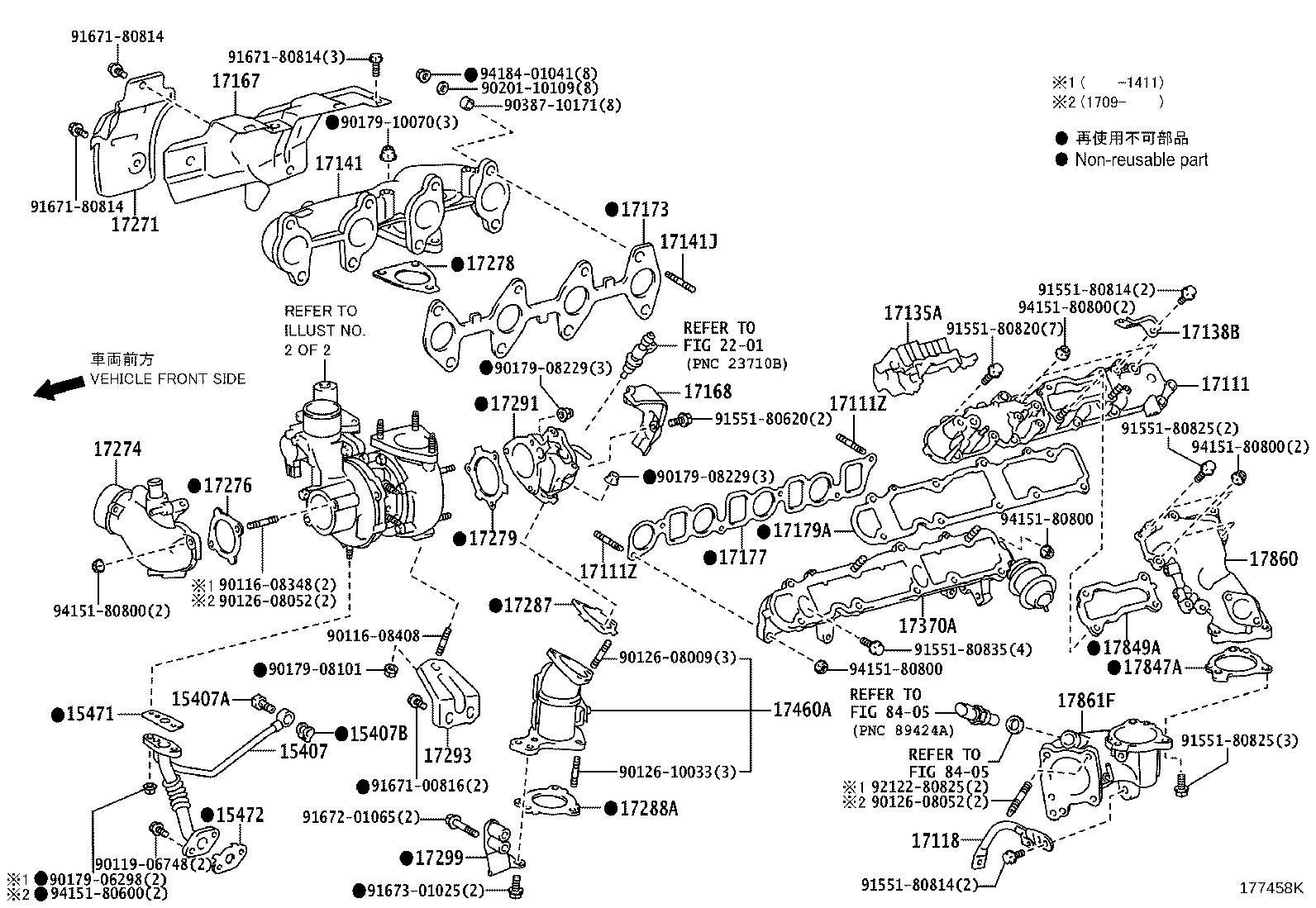

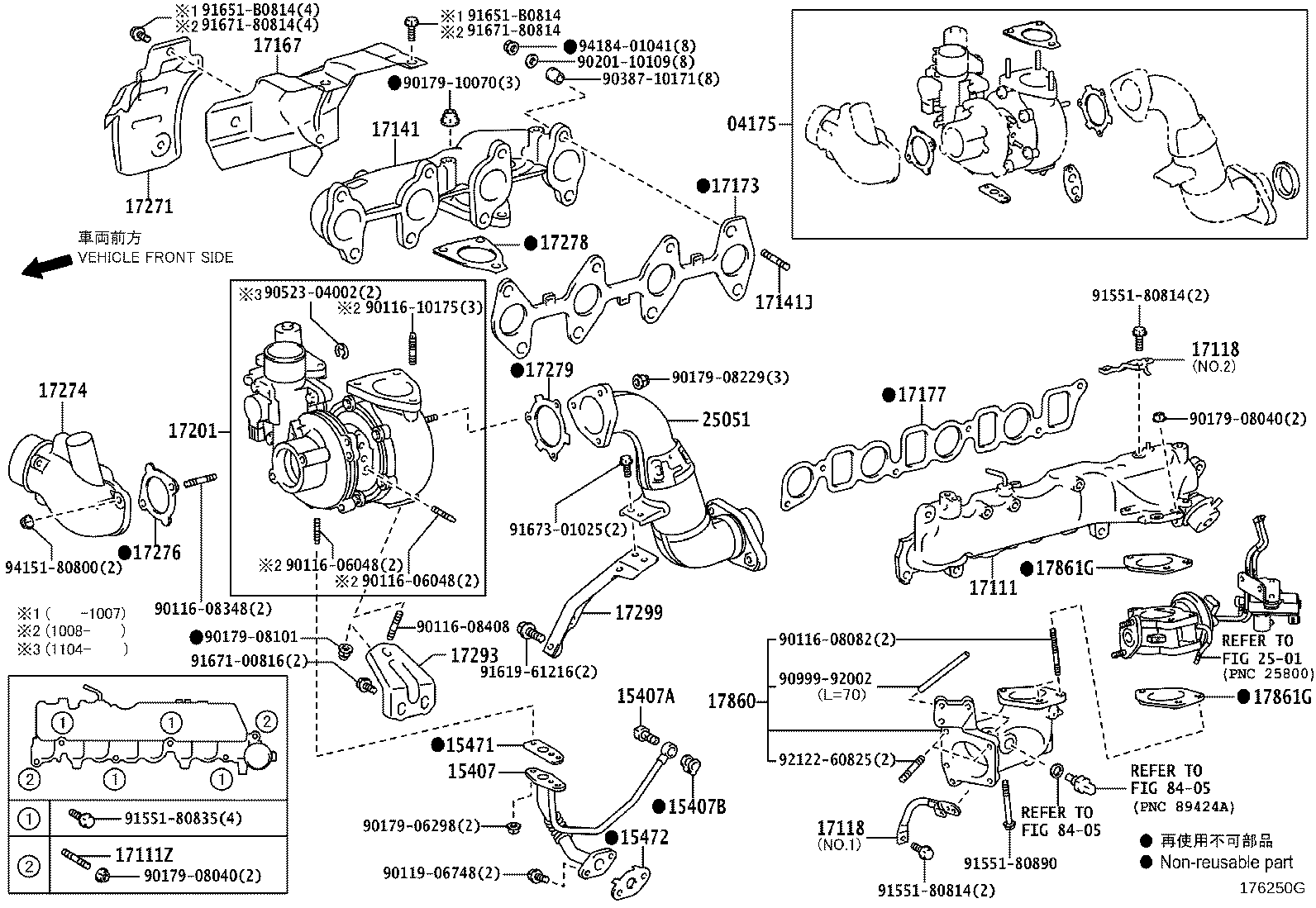

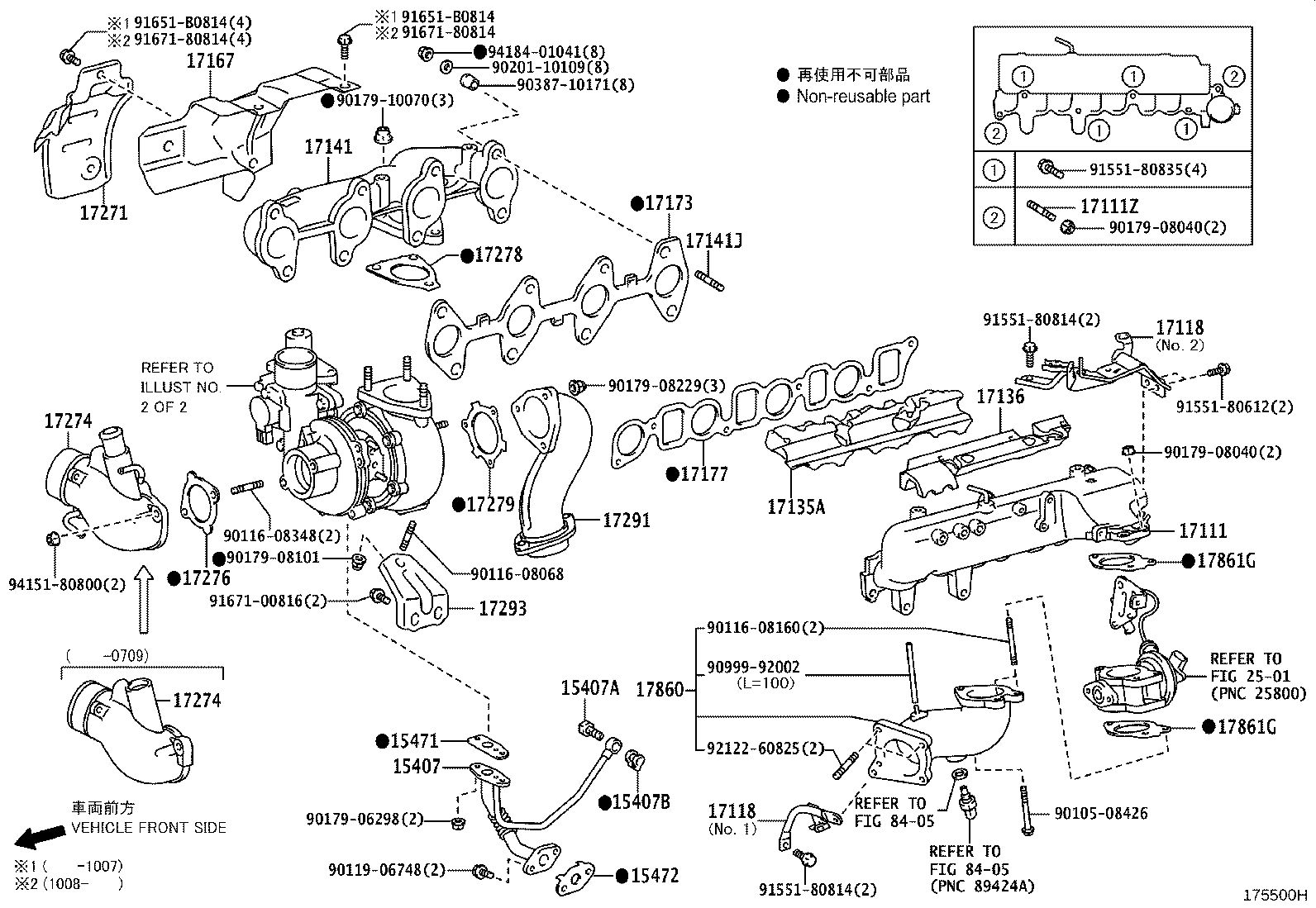

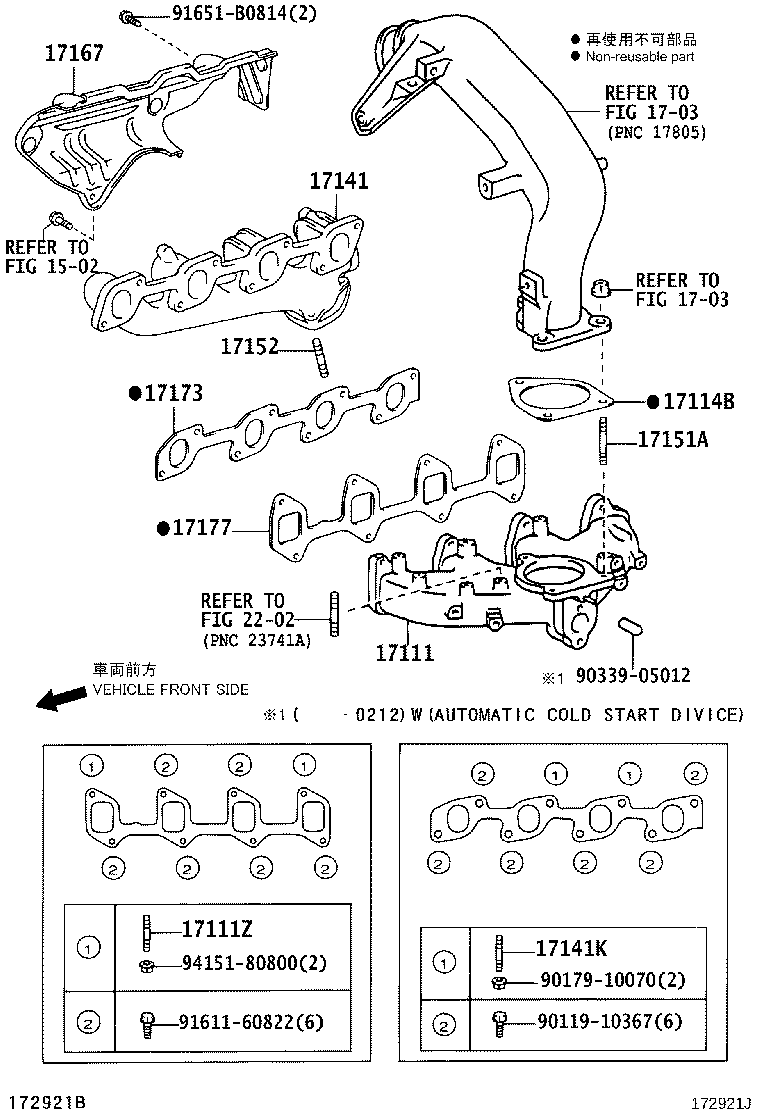

Figure 173055F 173055F 2001-08 → 2002-10 Figure 173573F 173573F 2002-10 → 2006-10 Figure 175022F 175022F 2006-09 → 2007-03 Figure 175500H 175500H 2007-03 → 2009-05 Figure 175500H 175500H 2009-05 → 2013-10 Figure 177545B 177545B 2006-09 → 2009-05 Figure 177545B 177545B 2009-05 → 2013-10 Figure 176250G 176250G 2009-05 → 2011-09 Figure 177458K 177458K 2011-09 → 2014-11 Figure 177458K 177458K 2013-10 → 2014-11 Figure 177458K 177458K 2017-09 → — Figure 178600E 178600E 2014-11 → 2017-09 Figure 178504E 178504E 2011-09 → — Figure 178504E 178504E 2013-10 → — Figure 172921J 172921J 2001-07 → —

Part groups

PNCDescription
04175 Gasket Kit, Turbocharger
15407 Pipe Sub-assy, Turbo Oil Inlet
15407A Bolt, Union(FOR TURBO OIL INLET PIPE)
15407B Gasket(FOR TURBO OIL INLET PIPE)
15471 Gasket, Turbo Oil Inlet
15472 Gasket, Turbo Oil Outlet, NO.1
17111 Manifold, Intake
17111Z Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17114B Gasket, Intake Flange
17118 Stay, Manifold
17135A Insulator, Intake Manifold, NO.1
17136 Insulator, Intake Manifold, NO.2
17138B Stay, Intake Manifold
17141 Manifold, Exhaust
17141J Bolt, Stud(FOR EXHAUST MANIFOLD, RH)
17141K Bolt, Stud(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
17151A Bolt, Stud(FOR MANIFOLD TO VENTURI)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
17179A Gasket, Intake Manifold, NO.2
17201 Turbocharger Sub-assy
17230 Actuator Assy, W/Bracket
17230B Washer, Plate(FOR REPAIR ACTUATOR SET)
17230C Bolt, W/Washer(FOR REPAIR ACTUATOR SET)
17271 Insulator, Turbo, NO.1
17274 Elbow, Compressor Inlet
17276 Gasket, Compressor Inlet
17278 Gasket, Turbo TO Exhaust Manifold
17279 Gasket, Turbine Outlet Elbow
17279A Gasket, Turbine Outlet Elbow, NO.1
17280 Valve Assy, Exhaust Gas Control
17287 Gasket, Turbine Outlet Elbow, NO.2
17288A Gasket, Turbine Outlet Elbow, NO.3
17291 Elbow, Turbine Outlet
17293 Stay, Turbocharger
17294 Hose, Actuator
17294A Clip(FOR ACTUATOR HOSE)
17299 Stay, Turbine Outlet Elbow
17370A Valve Assy, Swirl Control
17460A Converter Assy, Catalytic W/Pipe
17847A Gasket, Intake Air Connector, NO.2
17849A Gasket, Intake Air Connector
17860 Connector Assy, Intake Air
17861F Connector, Intake Air
17861G Gasket, Intake Air Connector
23295D Holder, Injector, NO.1
25051 Converter Sub-assy, Exhaust Manifold
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
