Toyota Dyna

2001-07 → 2021-11 · chassis KDY22#,23#,25#,26#,LY2## · catalogue 731270 · Europe

Discontinued model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

30 part groups · 11 illustrations

Illustrations

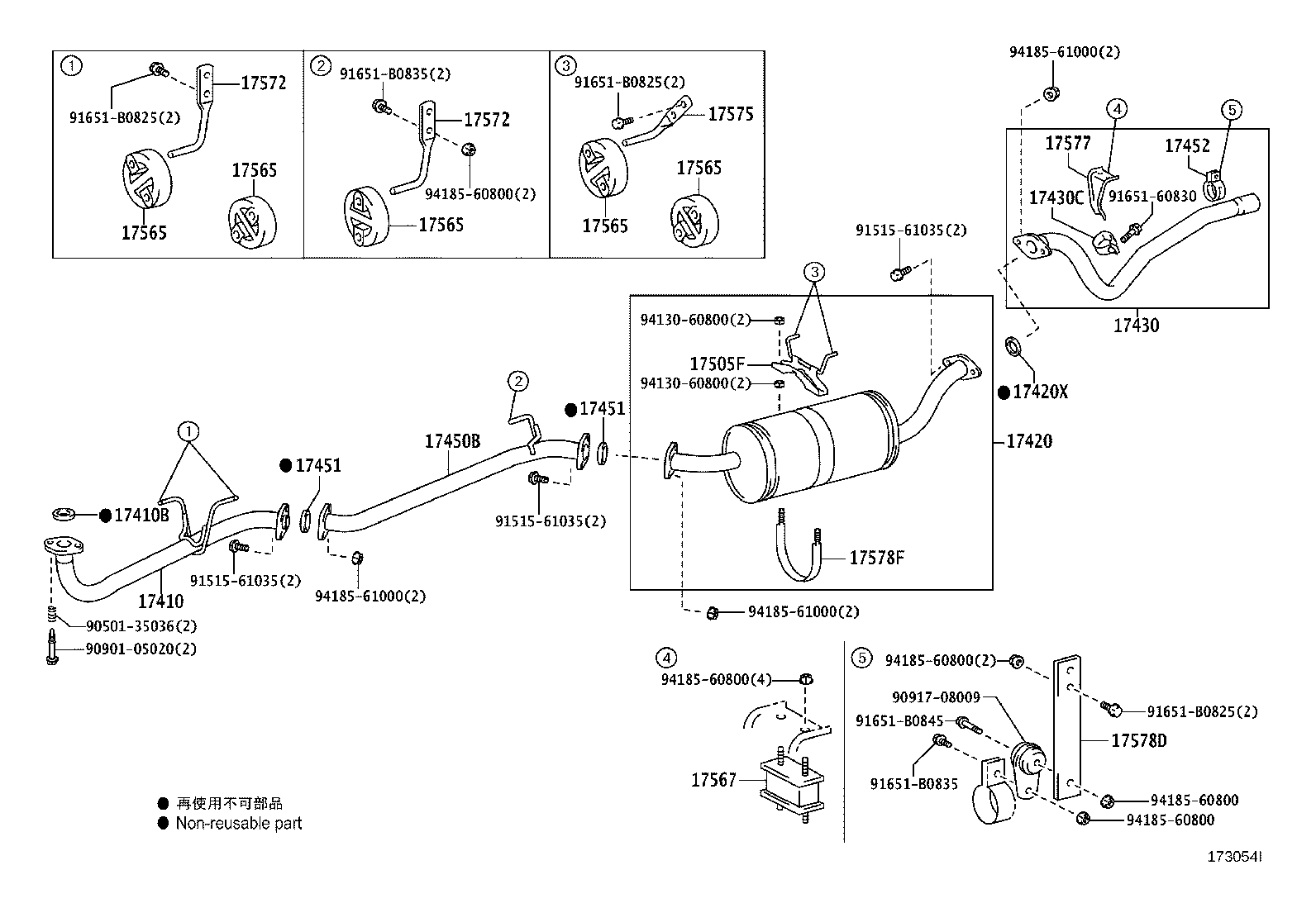

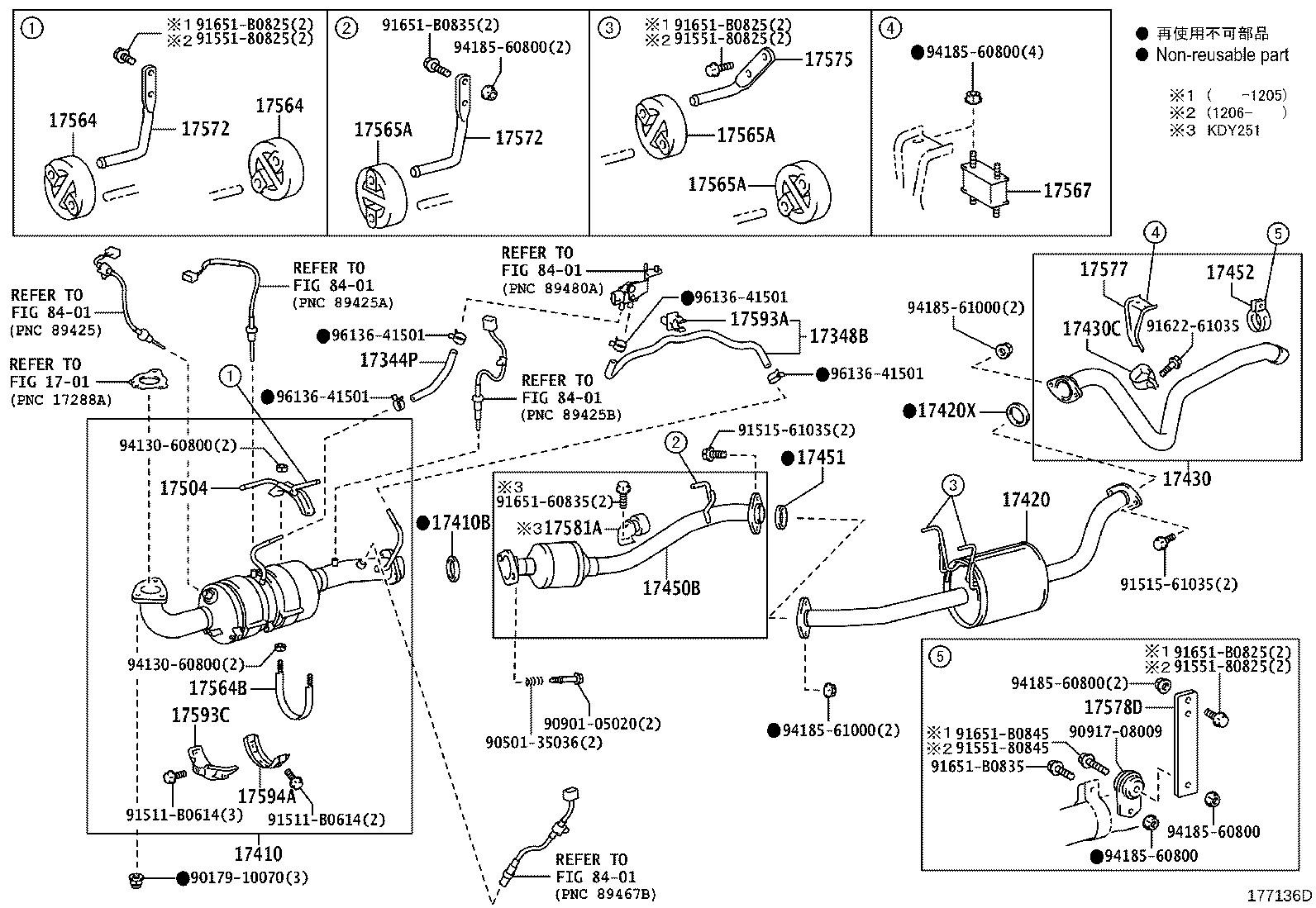

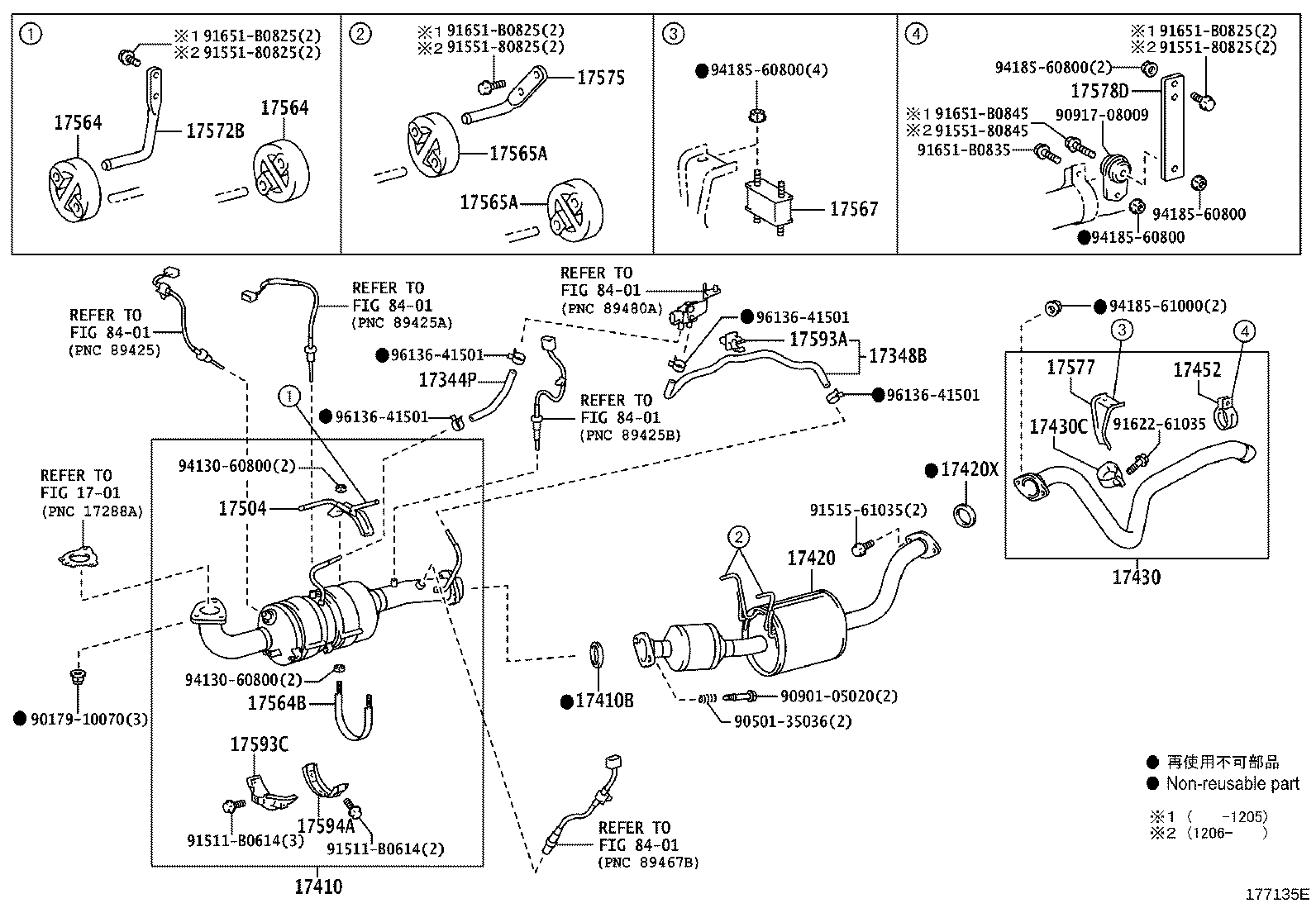

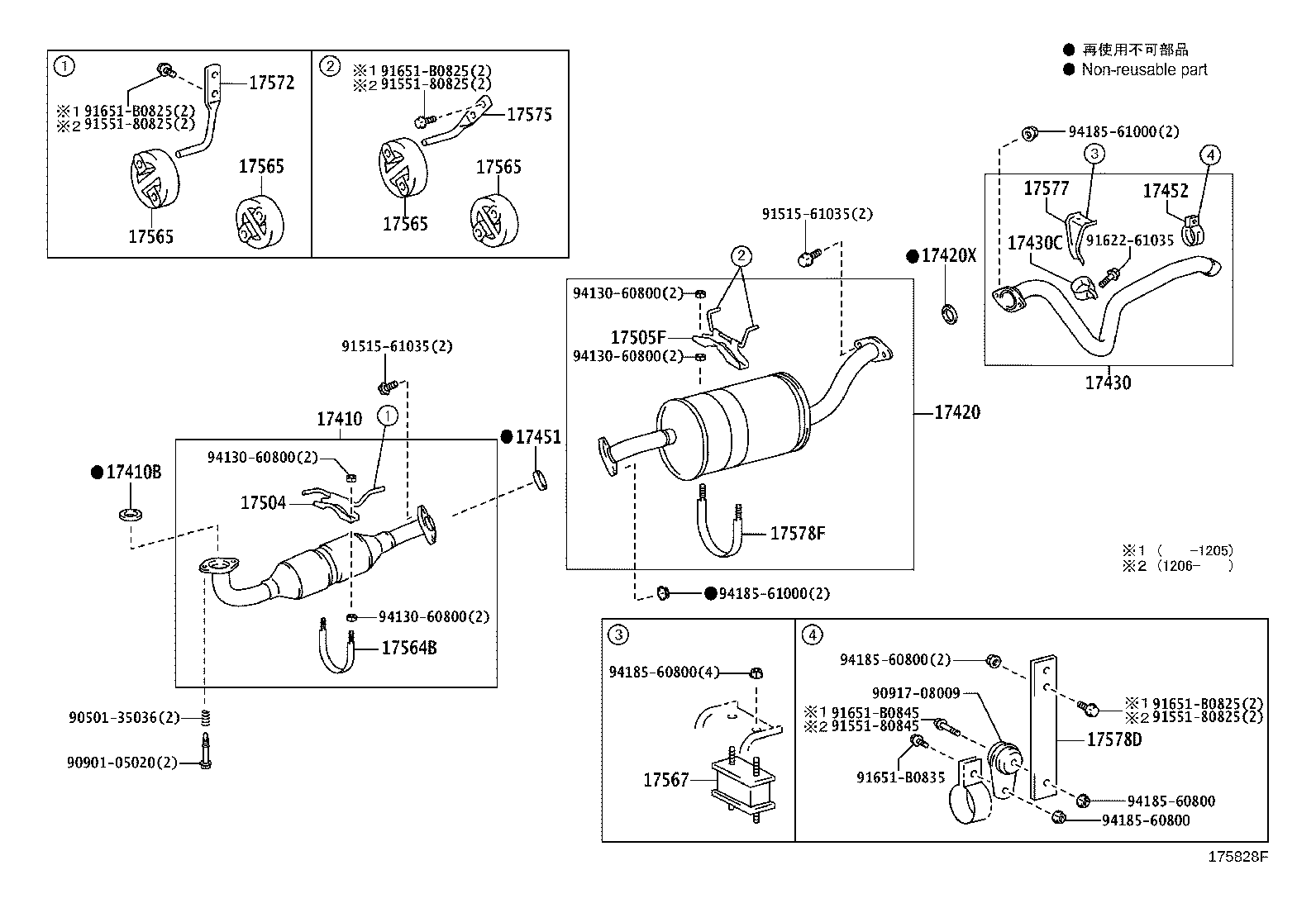

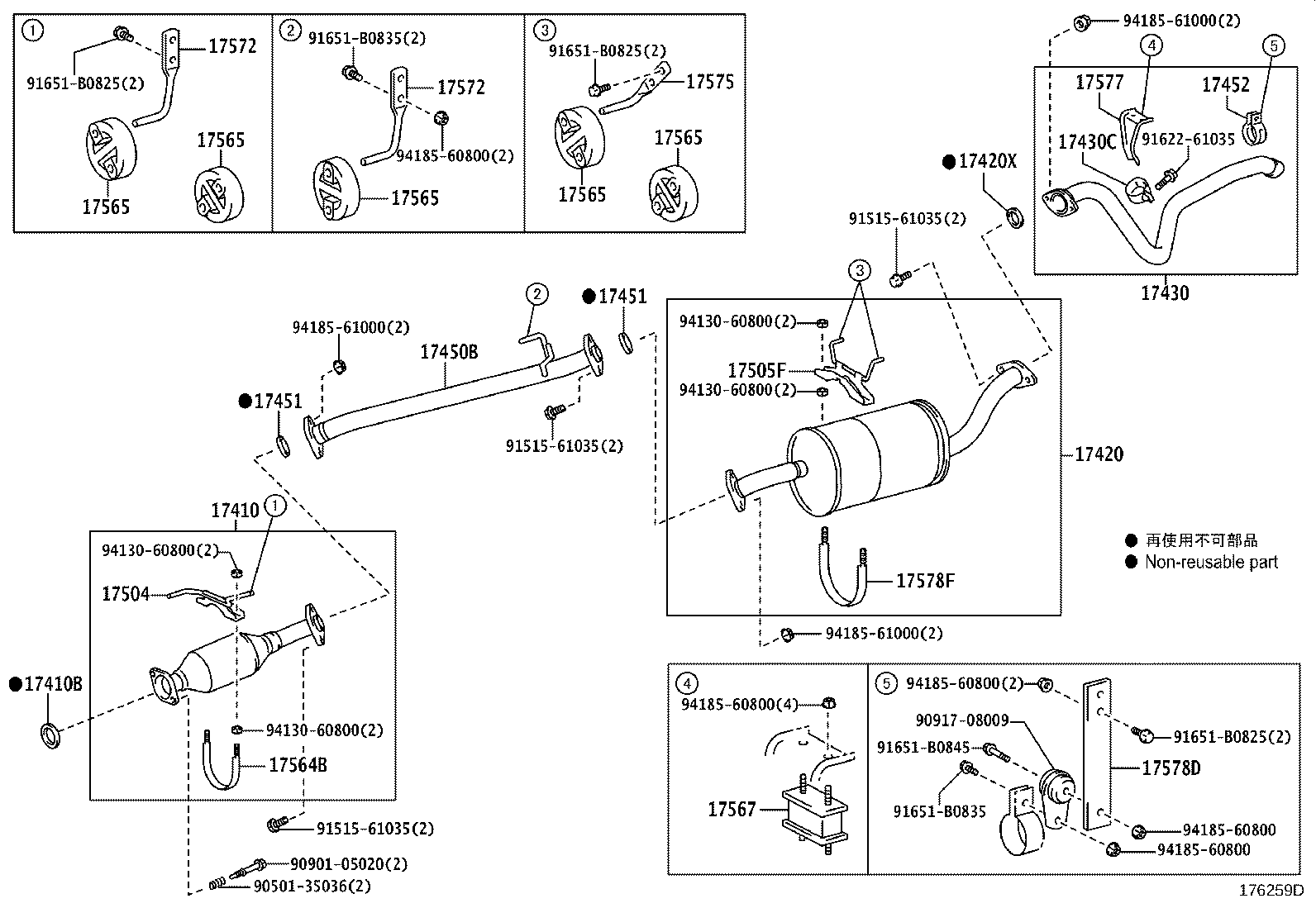

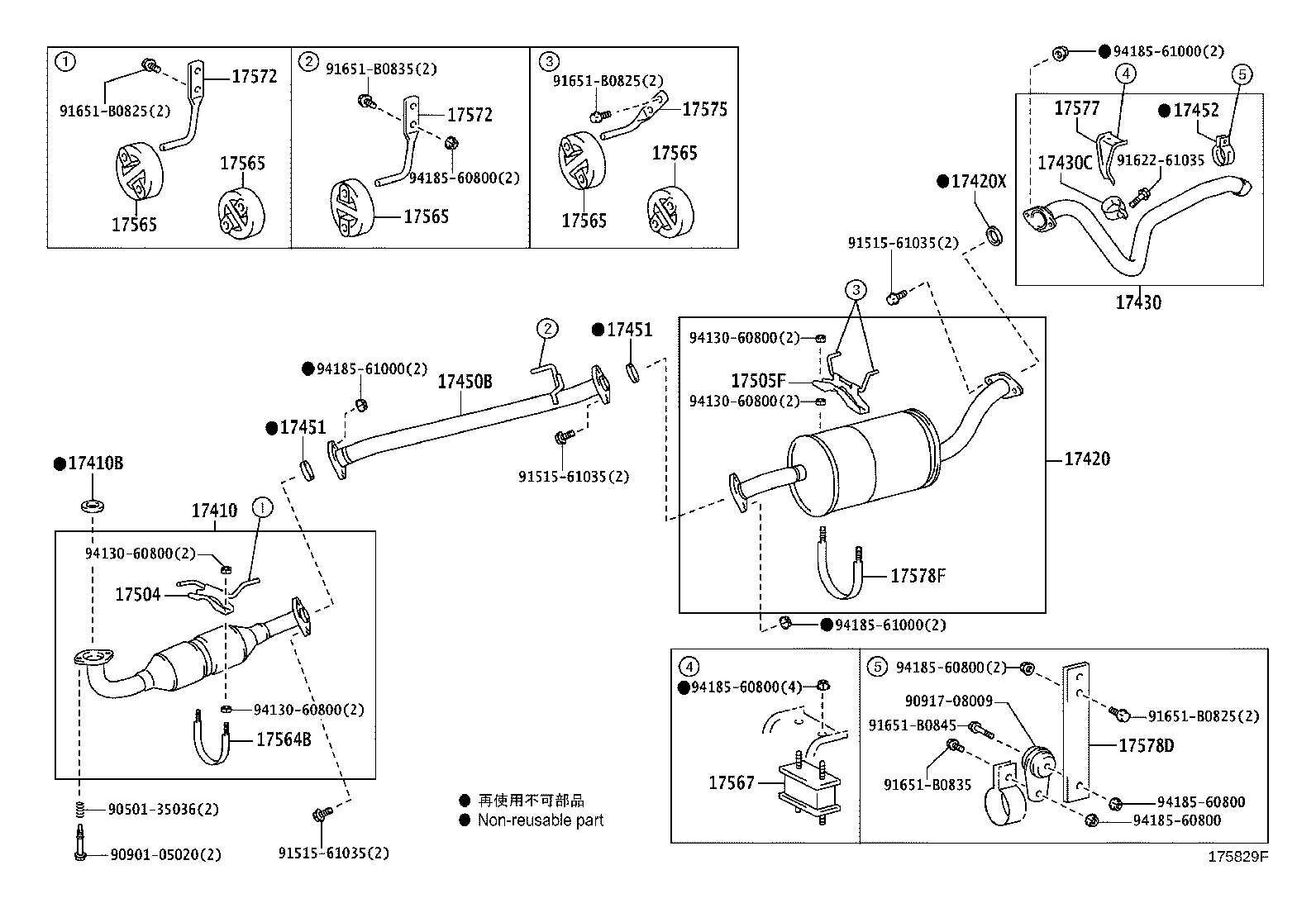

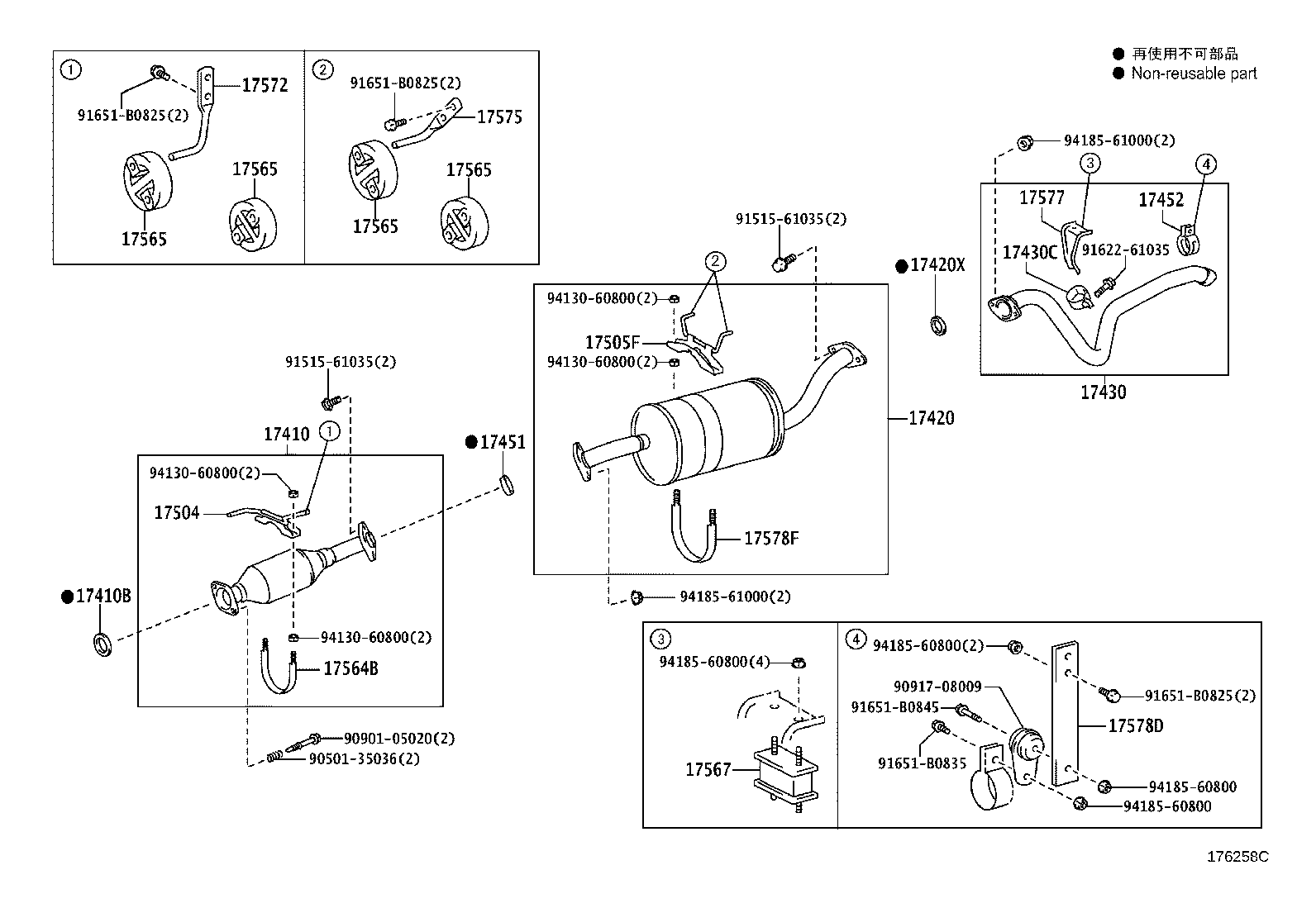

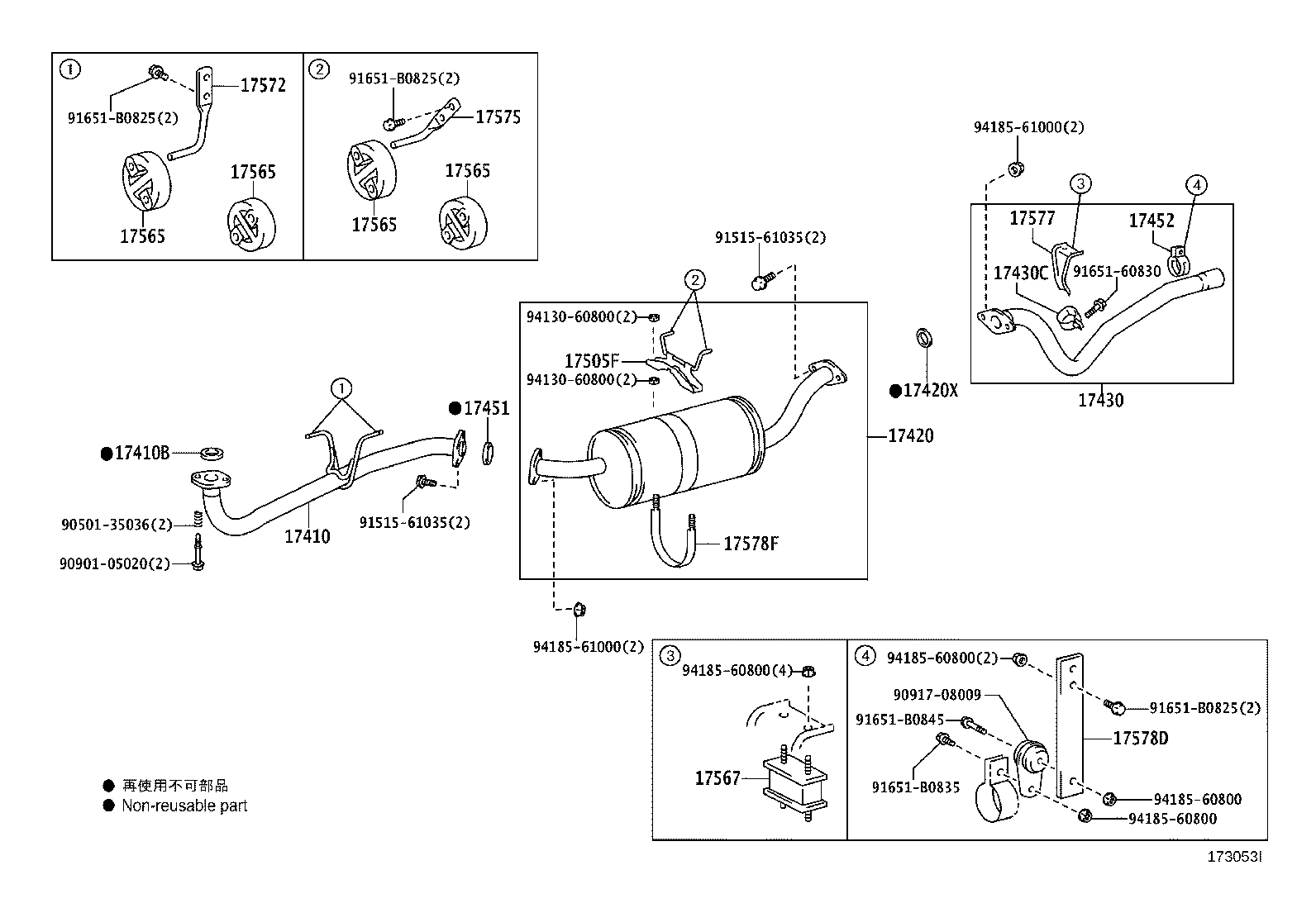

Figure 172911H 172911H 2001-07 → — Figure 173053I 173053I 2001-08 → 2006-10 Figure 173054I 173054I 2001-08 → 2006-09 Figure 175828F 175828F 2006-09 → 2009-05 Figure 175828F 175828F 2009-05 → 2013-10 Figure 176258C 176258C 2009-05 → 2011-09 Figure 177135E 177135E 2011-09 → — Figure 177135E 177135E 2013-10 → — Figure 175829F 175829F 2006-09 → 2009-05 Figure 176259D 176259D 2009-05 → 2011-09 Figure 177136D 177136D 2011-09 → —

Part groups

PNCDescription
17344P Hose, Air, NO.4(FOR EXHAUST PIPE)
17348B Hose, Air, NO.8(FOR EXHAUST PIPE)
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17430C Clamp NO.1, Exhaust Tailpipe (FOR FRONT)
17450B Pipe Assy, Exhaust, Front NO.2
17451 Gasket, Exhaust Pipe
17452 Clamp, Exhaust Pipe
17504 Bracket Sub-assy, Catalytic Converter
17505F Support Sub-assy, Exhaust Pipe
17564 Support,Exhaust Pipe, NO.4
17564B Support, Catalytic Converter
17565 Support, Exhaust Pipe, NO.5
17565A Support, Exhaust Pipe, NO.4
17567 Cushion, Exhaust Pipe Support
17571 Bracket, Exhaust Pipe Support, NO.1
17572 Bracket, Exhaust Pipe NO.1 Support
17572B Bracket, Exhaust Pipe Support, NO.2
17575 Bracket, Exhaust Pipe Support, NO.5
17577 Bracket, Exhaust Pipe Support, NO.7
17578D Bracket, Exhaust Pipe Support, NO.8
17578F Clamp, Pipe(FOR CENTER PIPE)
17581A Damper, Exhaust Pipe
17593A Clamp
17593C Protector, Exhaust Pipe, Lower NO.1
17594A Protector, Exhaust Pipe, Lower NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
