Toyota Dyna

2001-07 → 2021-11 · chassis KDY22#,23#,25#,26#,LY2## · catalogue 731270 · Europe

Discontinued model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

40 part groups · 12 illustrations

Illustrations

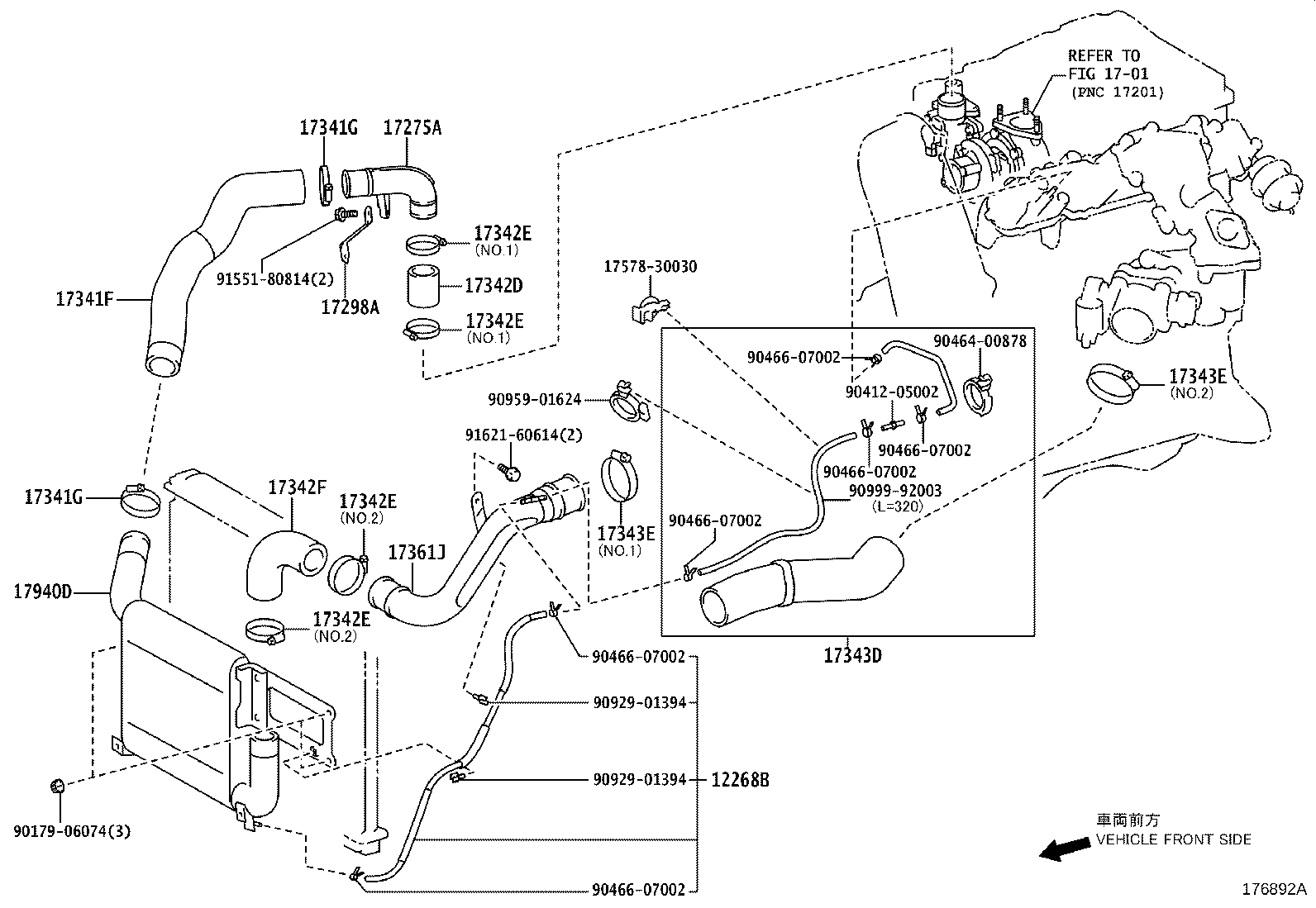

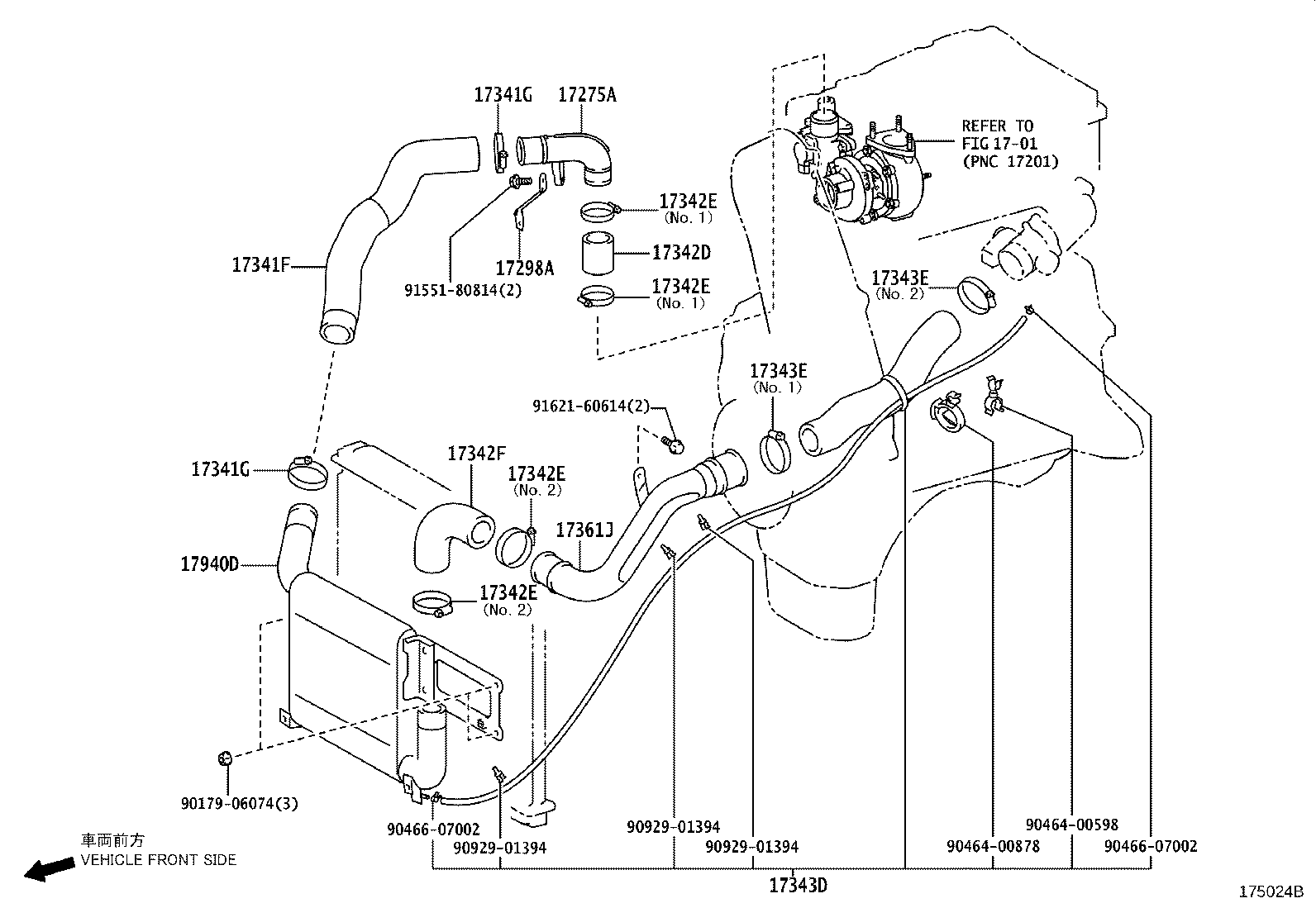

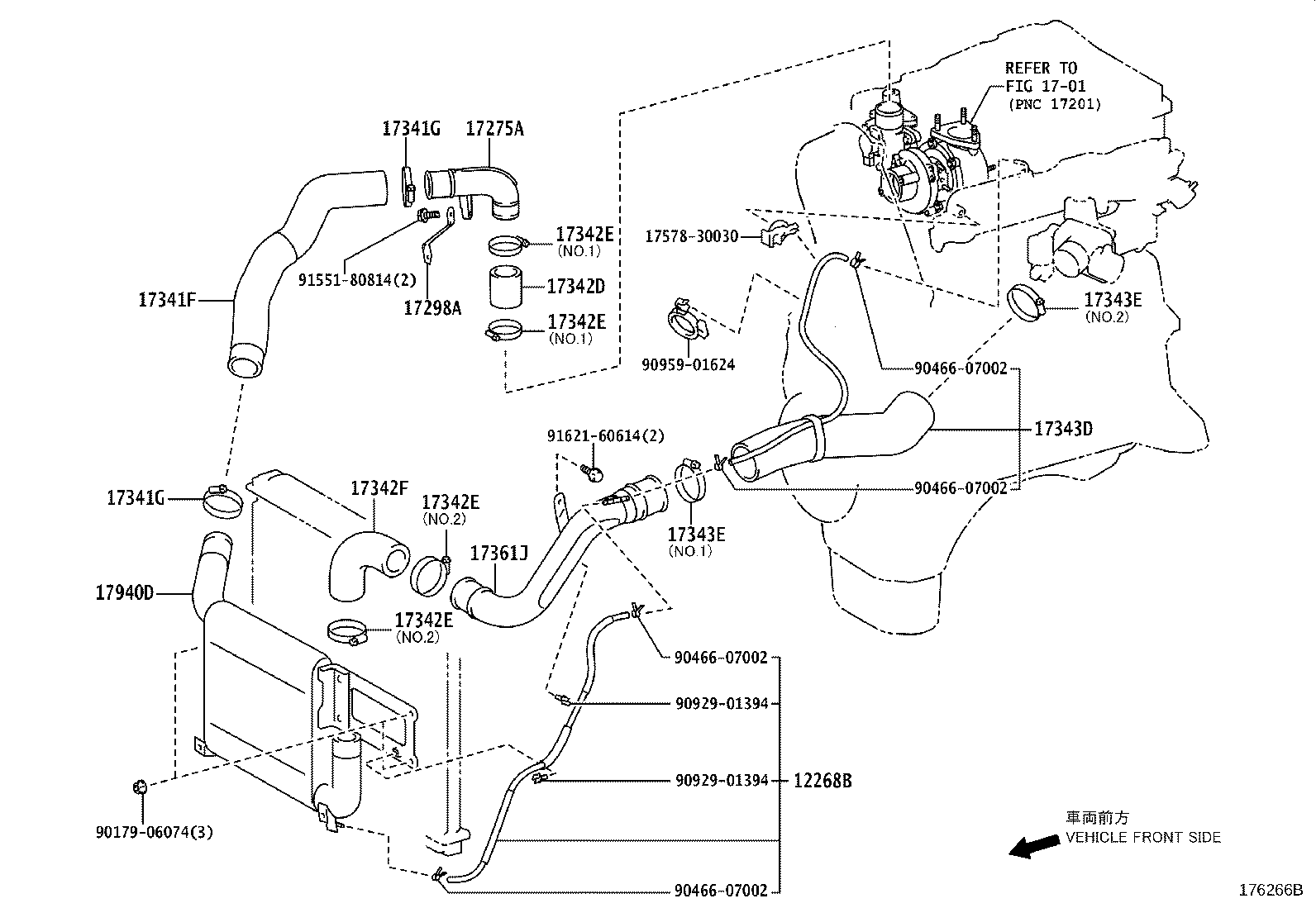

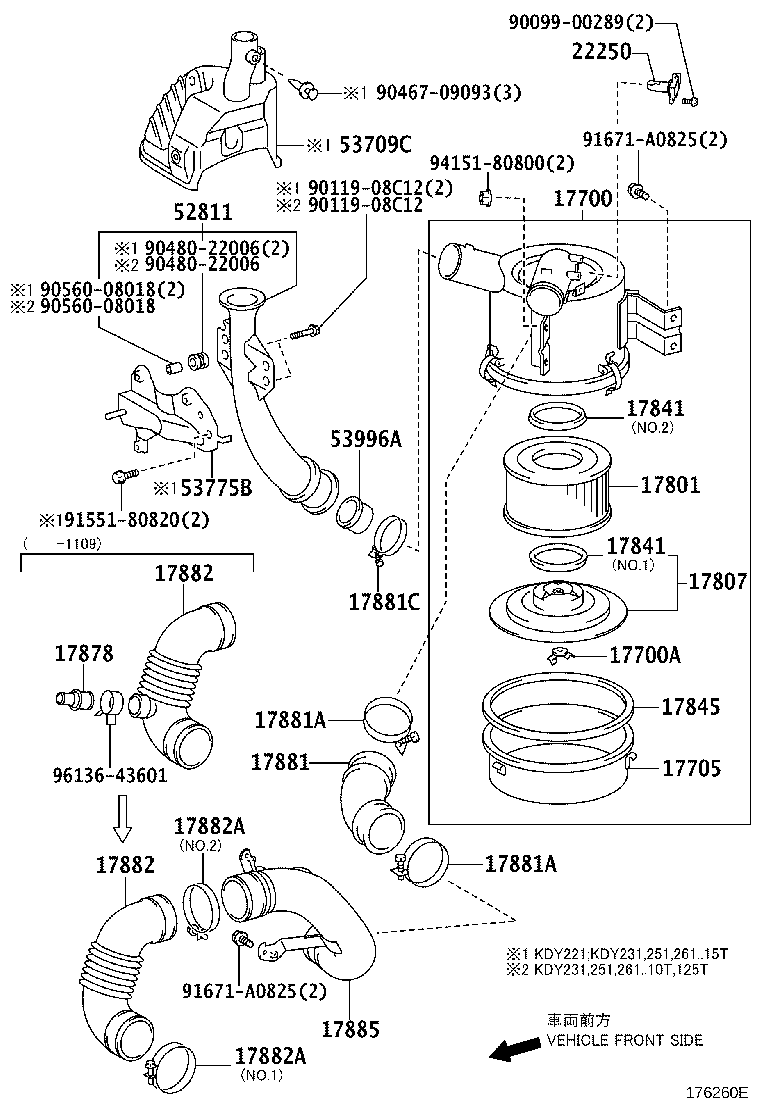

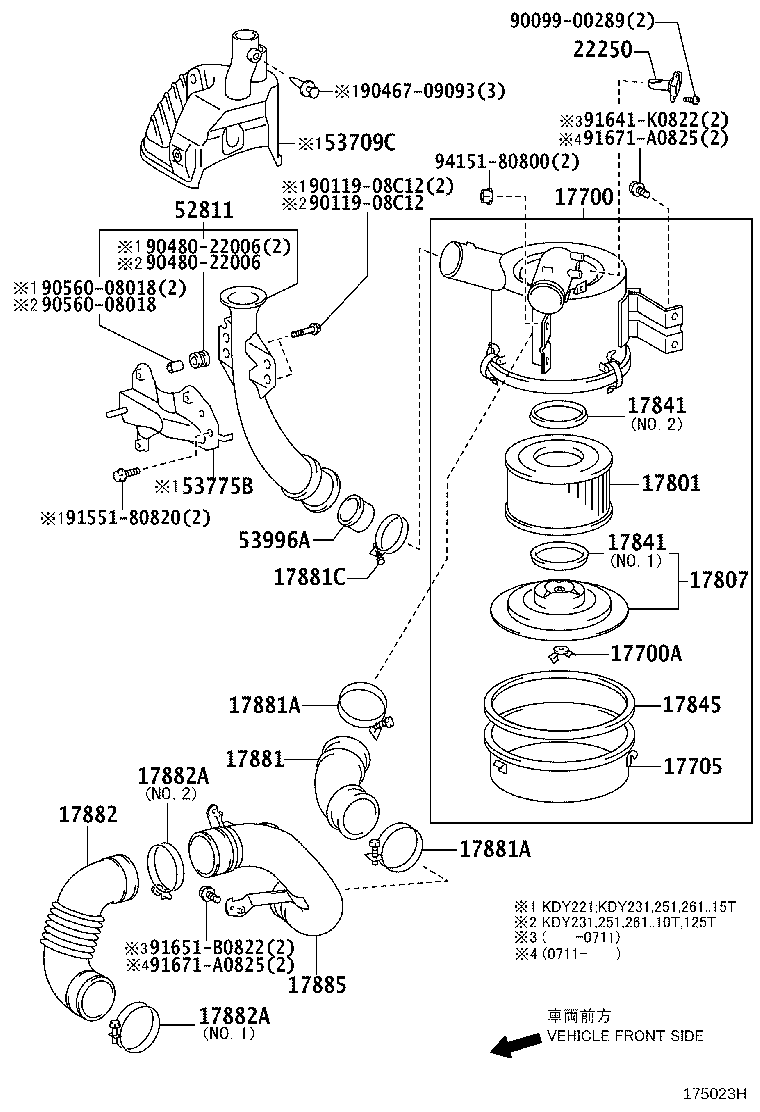

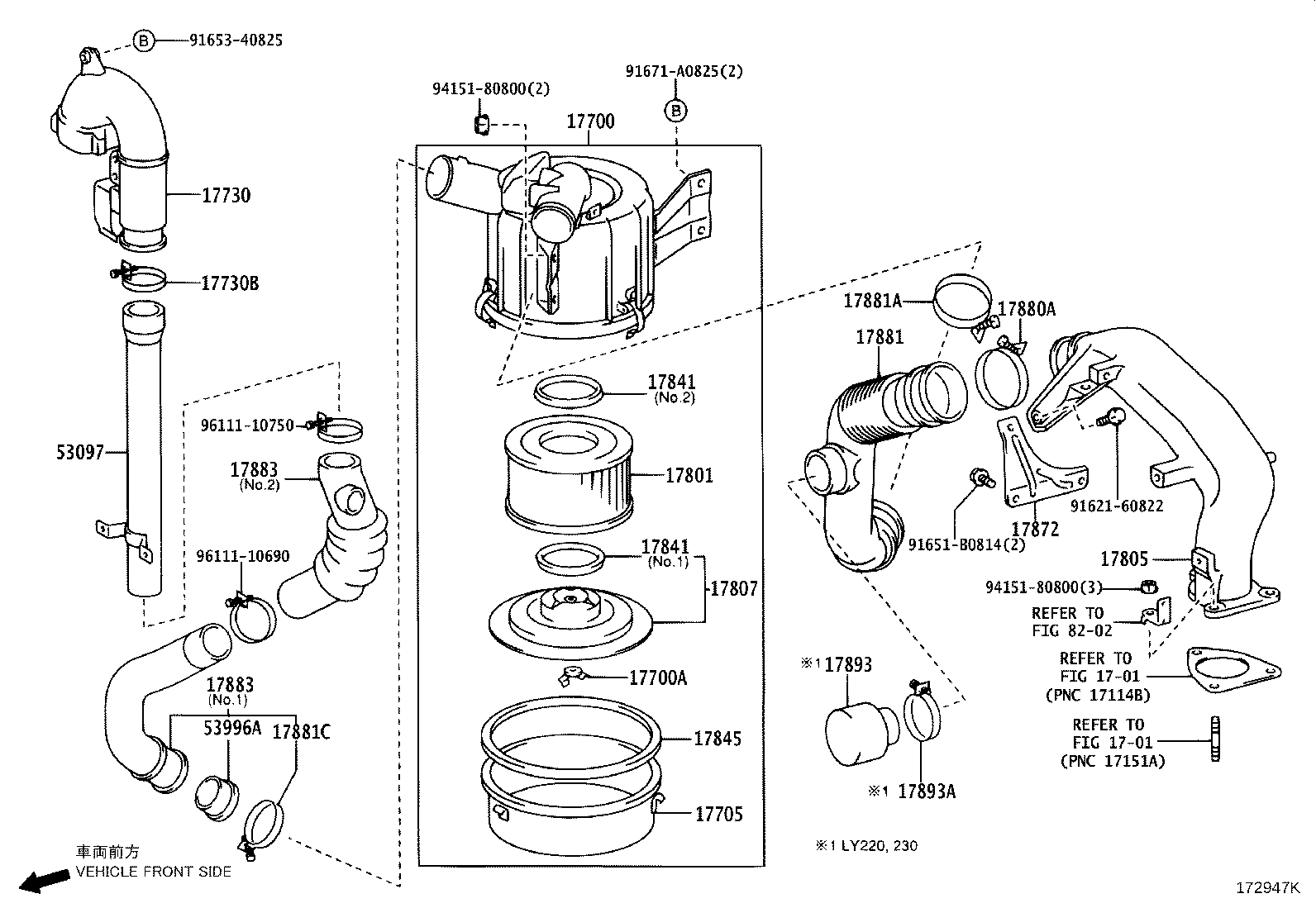

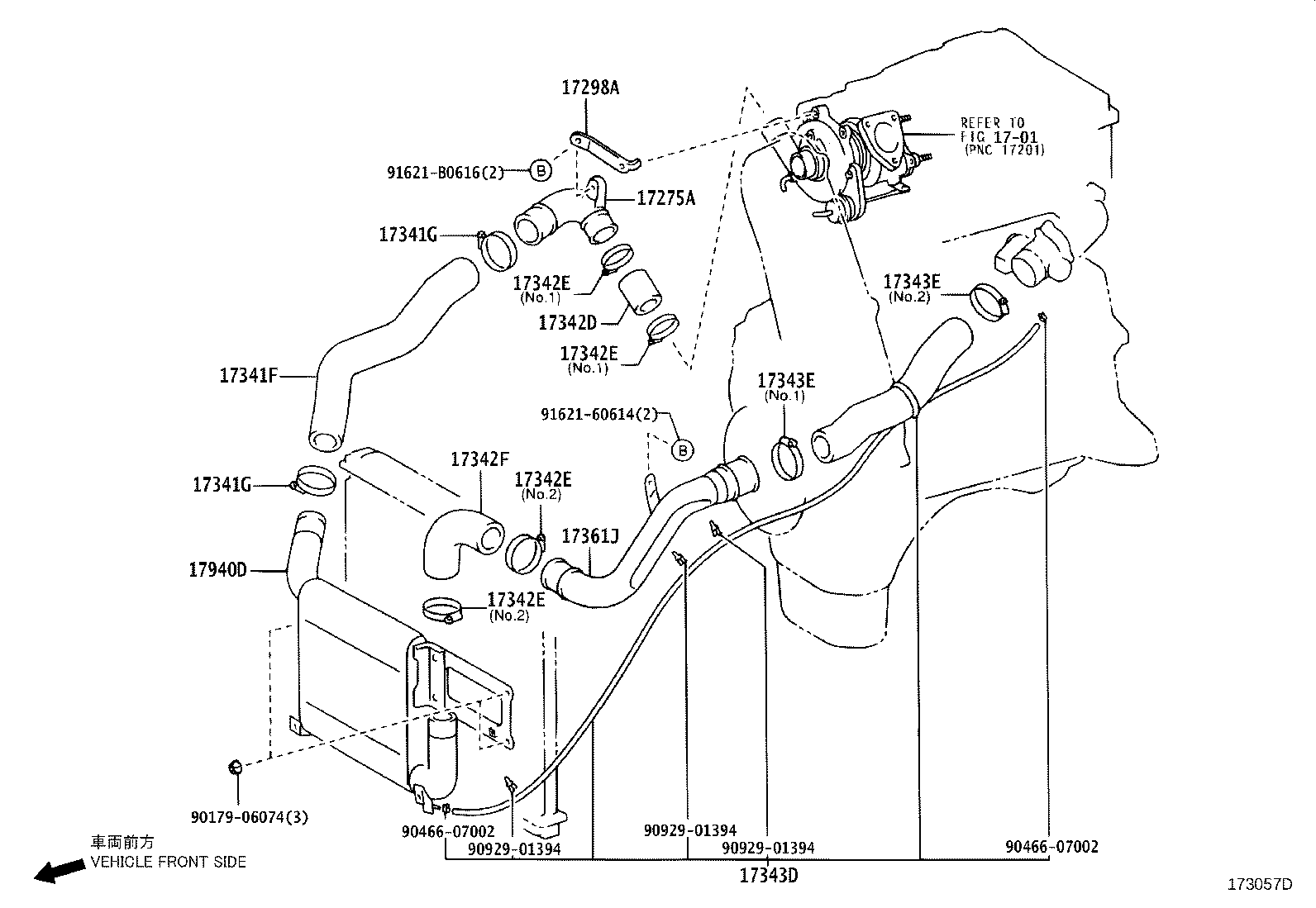

Figure 173056C 173056C 2001-08 → 2006-10 Figure 173057D 173057D 2001-08 → 2006-10 Figure 175023H 175023H 2006-09 → 2009-05 Figure 175023H 175023H 2009-05 → — Figure 176260E 176260E 2009-05 → — Figure 175024B 175024B 2006-09 → 2009-05 Figure 175024B 175024B 2009-05 → 2013-10 Figure 176266B 176266B 2009-05 → 2011-09 Figure 176892A 176892A 2011-09 → — Figure 176892A 176892A 2013-10 → — Figure 172946J 172946J 2001-07 → — Figure 172947K 172947K 2001-07 → —

Part groups

PNCDescription
12268B Hose, Oil Return
17275A Elbow, Compressor Outlet
17298A Stay, Compressor Elbow
17341F Hose, Air, NO.1
17341G Clamp OR Clip(FOR AIR HOSE, NO.1)
17342D Hose, Air, NO.2
17342E Clamp OR Clip(FOR AIR HOSE, NO.2)
17342F Hose, Air, NO.2(FOR INTERCOOLER)
17343D Hose, Air, NO.3
17343E Clamp, Hose(FOR AIR HOSE, NO.3)
17361J Tube, Air, NO.1
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17705 Cap Sub-assy, Air Cleaner
17730 Precleaner Assy, Air W/Hose
17730B Clamp, Hose(FOR PRECLEANER HOSE)
17801 Element Sub-assy, Air Cleaner Filter
17805 Connector Sub-assy, Intake Air
17807 Plate Sub-assy, Air Cleaner Filter Set
17841 Gasket, Filter Element
17845 Gasket, Air Cleaner Cap
17872 Bracket, Intake Air Connector
17878 Pipe, Intake Air Connector, NO.3
17880A Clamp, Hose
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17881C Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883 Hose, Air Cleaner, NO.3
17885 Pipe, Air Cleaner
17893 Resonator, Intake Air
17893A Clamp, Hose
17940D Intercooler Assy
22250 Meter Assy, Intake Air Flow
52811 Duct, Cool Air Intake, NO.1
53097 Inlet Sub-assy
53709C Cover Sub-assy, Air Cleaner Inlet
53775B Bracket, Cool Air Intake Duct Mounting
53996A Packing, Air Cleaner Inlet Pipe
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
