Toyota Dyna

2001-07 → 2021-11 · chassis KDY22#,23#,25#,26#,LY2## · catalogue 731270 · Europe

Discontinued model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

19 part groups · 9 illustrations

Illustrations

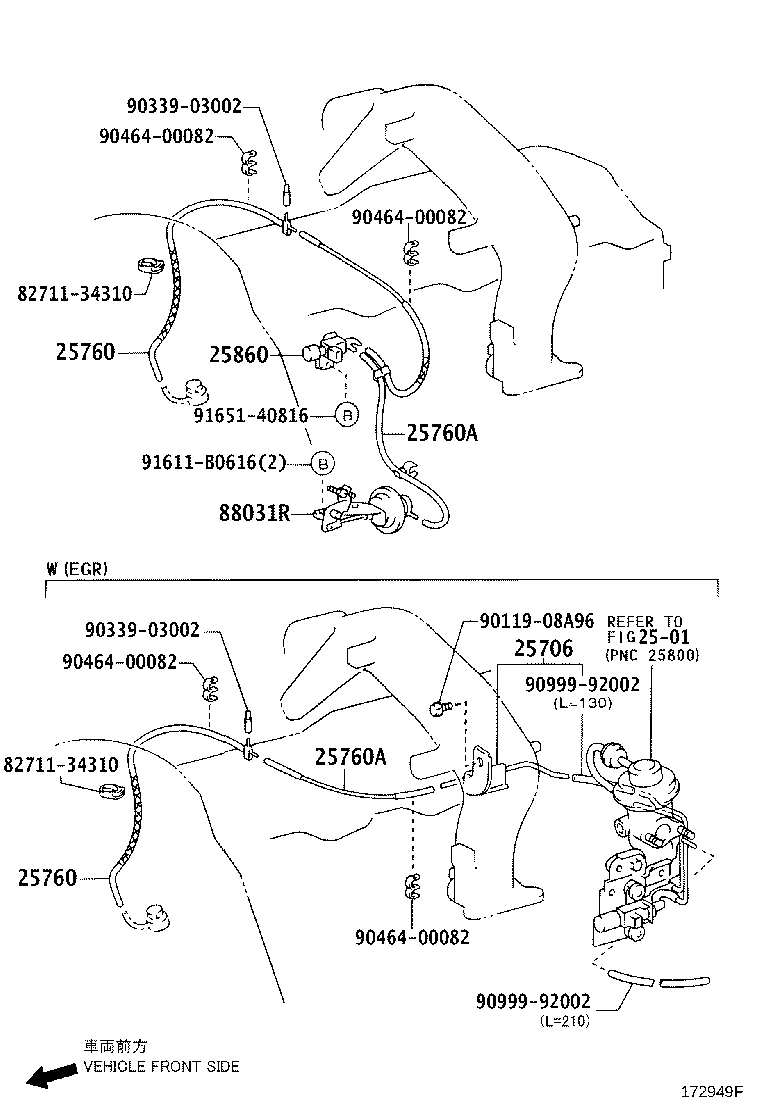

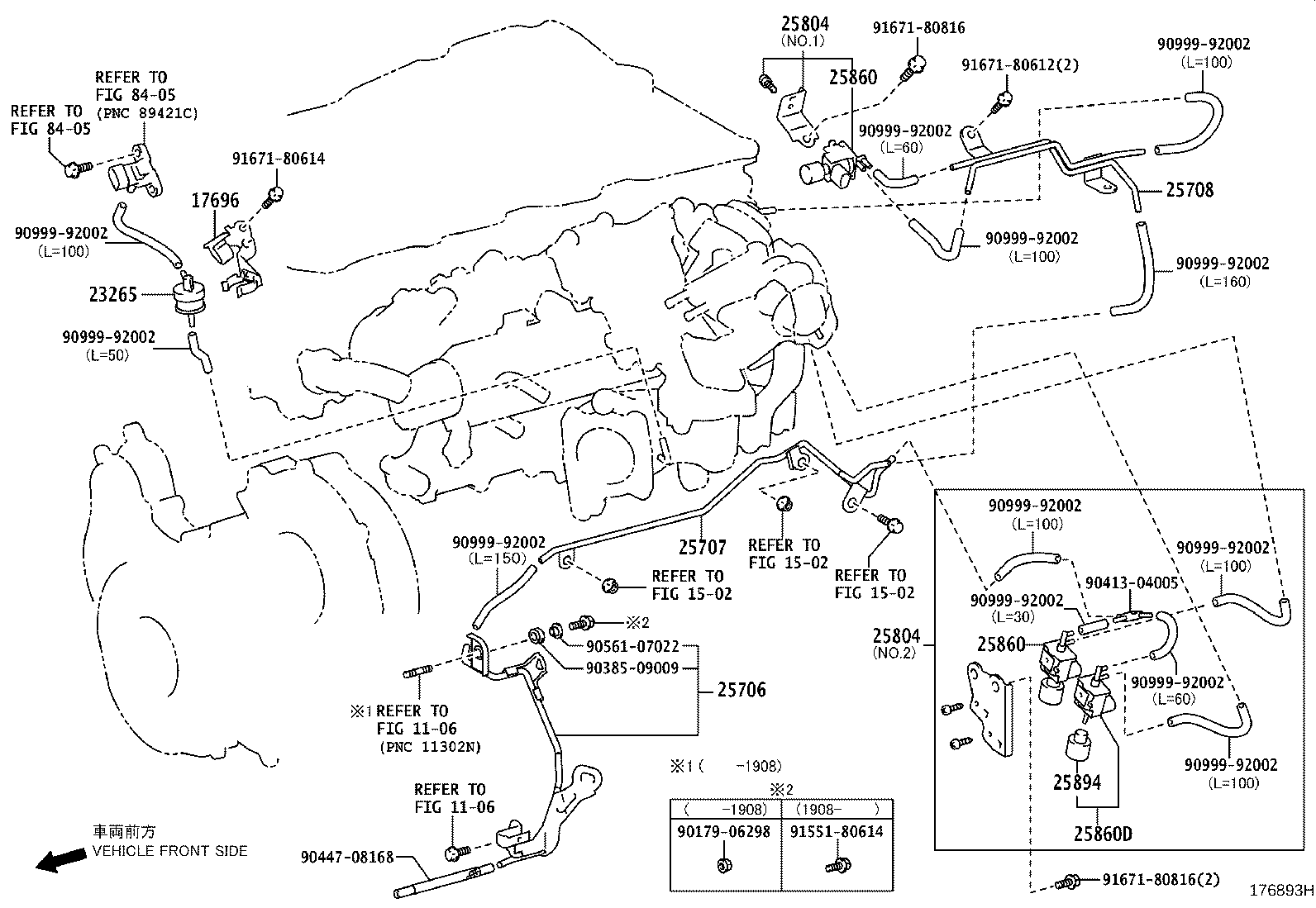

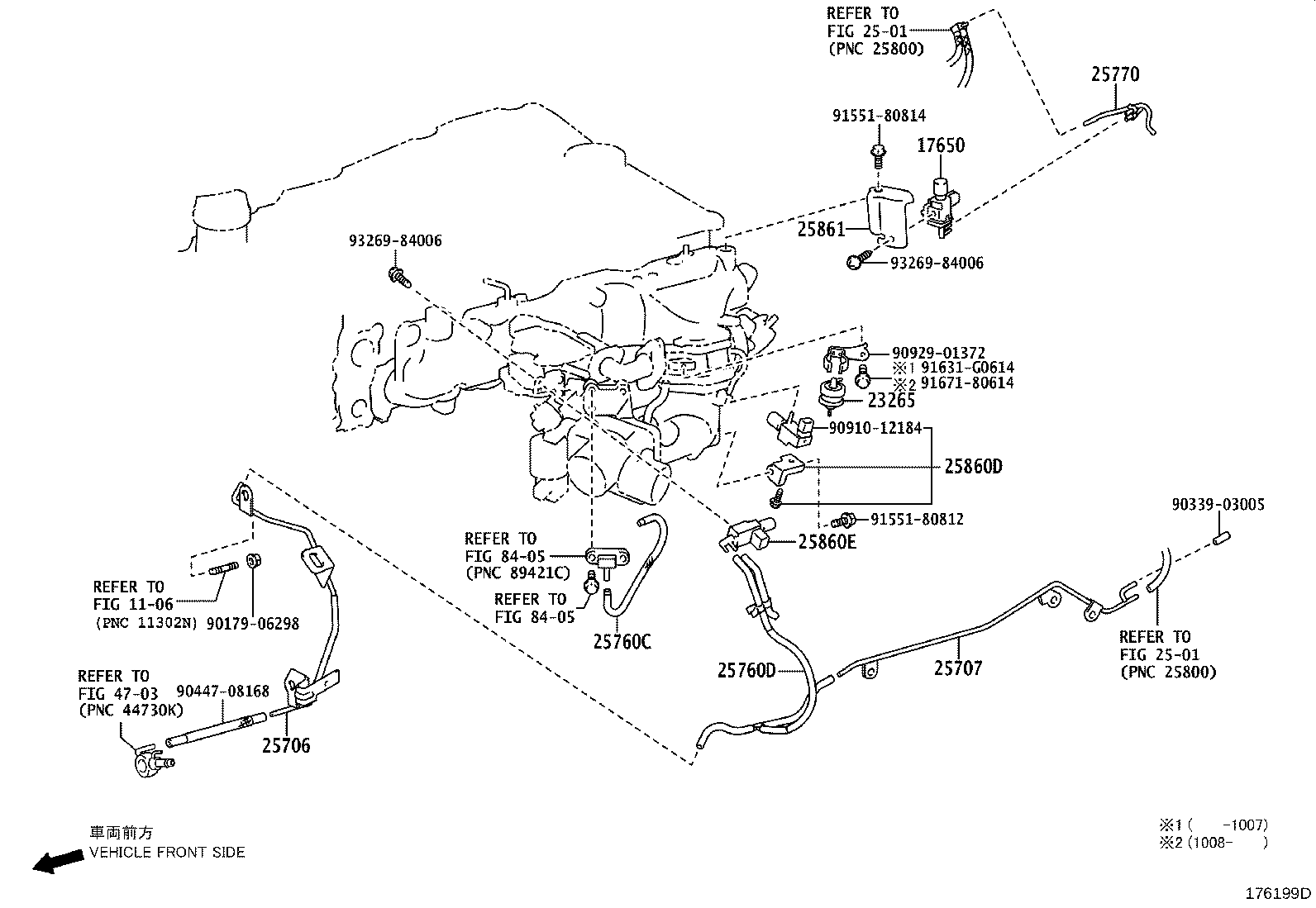

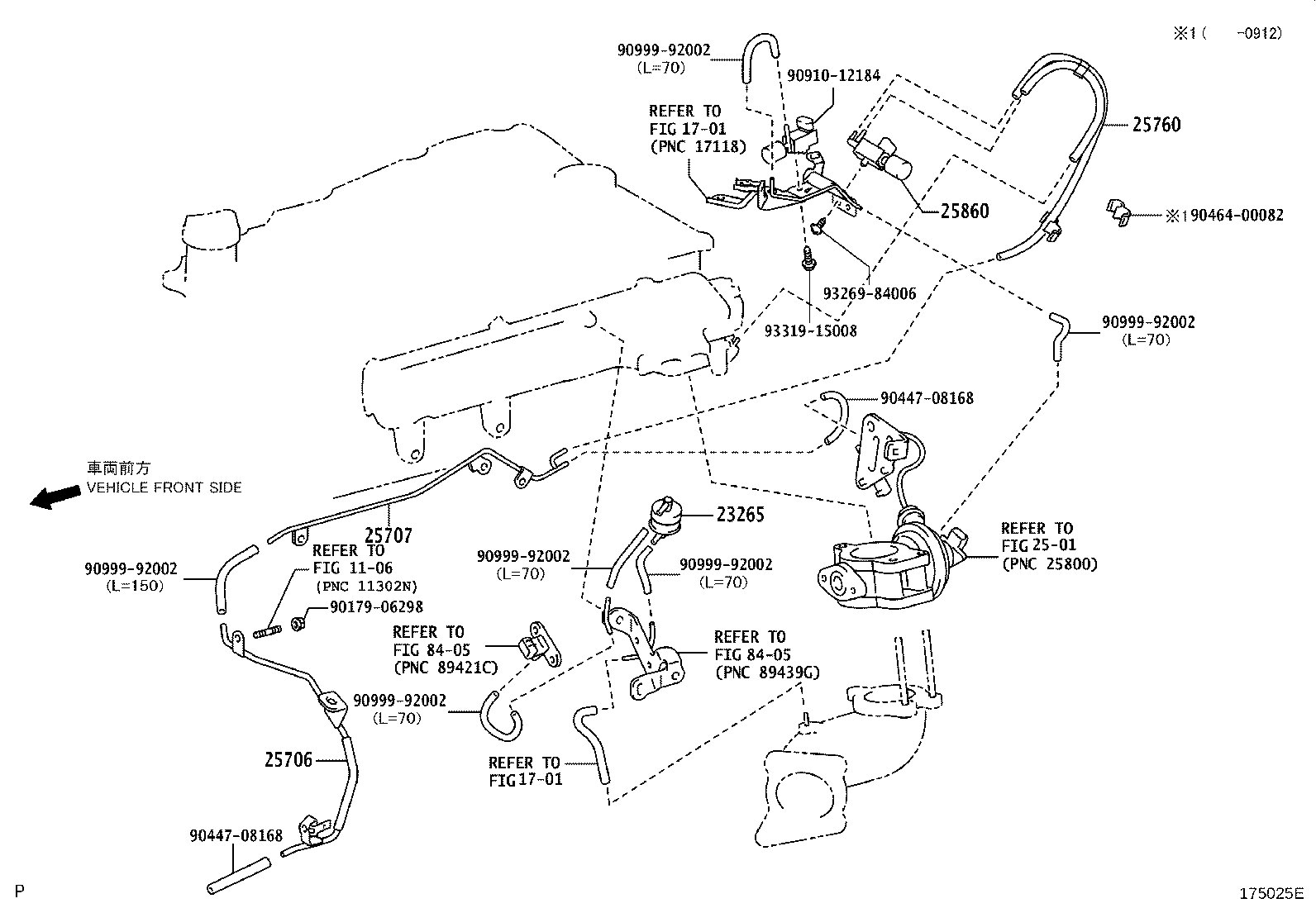

Figure 173051E 173051E 2001-08 → 2006-10 Figure 175025E 175025E 2006-09 → 2009-05 Figure 175025E 175025E 2009-05 → 2013-10 Figure 176199D 176199D 2009-05 → 2011-09 Figure 176893H 176893H 2011-09 → — Figure 176893H 176893H 2013-10 → — Figure 172949F 172949F 2001-07 → — Figure 172949F 172949F 2009-11 → — Figure 173459A 173459A 2002-08 → —

Part groups

PNCDescription
17340 Hose Assy, Vacuum Switching Valve
17650 Valve Assy, Vacuum Switching
17696 Bracket, Gas Filter
23265 Filter, Gas, NO.1
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25708 Pipe Sub-assy, Vacuum Transmitting, NO.3
25760 Hose Assy, Vacuum Transmitting
25760A Hose Assy, Vacuum Transmitting
25760C Hose Assy, Vacuum Transmitting, NO.3
25760D Hose Assy, Vacuum Transmitting, NO.4
25770 Hose Assy, Vacuum Transmitting, NO.2
25804 Valve Set, Vacuum Control
25860 Valve Assy, Vacuum Switching, NO.1
25860D Valve Assy, Vacuum Switching, NO.2
25860E Valve, Vacuum Switching, NO.2
25861 Bracket, Vacuum Switching Valve
25894 Filter, NO.1
88031R Actuator Set, Idle-up
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
