Toyota Dyna

2001-07 → 2021-11 · chassis KDY22#,23#,25#,26#,LY2## · catalogue 731270 · Europe

Discontinued model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Starter

12 part groups · 5 illustrations

Illustrations

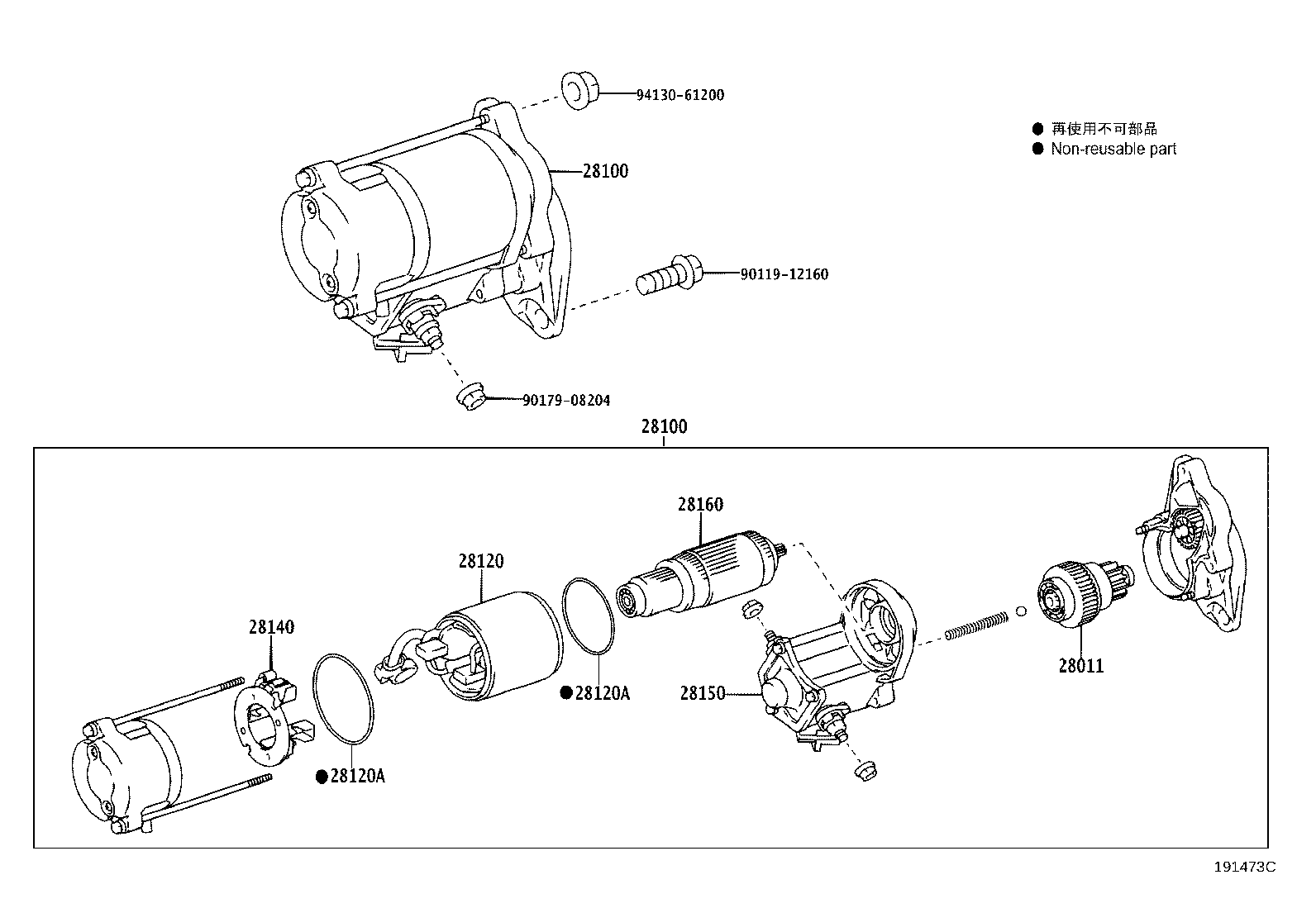

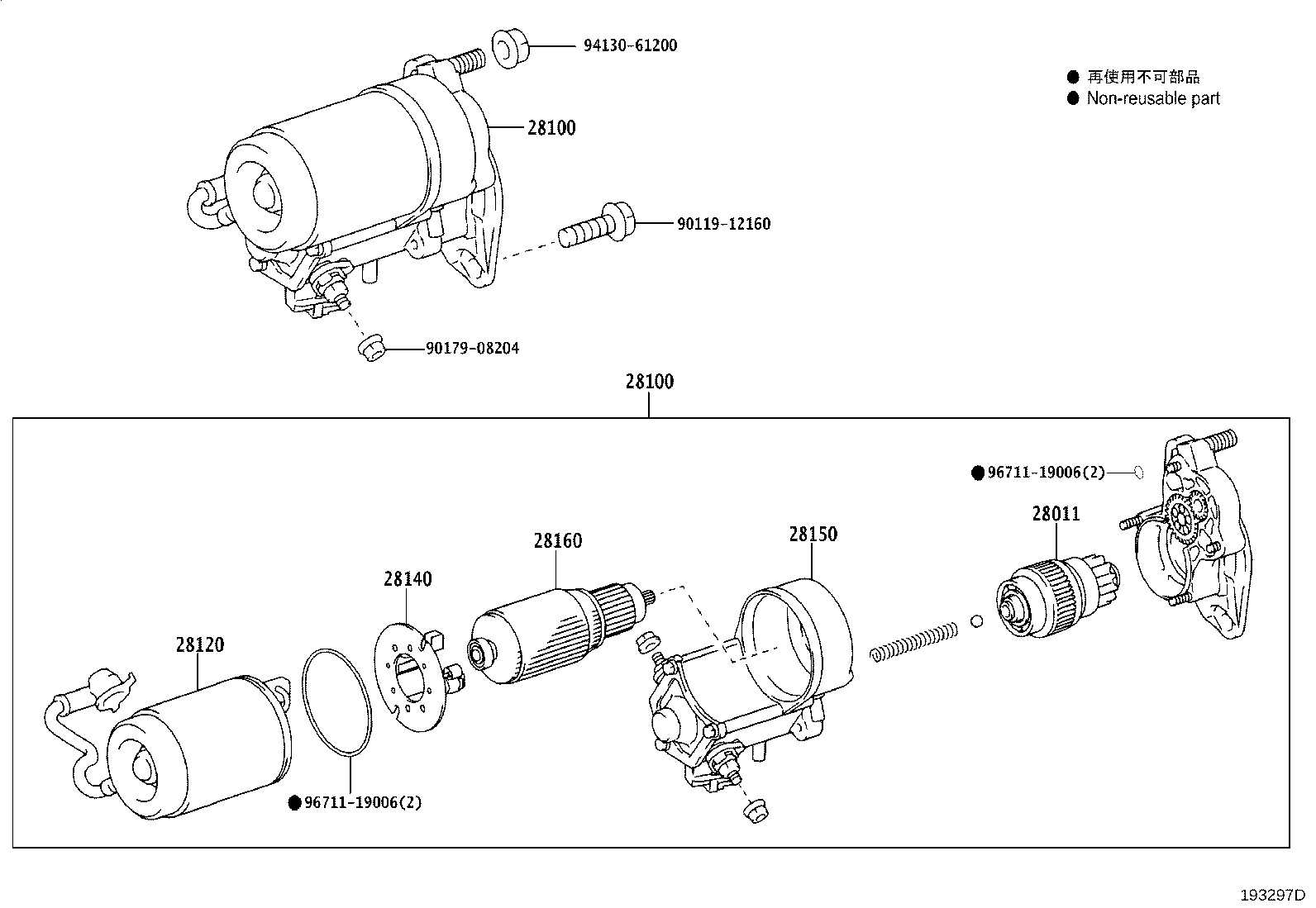

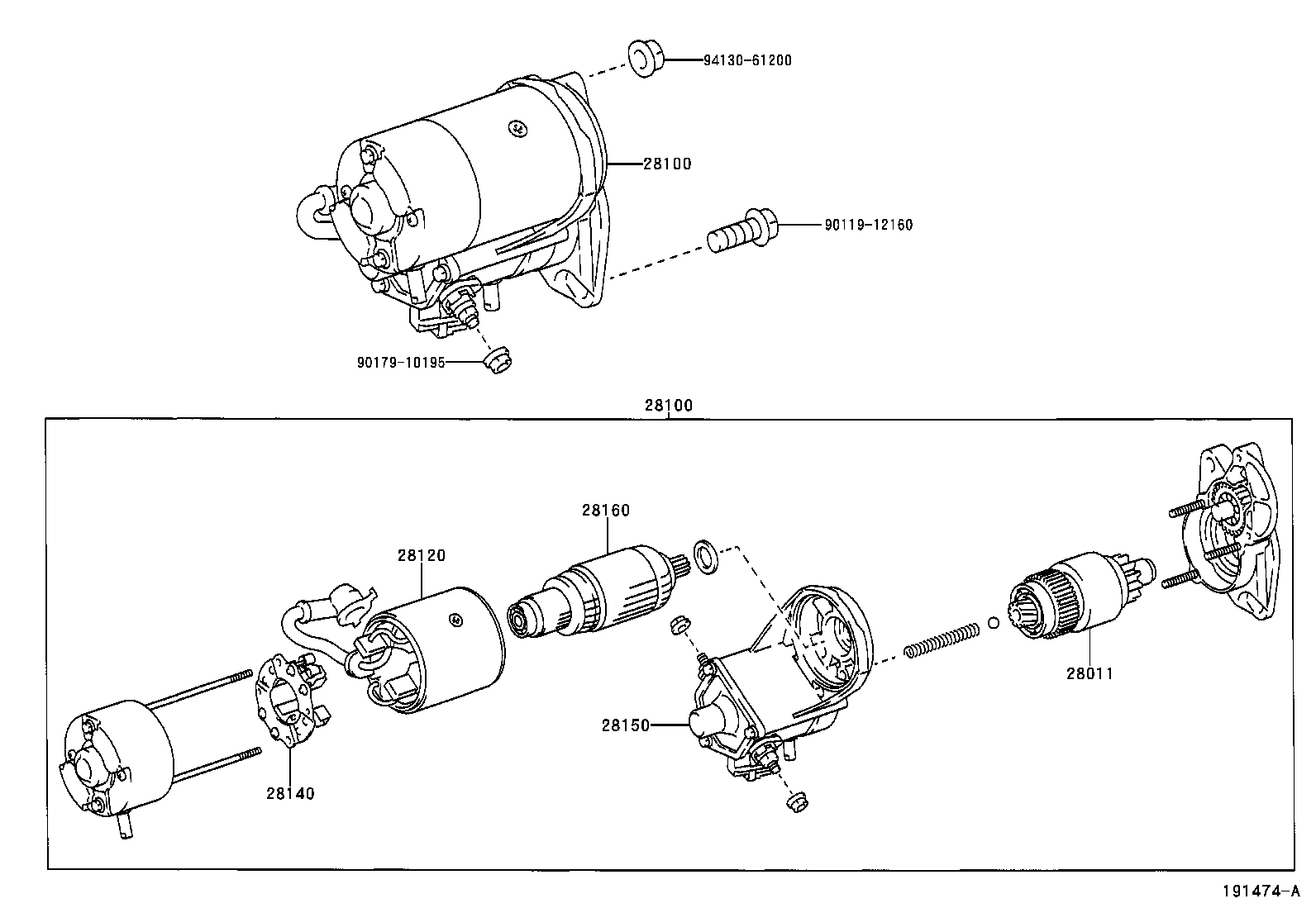

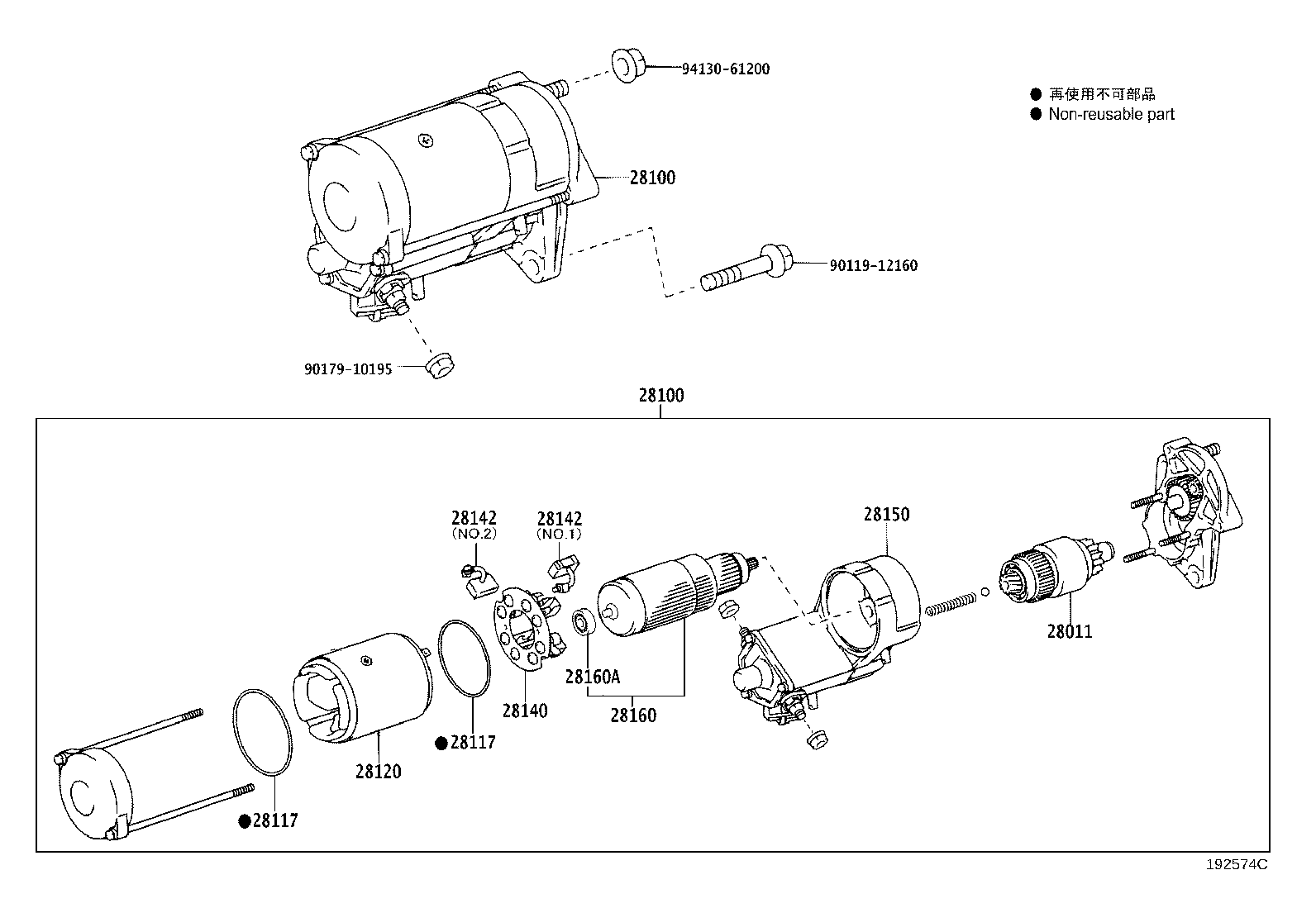

Figure 191414F 191414F 2001-07 → — Figure 191473C 191473C 2001-08 → 2006-10 Figure 191474A 191474A 2001-08 → 2006-10 Figure 192574C 192574C 2006-09 → — Figure 193297D 193297D 2006-09 → —

Part groups

PNCDescription
28011 Clutch Sub-assy, Starter
28100 Starter Assy
28117 Rubber(FOR STARTER YOKE)
28120 Yoke Assy, Starter
28120A Ring, O(FOR STARTER YOKE)
28139 Wire, Lead, NO.1(FOR STARTER)
28140 Holder Assy, Starter Brush
28142 Brush, Starter
28150 Switch Assy, Magnet Starter
28160 Armature Assy, Starter
28160A Bearing, Starter Armature
28226 Starter Kit, Battery Terminal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
