Toyota Dyna

2001-07 → 2021-11 · chassis KDY22#,23#,25#,26#,LY2## · catalogue 731270 · Europe

Discontinued model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Pump

16 part groups · 2 illustrations

Illustrations

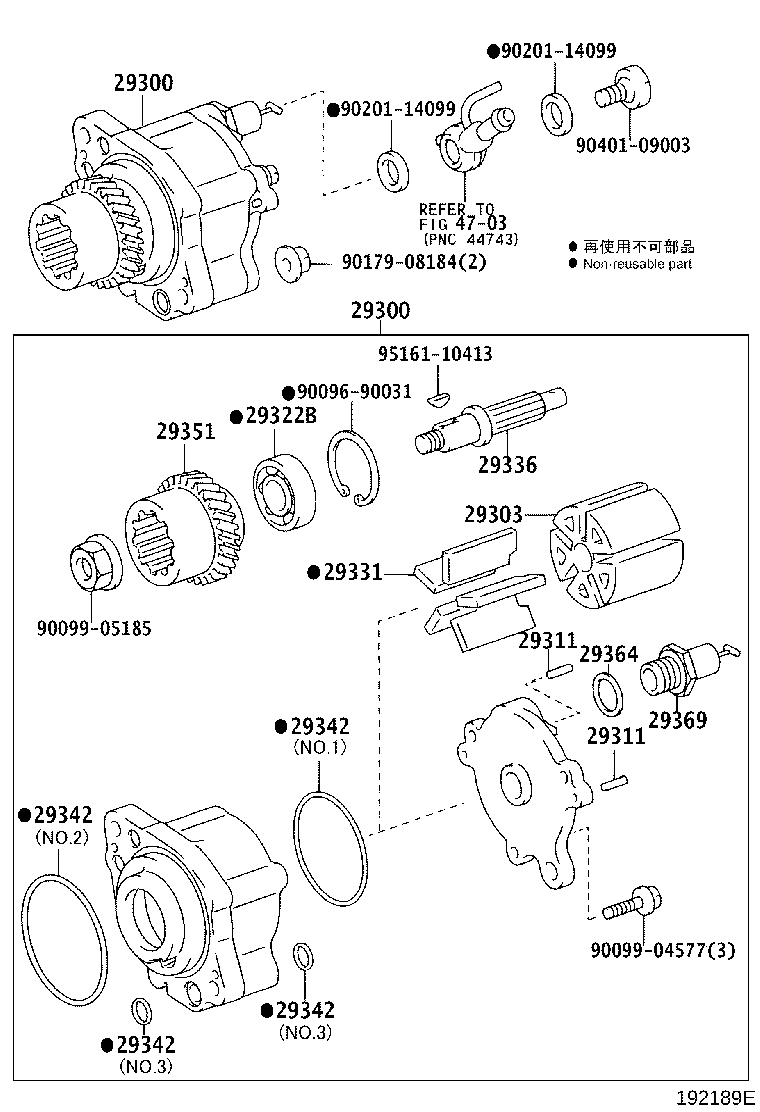

Figure 191409K 191409K 2001-07 → — Figure 192189E 192189E 2001-08 → —

Part groups

PNCDescription
29300 Pump Assy, Vacuum
29300A Hose, Vacuum Pump Oil Inlet
29300B Hose, Vacuum Pump Oil Outlet
29303 Rotor Sub-assy, Vacuum Pump
29311 Pin, Vacuum Pump Dowel, NO.1
29314 Ring, Stop
29322B Bearing, Vacuum Pump
29331 Blade, Vacuum Pump, A
29336 Shaft, Vacuum Pump
29341A Seal, Oil
29342 Packing, Vacuum Pump
29342B Ring, O
29351 Gear, Vacuum Pump
29364 Washer, Vacuum Pump
29366 Pulley, Vacuum Pump
29369 Valve Sub-assy, Check
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
