Toyota Dyna

2001-07 → 2021-11 · chassis KDY22#,23#,25#,26#,LY2## · catalogue 731270 · Europe

Discontinued model Data version 2022-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch & Release Fork

8 part groups · 2 illustrations

Illustrations

Figure 310867H

310867H 2001-08 → —

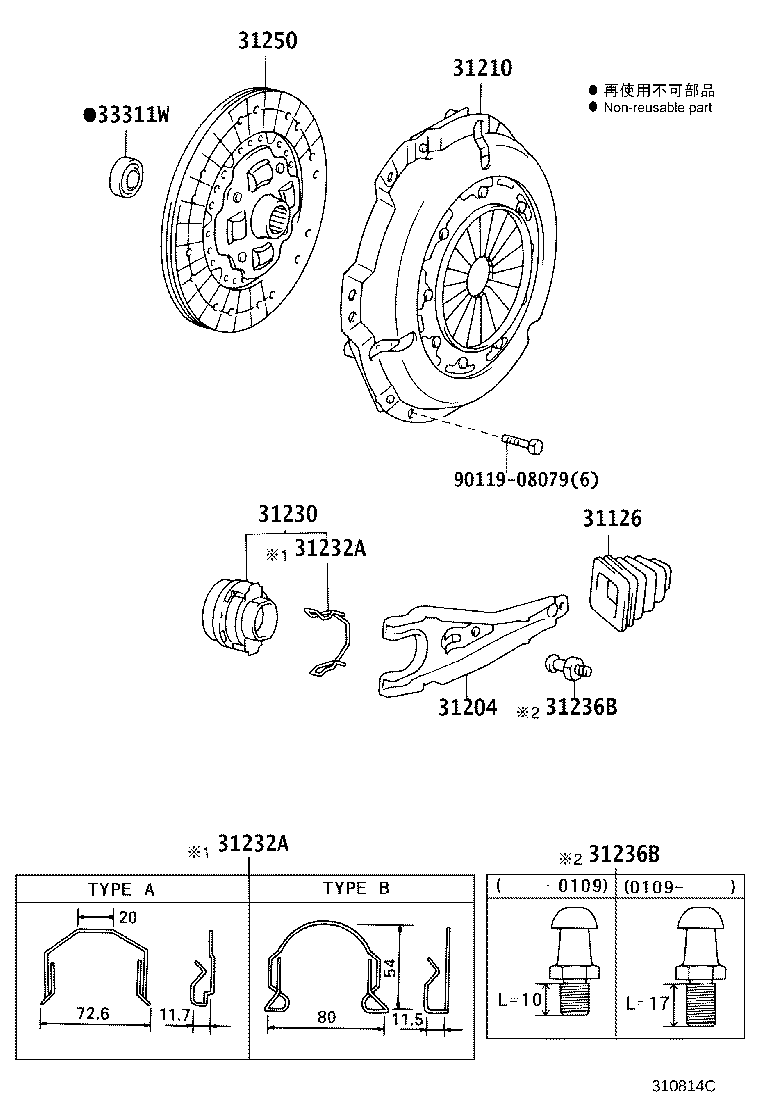

Figure 310814C

310814C 2001-07 → —

Part groups

PNC	Description
31126	Boot, Clutch Release Fork
31204	Fork Sub-assy, Clutch Release
31210	Cover Assy, Clutch
31230	Bearing Assy, Clutch Release
31232A	Clip, Release Bearing Hub
31236B	Support, Release Fork
31250	Disc Assy, Clutch
33311W	Bearing (FOR INPUT SHAFT)

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
