Toyota Dyna

2001-07 → 2021-11 · chassis KDY22#,23#,25#,26#,LY2## · catalogue 731270 · Europe

Discontinued model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Master Cylinder

7 part groups · 4 illustrations

Illustrations

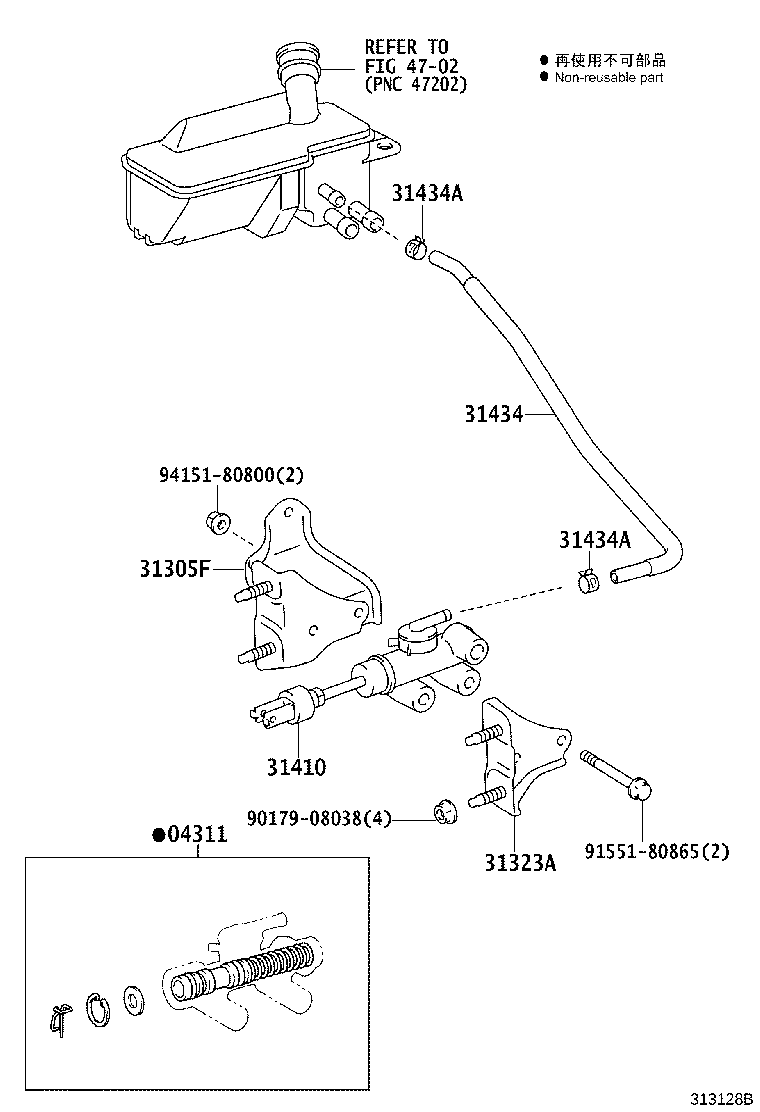

Figure 310820B 310820B 2001-07 → 2016-10 Figure 313129A 313129A 2016-10 → — Figure 310819D 310819D 2001-07 → 2016-10 Figure 313128B 313128B 2016-10 → —

Part groups

PNCDescription
04311 Cylinder Kit, Clutch Master
31305F Bracket Sub-assy, Clutch Pedal
31323A Bracket, Clutch Pedal
31410 Cylinder Assy, Clutch Master
31410A Bolt(FOR CLUTCH MASTER CYLINDER SETTING)
31434 Tube, Clutch Reservoir
31434A Clip(FOR CLUTCH RESERVOIR TUBE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
