Toyota Dyna

2001-07 → 2021-11 · chassis KDY22#,23#,25#,26#,LY2## · catalogue 731270 · Europe

Discontinued model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vane Pump & Reservoir (POWER STEERING)

12 part groups · 3 illustrations

Illustrations

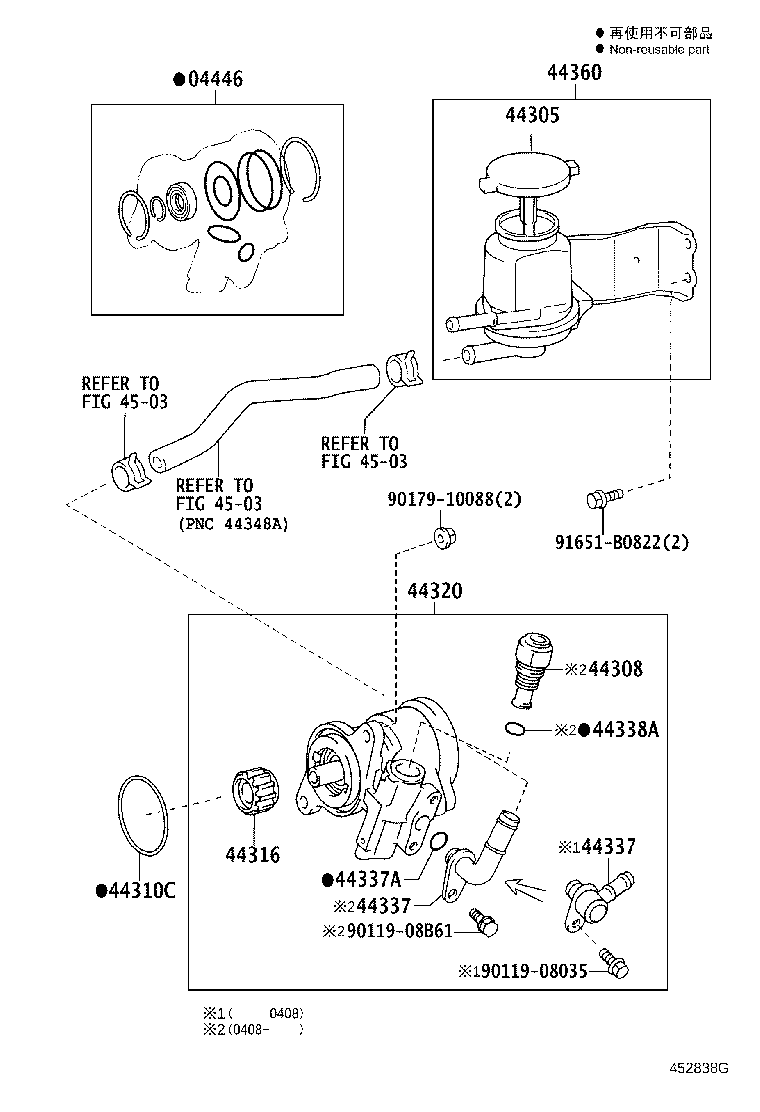

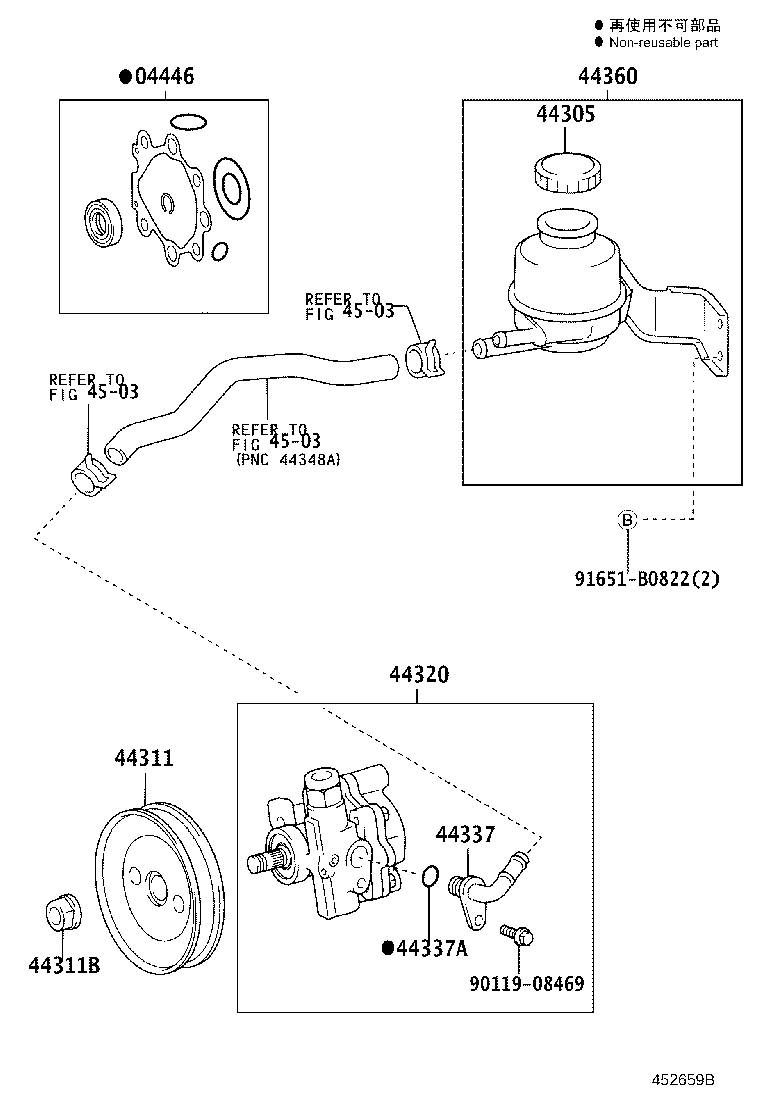

Figure 452685B 452685B 2001-07 → — Figure 452659B 452659B 2001-07 → — Figure 452838G 452838G 2001-08 → —

Part groups

PNCDescription
04446 Gasket Kit, Power Steering Pump
44305 Cap Sub-assy, Vane Pump Oil Reservoir
44308 Union Sub-assy, Pressure Port
44310C Ring, O(FOR VANE PUMP)
44311 Pulley, Vane Pump
44311B Nut(FOR VANE PUMP PULLEY)
44316 Gear, Vane Pump
44320 Pump Assy, Vane
44337 Union, Power Steering Suction Port
44337A Ring, O(FOR POWER STEERING SUCTION PORT)
44338A Ring, O(FOR PRESSURE PORT UNION)
44360 Reservoir Assy, Vane Pump Oil
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
