Toyota Dyna

2001-07 → 2021-11 · chassis KDY22#,23#,25#,26#,LY2## · catalogue 731270 · Europe

Discontinued model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Master Cylinder

14 part groups · 8 illustrations

Illustrations

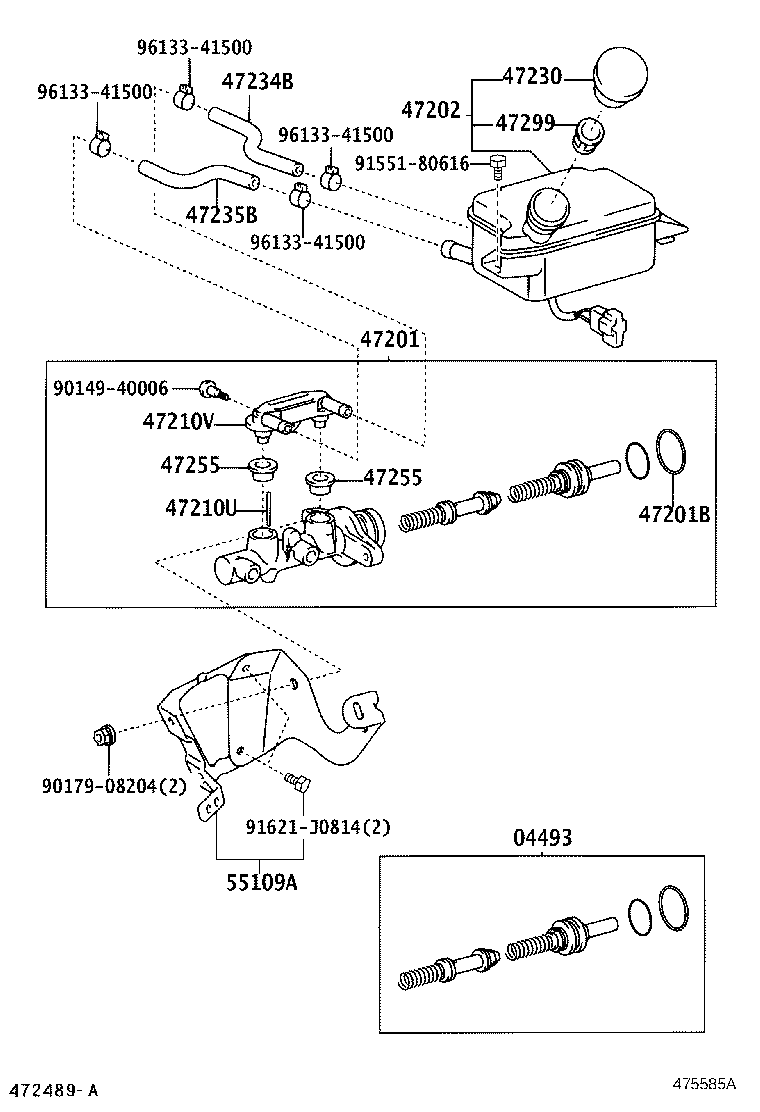

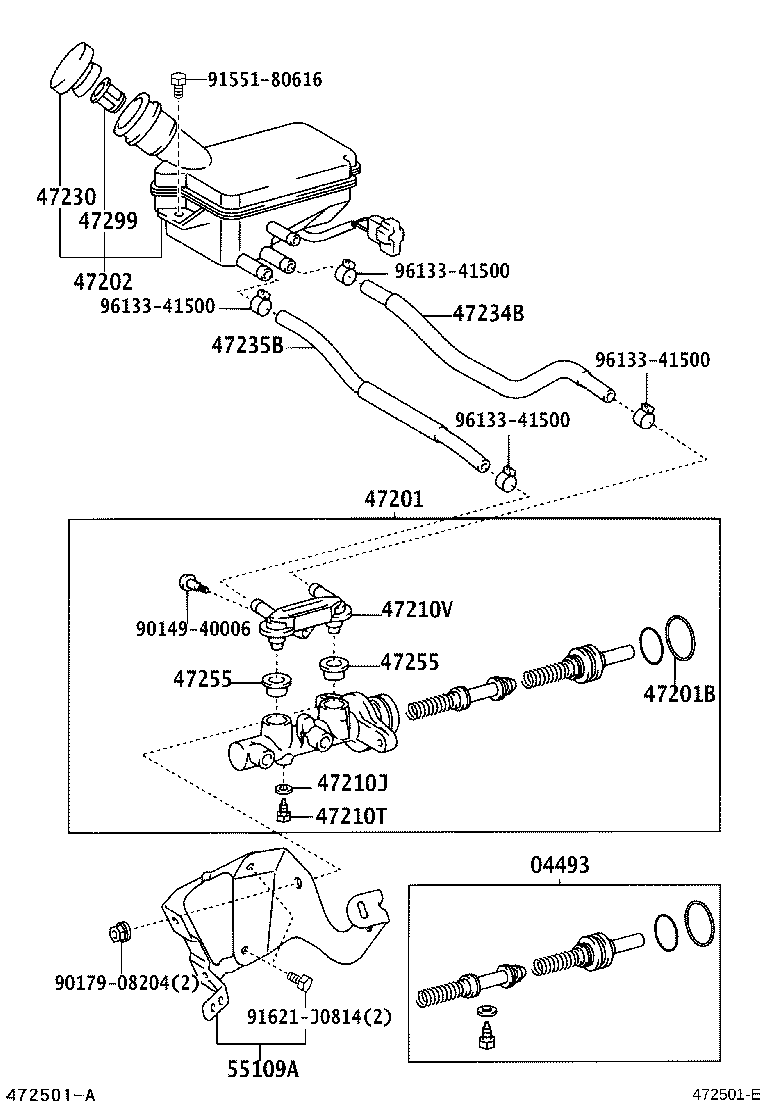

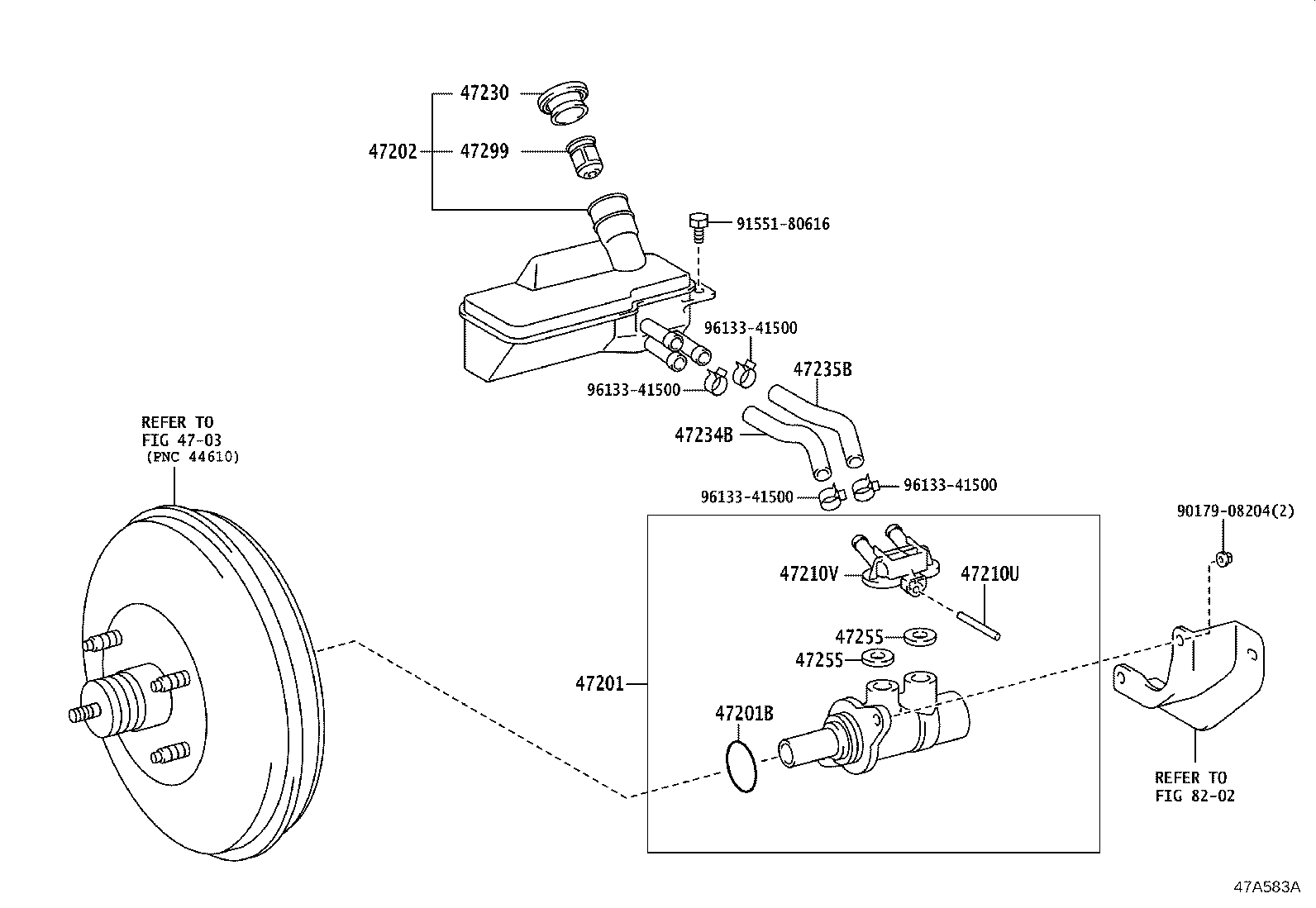

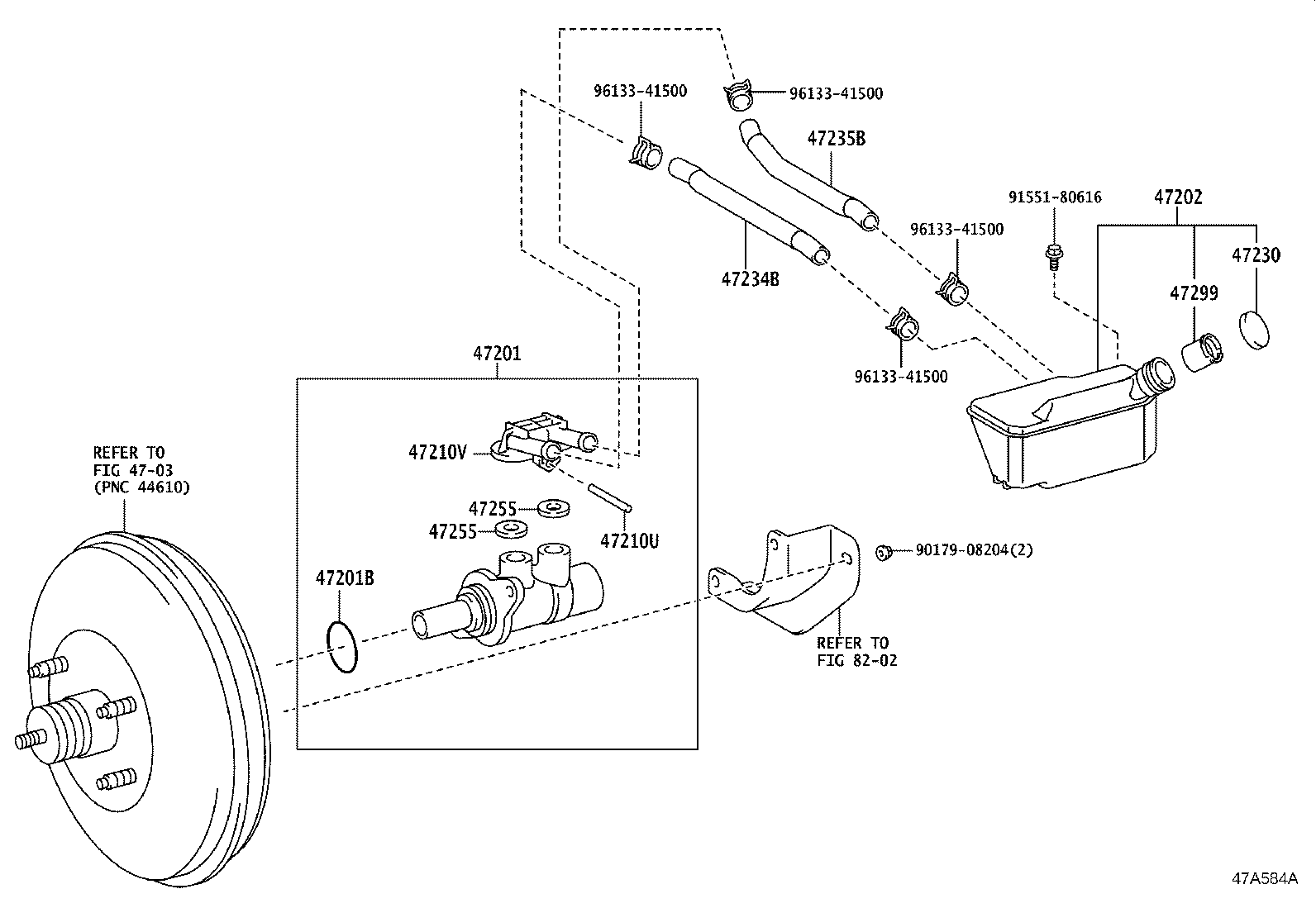

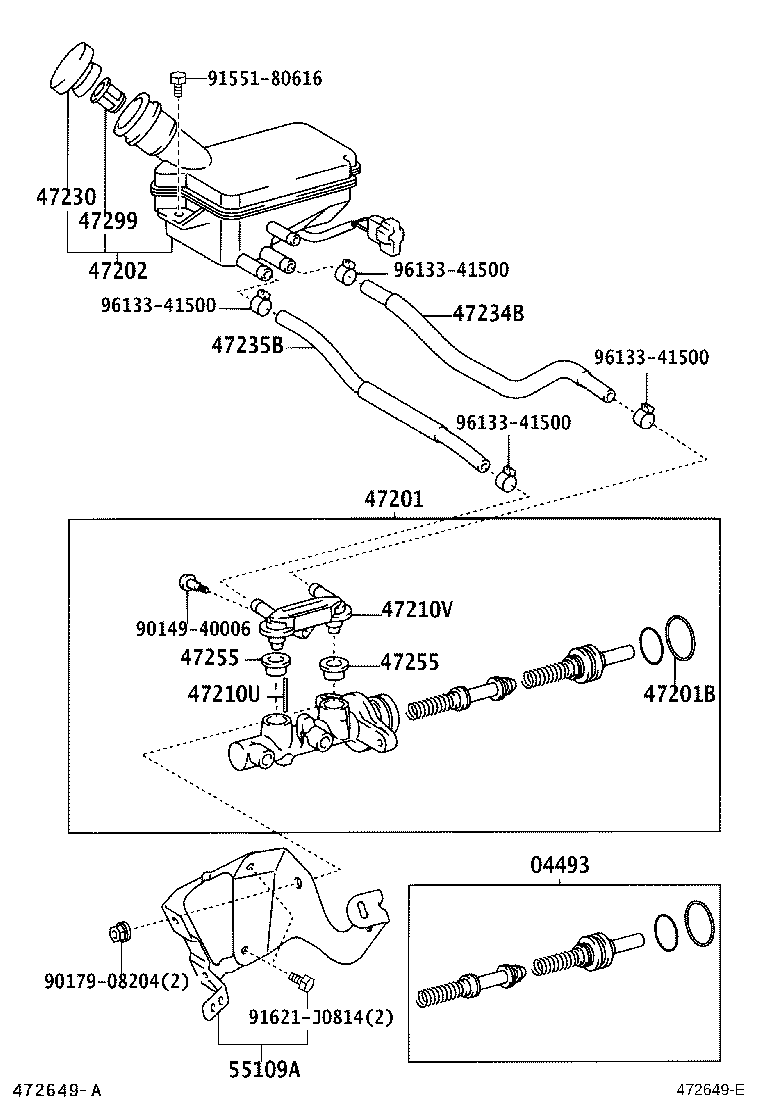

Figure 472521E 472521E 2001-07 → 2016-10 Figure 472521E 472521E 2003-12 → 2016-10 Figure 472501E 472501E 2001-07 → 2016-10 Figure 472501E 472501E 2001-08 → 2016-10 Figure 475585A 475585A 2001-08 → 2015-02 Figure 472649E 472649E 2001-08 → 2015-02 Figure 47A584A 47A584A 2016-10 → — Figure 47A583A 47A583A 2016-10 → —

Part groups

PNCDescription
04493 Cylinder Kit, Brake Master
47201 Cylinder Sub-assy, Brake Master
47201B Ring, O(FOR BRAKE MASTER CYLINDER)
47202 Reservoir Sub-assy, Brake Master Cylinder
47210J Gasket(FOR MASTER CYLINDER)
47210T Bolt(FOR BRAKE MASTER CYLINDER)
47210U Pin, Straight(FOR BRAKE MASTER CYLINDER)
47210V Union(FOR BRAKE MASTER CYLINDER)
47230 Cap Assy, Brake Master Cylinder Reservoir Filler
47234B Tube, Reservoir, NO.1
47235B Tube, Brake Master Cyrinder Reservoir, NO.2
47255 Grommet, Master Cylinder Reservoir
47299 Strainer, Brake Master Cylinder Reservoir
55109A Support Sub-assy, Brake Master Cylinder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
