Toyota Dyna

2001-07 → 2021-11 · chassis KDY22#,23#,25#,26#,LY2## · catalogue 731270 · Europe

Discontinued model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

19 part groups · 12 illustrations

Illustrations

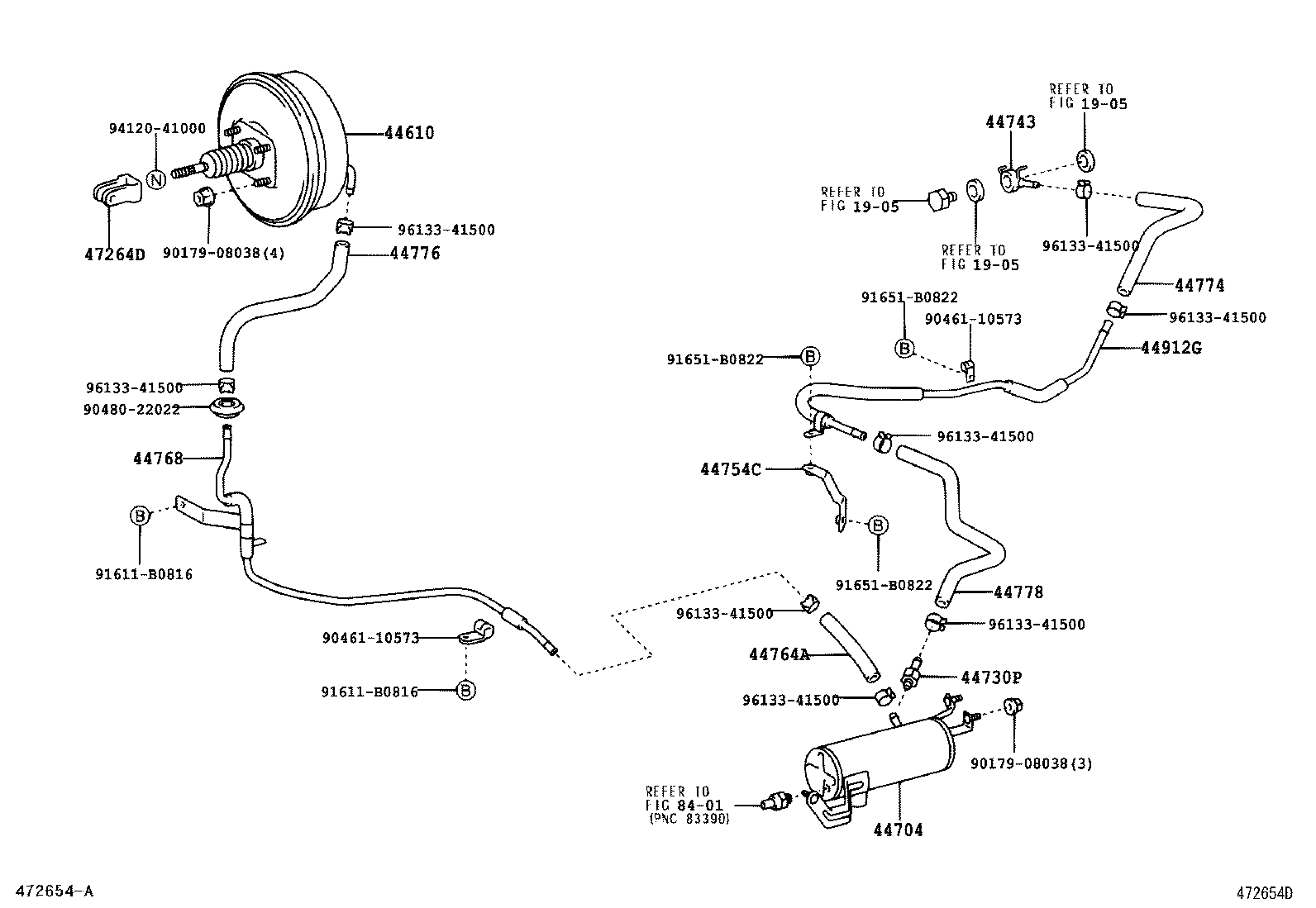

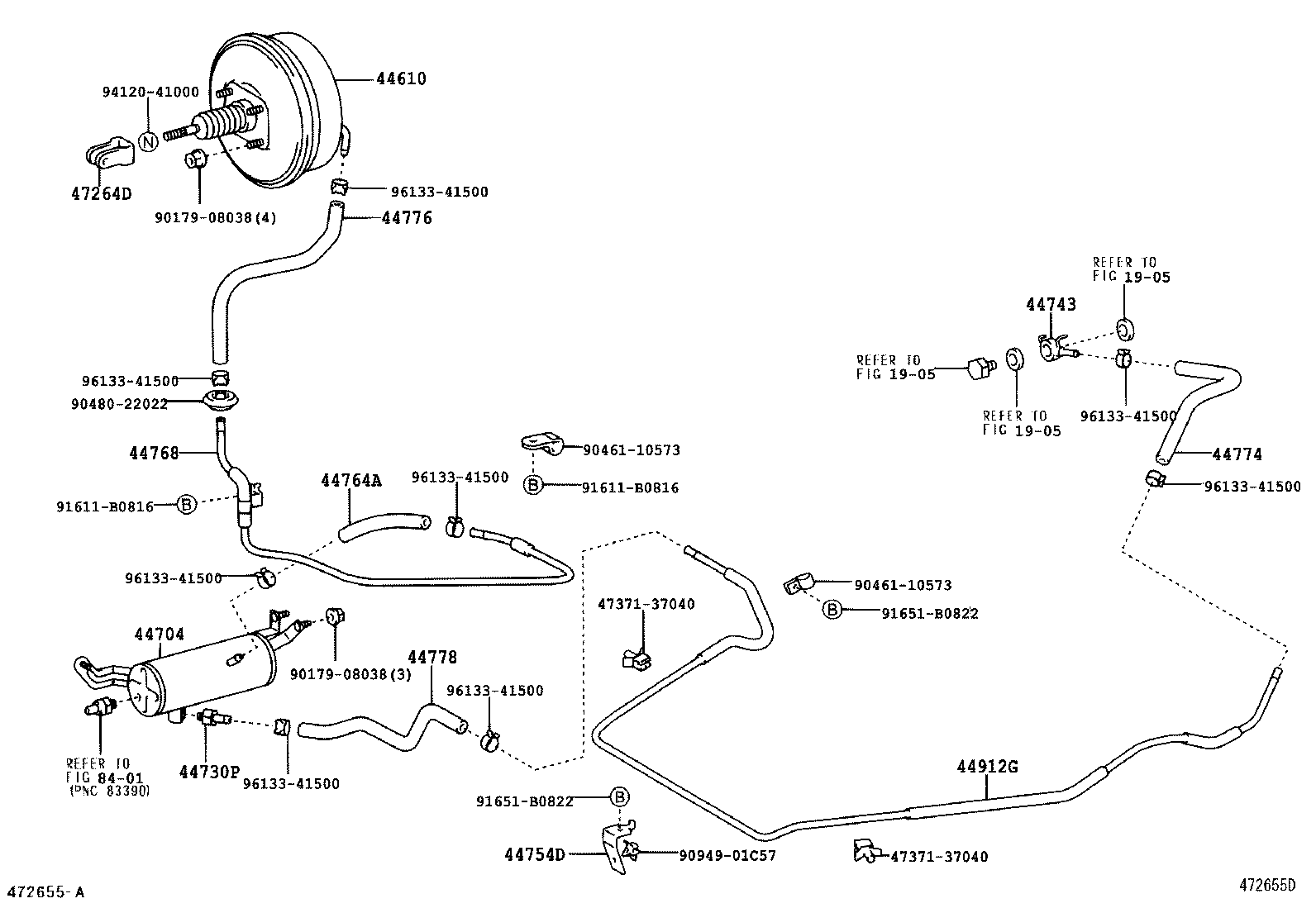

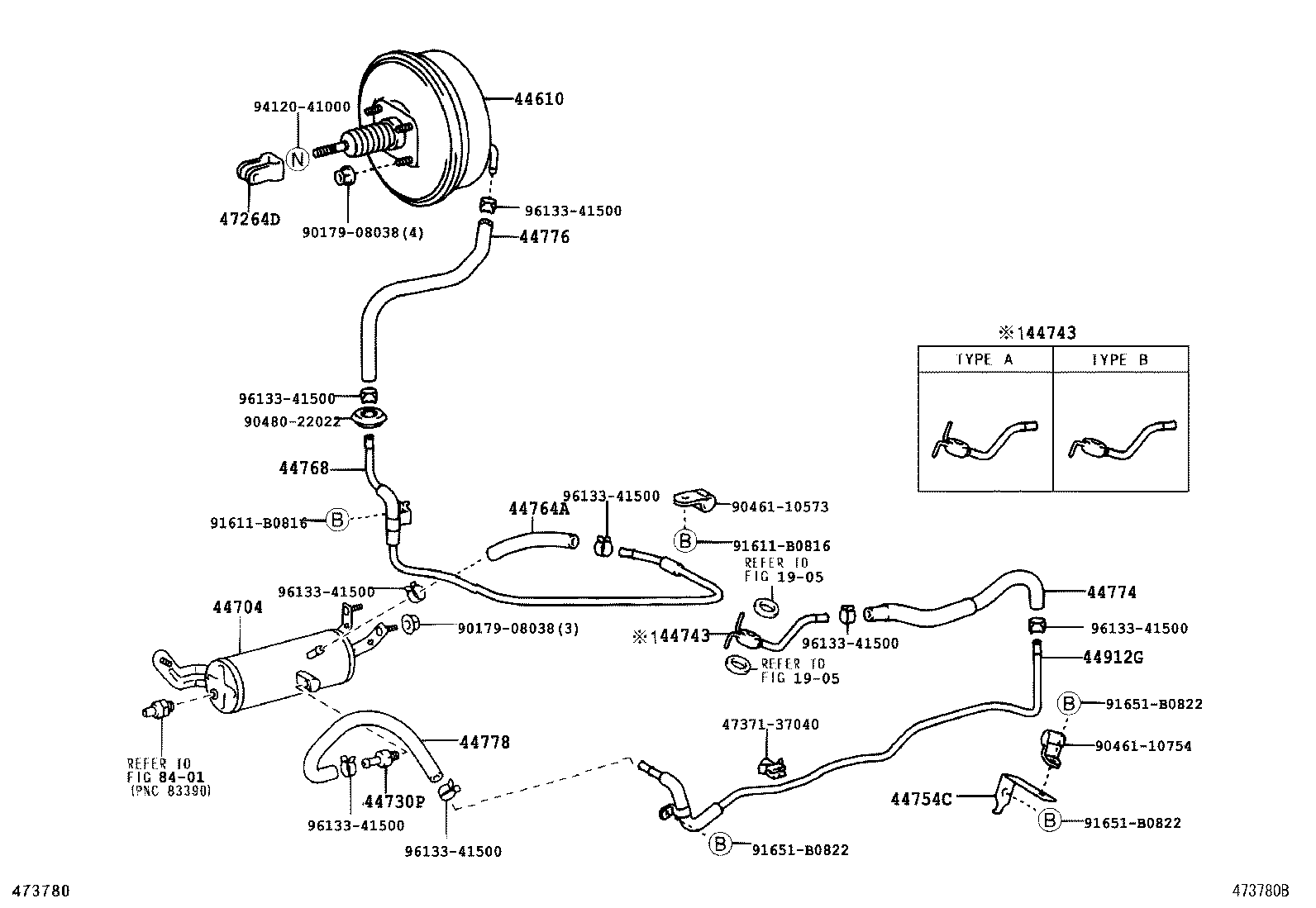

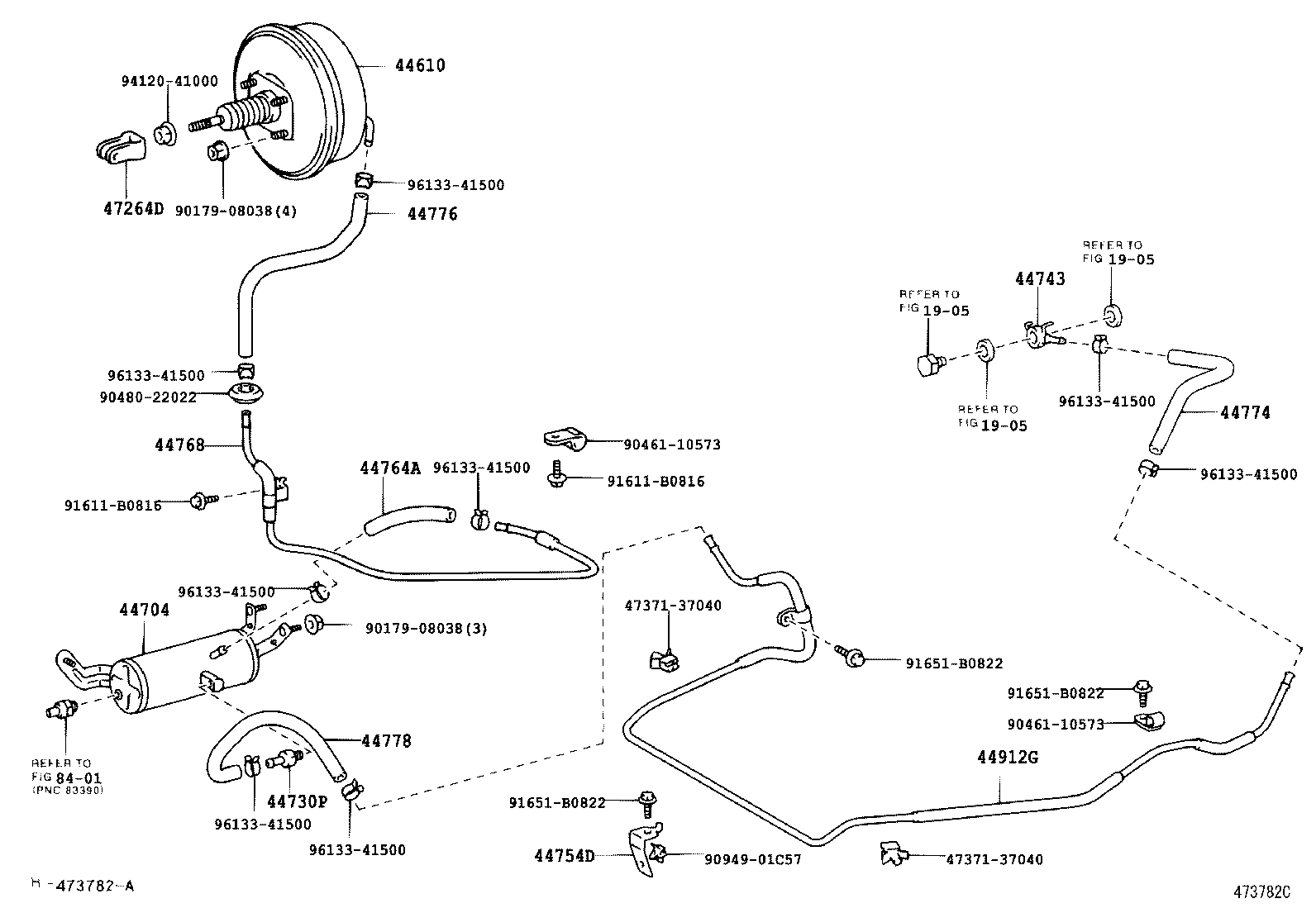

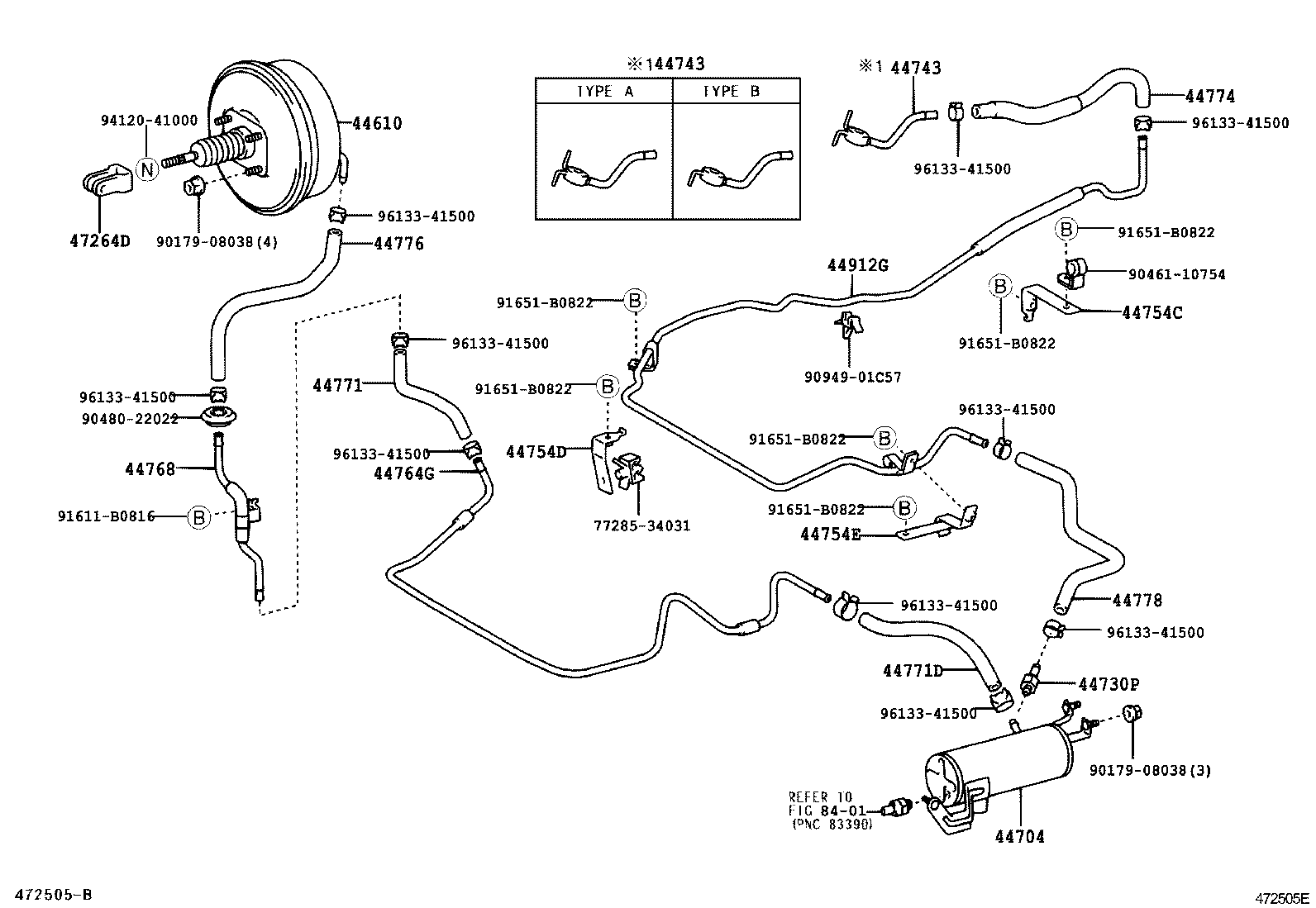

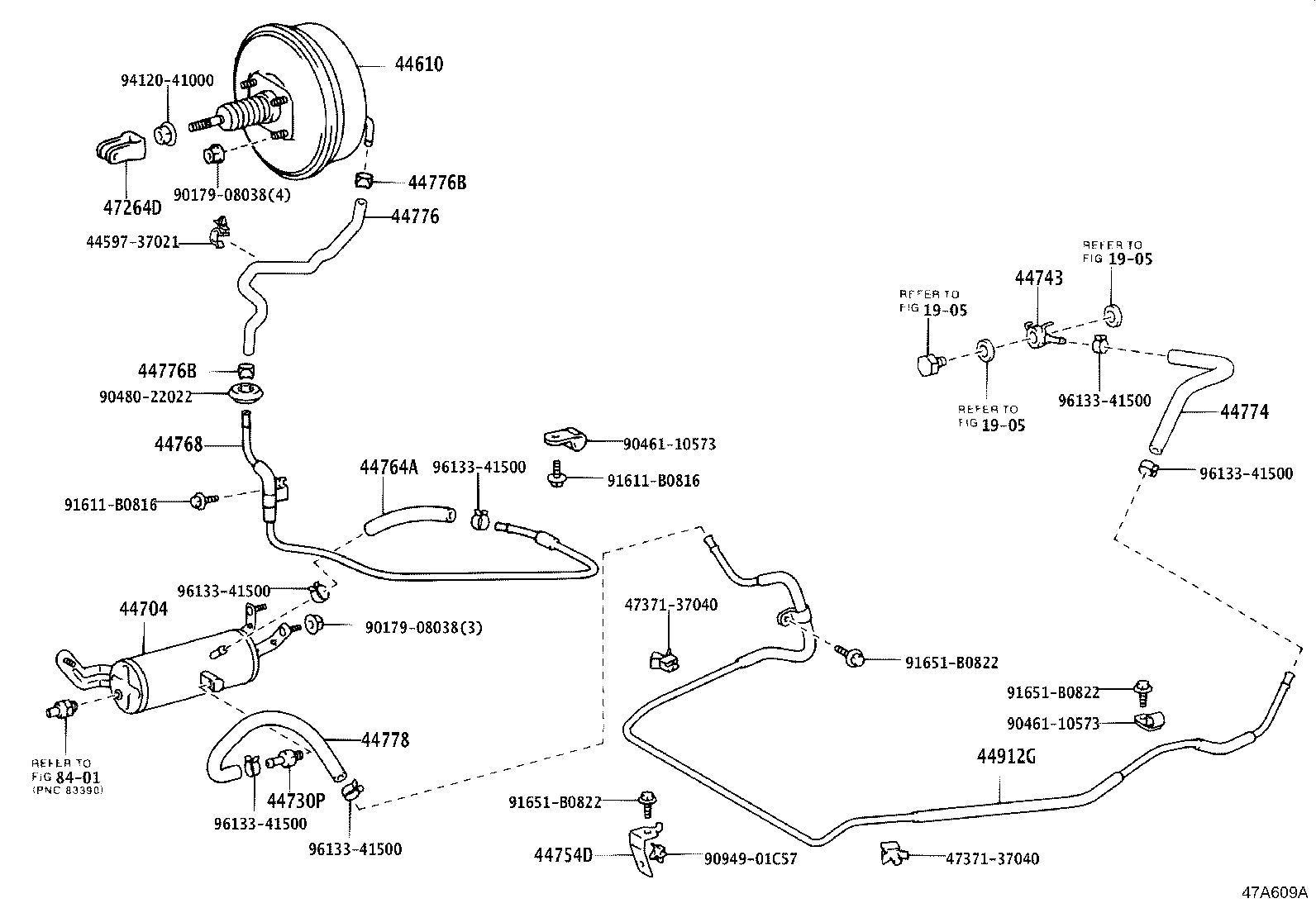

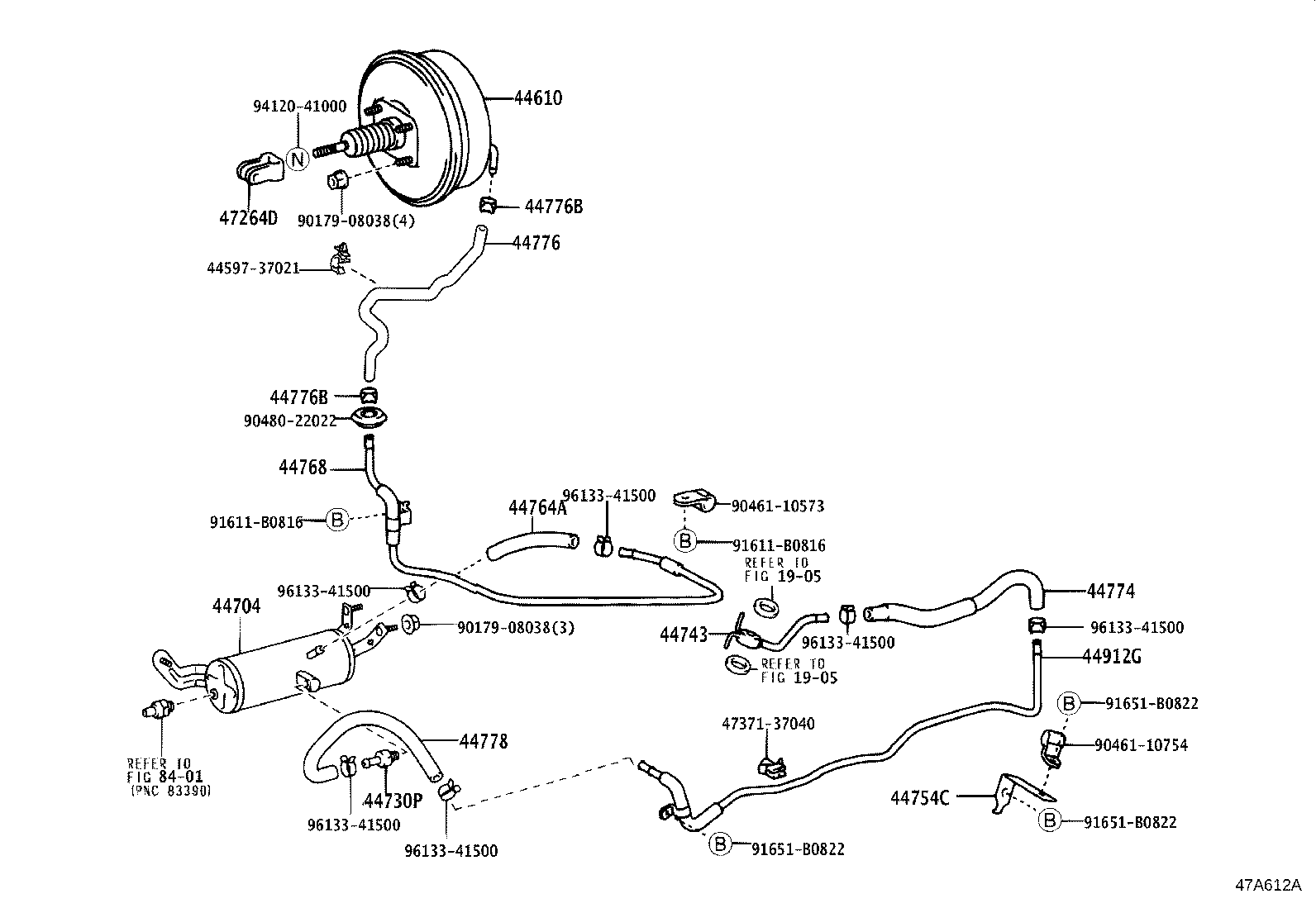

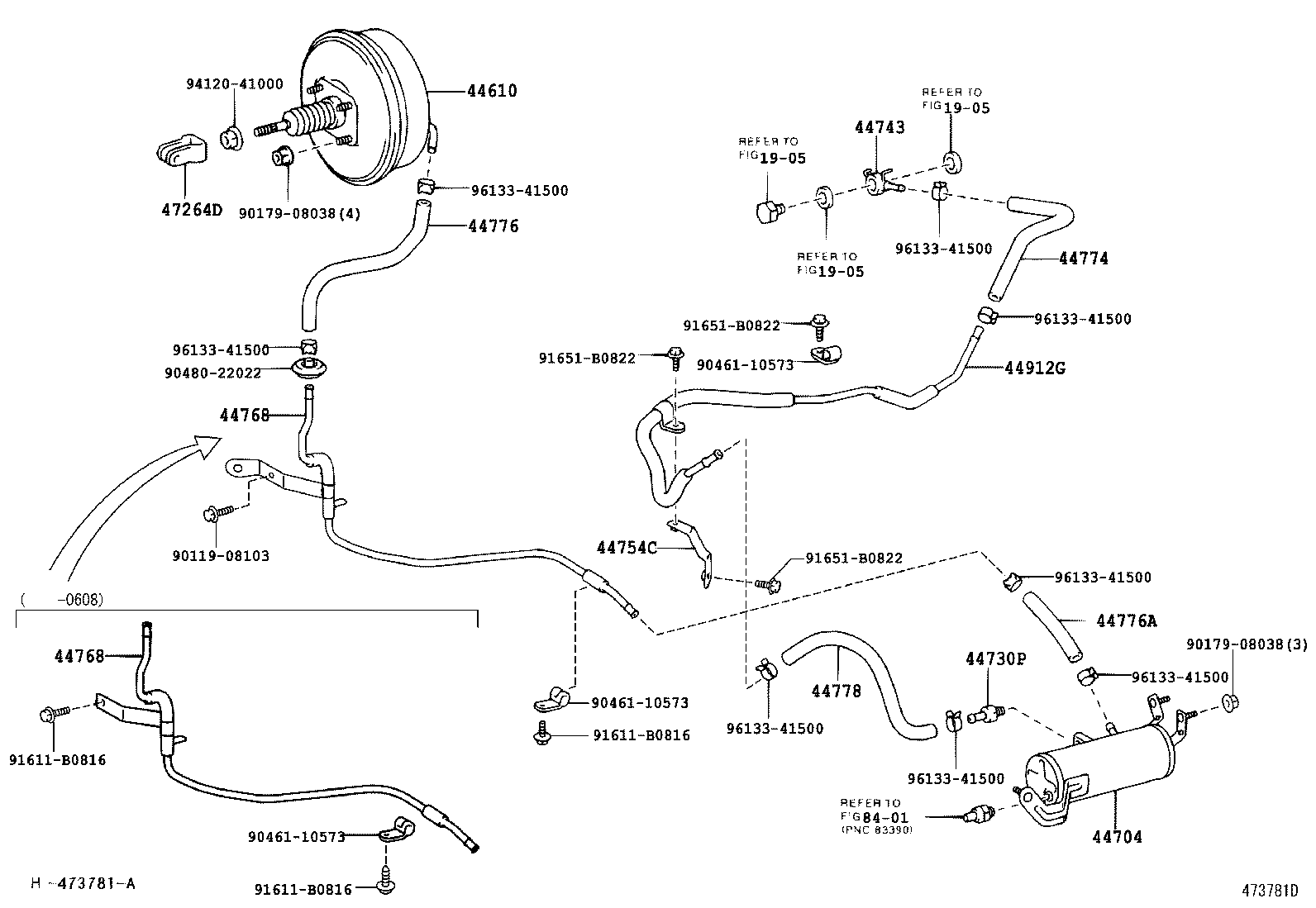

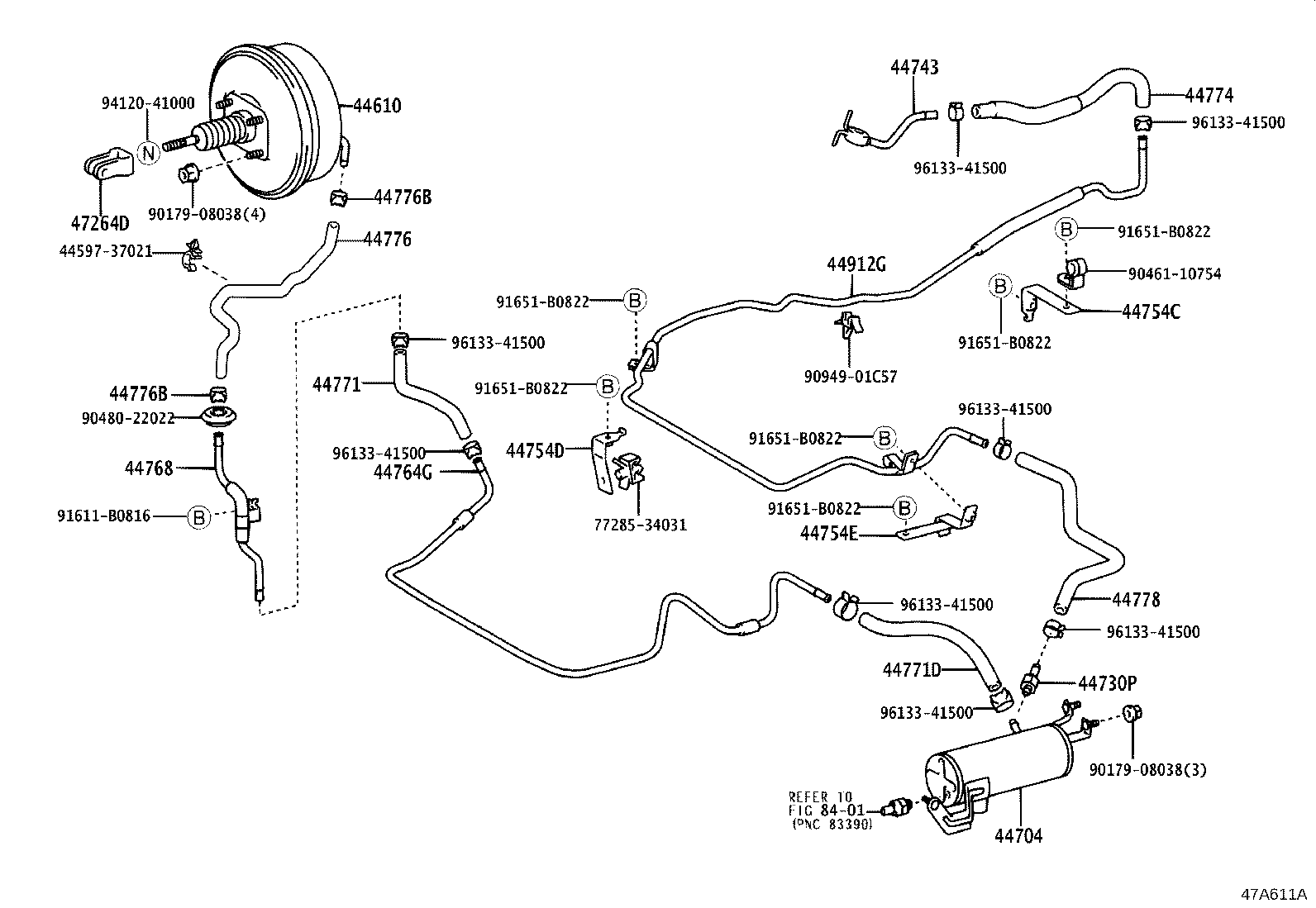

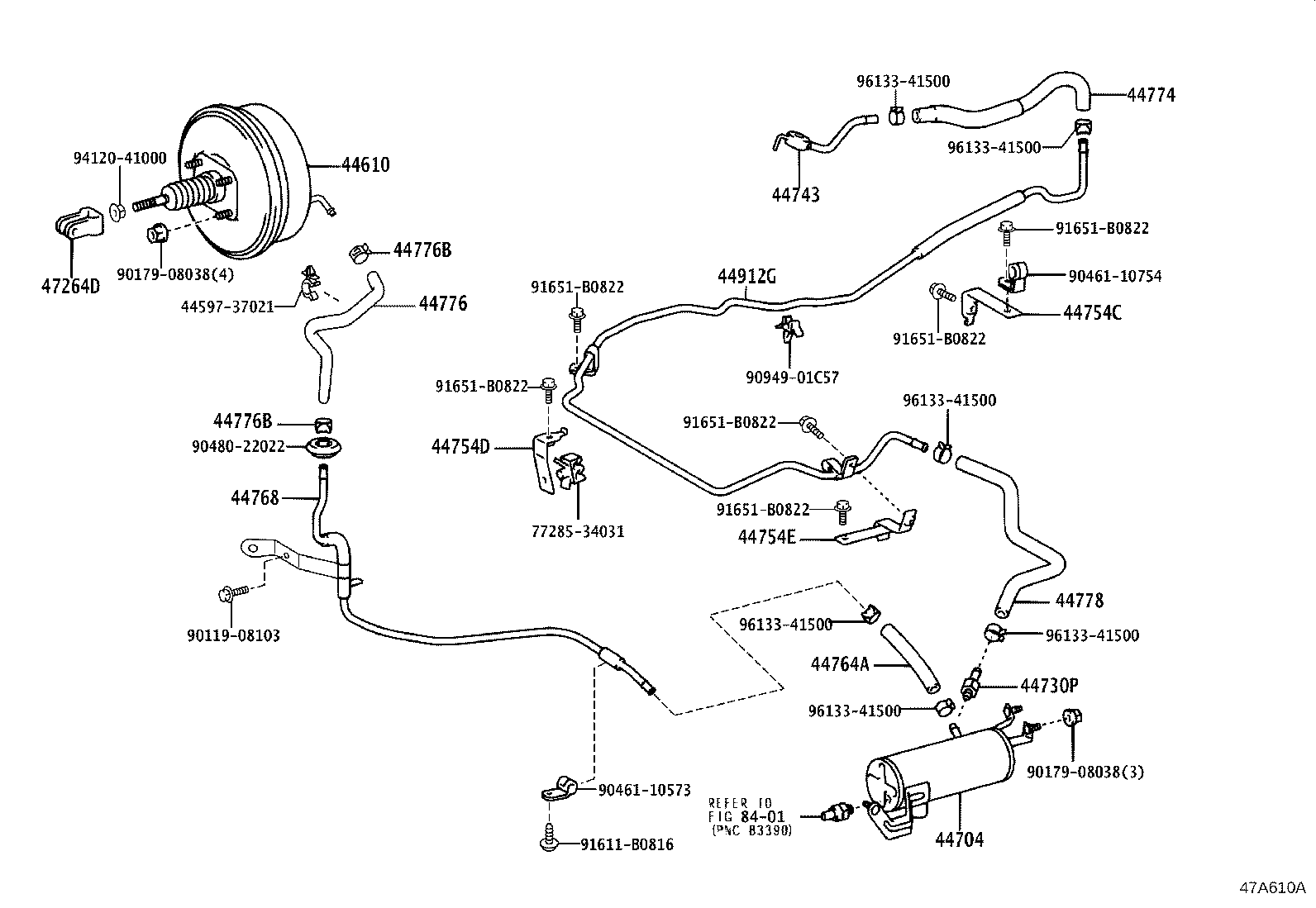

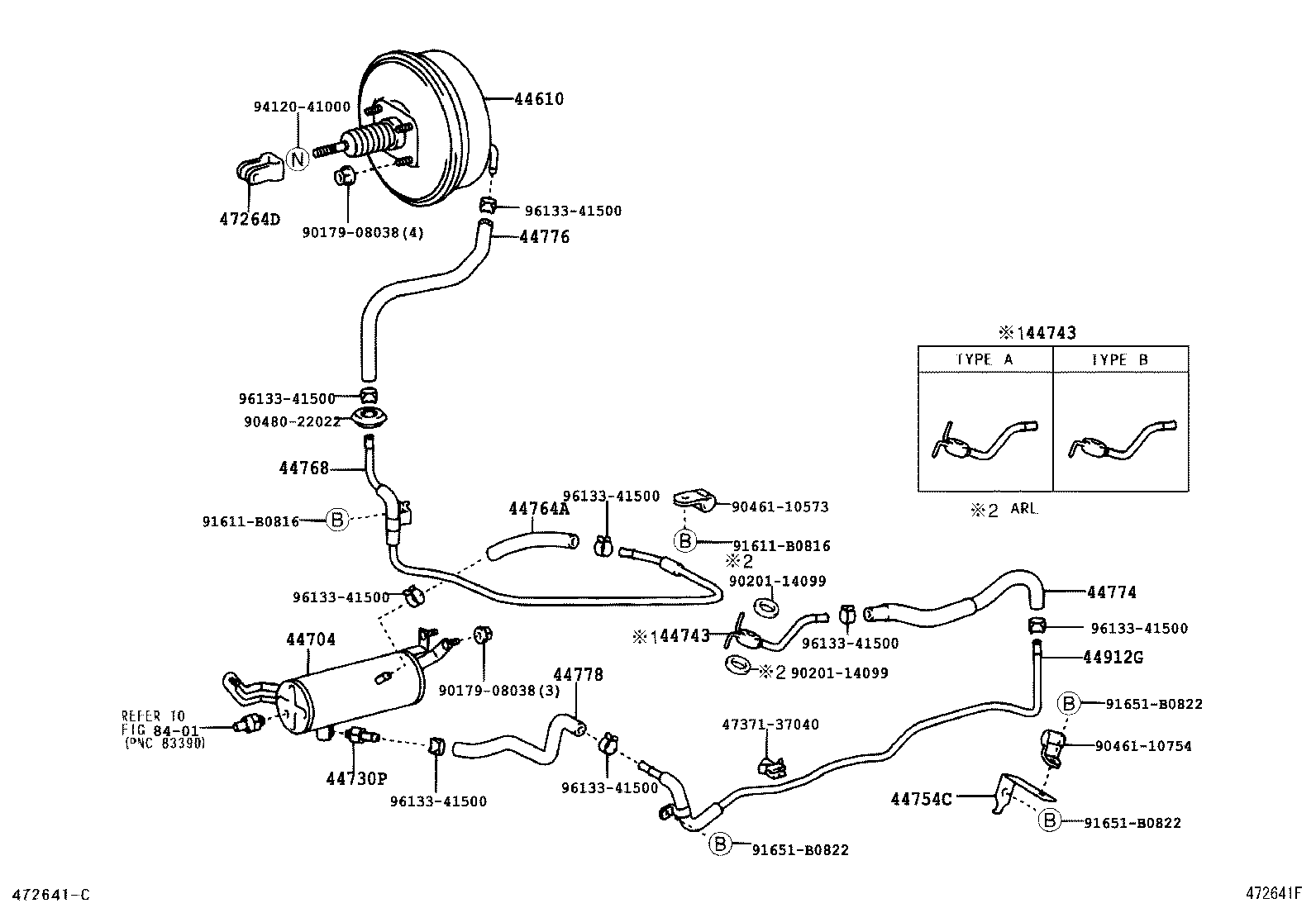

Figure 472504F 472504F 2001-07 → 2016-10 Figure 47A610A 47A610A 2016-10 → — Figure 472505E 472505E 2001-07 → 2016-10 Figure 47A611A 47A611A 2016-10 → — Figure 472641F 472641F 2001-07 → 2003-08 Figure 473780B 473780B 2003-08 → 2016-10 Figure 47A612A 47A612A 2016-10 → — Figure 472654D 472654D 2001-08 → 2003-08 Figure 473781D 473781D 2003-08 → — Figure 472655D 472655D 2001-08 → 2003-08 Figure 473782C 473782C 2003-08 → 2016-10 Figure 47A609A 47A609A 2016-10 → —

Part groups

PNCDescription
44610 Booster Assy, Brake
44704 Reservoir Sub-assy, Vacuum
44730P Valve Assy, Vacuum Check, NO.1
44743 Union(FOR VACUUM PUMP)
44754C Bracket, Vacuum Tube, NO.1
44754D Bracket, Vacuum Tube, NO.2
44754E Bracket, Vacuum Tube, NO.3
44764A Hose, Booster Vacuum
44764G Tube, Connector TO Brake Booster
44768 Tube, Booster Vacuum
44771 Hose, Vacuum Tube Connector
44771D Hose, Vacuum Tube Connector
44774 Hose, Union TO Connector Tube
44776 Hose, Brake Booster
44776A Hose, Vacuum Reservoir TO Brake Booster
44776B Clip(FOR VACUUM RESERVOIR TO BRAKE BOOSTER)
44778 Hose, Connector TO Check Valve
44912G Tube, 3 Way TO Magnetic Valve
47264D Clevis, Brake Master Cylinder Push Rod
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
