Toyota Dyna

2001-07 → 2021-11 · chassis KDY22#,23#,25#,26#,LY2## · catalogue 731270 · Europe

Discontinued model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Disc Brake Caliper & Dust Cover

26 part groups · 3 illustrations

Illustrations

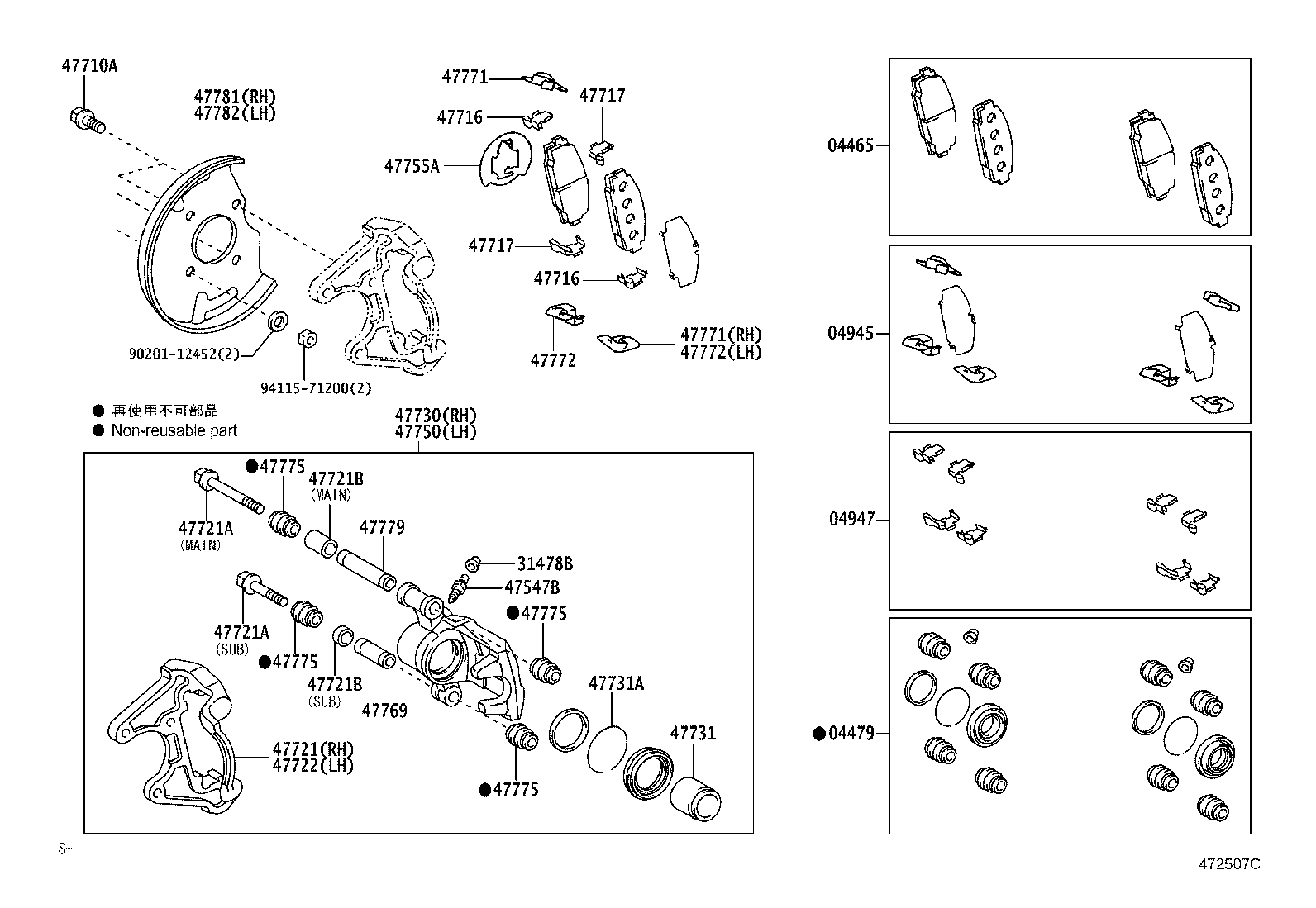

Figure 475588D 475588D 2001-07 → — Figure 475588D 475588D 2001-08 → — Figure 472507C 472507C 2001-07 → —

Part groups

PNCDescription
04465 Pad Kit, Disc Brake, Front
04479 Cylinder Kit, Disc Brake, Front
04945 Shim Kit, Anti Squeal, Front
04947 Fitting Kit, Disc Brake, Front
31478B Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
47547B Plug, Bleeder(FOR FRONT DISC BRAKE)
47710A Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER)
47716 Plate, Pad Support, NO.1(FOR FRONT DISC BRAKE)
47717 Plate, Pad Support, NO.2(FOR FRONT DISC BRAKE)
47721 Mounting, Front Disc Brake Cylinder, RH
47721A Bolt(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
47721B Collar(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
47722 Mounting, Front Disc Brake Cylinder, LH
47730 Cylinder Assy, Front Disc Brake, RH
47731 Piston, Front Disc Brake
47731A Ring, Set(FOR FRONT DISC BRAKE PISTON)
47743A Spring, Anti-squeal(FOR FRONT DISC BRAKE)
47750 Cylinder Assy, Disc Brake, LH
47755A Insulator, Disc Brake Heat
47769 Bush, Cylinder Slide, NO.1(FOR FRONT DISC BRAKE)
47771 Plate, Pad Wear Indicator, NO.1
47772 Plate, Pad Wear Indicator, NO.2
47775 Boot, Bush Dust(FOR FRONT DISC BRAKE)
47779 Bush, Cylinder Slide, NO.2(FOR FRONT DISC BRAKE)
47781 Cover, Disc Brake Dust, Front RH
47782 Cover, Disc Brake Dust, Front LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
