Toyota Dyna

2001-07 → 2021-11 · chassis KDY22#,23#,25#,26#,LY2## · catalogue 731270 · Europe

Discontinued model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Tube & Clamp

53 part groups · 16 illustrations

Illustrations

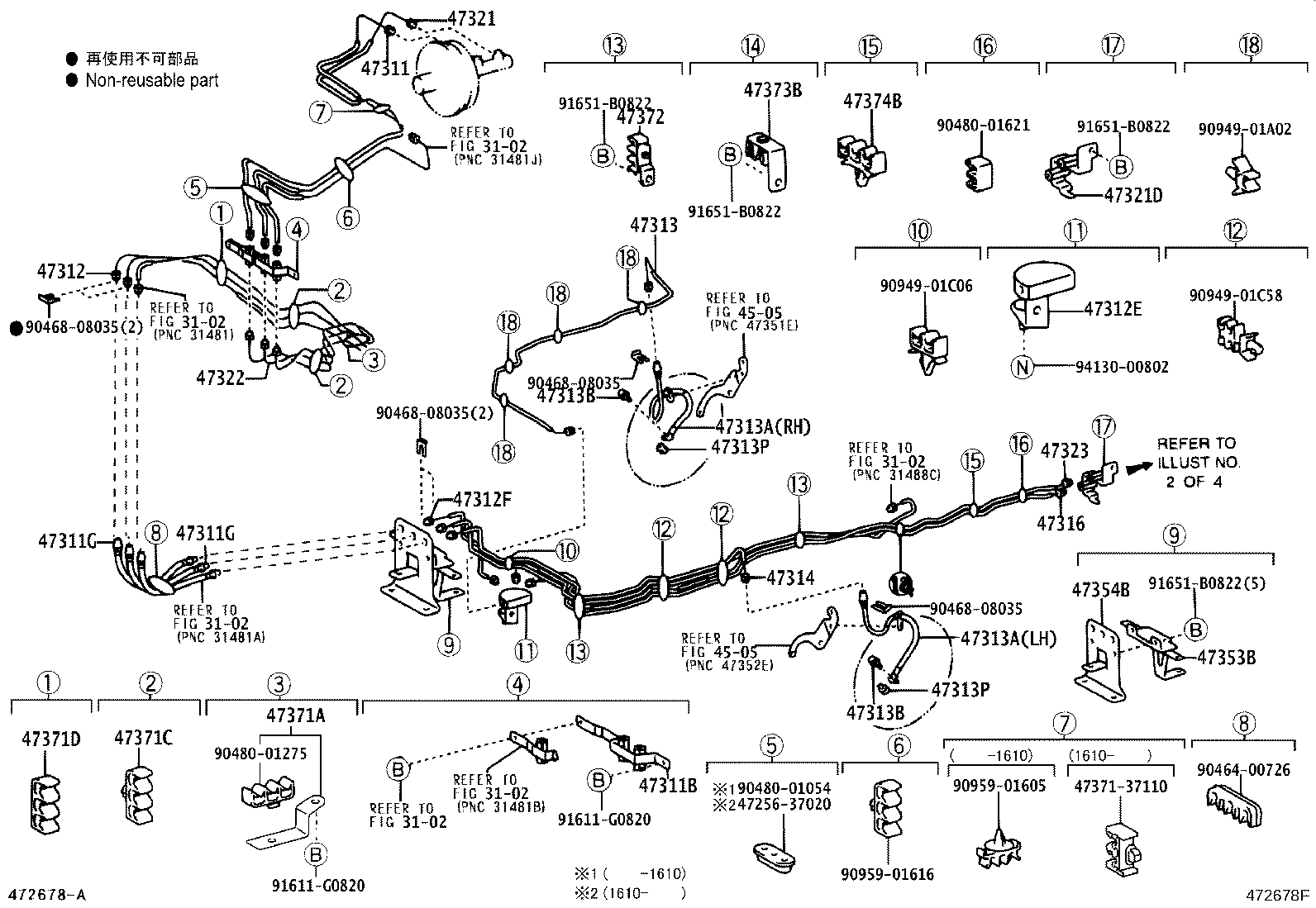

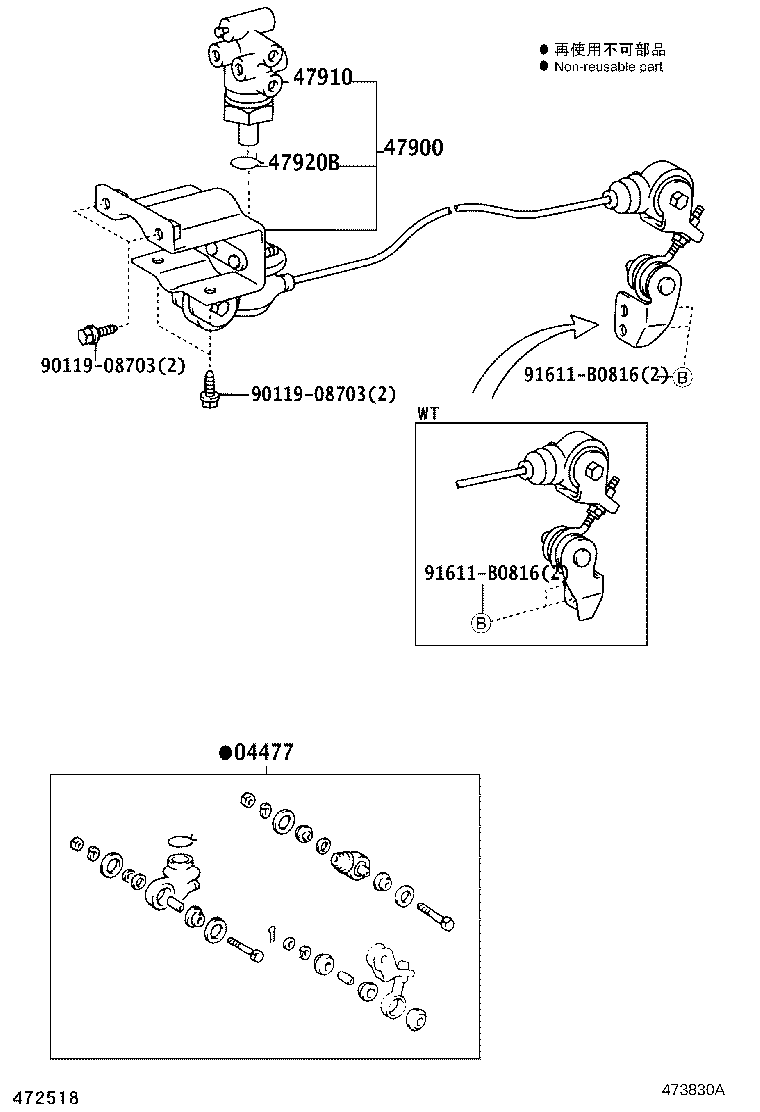

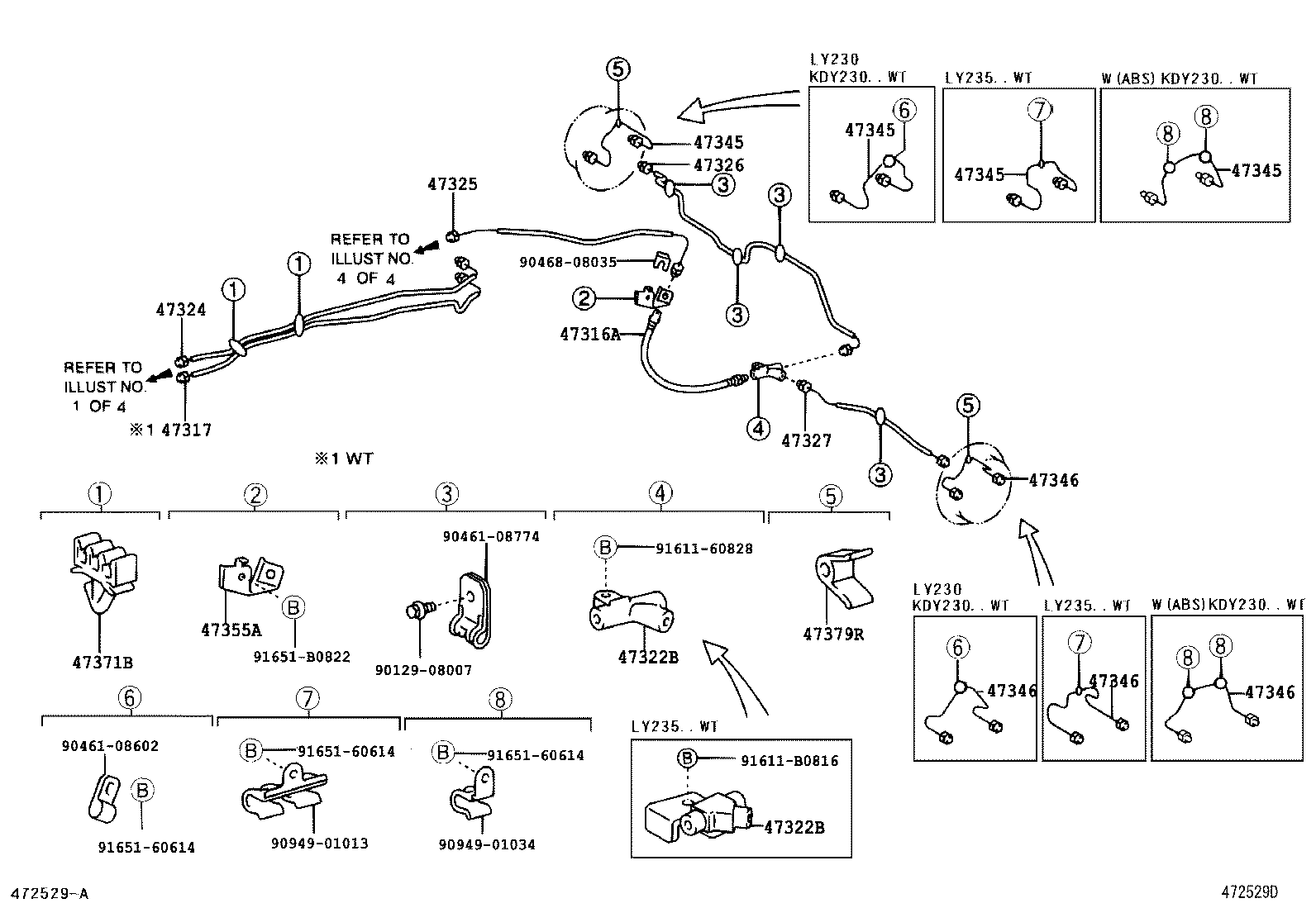

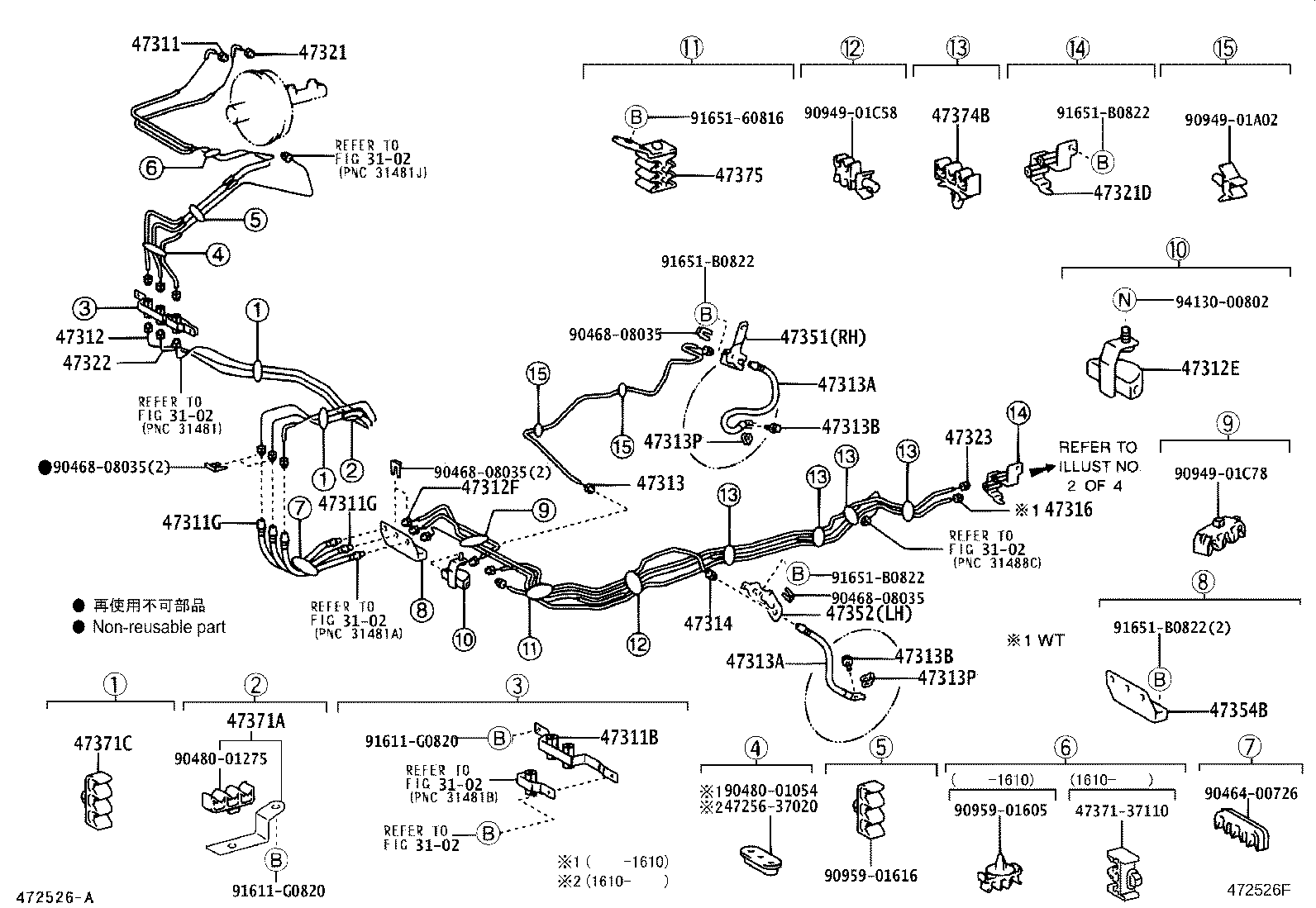

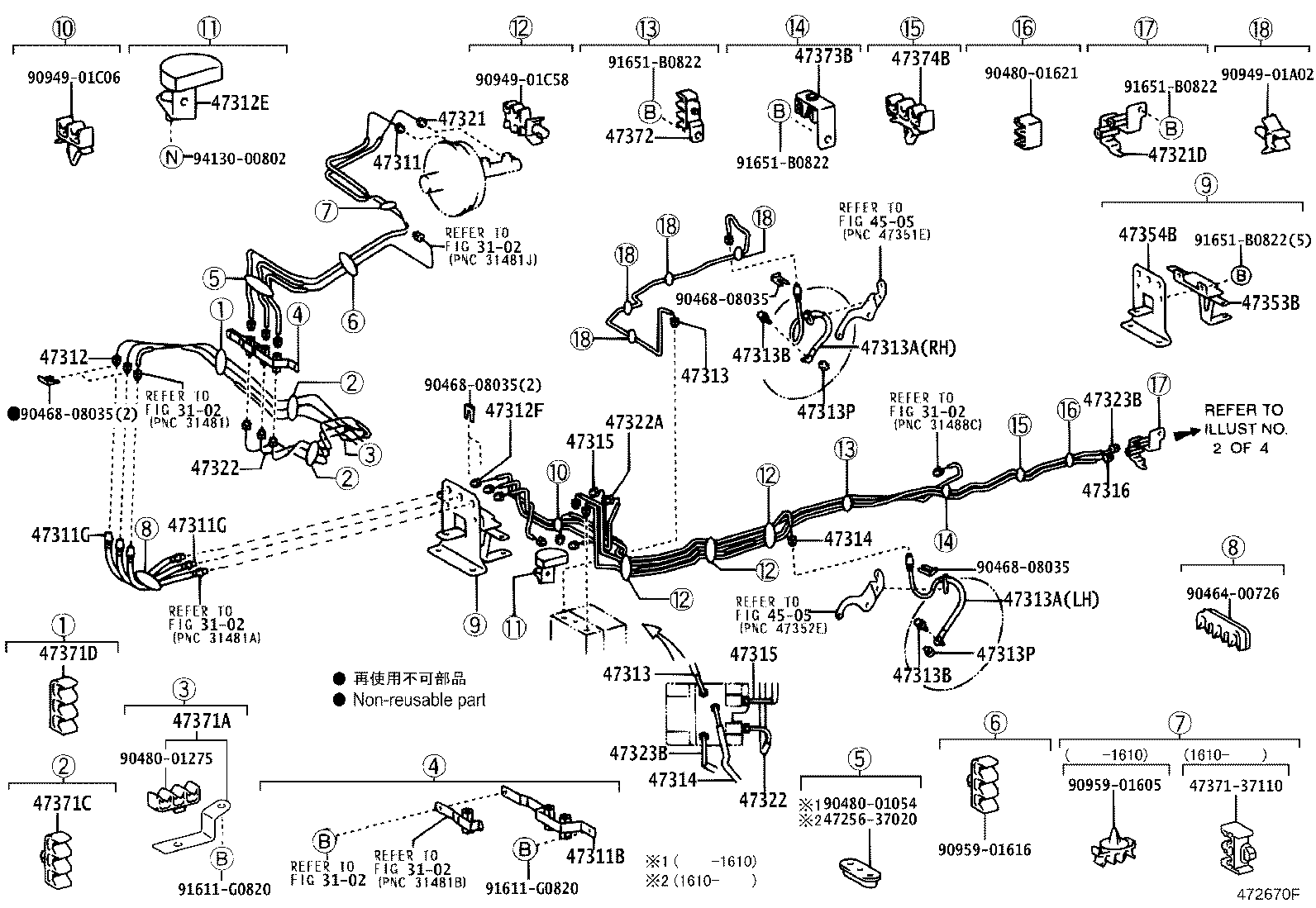

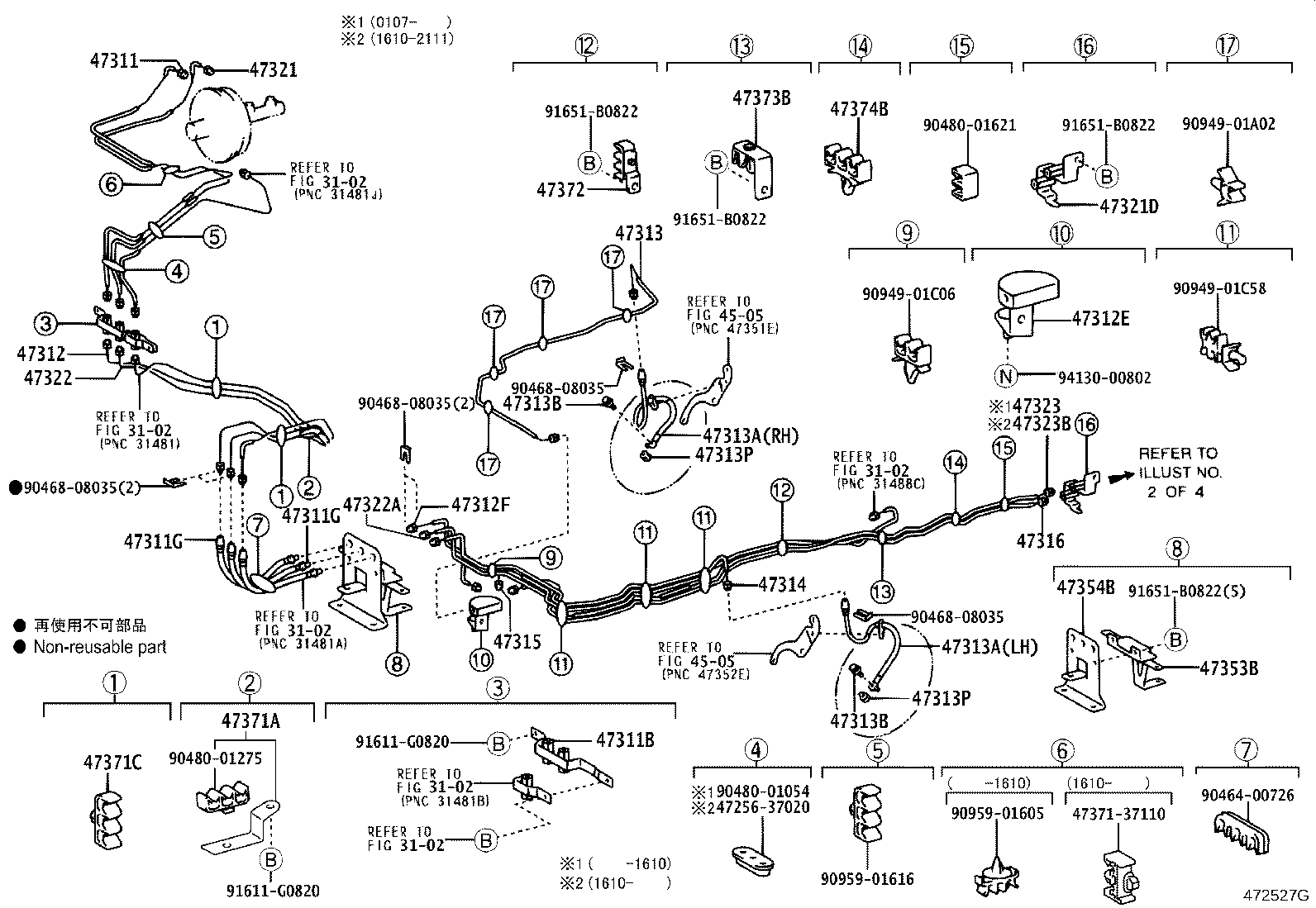

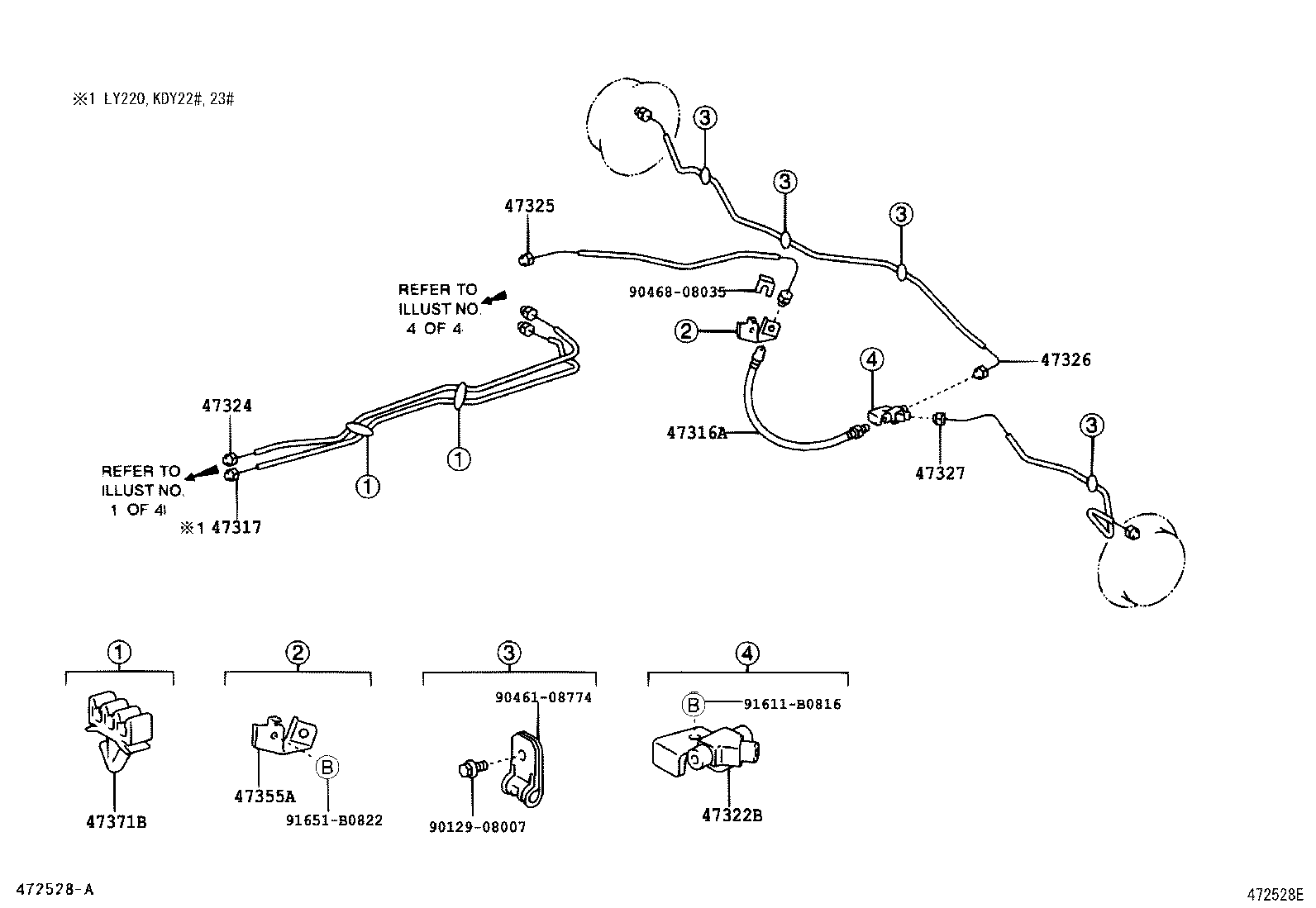

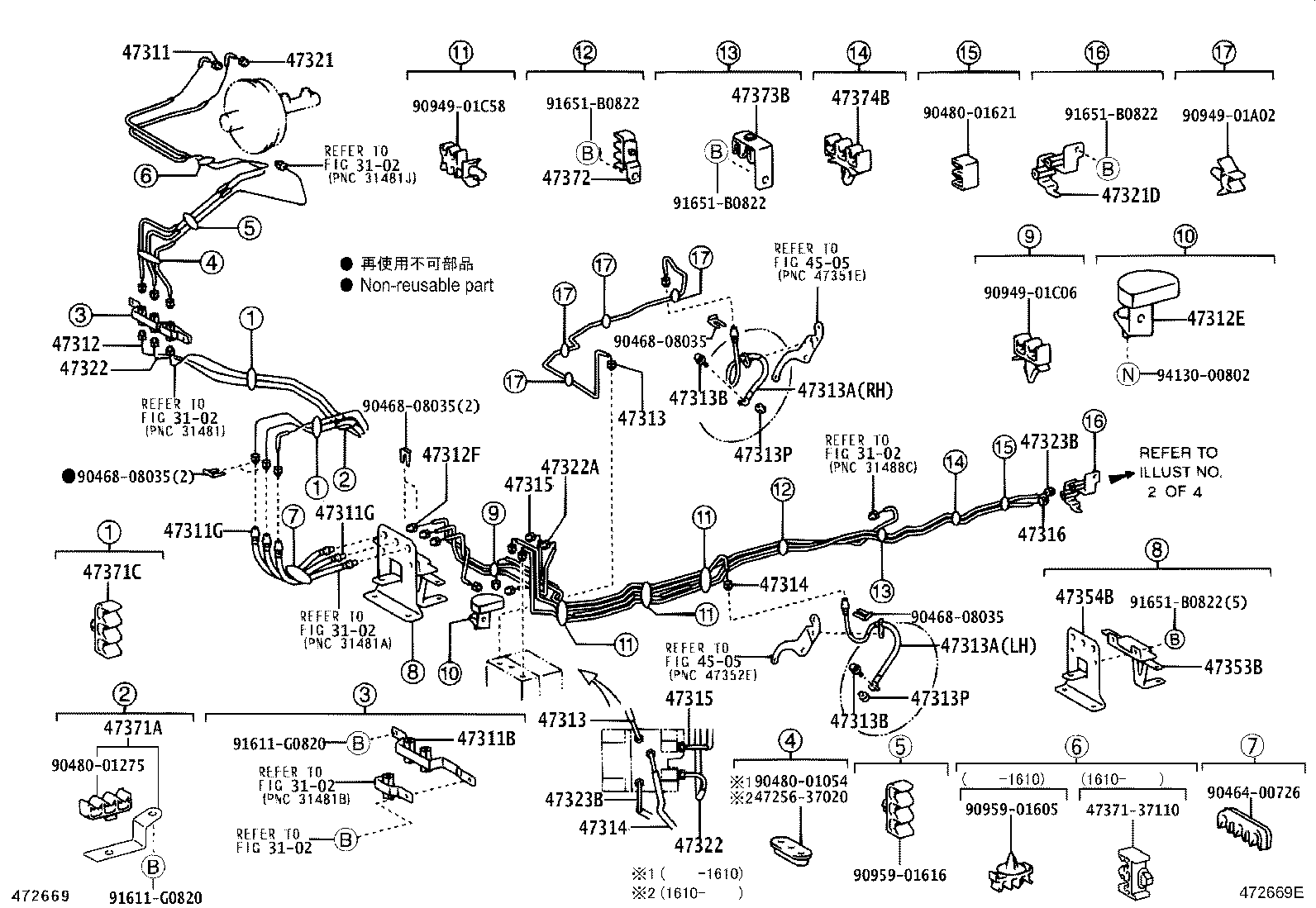

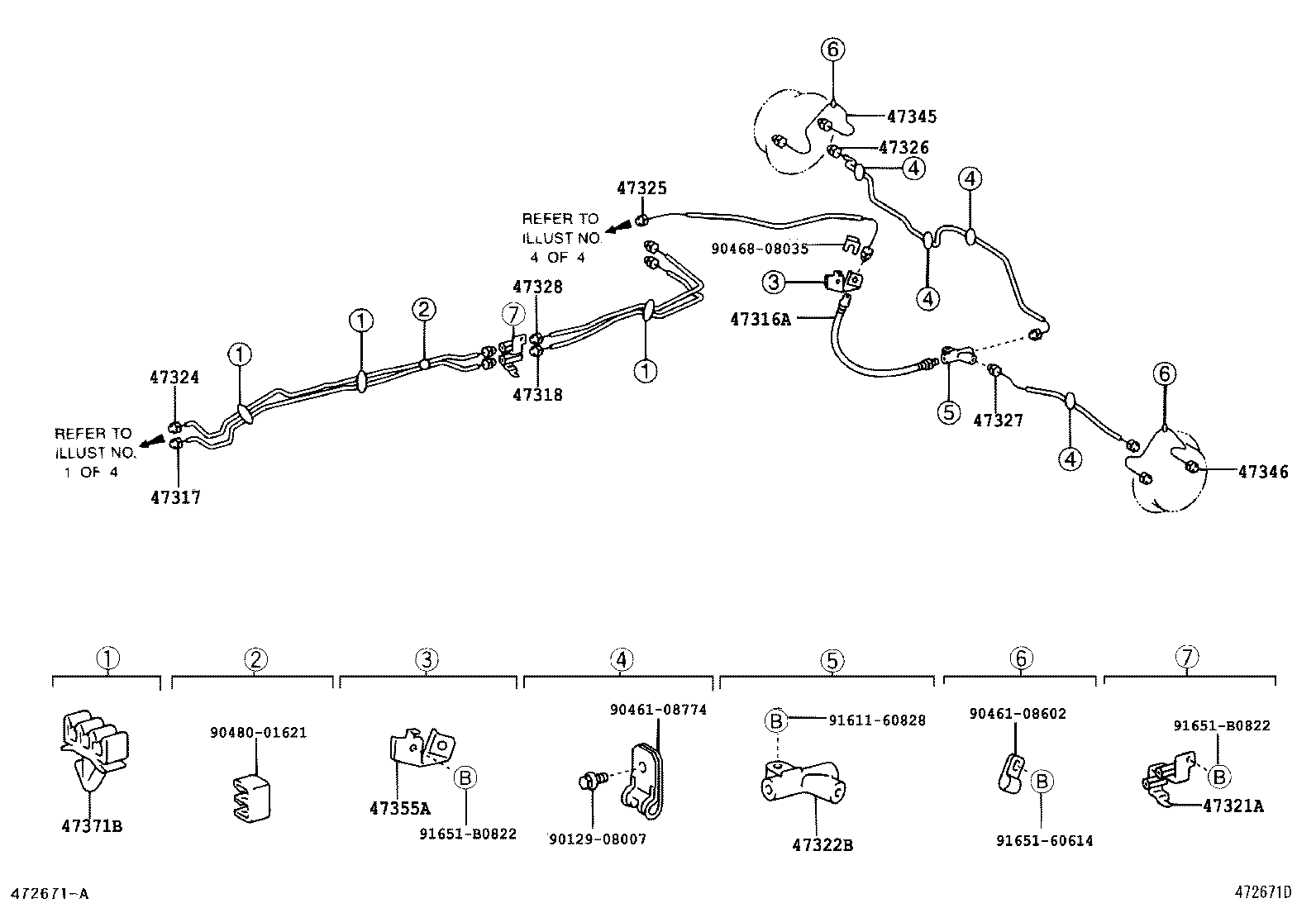

Figure 472525G 472525G 2001-07 → — Figure 472527G 472527G 2001-07 → — Figure 472527G 472527G 2001-08 → — Figure 472526F 472526F 2001-07 → — Figure 472678F 472678F 2001-08 → — Figure 472669E 472669E 2001-08 → — Figure 472670F 472670F 2001-08 → — Figure 472528E 472528E 2001-07 → — Figure 472528E 472528E 2001-08 → — Figure 472529D 472529D 2001-07 → — Figure 472529D 472529D 2001-08 → — Figure 472671D 472671D 2001-08 → — Figure 472517A 472517A 2001-08 → — Figure 472517A 472517A 2016-10 → — Figure 473830A 473830A 2001-07 → — Figure 473830A 473830A 2001-08 → —

Part groups

PNCDescription
04477 Bush & Boot Kit, Load Sensing Spring
44510 Actuator Assy, Brake
44545D Holder, Brake Actuator Bolt
44546A Cushion, Brake Actuator Bolt
44590 Bracket Assy, Brake Actuator
47311 Tube, Front Brake, NO.1
47311B Way, NO.1(FOR FRONT BRAKE TUBE)
47311G Hose, Flexible(FOR BRAKE TUBE)
47312 Tube, Front Brake, NO.2
47312E Way, NO.2(FOR FRONT BRAKE TUBE)
47312F Tube, Front Brake, Frame, NO.2
47313 Tube, Front Brake, NO.3
47313A Hose, Flexible, NO.1(FOR FRONT)
47313B Bolt, Union(FOR FRONT FLEXIBLE HOSE)
47313P Gasket(FOR FRONT FLEXIBLE HOSE)
47314 Tube, Front Brake, NO.4
47315 Tube, Front Brake, NO.5
47316 Tube, Front Brake, NO.6
47316A Hose, Flexible(FOR REAR BRAKE TUBE)
47317 Tube, Front Brake, NO.7
47318 Tube, Front Brake, NO.8
47321 Tube, Rear Brake, NO.1
47321A Way(FOR REAR BRAKE TUBE)
47321D Way, NO.1(FOR REAR BRAKE TUBE)
47322 Tube, Rear Brake, NO.2
47322A Tube, Rear Brake, Frame NO.2
47322B Way, NO.2(FOR REAR BRAKE TUBE)
47323 Tube, Rear Brake, NO.3
47323B Tube, Rear Brake, NO.3
47324 Tube, Rear Brake, NO.4
47325 Tube, Rear Brake, NO.5
47326 Tube, Rear Brake, NO.6
47327 Tube, Rear Brake, NO.7
47328 Tube, Rear Brake, NO.8
47345 Tube, Wheel Cylinder, Rear RH
47346 Tube, Wheel Cylinder, Rear LH
47351 Bracket, Flexible Hose(FOR FRONT RH)
47352 Bracket, Flexible Hose(FOR FRONT LH)
47353B Bracket, Flexible Hose, NO.3
47354B Bracket, Flexible Hose, NO.4
47355A Bracket, Flexible Hose, NO.5
47371A Clamp, Brake Tube, NO.1
47371B Clamp, Brake Tube, NO.6
47371C Clamp, Brake Tube, NO.7
47371D Clamp, Brake Tube, NO.8
47372 Clamp, Brake Tube, NO.2
47373B Clamp, Brake Tube, NO.3
47374B Clamp, Brake Tube, NO.4
47375 Clamp, Brake Tube, NO.5
47379R Damper, Tube(FOR REAR)
47900 Valve Assy, Load Sensing W/Spring
47910 Valve Assy, Load Sensing Proportioning
47920B Clip(FOR LOAD SENSING VALVE BOOT)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
