Toyota Dyna

2001-07 → 2021-11 · chassis KDY22#,23#,25#,26#,LY2## · catalogue 731270 · Europe

Discontinued model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Spring & Shock Absorber

29 part groups · 10 illustrations

Illustrations

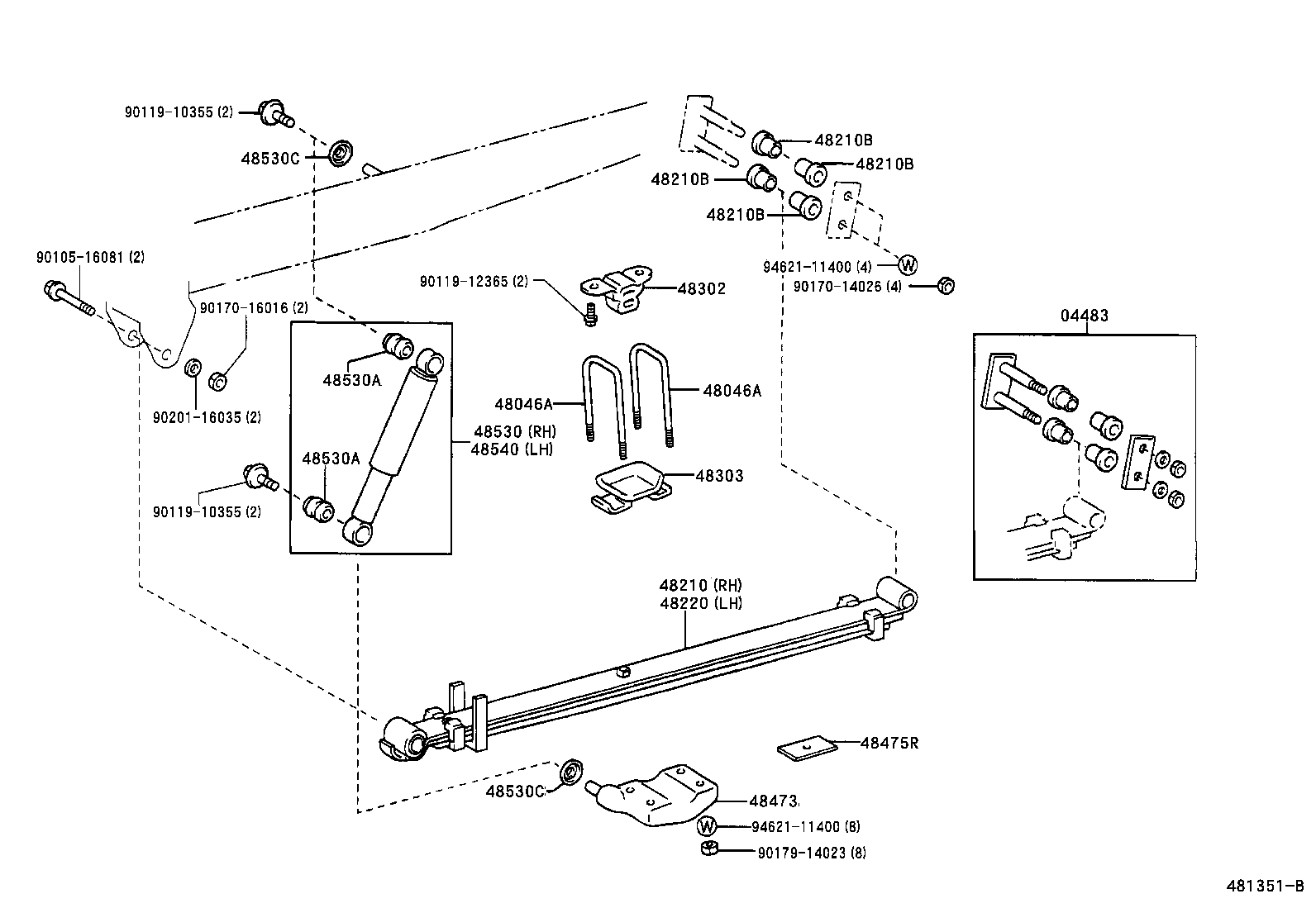

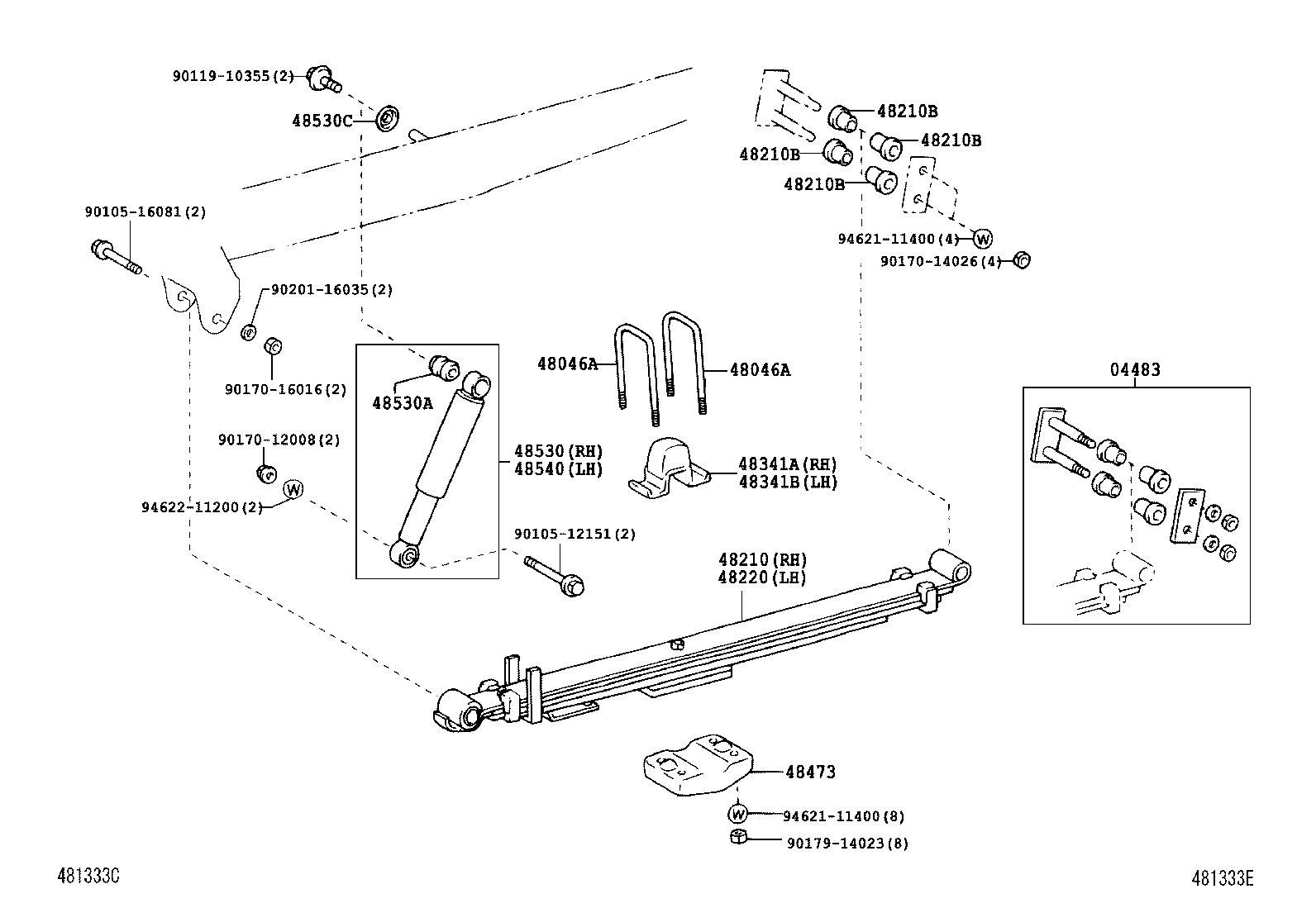

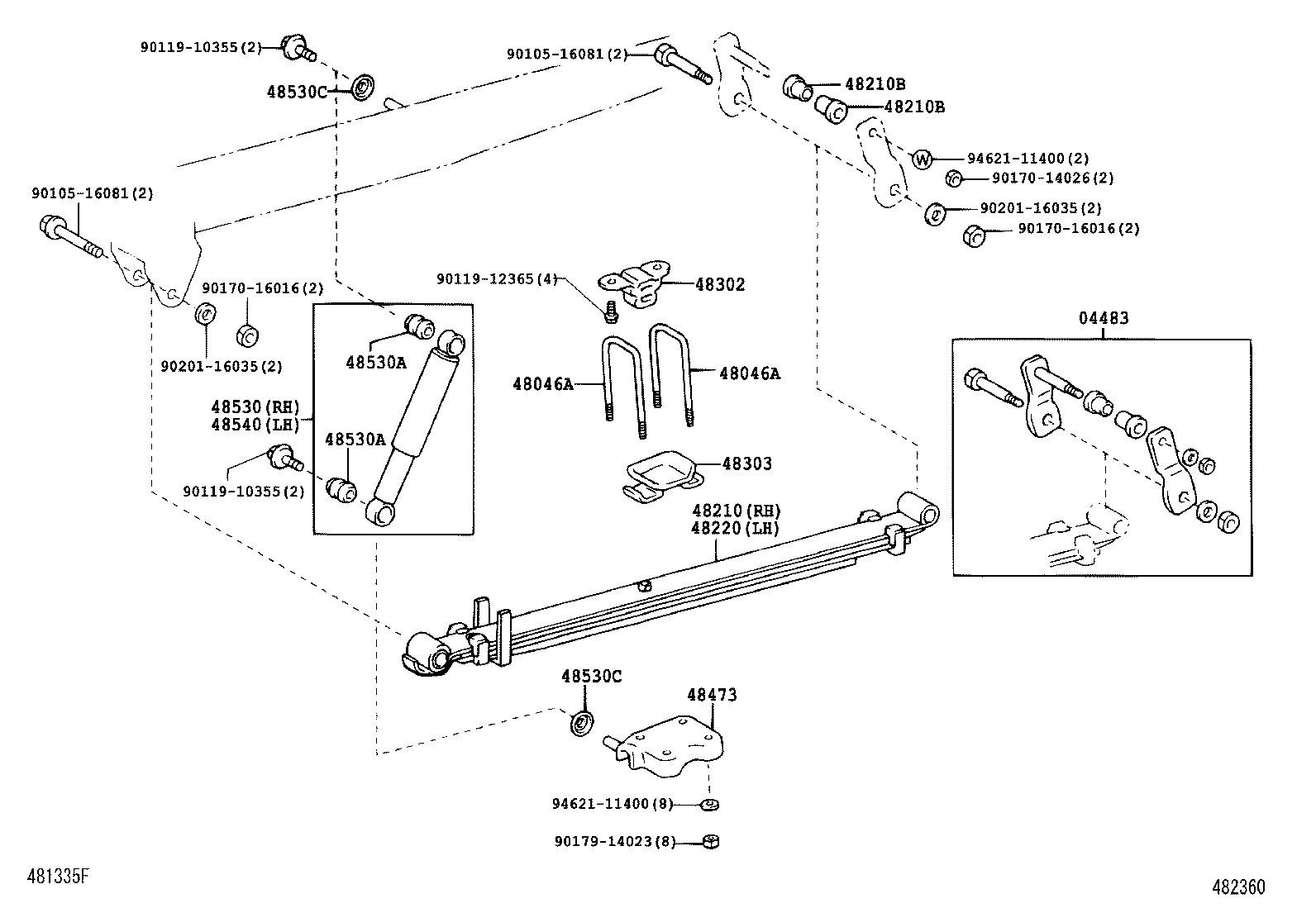

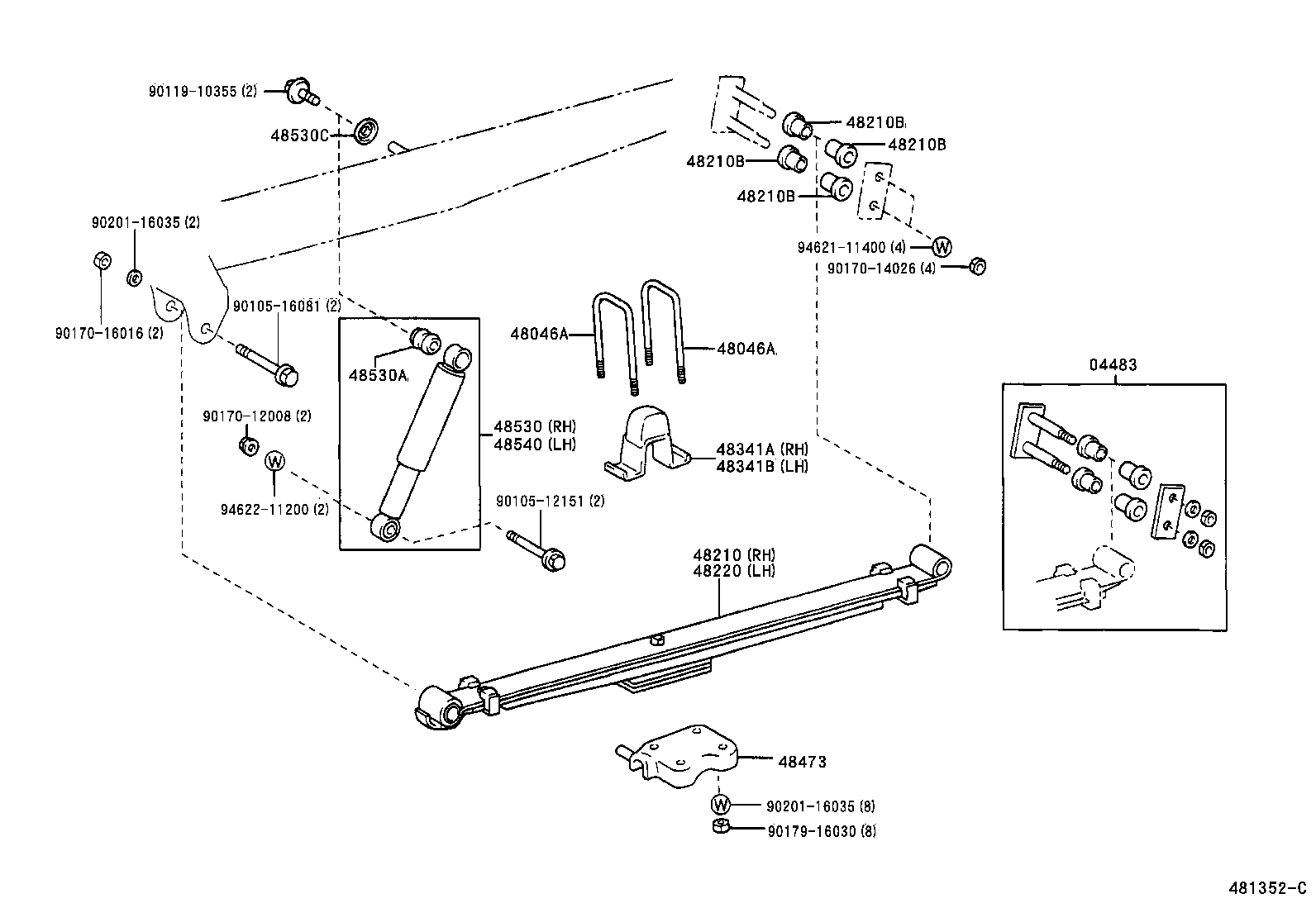

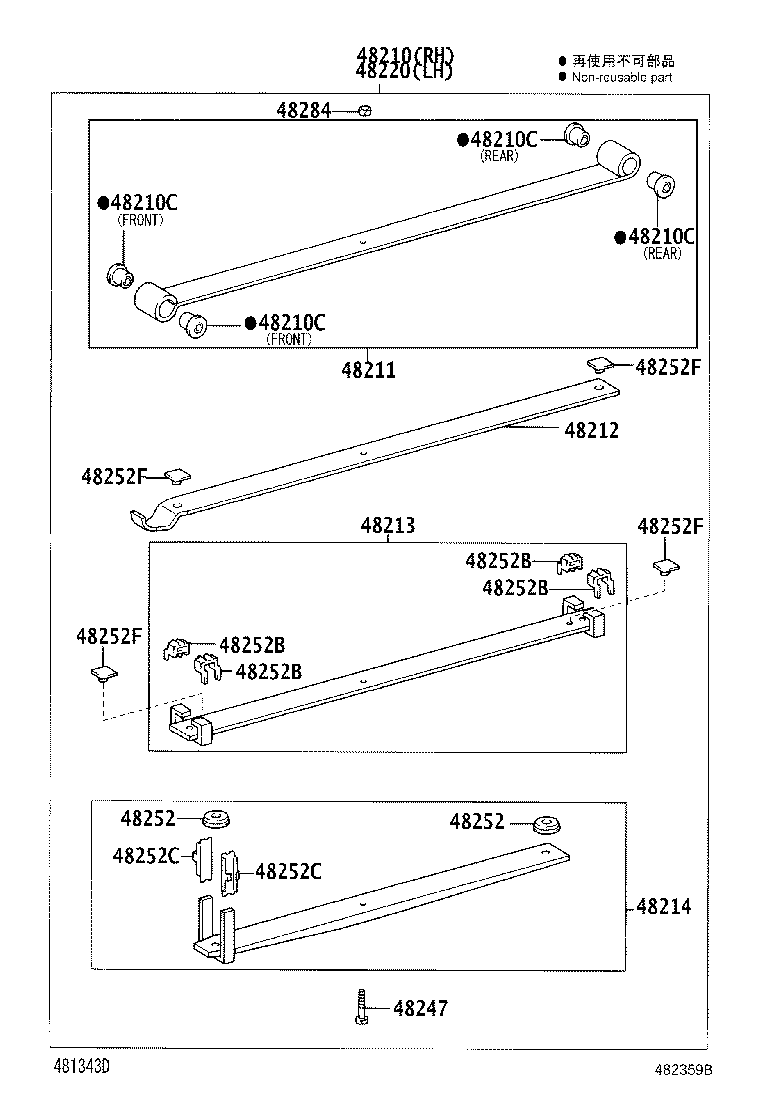

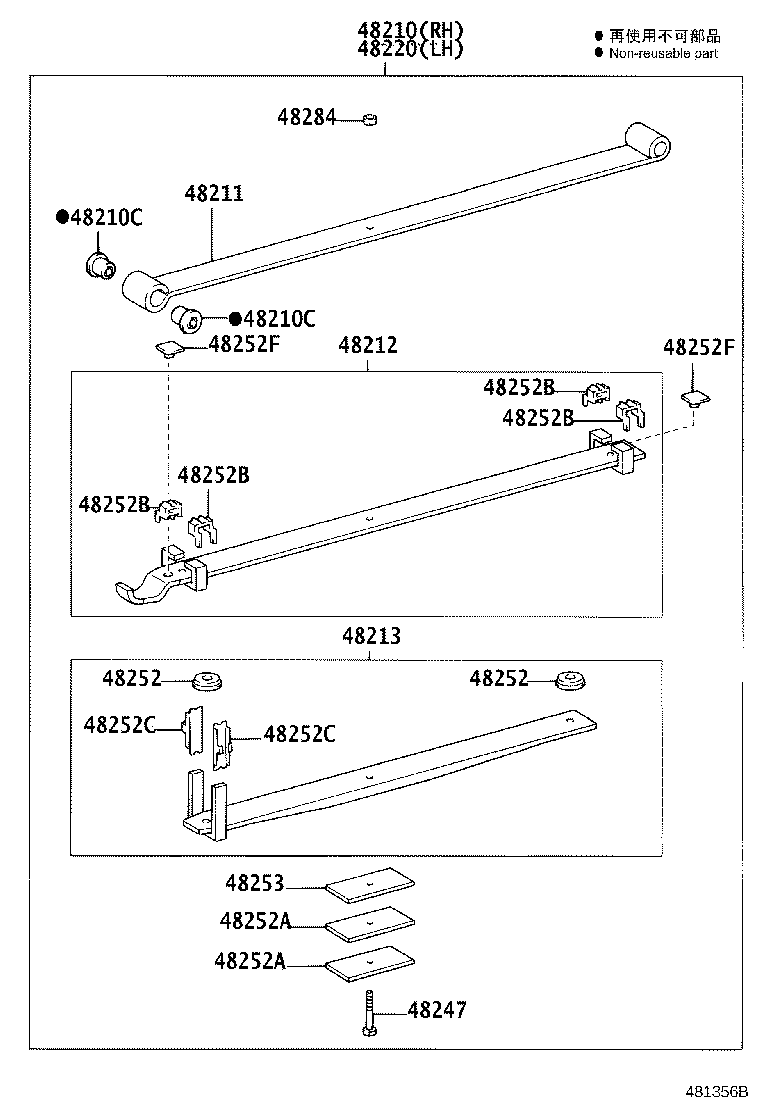

Figure 481349C 481349C 2001-07 → — Figure 481351B 481351B 2001-07 → — Figure 481333E 481333E 2001-07 → — Figure 481352C 481352C 2001-07 → — Figure 482360 482360 2006-09 → — Figure 481353C 481353C 2001-07 → — Figure 481354B 481354B 2001-07 → — Figure 481355C 481355C 2001-07 → — Figure 481356B 481356B 2001-07 → — Figure 482359B 482359B 2006-09 → —

Part groups

PNCDescription
04483 Shackle Kit, Rear Spring
48046A Bolt, U(FOR REAR SPRING)
48210 Spring Assy, Rear RH
48210B Bush(FOR REAR SPRING PIN)
48210C Bush(FOR REAR SPRING LEAF)
48211 Leaf, Rear Spring, NO.1
48212 Leaf, Rear Spring, NO.2
48213 Leaf, Rear Spring, NO.3
48214 Leaf, Rear Spring, NO.4
48215 Leaf, Rear Spring, NO.5
48220 Spring Assy, Rear LH
48247 Bolt, Rear Spring, Center
48252 Silencer, Rear Spring
48252A Spacer, Rear Spring, NO.2
48252B Silencer, Rear Spring, NO.1
48252C Silencer, Rear Spring, NO.2
48252F Silencer, Rear Spring, NO.3
48253 Spacer, Rear Spring, NO.1
48284 Nut, Rear Spring Center Bolt
48302 Spring Sub-assy, Hollow
48303 Seat Sub-assy, Hollow Spring
48341A Bumper, Rear Spring, NO.1 RH
48341B Bumper, Rear Spring, NO.1 LH
48473 Seat, Rear Spring U Bolt
48475R Plate, Distance(FOR REAR)
48530 Absorber Assy, Shock, Rear RH
48530A Bush(FOR REAR SHOCK ABSORBER)
48530C Washer, Rear Shock Absorber Cushion, NO.2
48540 Absorber Assy, Shock, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
