Toyota Dyna

2001-07 → 2021-11 · chassis KDY22#,23#,25#,26#,LY2## · catalogue 731270 · Europe

Discontinued model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

5 part groups · 2 illustrations

Illustrations

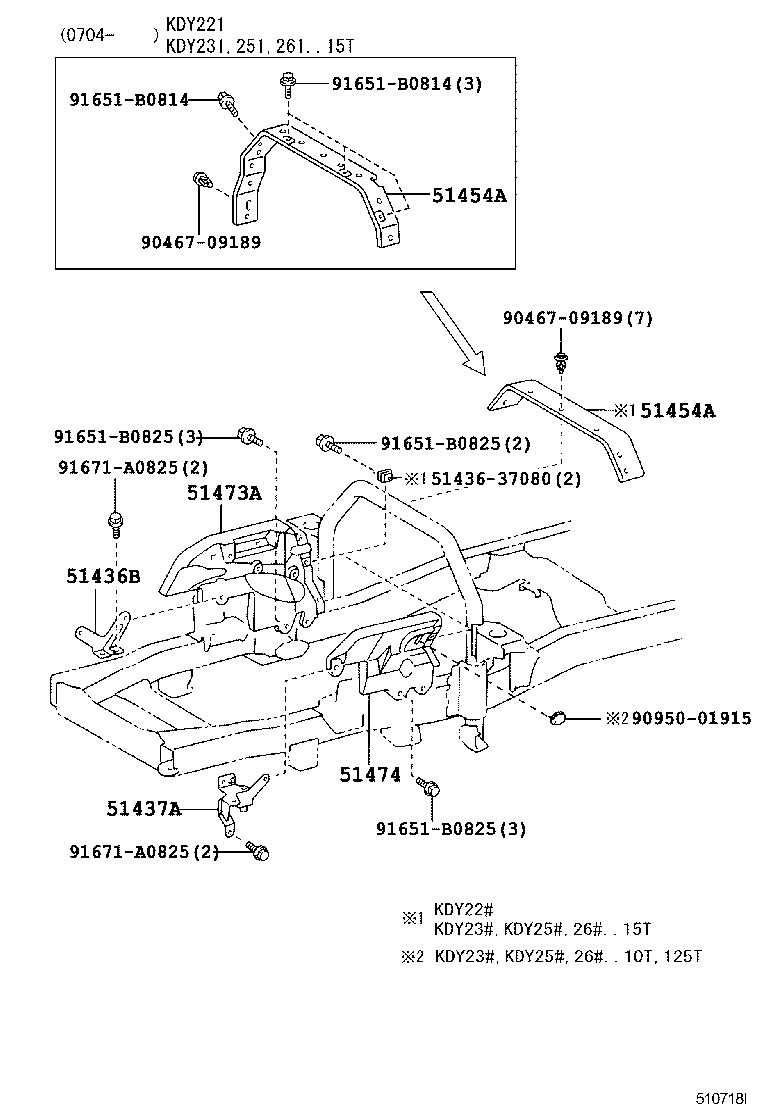

Figure 510710H 510710H 2001-07 → — Figure 510718I 510718I 2001-08 → —

Part groups

PNCDescription
51436B Bracket, Engine Side Cover, NO.1 RH
51437A Bracket, Engine Side Cover, NO.1 LH
51454A Silencer, Engine Rear Cover
51473A Cover Sub-assy, Engine Side, RH
51474 Cover Sub-assy, Engine Side, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
