Toyota Dyna
2001-07 → 2021-11 · chassis KDY22#,23#,25#,26#,LY2## · catalogue 731270 · Europe
Discontinued model
Data version 2022-11

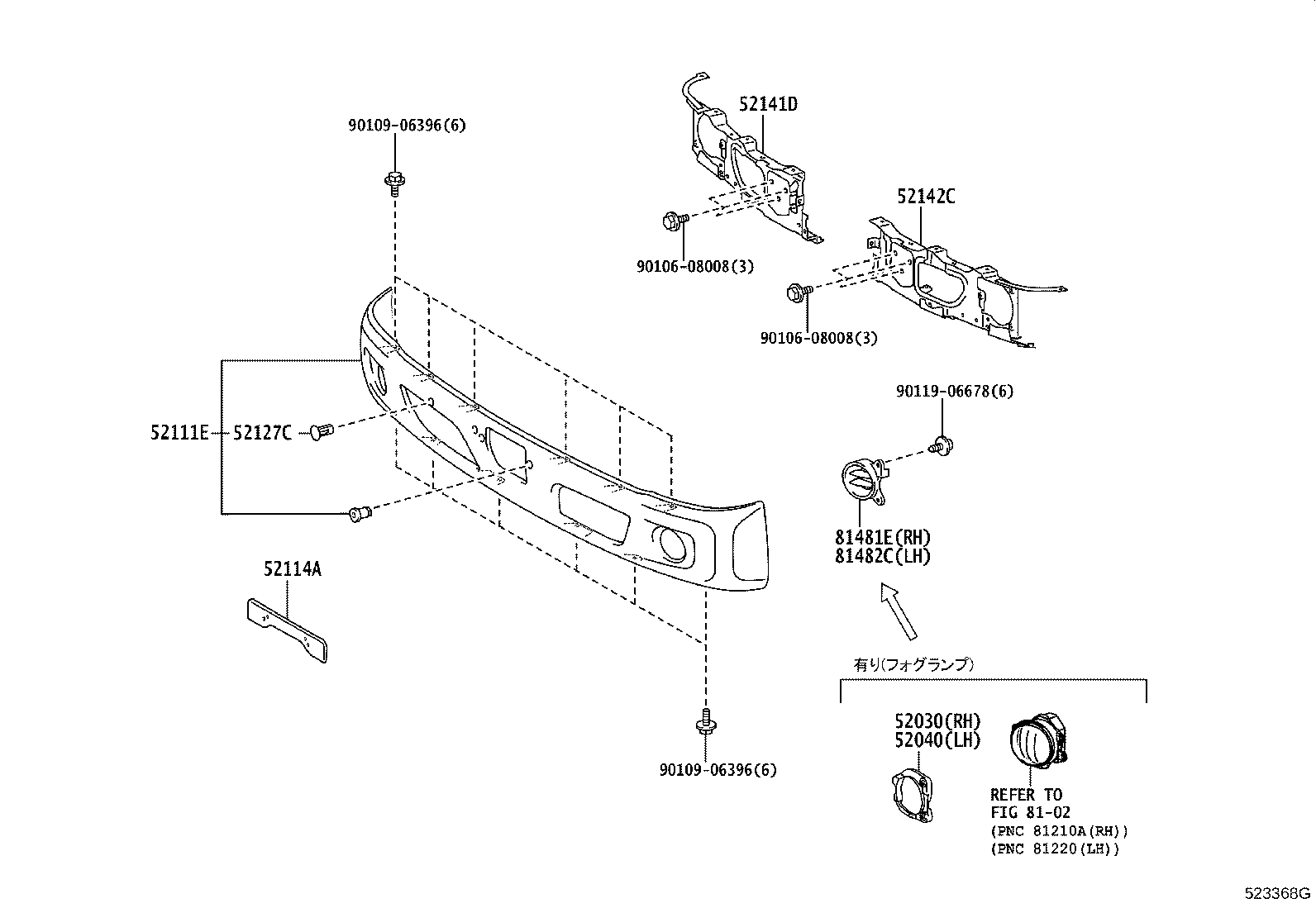

Front Bumper & Bumper Stay
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52030 | Cover Assy, Front Bumper Hole, RH |
| 52040 | Cover Assy, Front Bumper Hole, LH |
| 52111E | Bar, Front Bumper |
| 52114A | Bracket, Front Bumper Extension Mounting |
| 52127C | Cover, Front Bumper Hole |
| 52141D | Stay, Front Bumper, RH |
| 52142C | Stay, Front Bumper, LH |
| 52543A | Seal, Front Bumper Side |
| 75111A | Bracket, Front License Plate |
| 81481E | Cover, Fog Lamp, RH |
| 81482C | Cover, Fog Lamp, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
