Toyota Dyna

2001-07 → 2021-11 · chassis KDY22#,23#,25#,26#,LY2## · catalogue 731270 · Europe

Discontinued model Data version 2022-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

7 part groups · 3 illustrations

Illustrations

Figure 531230C

531230C 2001-07 → 2007-11

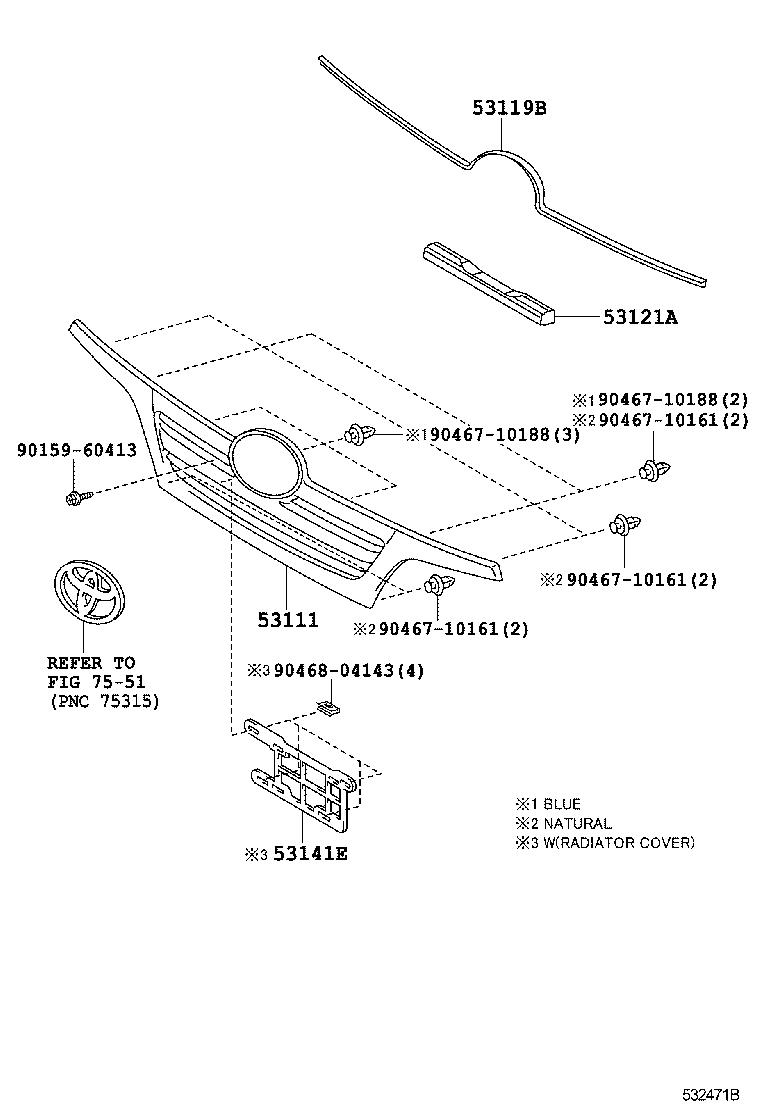

Figure 532471B

532471B 2007-09 → 2016-10

Figure 534851C

534851C 2016-10 → —

Part groups

PNC	Description
53111	Grille, Radiator
53115B	Bracket, Radiator Grille
53117C	Retainer, Radiator Grille, NO.1
53119B	Protector, Radiator Grille
53121A	Moulding, Radiator Grille
53141E	Cover, Radiator, NO.1
53155D	Seal, Radiator Grille, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
