Toyota Dyna

2001-07 → 2021-11 · chassis KDY22#,23#,25#,26#,LY2## · catalogue 731270 · Europe

Discontinued model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

73 part groups · 16 illustrations

Illustrations

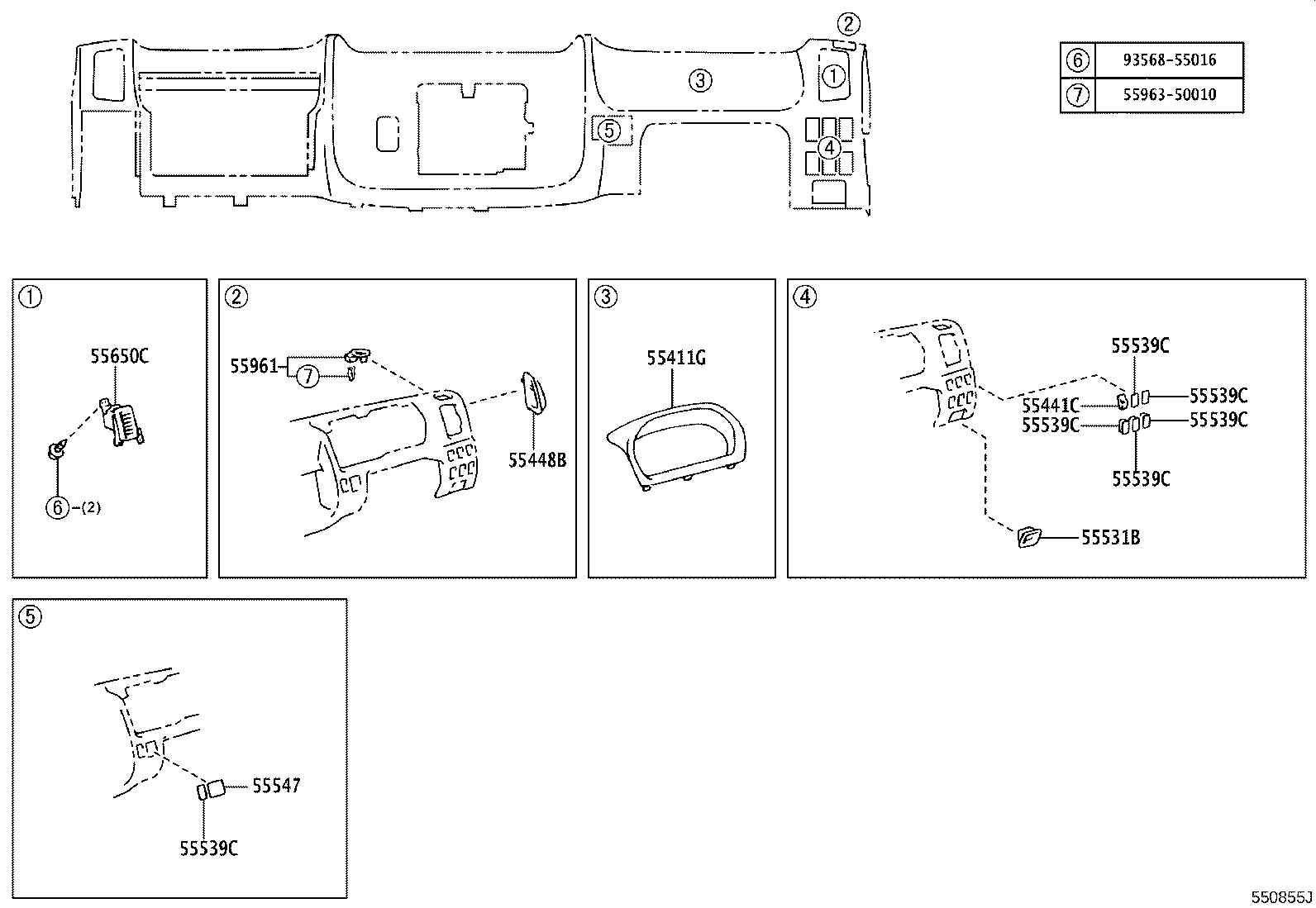

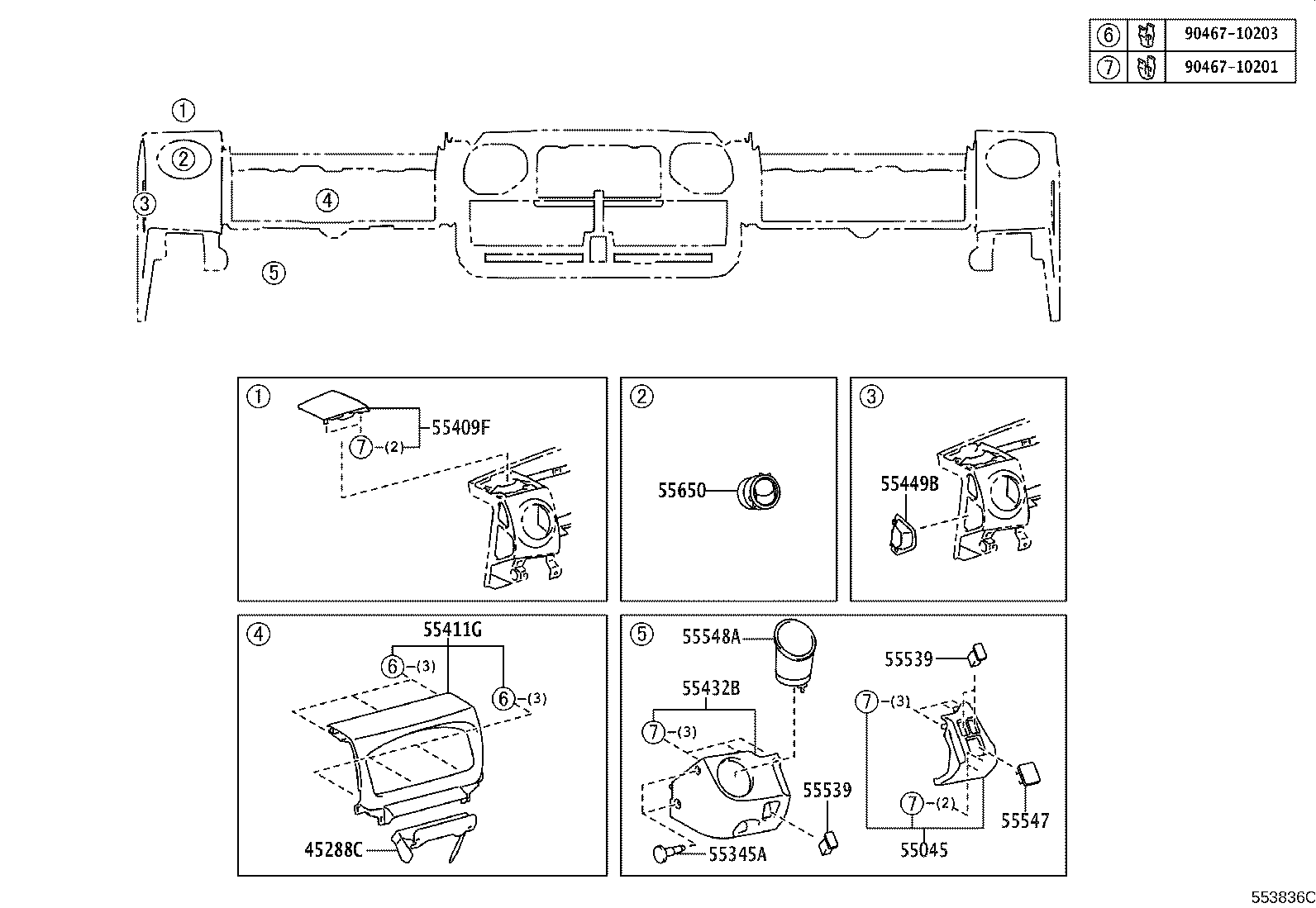

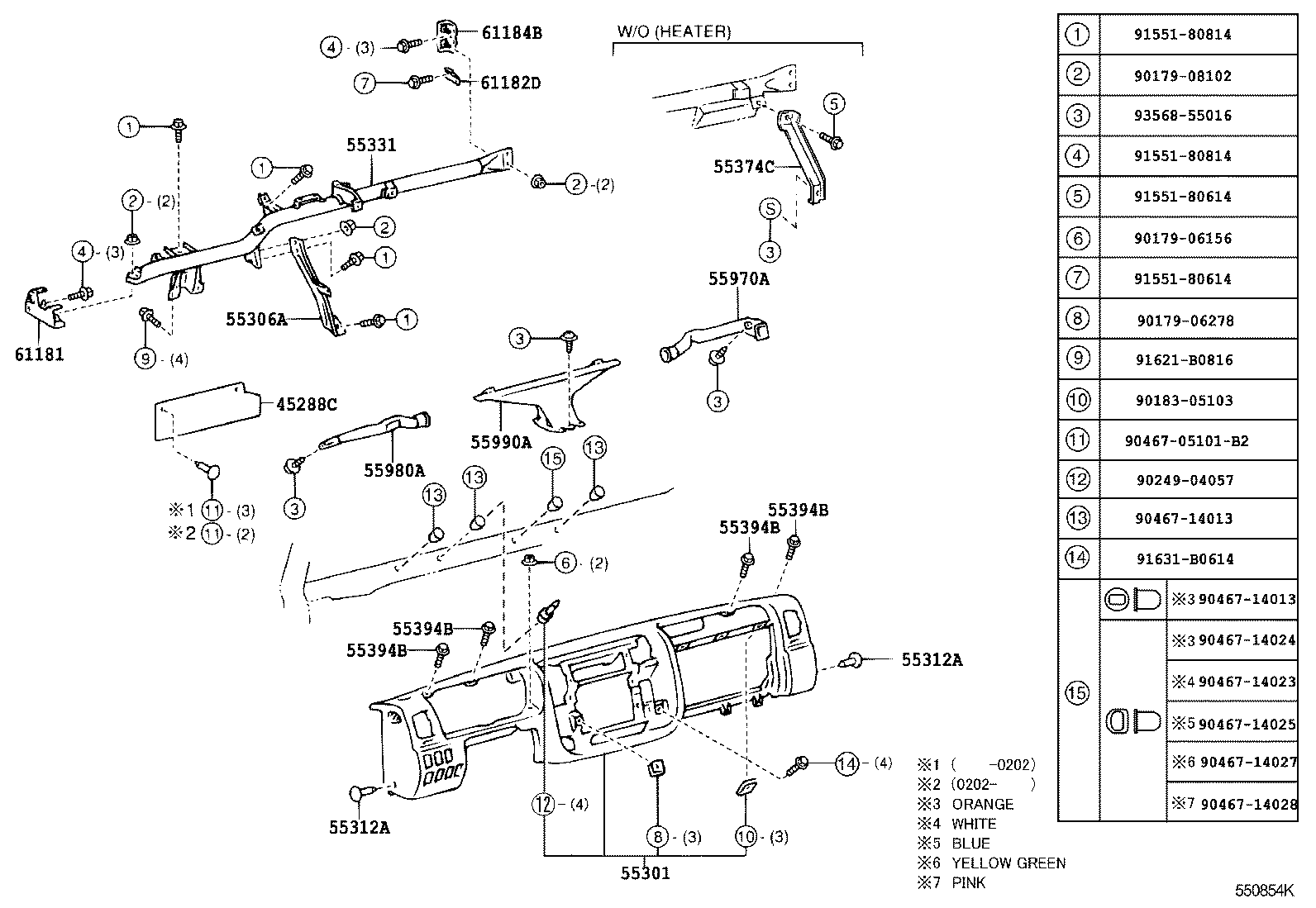

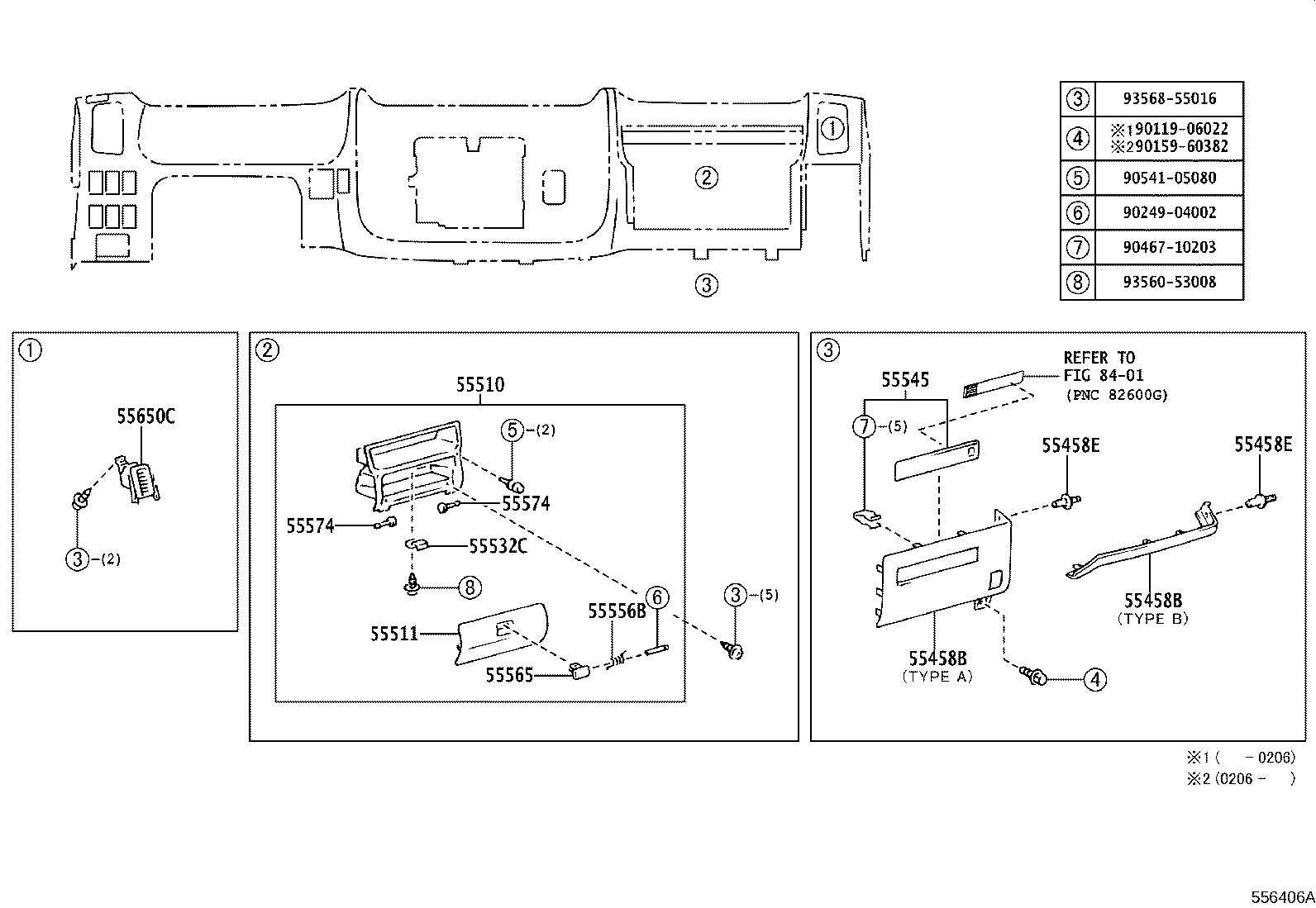

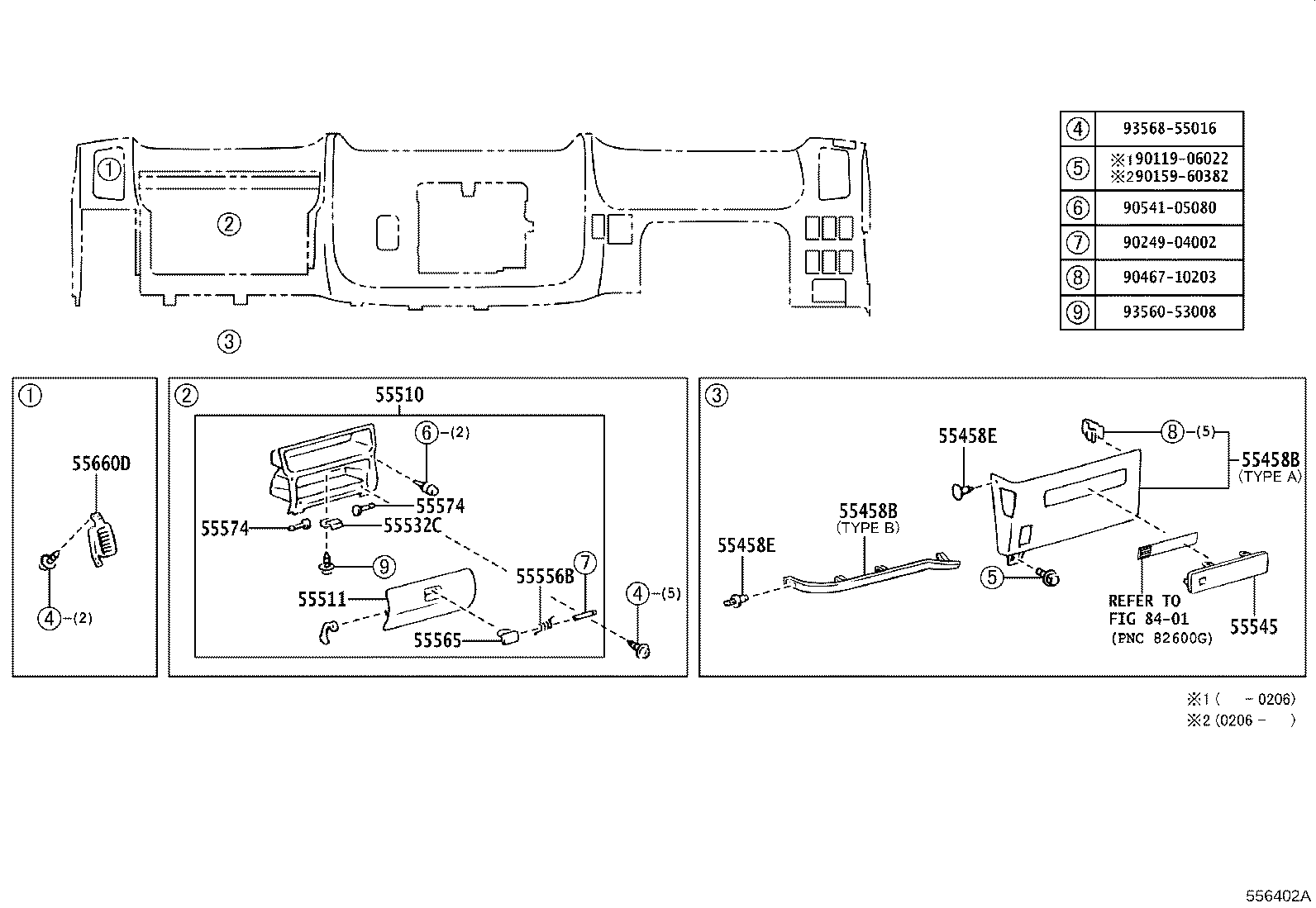

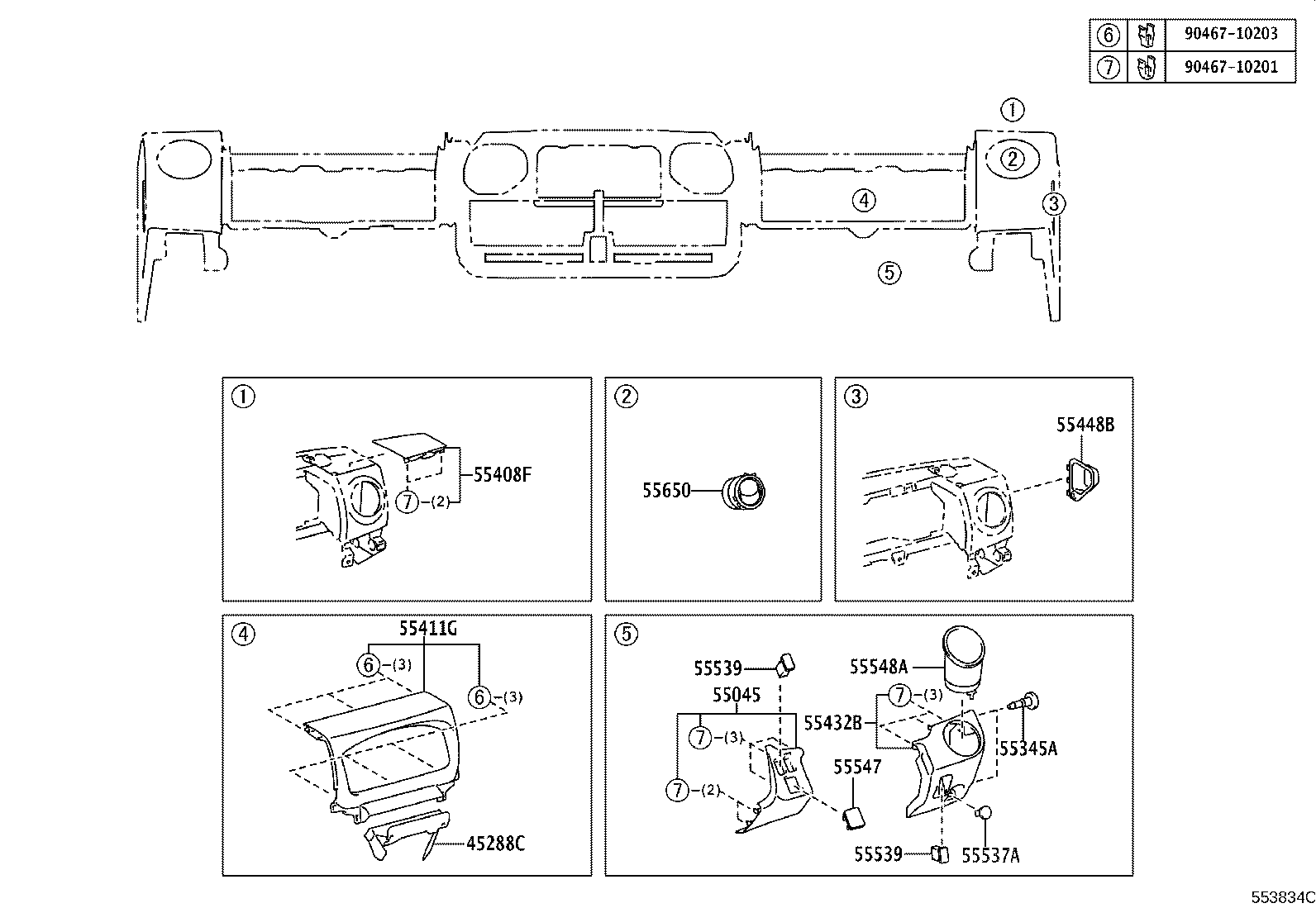

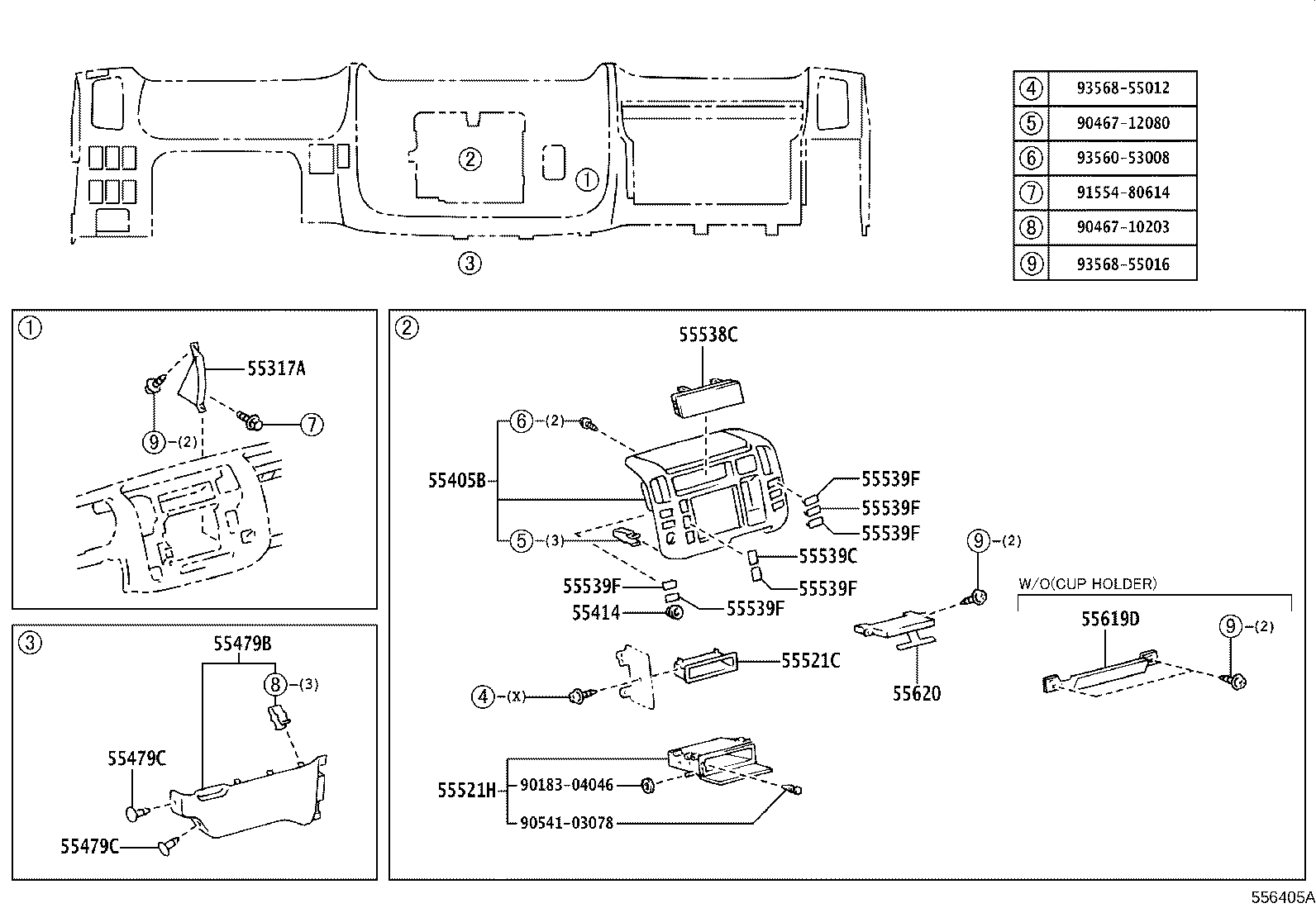

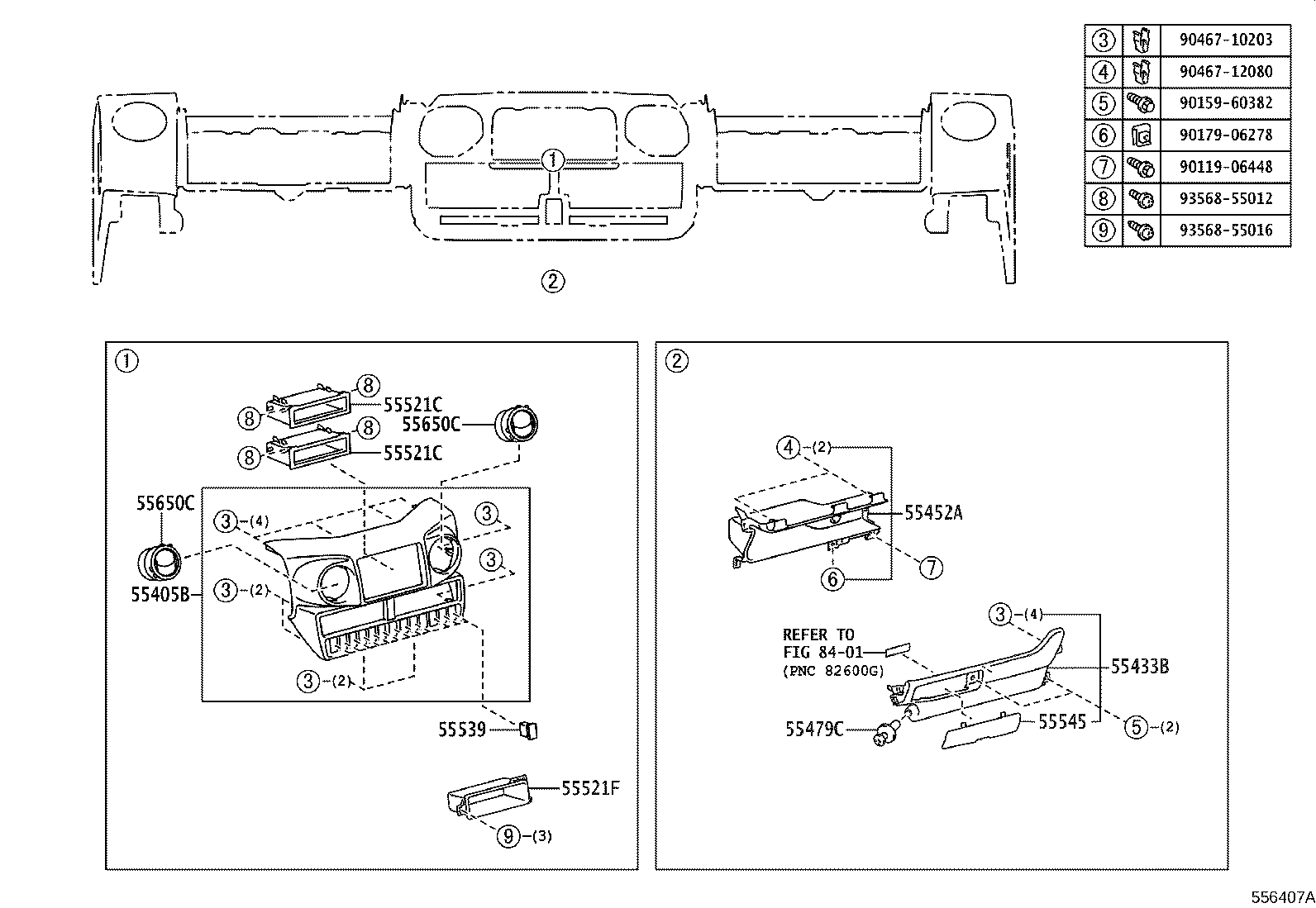

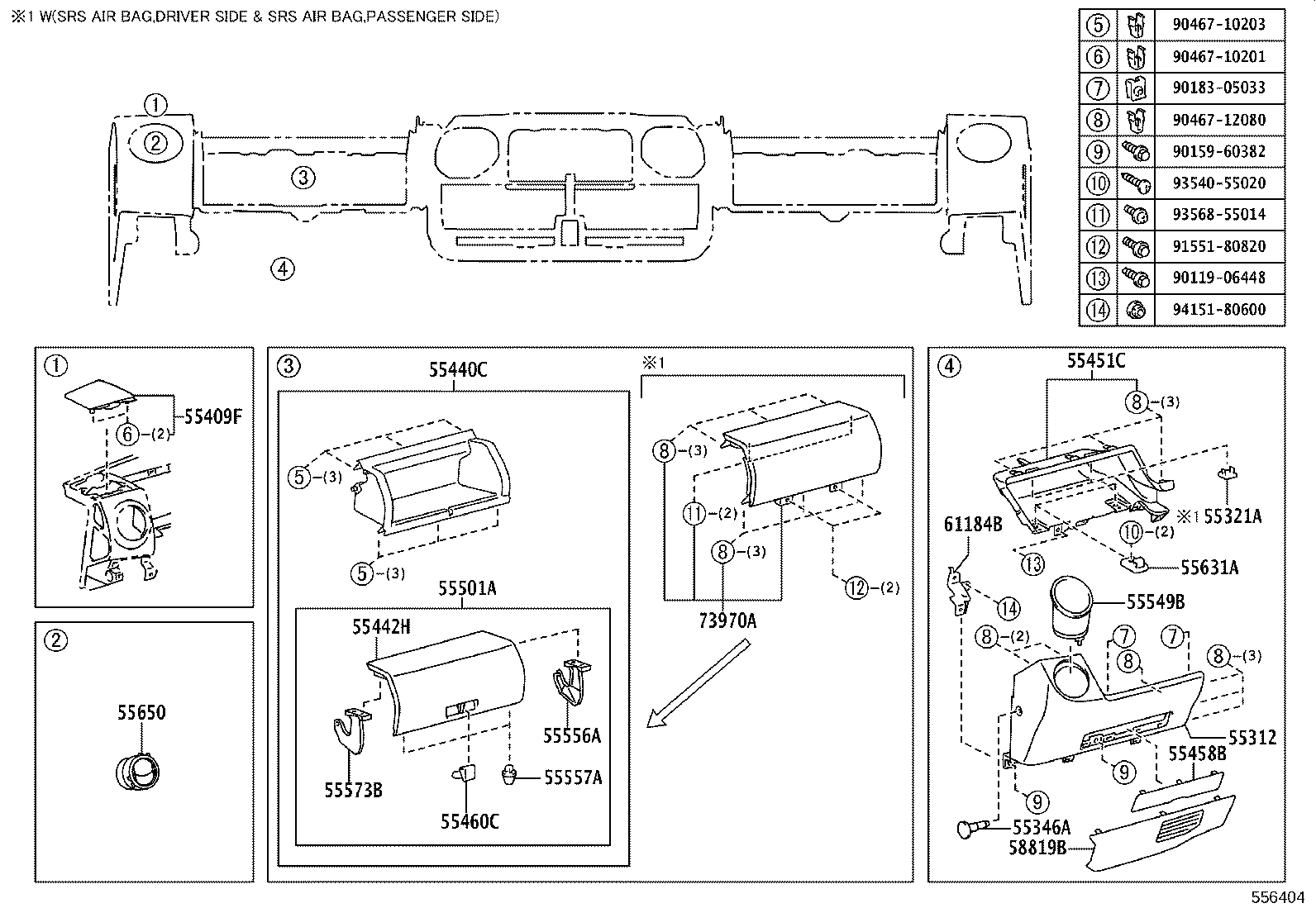

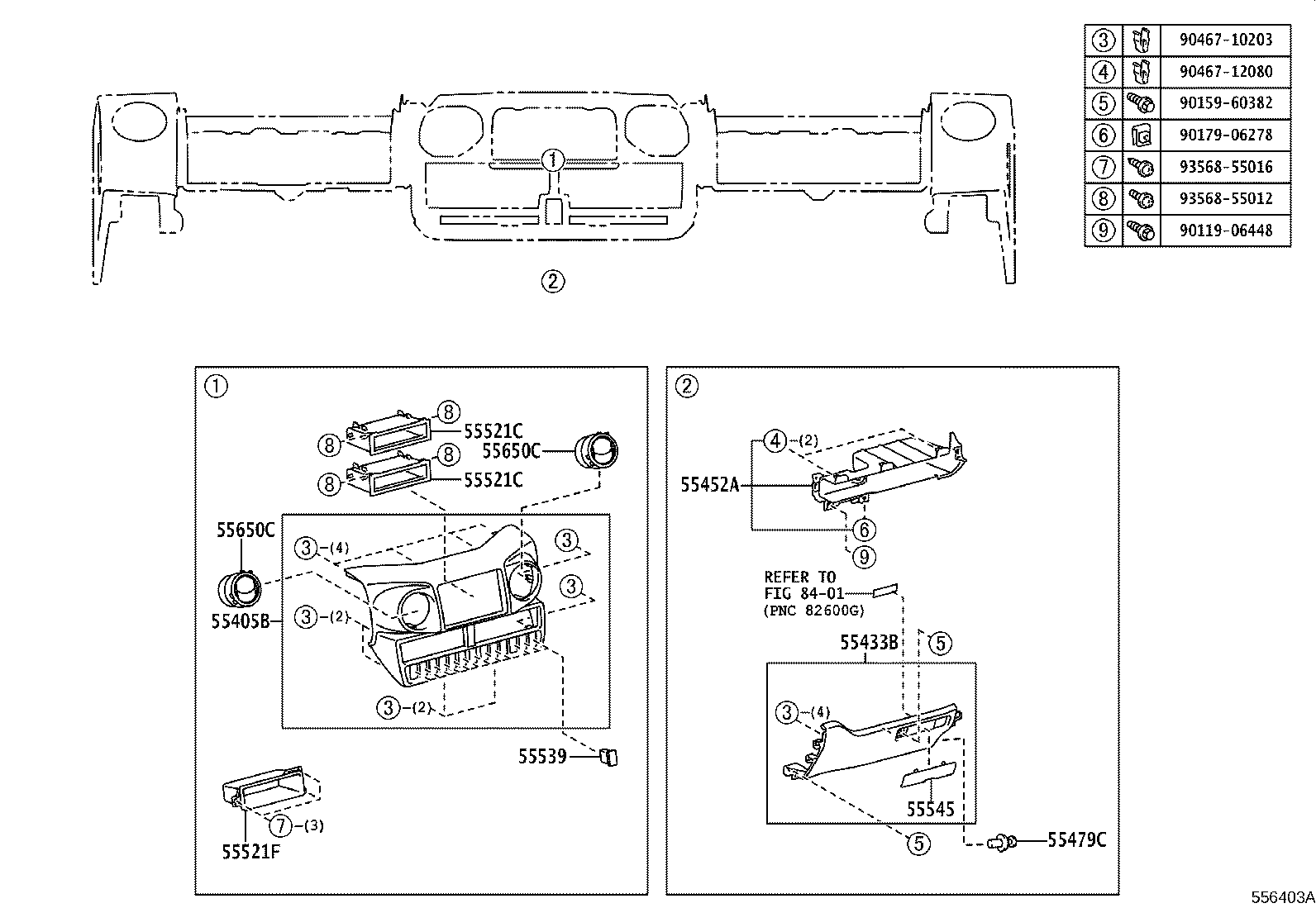

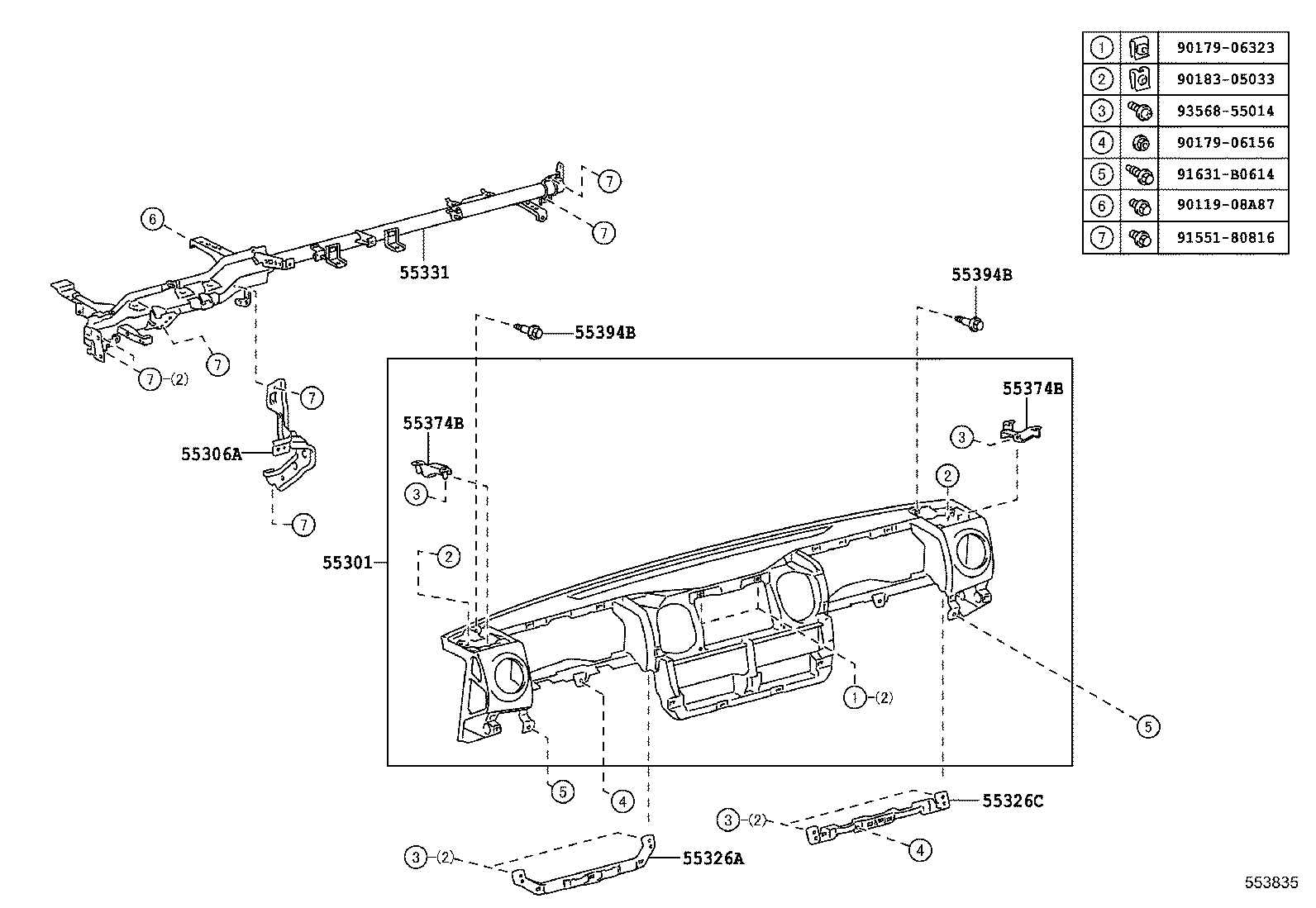

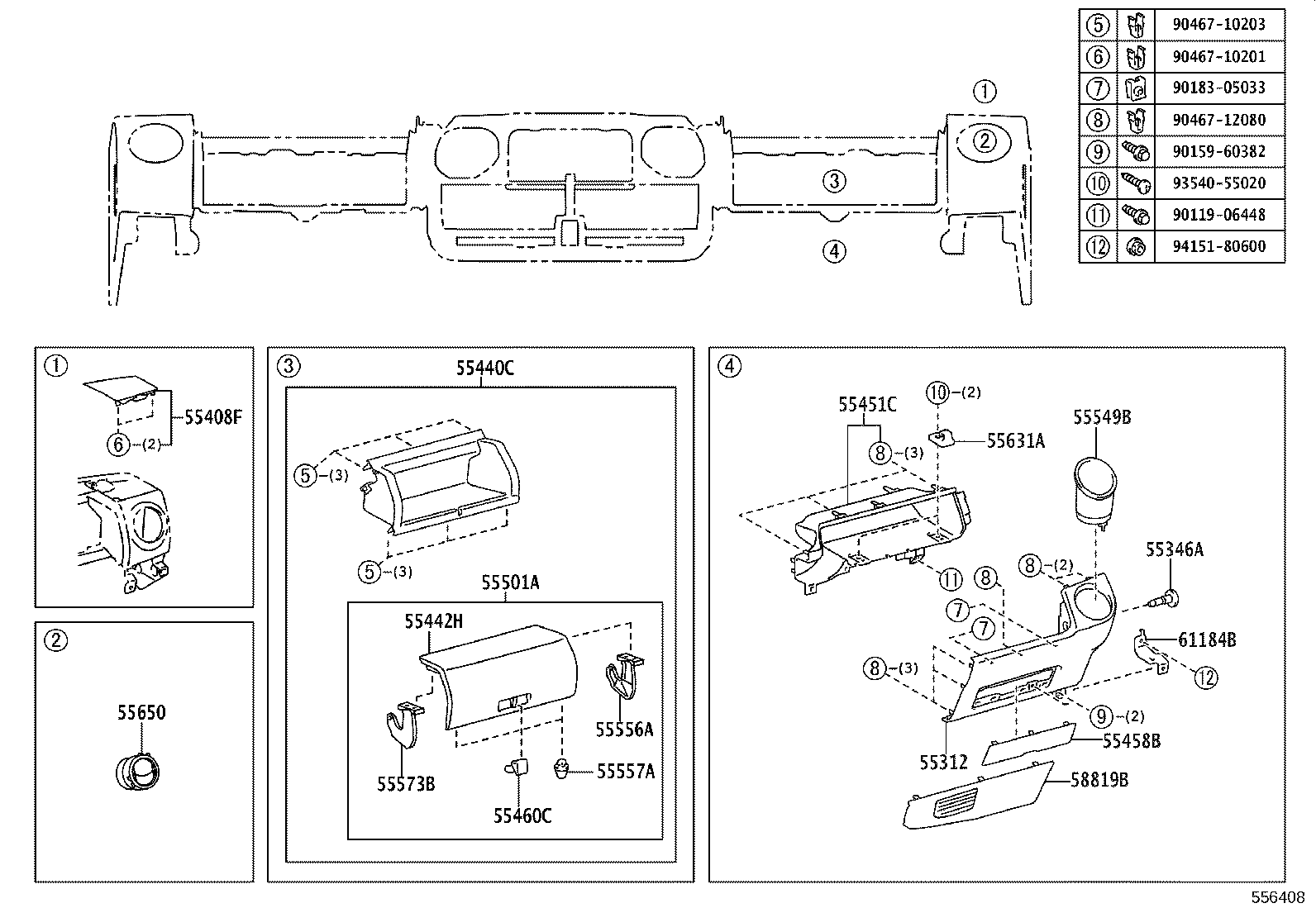

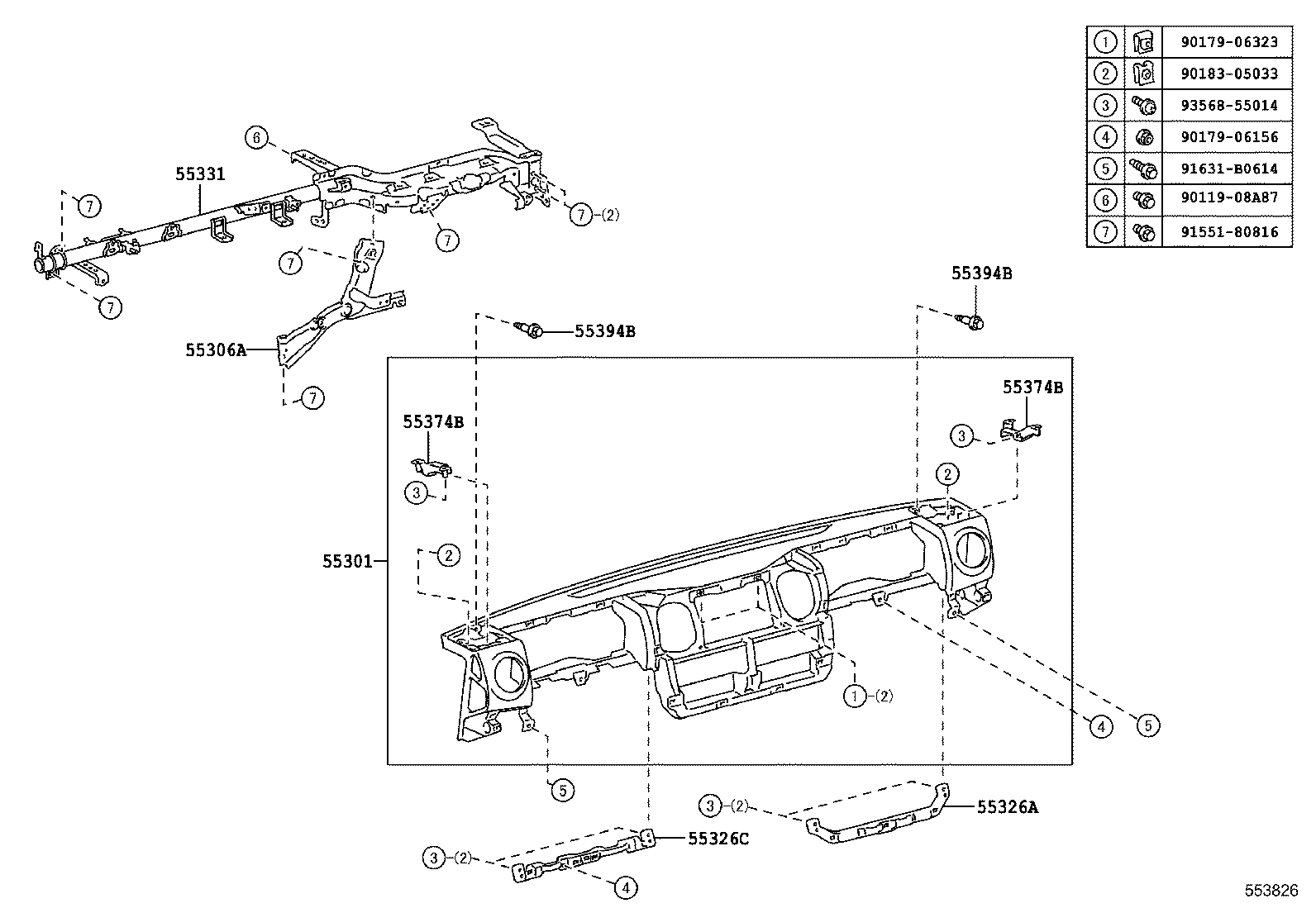

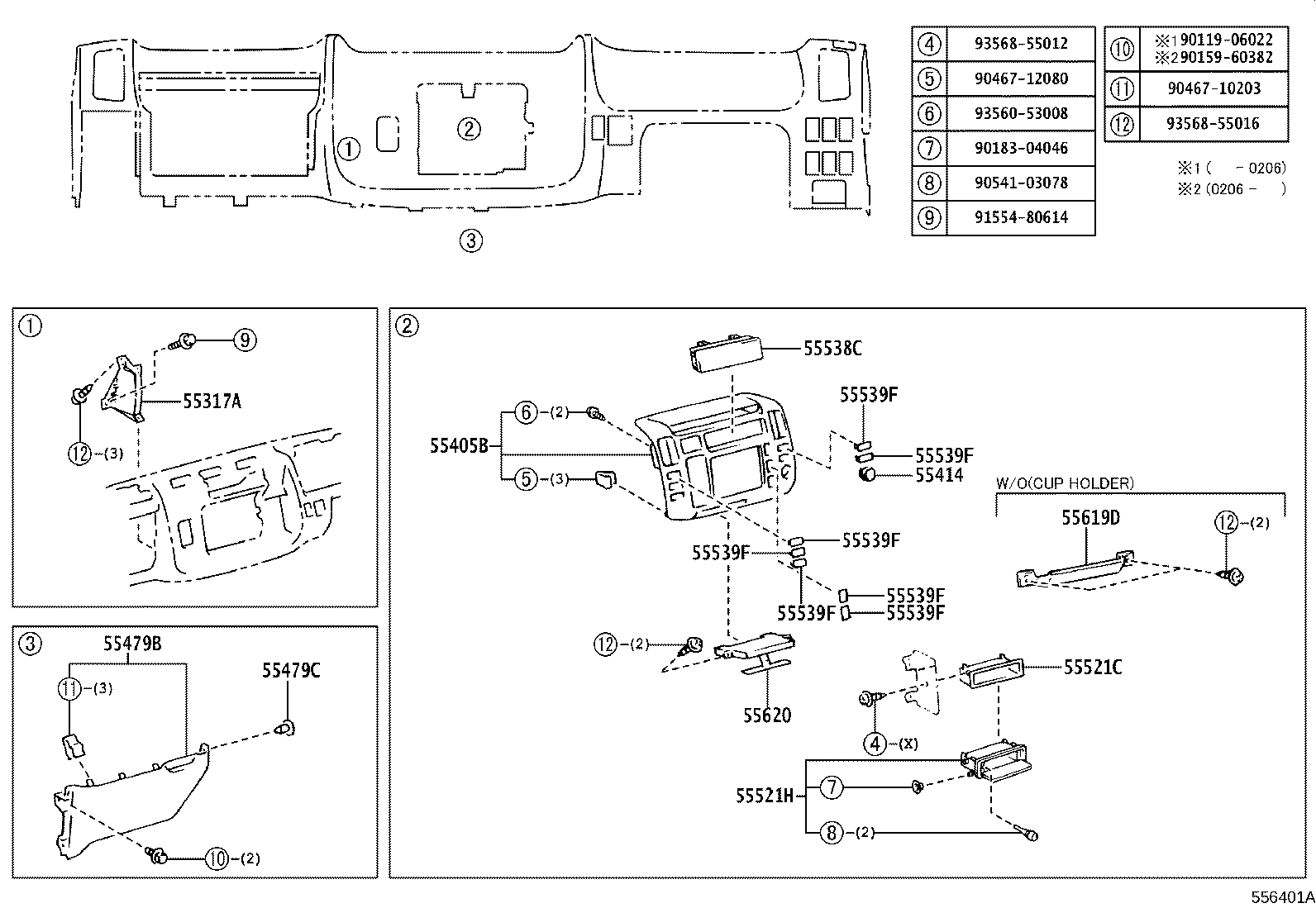

Figure 550853K 550853K 2001-07 → 2016-10 Figure 553826 553826 2016-10 → — Figure 550854K 550854K 2001-07 → 2016-10 Figure 553835 553835 2016-10 → — Figure 550855J 550855J 2001-07 → 2016-10 Figure 556401A 556401A 2001-07 → 2016-10 Figure 556402A 556402A 2001-07 → 2016-10 Figure 553834C 553834C 2016-10 → — Figure 556403A 556403A 2016-10 → — Figure 556404 556404 2016-10 → — Figure 550856J 550856J 2001-07 → 2016-10 Figure 556405A 556405A 2001-07 → 2016-10 Figure 556406A 556406A 2001-07 → 2016-10 Figure 553836C 553836C 2016-10 → — Figure 556407A 556407A 2016-10 → — Figure 556408 556408 2016-10 → —

Part groups

PNCDescription
45288C Plate, Steering Column Cover
55045 Panel Sub-assy, Instrument Panel Finish, Lower
55301 Panel Sub-assy, Instrument
55306A Brace Sub-assy, Instrument Panel, NO.1
55312 Panel, Instrument, Lower
55312A Clip, Instrument Panel
55317A Panel, Instrument Side, RH
55321A Cover,Instrument Panel Hole
55326A Stay, Instrument Panel, NO.1
55326C Stay, Instrument Panel, NO.2
55331 Reinforcement, Instrument Panel
55345A Clip, Instrument Panel, NO.1
55346A Clip, Instrument Panel, NO.2
55374B Bracket, Instrument Panel
55374C Bracket, Instrument Panel Lower Mounting, NO.1
55394B Bolt, Instrument Panel
55405B Panel Sub-assy, Instrument Cluster Finish, Center
55408F Panel Sub-assy, Instrument Panel Speaker, NO.1
55409F Panel Sub-assy, Instrument Panel Speaker, NO.2
55411G Panel, Instrument Cluster Finish, NO.1
55414 Bezel, Cigar Lighter Hole
55432B Panel, Instrument Panel Finish, Lower
55433B Panel, Instrument Panel Finish, Lower NO.2
55440C Box Assy, Instrument Panel
55441C Box, Instrument Panel Coin
55442H Door, Instrument Panel
55448B Cover, Oil Reservoir Tank, RH
55449B Cover, Oil Reservoir Tank, LH
55451C Box, Instrument Panel, NO.1
55452A Box, Instrument Panel, NO.2
55458B Cover, Instrument, Lwr
55458E Clip(FOR INSTRUMENT LOWER COVER)
55460C Lock Assy, Instrument Panel Box
55479B Cover, Instrument, Lower Center
55479C Clip(FOR INSTRUMENT LOWER COVER)
55501A Door Sub-assy, Glove Compartment
55510 Door Assy, Glove Compartment
55511 Door, Glove Compartment
55521C Cover, Stereo Opening
55521F Cover, Stereo Opening, NO.2
55521H Cover Assy, Stereo Opening
55531B Cover, Choke Knob Hole
55532C Stopper, Glove Door
55537A Cover, Throttle Knob Hole
55538C Cover, Cooler Switch Hole
55539 Cover, Spare Switch Hole
55539C Cover, Spare Switch Hole
55539F Cover, Spare Switch Hole
55545 Cover, Fuse Box Opening
55547 Cover, Remote Control Mirror Hole
55548A Cover, Instrument Panel Hole
55549B Cover, Instrument Panel Hole, NO.2
55556A Arm, Glove Compartment Door Check, RH
55556B Spring, Glove Compartment Door Check
55557A Cushion, Glove Compartment Door Check
55565 Handle, Glove Compartment Door Lock
55573B Arm, Glove Compartment Door Check, LH
55574 Shaft, Glove Compartment Door Hinge
55619D Cover, Cup Holder Hole
55620 Holder Assy, Instrument Panel Cup
55631A Stopper, Instrument Panel Under Tray, NO.1
55650 Register Assy, Instrument Panel, NO.1
55650C Register Assy, Instrument Panel, NO.1
55660D Register Assy, Instrument Panel, NO.1
55961 Nozzle, Side Defroster, NO.1
55970A Duct Assy, Side Defroster, RH
55980A Duct Assy, Side Defroster, LH
55990A Nozzle Assy, Defroster, Lower
58819B Cover, Front Heater
61181 Bracket, Instrument Panel Side
61182D Bracket, Instrument Panel Side
61184B Bracket, Instrument Panel Side, NO.2 LH
73970A Airbag Assy, Instrument Panel Passenger
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
