Toyota Dyna

2001-07 → 2021-11 · chassis KDY22#,23#,25#,26#,LY2## · catalogue 731270 · Europe

Discontinued model Data version 2022-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Member

83 part groups · 5 illustrations

Illustrations

611391E 2001-07 → 2016-10

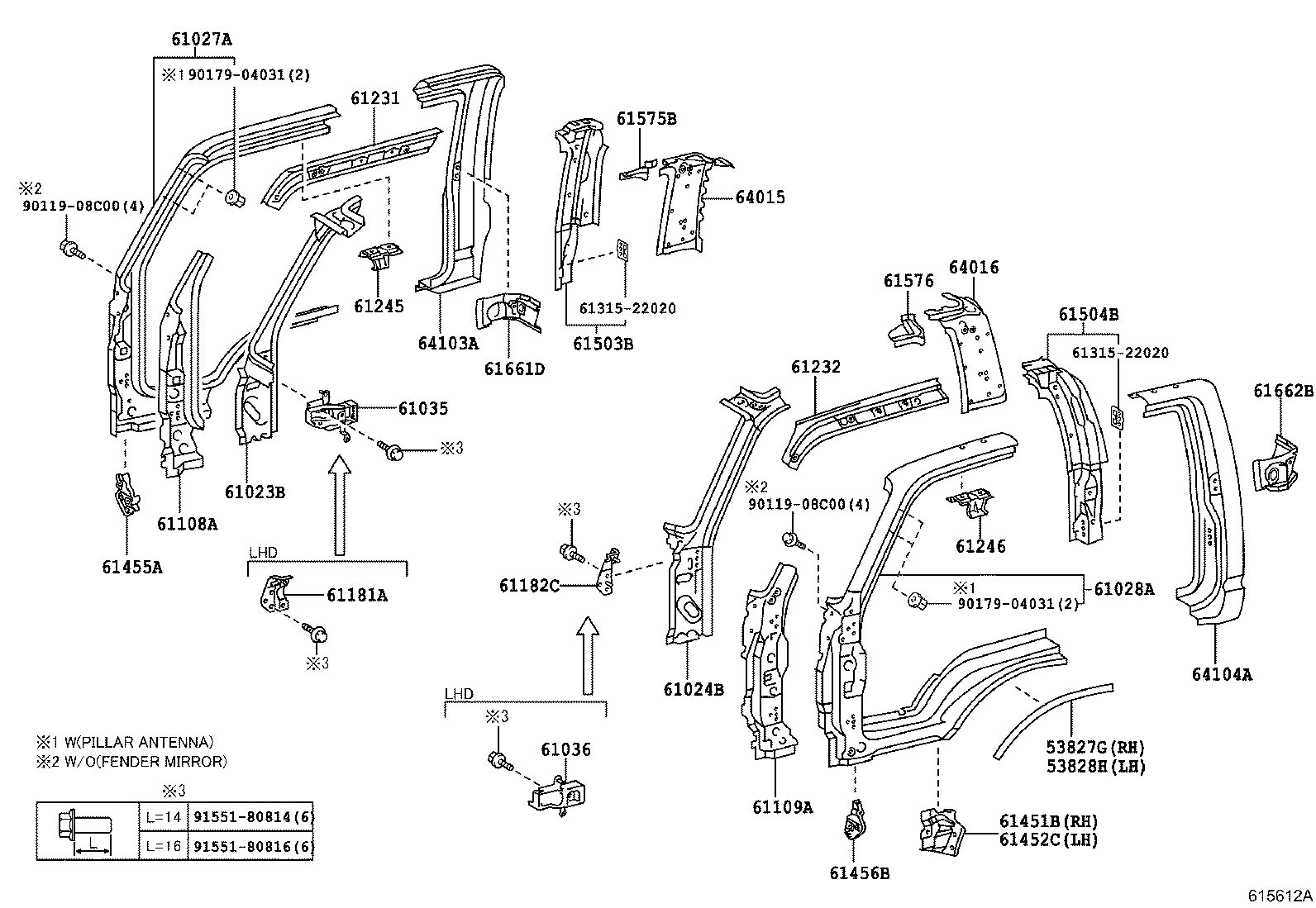

615612A 2016-10 → —

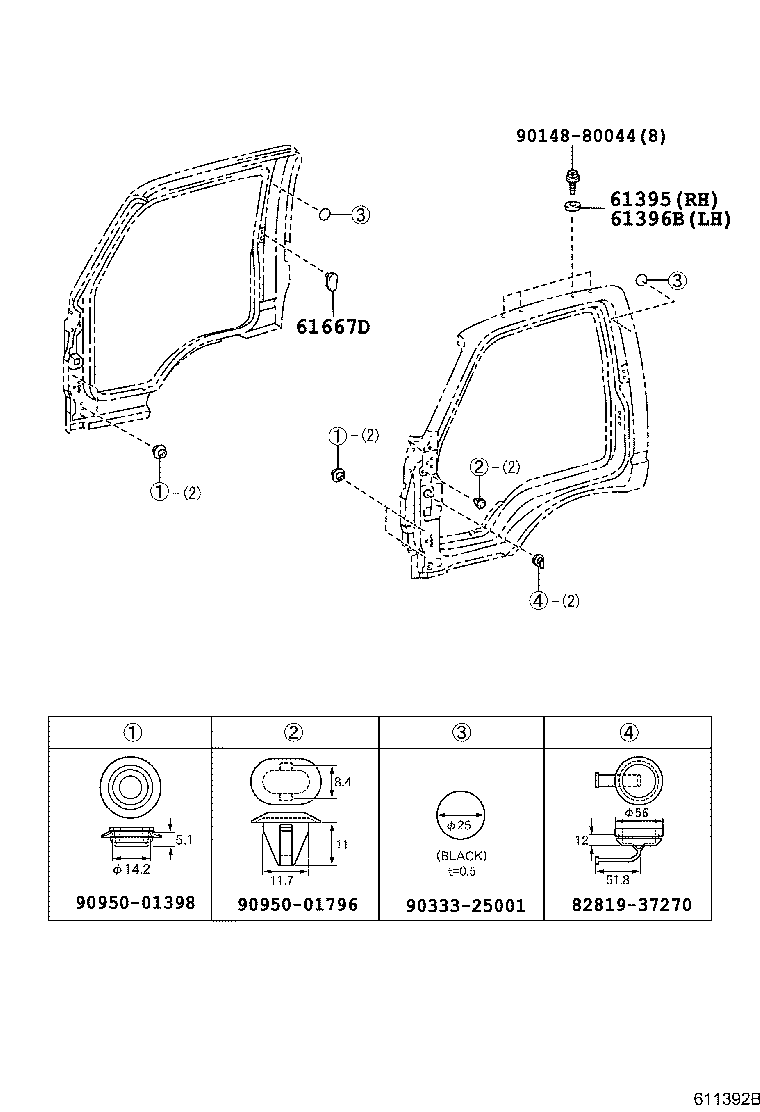

611392B 2001-07 → —

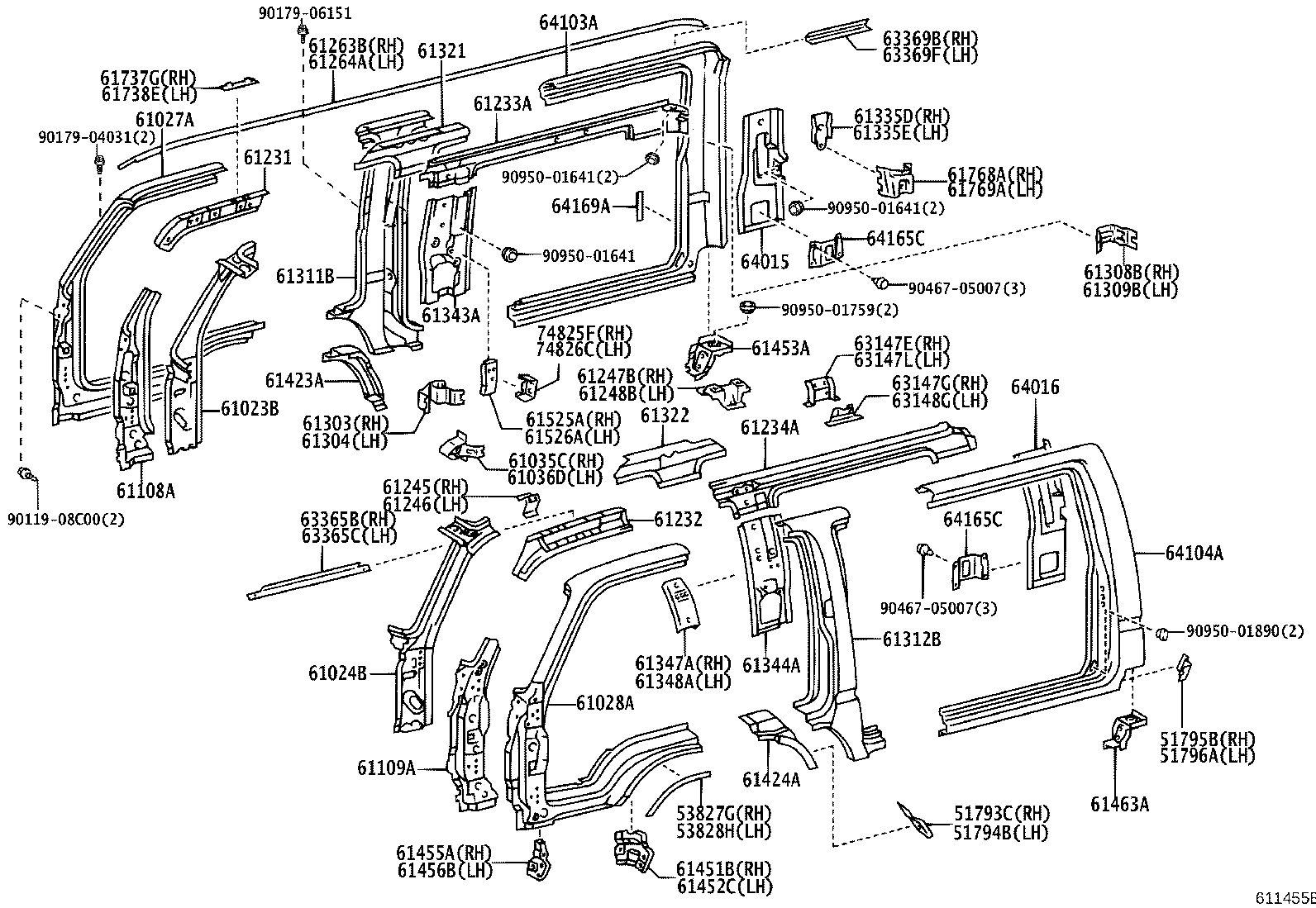

611455E 2001-08 → 2015-02

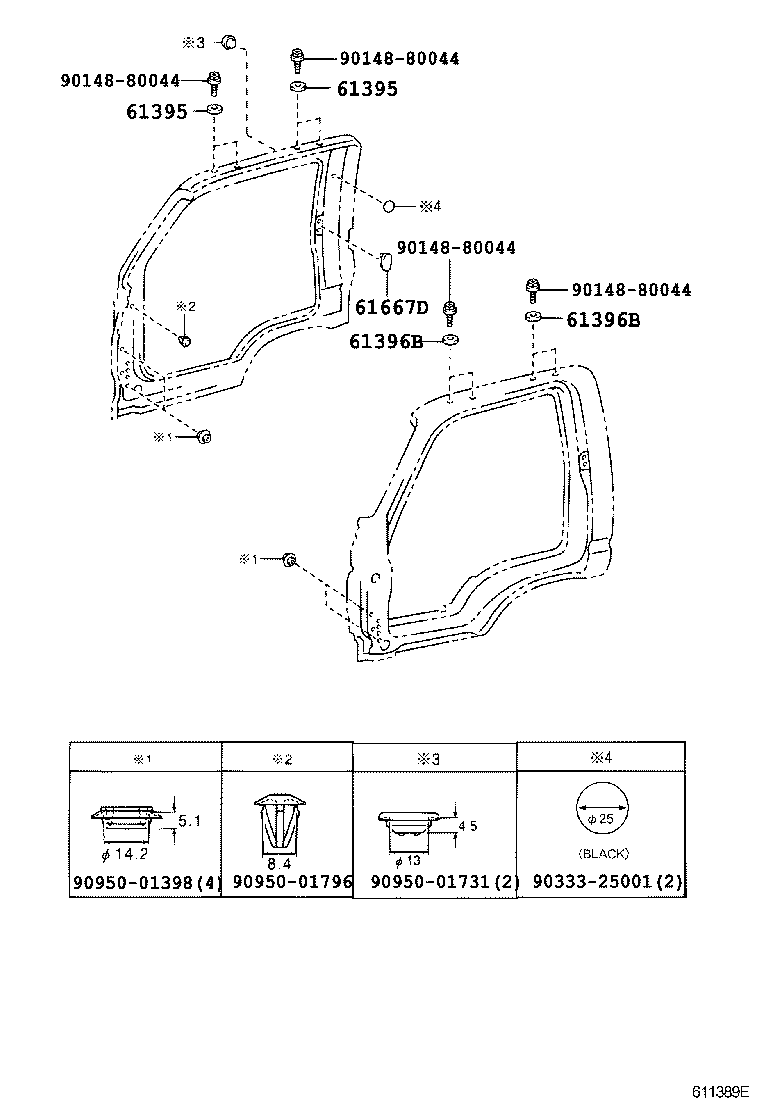

611389E 2001-08 → 2015-02

Part groups

PNC	Description
51793C	Bracket, Side Step, NO.1 RH
51794B	Bracket, Side Step, NO.1 LH
51795B	Bracket, Side Step, NO.2 RH
51796A	Bracket, Side Step, NO.2 LH
53827G	Protector, Front Fender Side Panel, RH
53828H	Protector, Front Fender Side Panel, LH
61023B	Pillar Sub-assy, Front Body, Inner RH
61024B	Pillar Sub-assy, Front Body, Inner LH
61027A	Pillar Sub-assy, Front Body, Outer RH
61028A	Pillar Sub-assy, Front Body, Outer LH
61035	Bracket Sub-assy, Instrument Panel TO Cowl Side, RH
61035C	Retainer Sub-assy, Pillar Lower Hinge, RH
61036	Bracket Sub-assy, Instrument Panel TO Cowl Side, LH
61036D	Retainer Sub-assy, Pillar Lower Hinge, LH
61108A	Reinforce Sub-assy, Front Body Pillar, Lower RH
61109A	Reinforce Sub-assy, Front Body Pillar, Lower LH
61181A	Bracket, Instrument Side, RH
61182C	Bracket, Instrument Side, LH
61231	Rail, Roof Side, Inner RH
61232	Rail, Roof Side, Inner LH
61233A	Rail, Roof Side, Inner NO.2 RH
61234A	Rail, Roof Side, Inner NO.2 LH
61245	Reinforcement, Roof Side Rail, Outer RH
61246	Reinforcement, Roof Side Rail, Outer LH
61247B	Reinforcement, Roof Side Rail, Inner RH
61248B	Reinforcement, Roof Side Rail, Inner LH
61263B	Channel, Roof Drip Side, Front RH
61264A	Channel, Roof Drip Side, Front LH
61303	Reinforce Sub-assy, Center Body Pillar, Upper RH
61304	Reinforce Sub-assy, Center Body Pillar, Upper LH
61308B	Retainer Sub-assy, Door Lock Striker, RH
61309B	Retainer Sub-assy, Door Lock Striker, LH
61311B	Pillar, Center Body, Outer RH
61312B	Pillar, Center Body, Outer LH
61321	Reinforcement, Center Body Pillar, Upper RH
61322	Reinforcement, Center Body Pillar, Upper LH
61335D	Retainer, Seat Belt Anchor
61335E	Retainer, Seat Belt Anchor
61343A	Pillar, Center Body, Inner RH
61344A	Pillar, Center Body, Inner LH
61347A	Reinforcement, Belt Anchor TO Center Pillar, RH
61348A	Reinforcement, Belt Anchor TO Center Pillar, LH
61395	Seal, Center Body Pillar, RH
61396B	Seal, Center Body Pillar, LH
61423A	Panel, Fender, Inner Lower RH
61424A	Panel, Fender, Inner Lower LH
61451B	Plate, Step, Lower RH
61452C	Plate, Step, Lower LH
61453A	Panel, Rocker Inner, Rear RH
61455A	Retainer, Front Step, RH
61456B	Retainer, Front Step, LH
61463A	Panel, Rocker, Inner Rear LH
61503B	Reinforcement Sub-assy, Quarter Lock Pillar, RH
61504B	Reinforcement Sub-assy, Quarter Lock Pillar, LH
61515B	Extension, Quarter Lock Pillar, RH
61516	Extension, Quarter Lock Pillar, LH
61525A	Retainer, Separator Bar Bracket, RH
61526A	Retainer, Separator Bar Bracket, LH
61575B	Plate, Cab Rear Pillar, Upper RH
61576	Plate, Cab Rear Pillar, Upper LH
61661D	Extension, Quarter Panel TO Upper Back, RH
61662B	Extension, Quarter Panel TO Upper Back, LH
61667D	Seal, Quarter Panel
61737G	Reinforcement, Roof Side, Inner RH
61738E	Reinforcenent, Roof Side, Inner LH, NO.2
61768A	Reinforcement, Seat Belt Anchor, NO.2 RH
61769A	Reinforcement, Seat Belt Anchor, NO.2 LH
63147E	Bracket, Roof Panel Reinforcement
63147G	Bracket, Roof Panel Reinforcement
63147L	Bracket, Roof Panel Reinforcement
63148G	Reinforcement, Roof Panel Side
63365B	Plate, Roof Headlining Set
63365C	Plate, Roof Headlining Set
63369B	Bracket, Roof Silencer, Side
63369F	Bracket, Roof Silencer, Side
64015	Panel Sub-assy, Back Corner, Inner RH
64016	Panel Sub-assy, Back Corner, Inner LH
64103A	Panel Sub-assy, Back Corner, Outer RH
64104A	Panel Sub-assy, Back Corner, Outer LH
64165C	Cover, Back Corner, Inner Rear
64169A	Protector, Fuel Inlet
74825F	Bracket, Separator, RH
74826C	Bracket, Separator, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
