Toyota Dyna

2001-07 → 2021-11 · chassis KDY22#,23#,25#,26#,LY2## · catalogue 731270 · Europe

Discontinued model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Floor & Fender

42 part groups · 11 illustrations

Illustrations

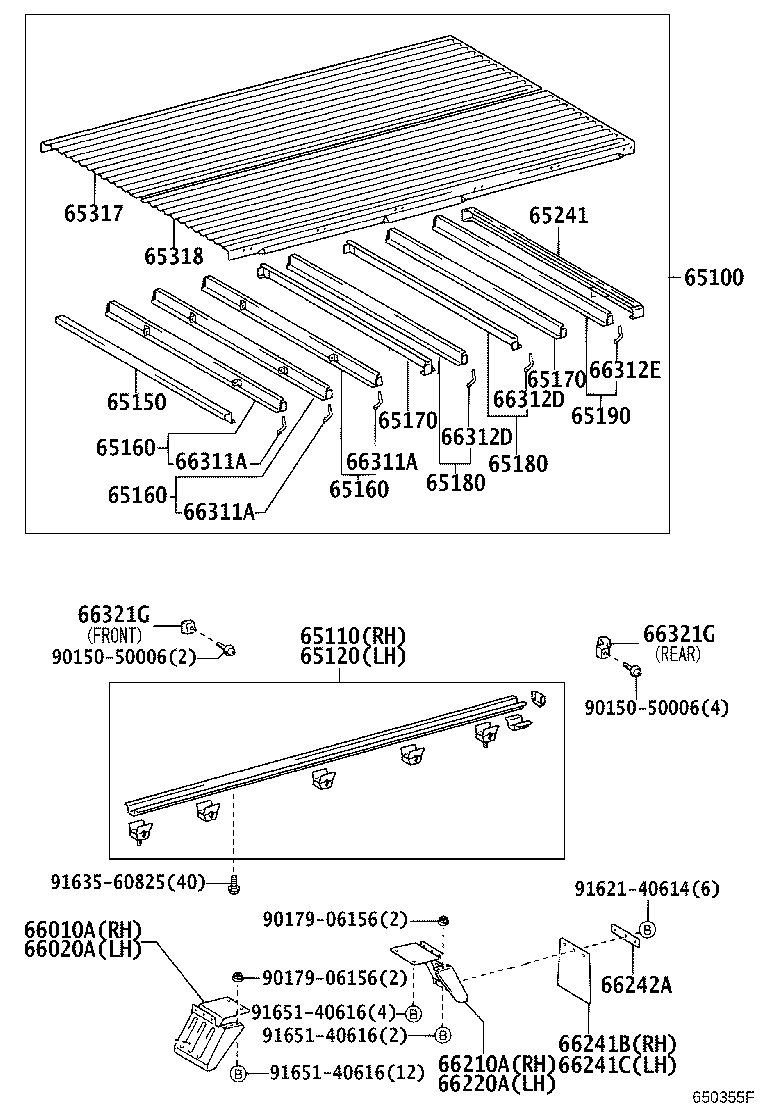

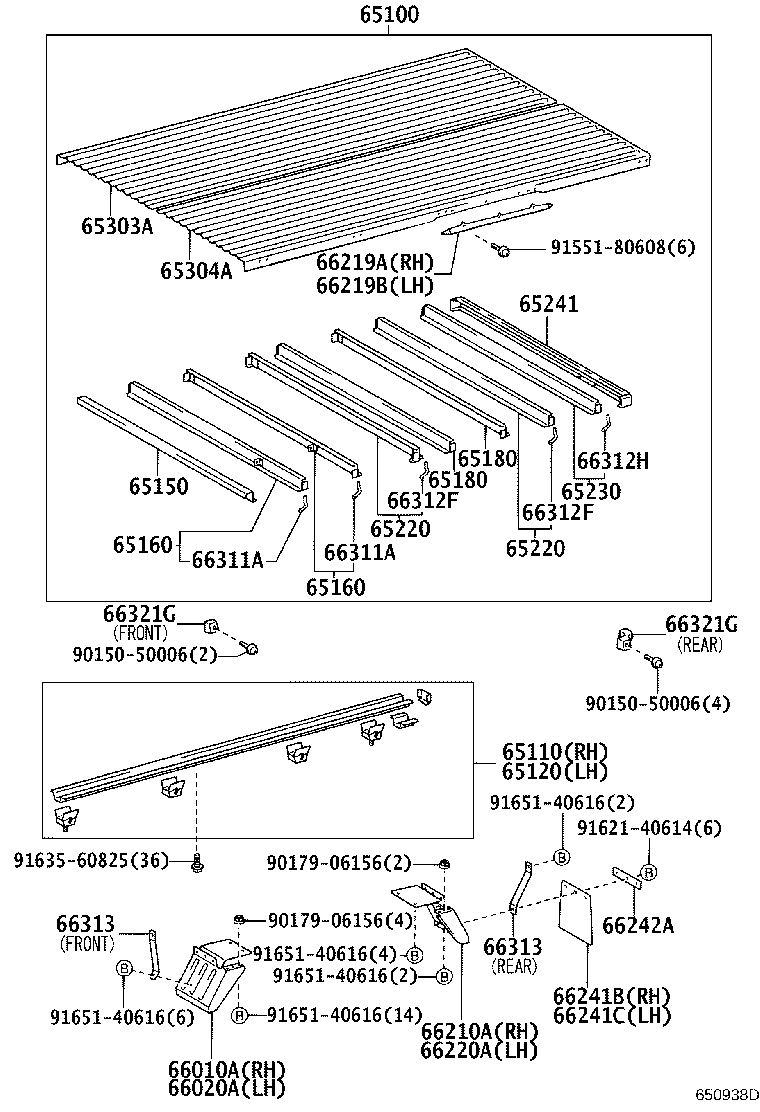

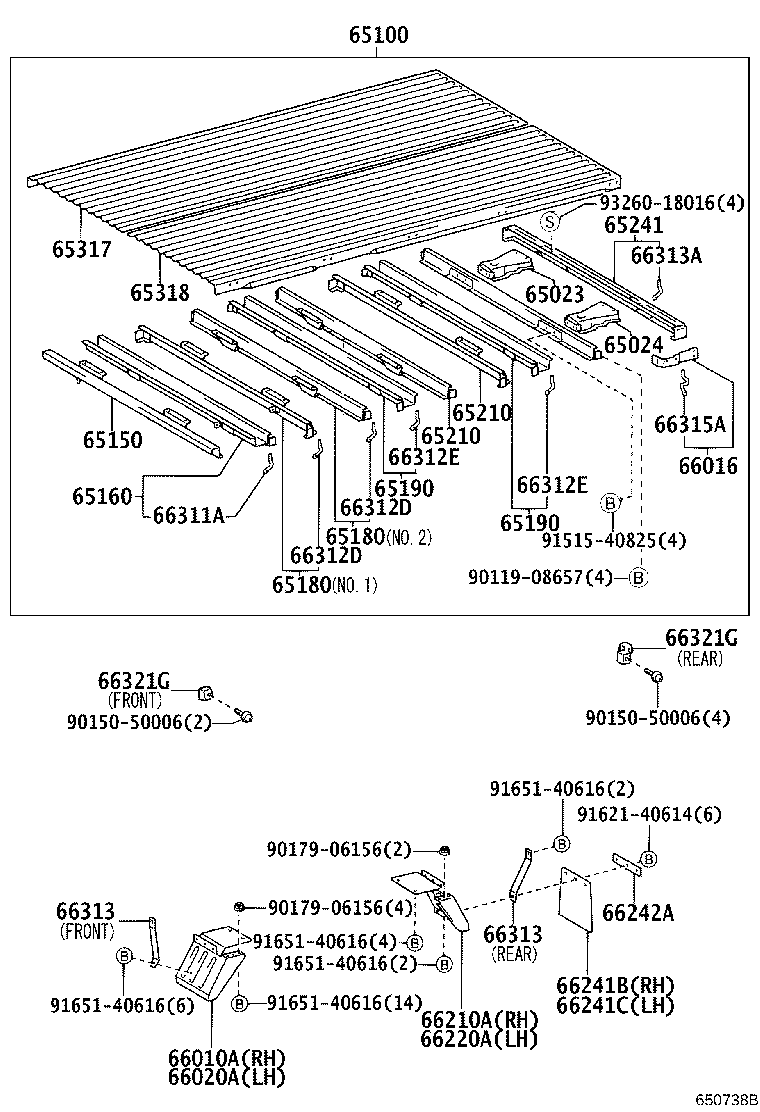

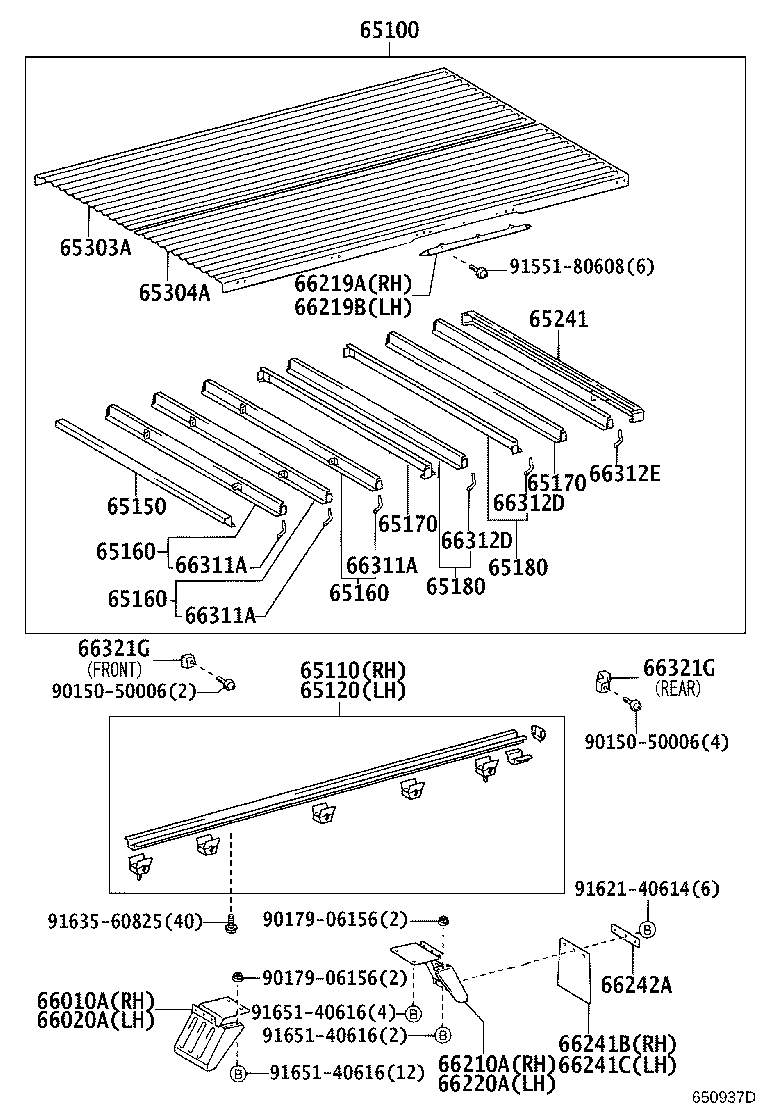

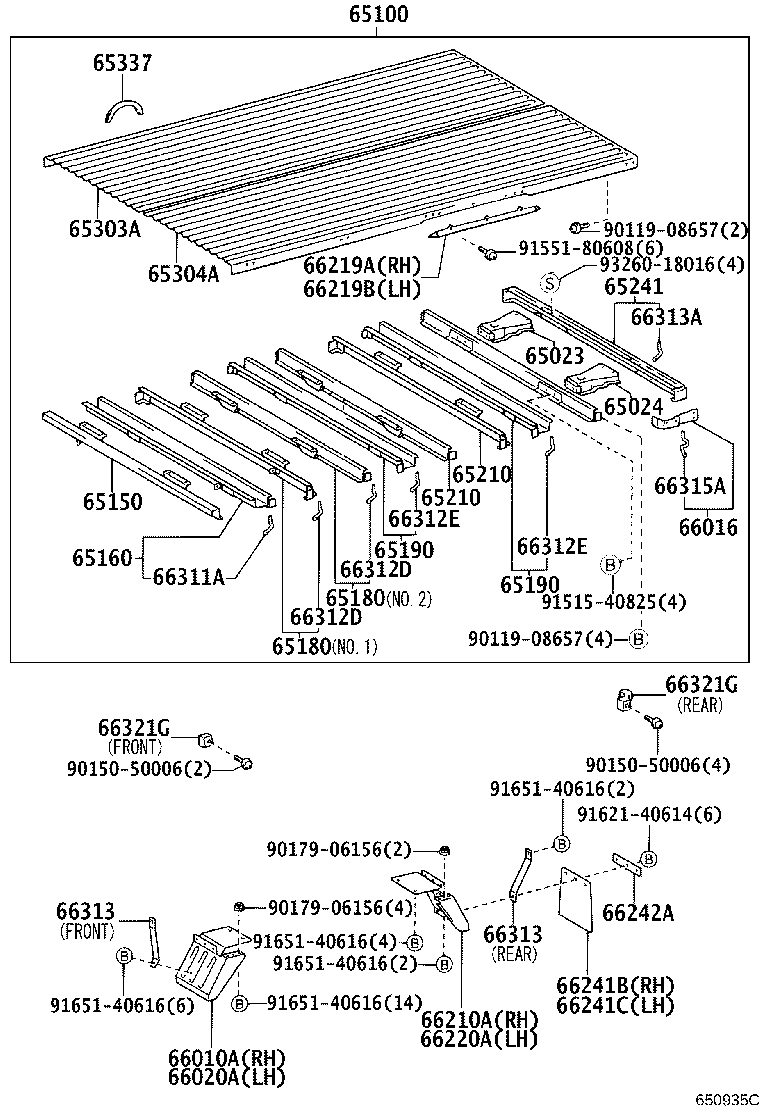

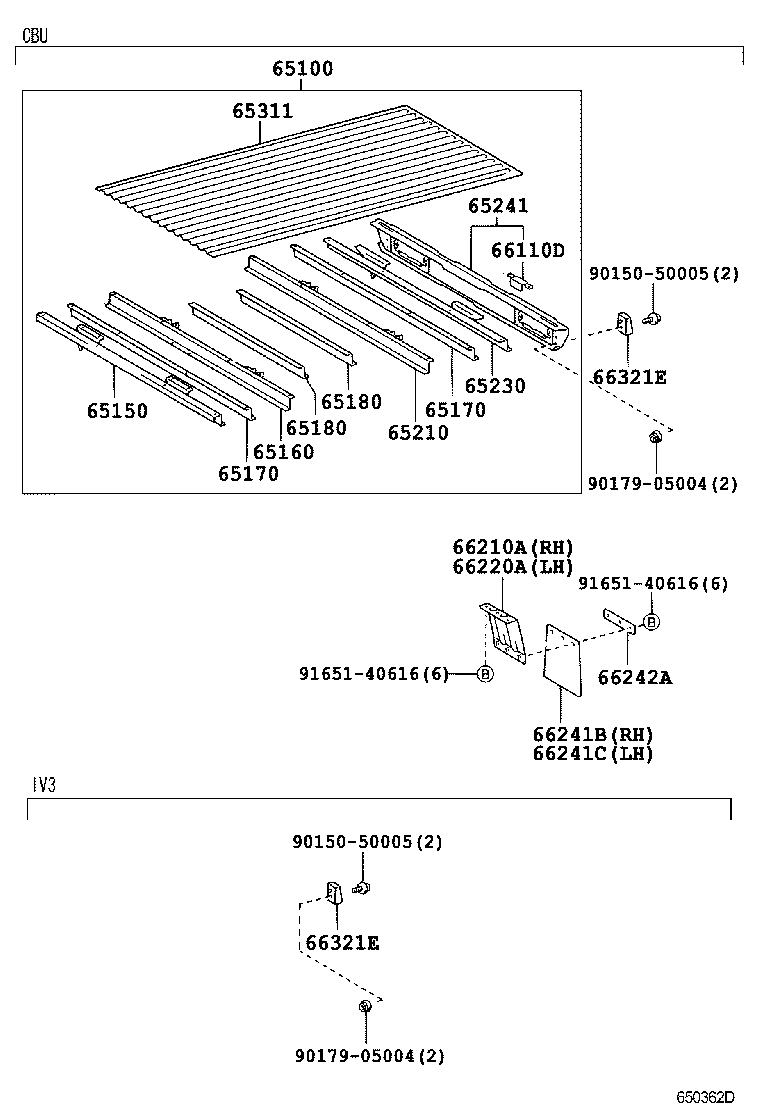

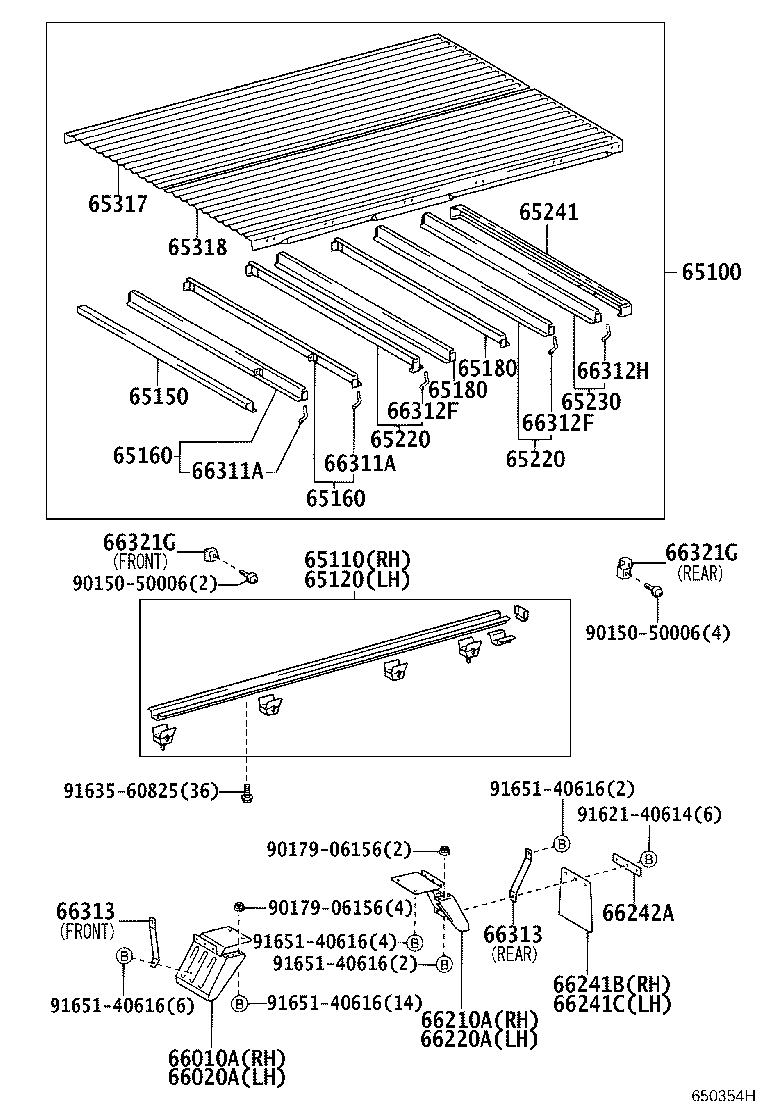

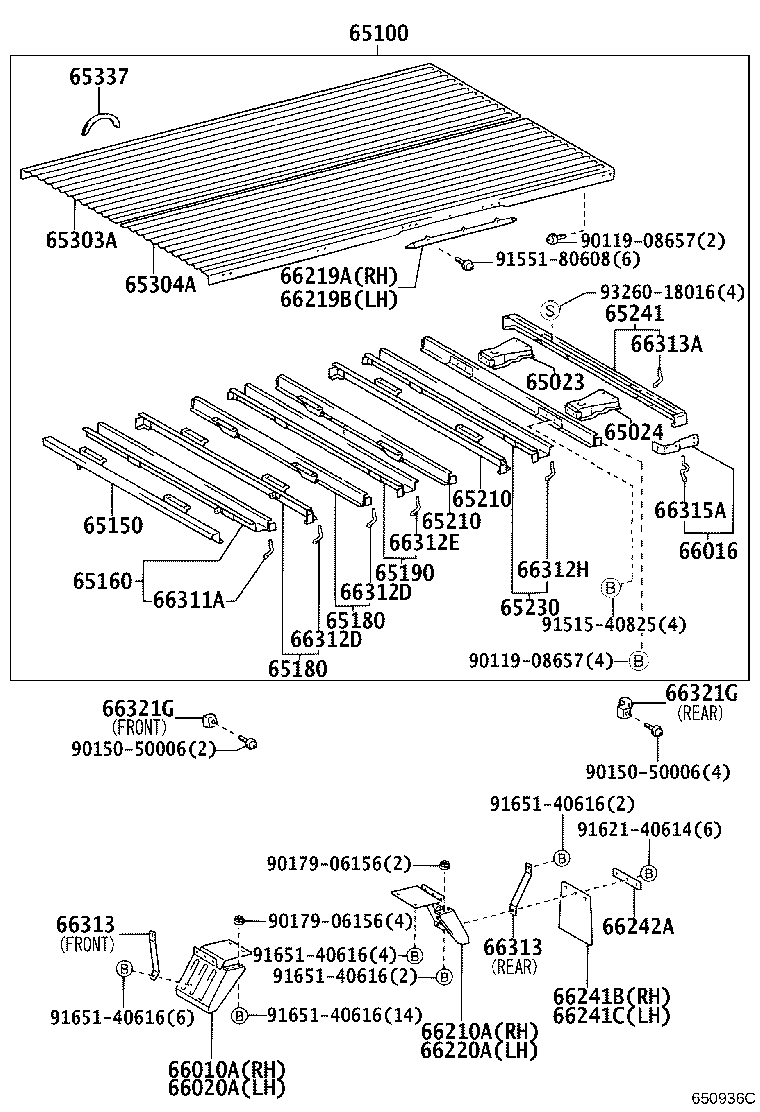

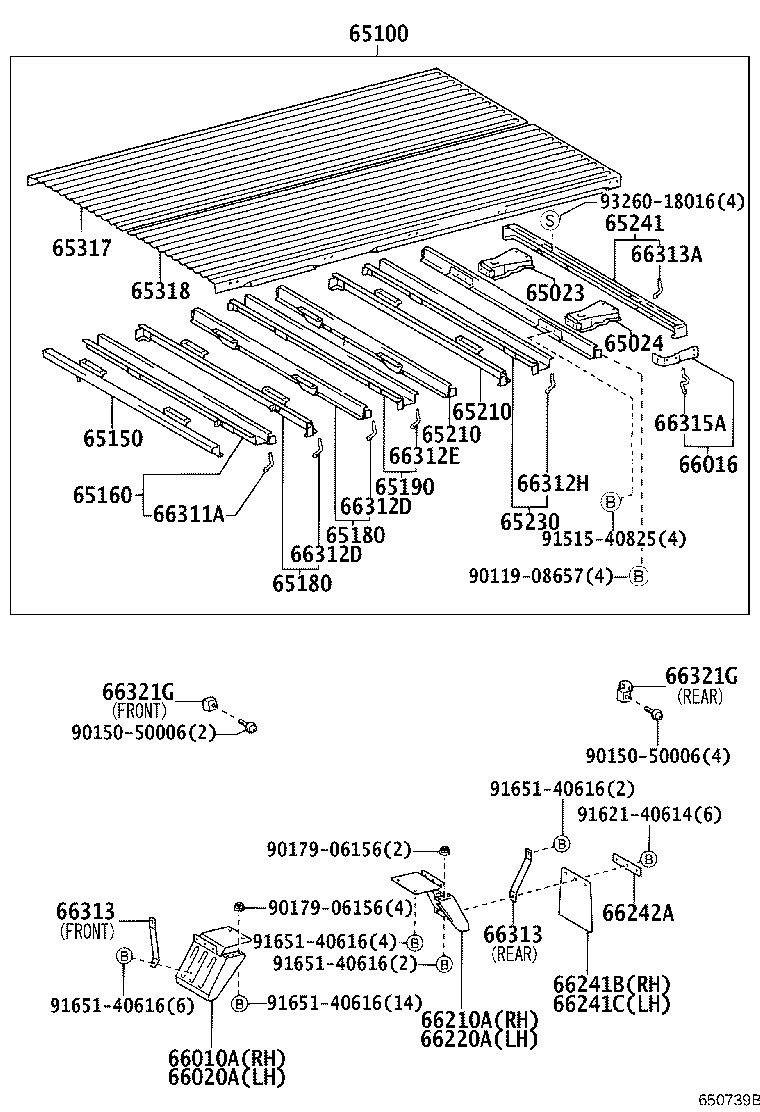

Figure 650353H 650353H 2001-07 → 2006-07 Figure 650354H 650354H 2001-07 → 2010-04 Figure 650355F 650355F 2001-07 → 2010-04 Figure 650362D 650362D 2001-08 → — Figure 650362D 650362D 2006-07 → — Figure 650738B 650738B 2006-09 → 2010-04 Figure 650739B 650739B 2006-09 → 2010-04 Figure 650935C 650935C 2010-04 → — Figure 650936C 650936C 2010-04 → — Figure 650937D 650937D 2010-04 → — Figure 650938D 650938D 2010-04 → —

Part groups

PNCDescription
65023 Bracket Sub-assy, Rear Cross Sill Mounting, RH
65024 Bracket Sub-assy, Rear Cross Sill Mounting, LH
65100 Floor Assy, Rear Body
65110 Sill Assy, Main, RH
65120 Sill Assy, Main, LH
65150 Sill Assy, Cross, NO.1
65160 Sill Assy, Cross, NO.2
65170 Sill Assy, Cross, NO.2
65180 Sill Assy, Cross, NO.4
65190 Sill Assy, Cross, NO.5
65210 Sill Assy, Cross, NO.6
65220 Sill Assy, Cross, NO.4
65230 Sill Assy, Cross, NO.8
65240C Sill Assy, Cross, NO.9
65241 Sill, Rear Cross
65303A Frame Sub-assy, Floor Side, RH
65304A Frame Sub-assy, Floor Side, LH
65311 Panel, Floor, Center
65317 Panel, Floor Side, RH
65318 Panel, Floor Side, LH
65337 Plate, Floor Side Frame, RH
66010A Fender Assy, Rear NO.2 RH
66016 Gusset Sub-assy, Gate Hinge, RH
66020A Fender Assy, Rear NO.2 LH
66110D Hinge Assy, Tail Gate
66210A Fender Assy, Rear NO.1 RH
66219A Extension, Rear Fender
66219B Extension, Rear Fender
66220A Fender Assy, Rear NO.1 LH
66241B Baffle, Rubber
66241C Buffle, Rubber
66242A Plate, Baffle Rubber
66311A Hook, Rope, NO.1
66312D Hook, Rope, NO.2
66312E Hook, Rope, NO.2
66312F Hook, Rope, NO.2
66312H Hook, Rope
66313 Support, Rear Fender
66313A Hook, Rope, NO.3
66315A Hook, Rope
66321E Bumper, Gate Rubber
66321G Bumper, Gate Rubber
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
