Toyota Dyna
2001-07 → 2021-11 · chassis KDY22#,23#,25#,26#,LY2## · catalogue 731270 · Europe
Discontinued model
Data version 2022-11

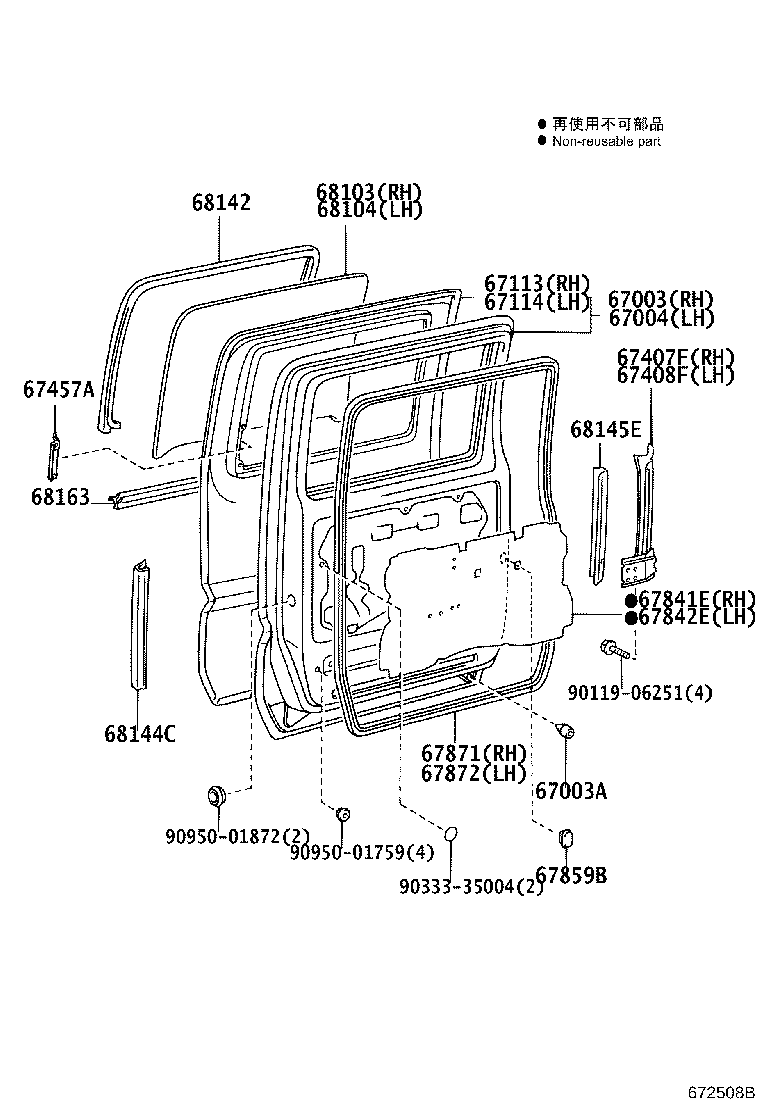

Rear Door Panel & Glass
23 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 67003 | Panel Sub-assy, Rear Door, RH |
| 67003A | Plug, Hole(FOR REAR DOOR PANEL) |
| 67004 | Panel Sub-assy, Rear Door, LH |
| 67113 | Panel, Rear Door, Outer RH |
| 67114 | Panel, Rear Door, Outer LH |
| 67407F | Frame Sub-assy, Rear Door Window, Rear Lower RH |
| 67408F | Frame Sub-assy, Rear Door Window, Rear Lower LH |
| 67457A | Bracket, Rear Door Rear Guide, Upper |
| 67603 | Board Sub-assy, Rear Door Trim, RH |
| 67603A | Retainer(FOR REAR DOOR TRIM BOARD) |
| 67604 | Board Sub-assy, Rear Door Trim, LH |
| 67841E | Cover, Rear Door Service Hole, RH |
| 67842E | Cover, Rear Door Service Hole, LH |
| 67859B | Cover, Rear Door Lower Hole |
| 67871 | Weatherstrip, Rear Door, RH |
| 67872 | Weatherstrip, Rear Door, LH |
| 68103 | Glass Sub-assy, Rear Door, RH |
| 68104 | Glass Sub-assy, Rear Door, LH |
| 68142 | Run, Rear Door Glass |
| 68144C | Run, Rear Door Glass, Lower Front |
| 68145E | Run, Rear Door Glass, Lower Rear |
| 68163 | Weatherstrip, Rear Door Glass, Outer |
| 68173D | Weatherstrip, Rear Door Glass, Channel |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
