Toyota Dyna

2001-07 → 2021-11 · chassis KDY22#,23#,25#,26#,LY2## · catalogue 731270 · Europe

Discontinued model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

81 part groups · 14 illustrations

Illustrations

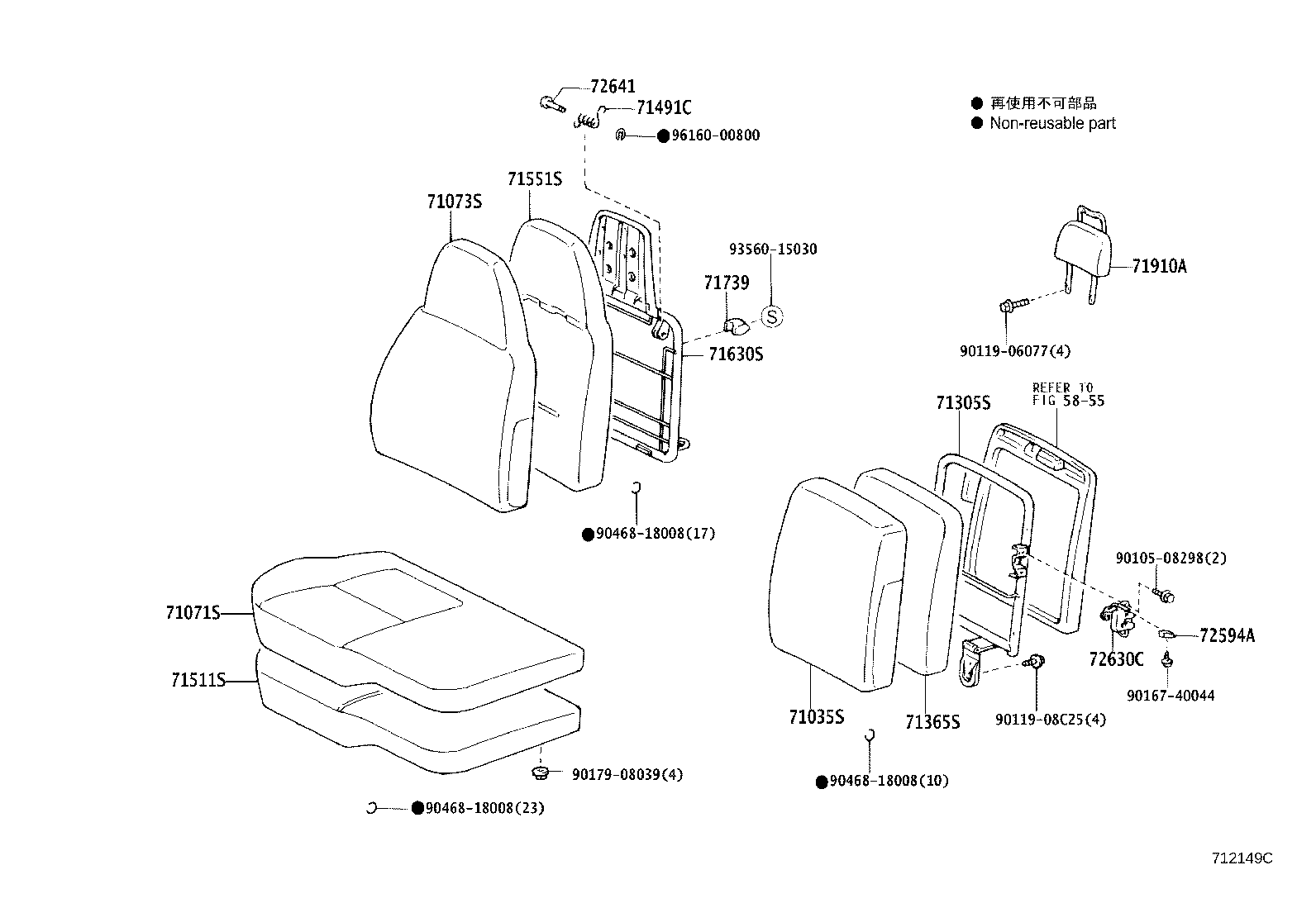

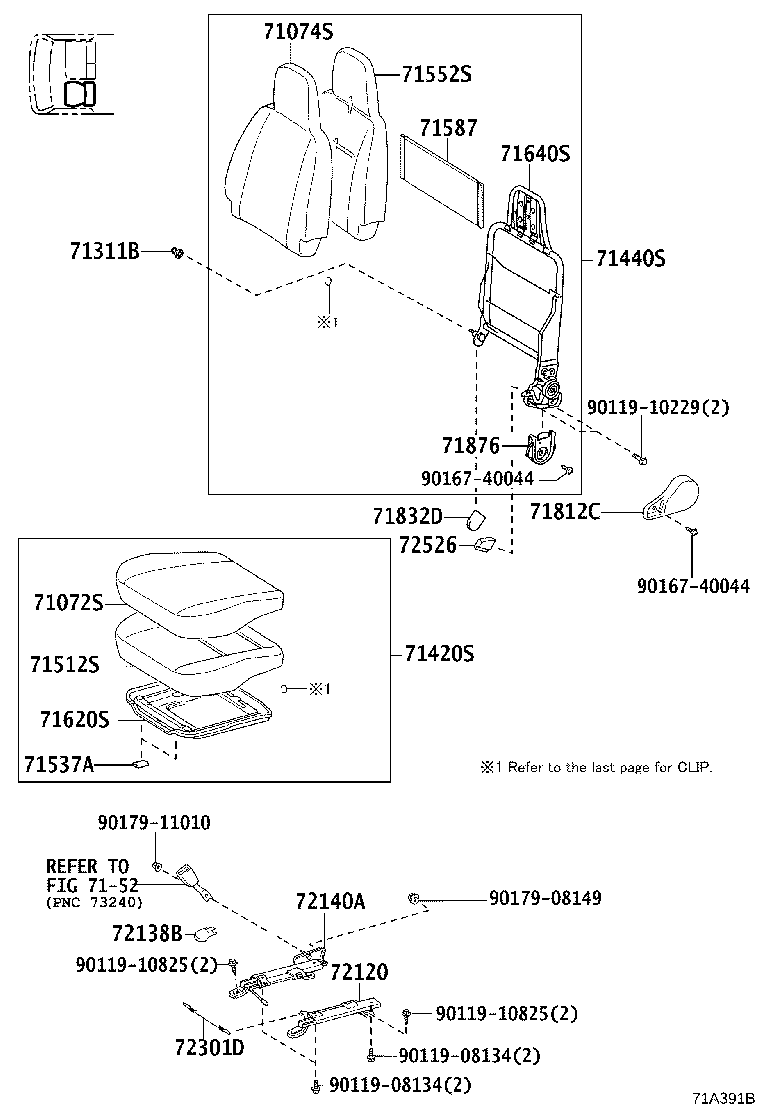

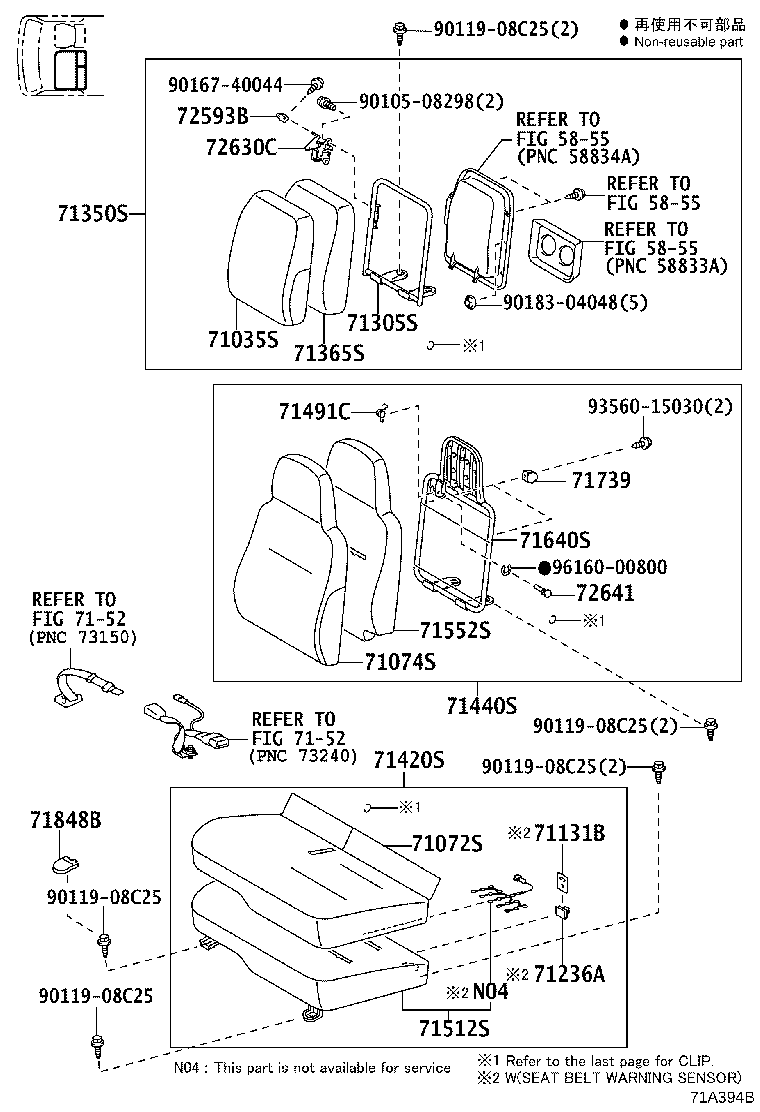

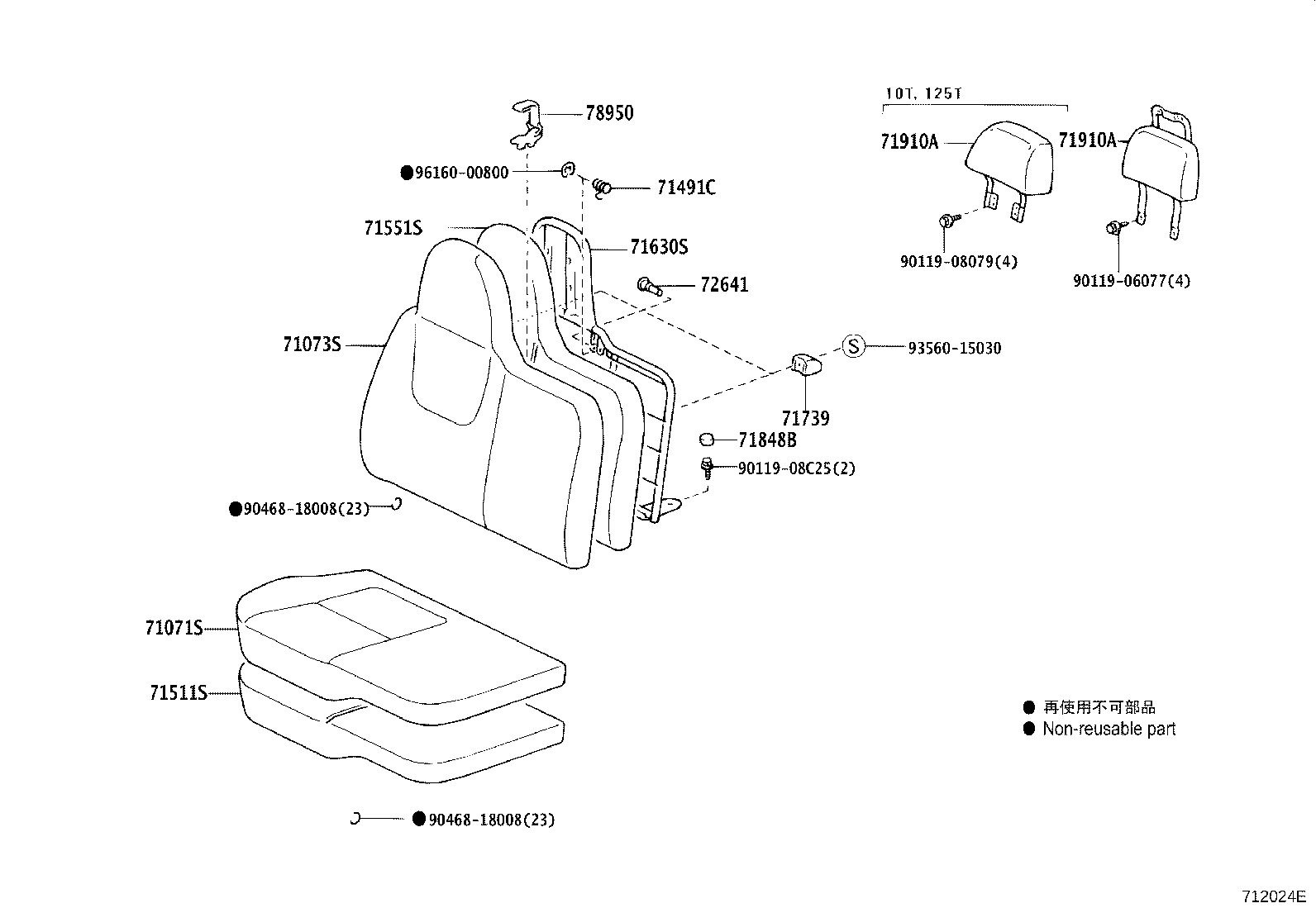

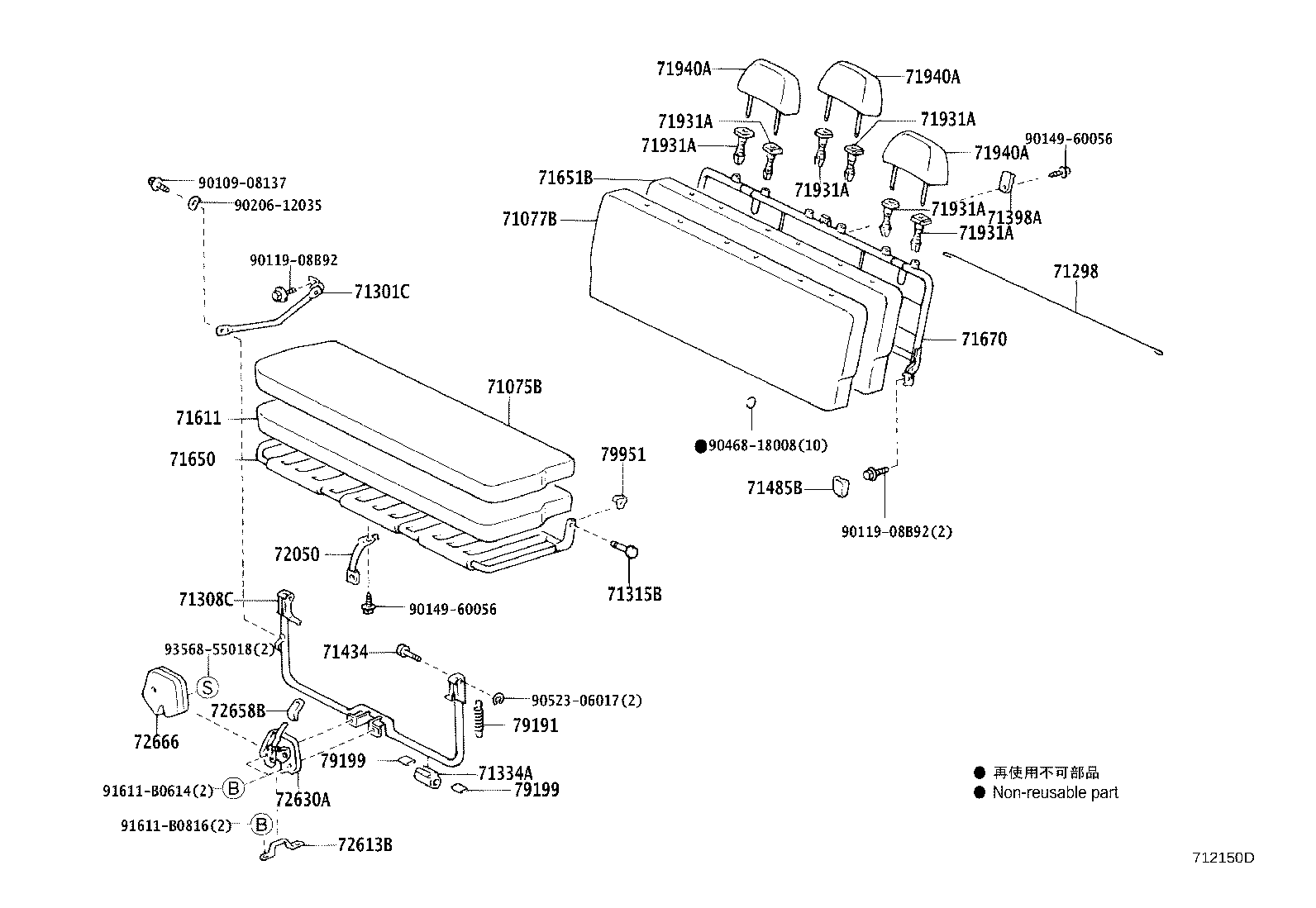

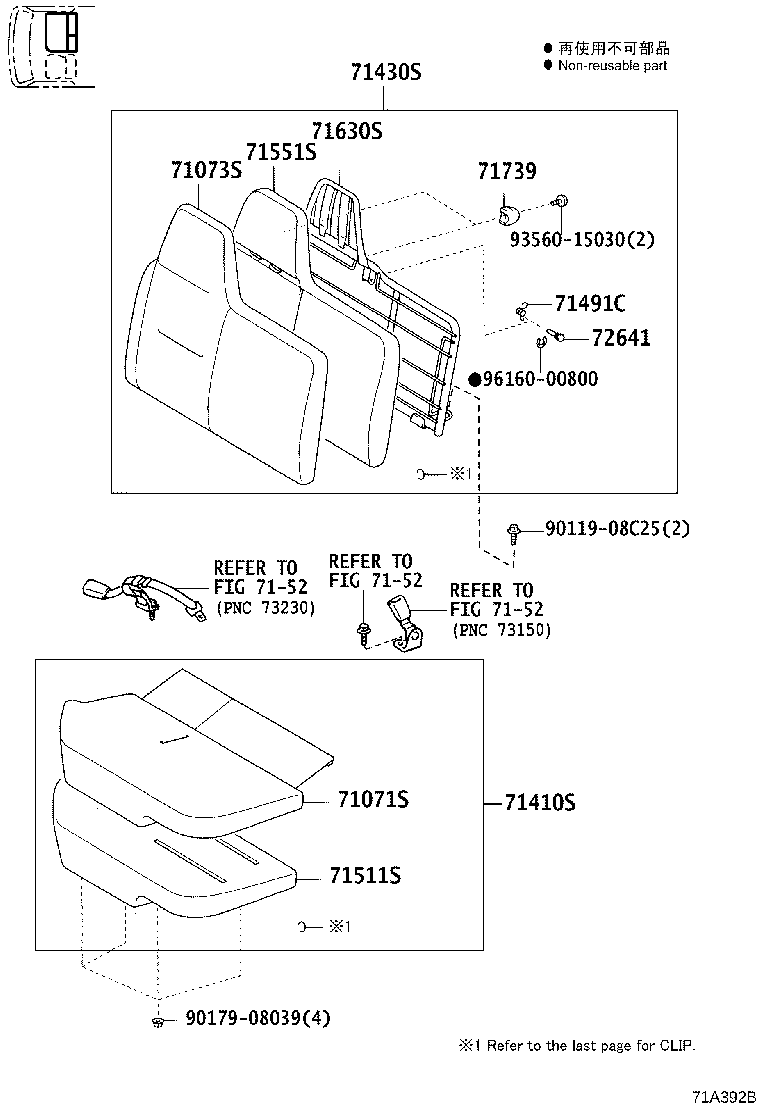

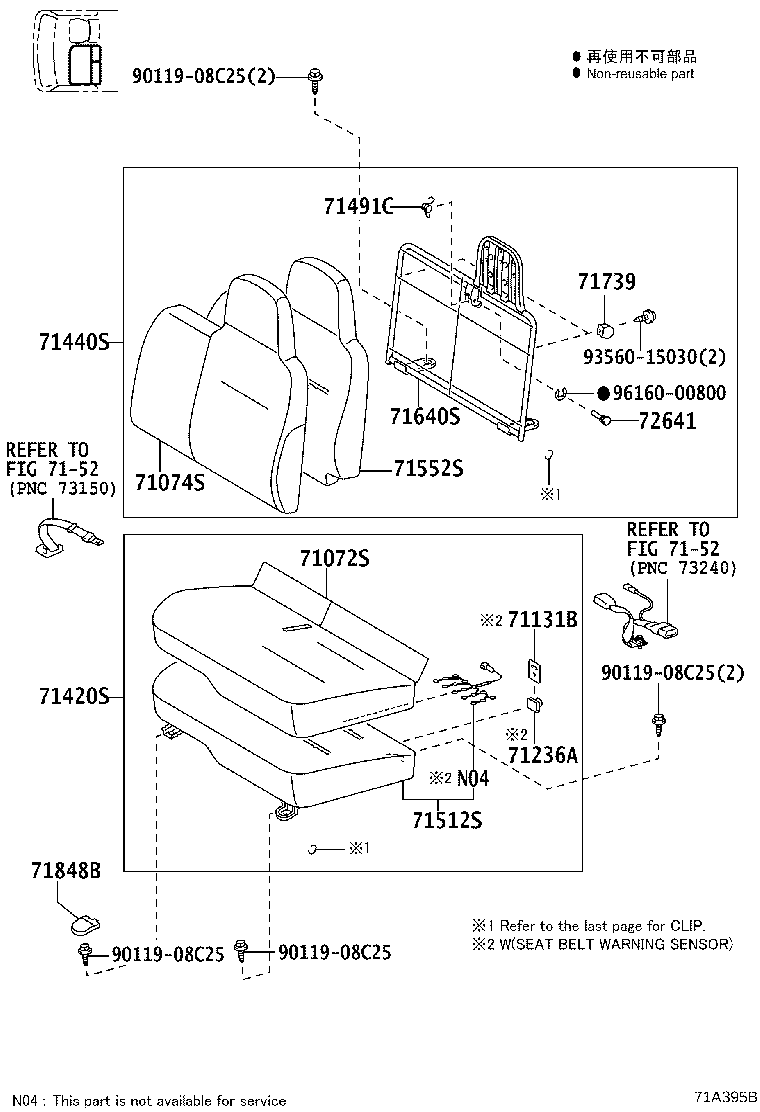

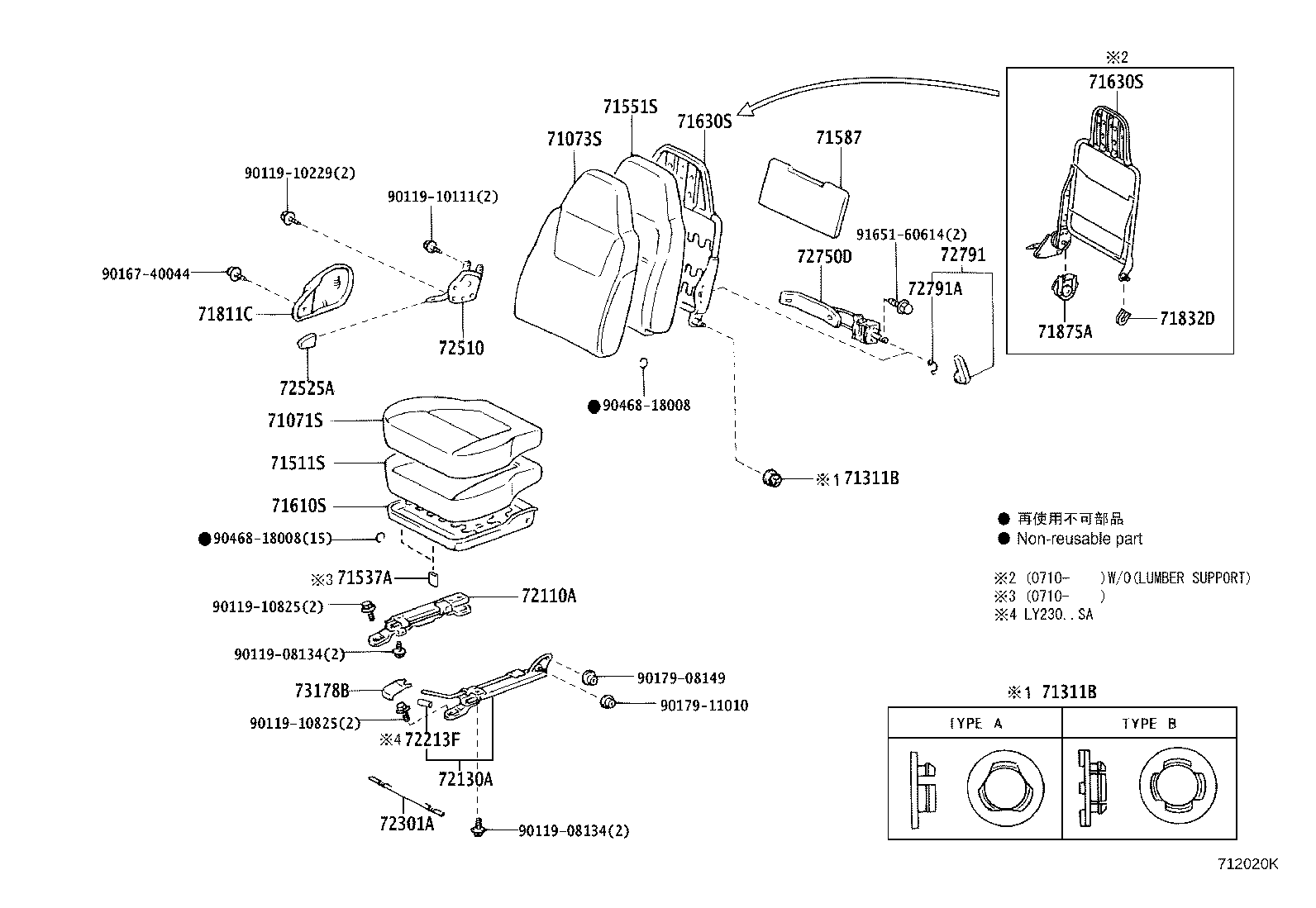

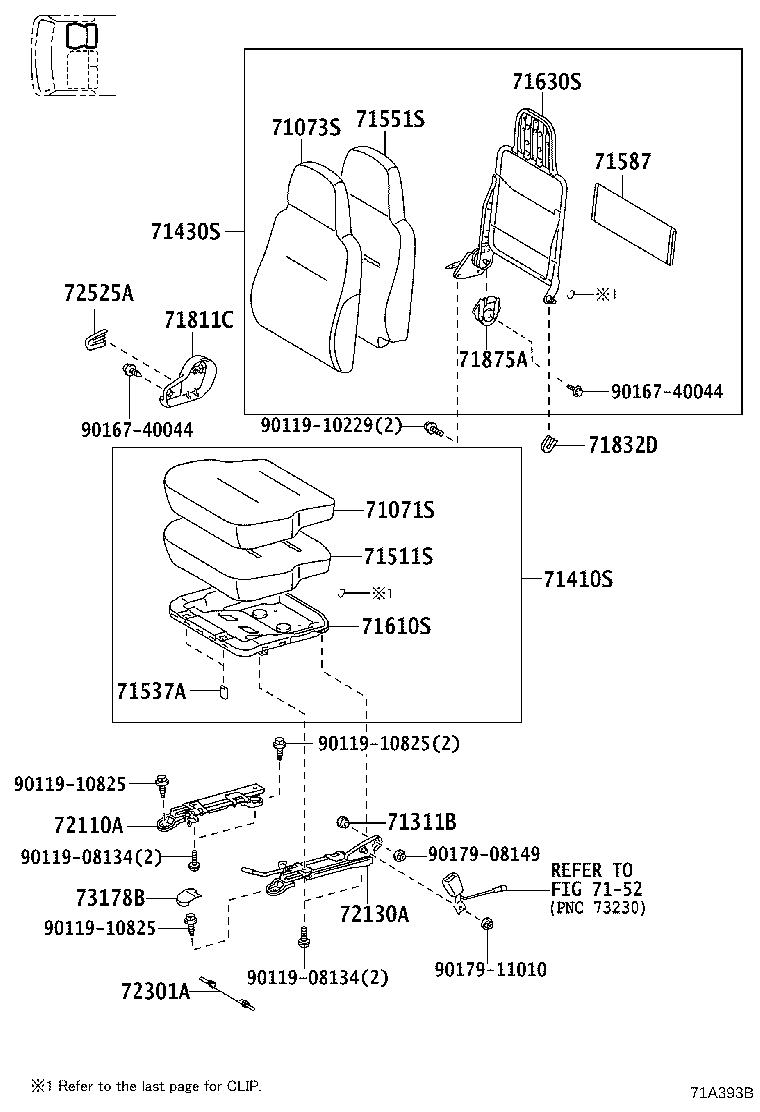

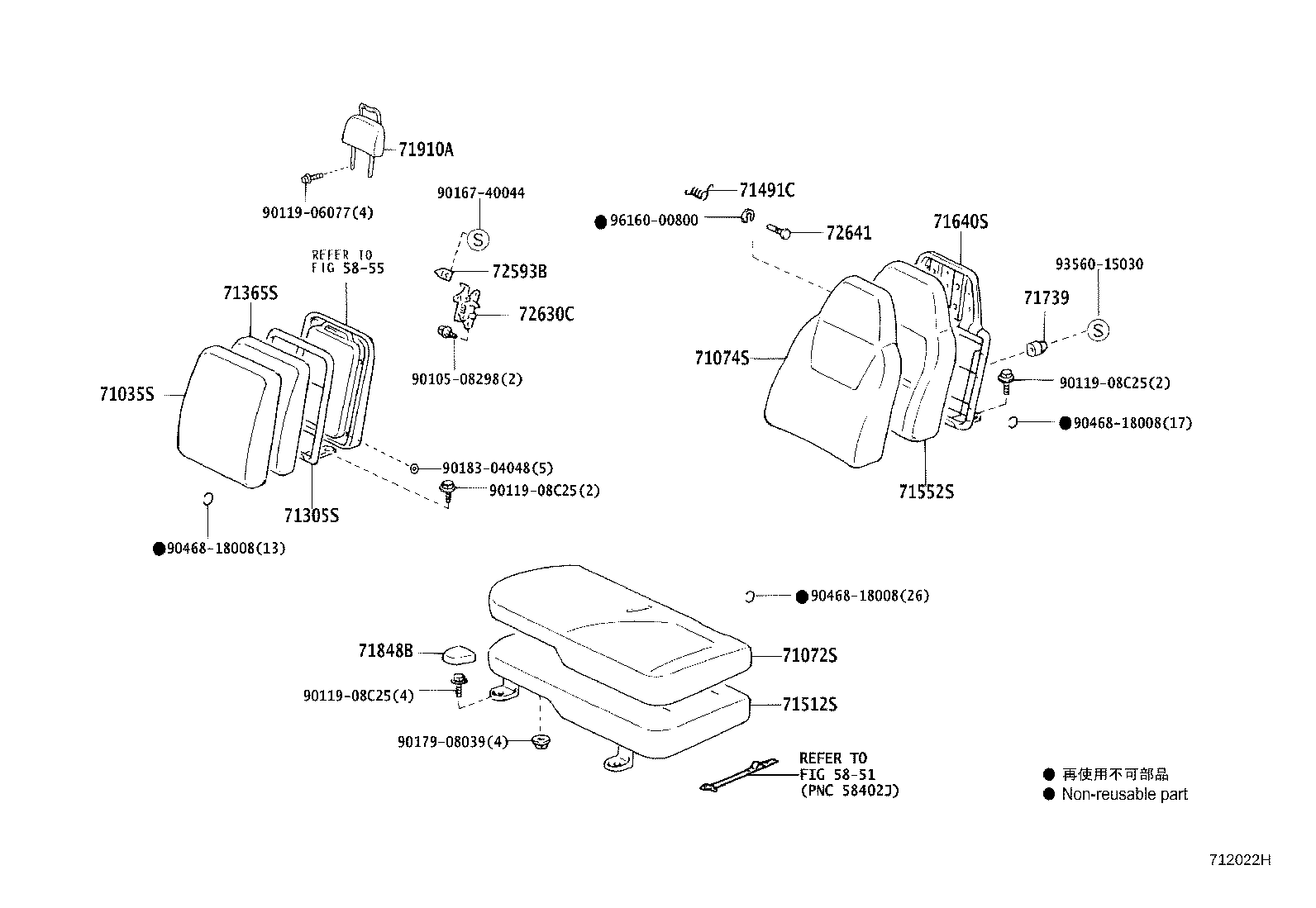

Figure 712021K 712021K 2001-07 → 2016-10 Figure 71A391B 71A391B 2016-10 → — Figure 712020K 712020K 2001-07 → 2016-10 Figure 71A393B 71A393B 2016-10 → — Figure 712024E 712024E 2001-07 → 2016-10 Figure 712149C 712149C 2001-08 → 2016-10 Figure 71A392B 71A392B 2016-10 → — Figure 712022H 712022H 2001-07 → 2016-10 Figure 71A394B 71A394B 2016-10 → — Figure 712023I 712023I 2001-07 → 2016-10 Figure 712023I 712023I 2016-10 → — Figure 71A395B 71A395B 2016-10 → — Figure 712150D 712150D 2001-08 → 2015-02 Figure 718166C 718166C 2016-10 → —

Part groups

PNCDescription
71035S Cover, Front Seatback, Center
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077B Cover, Rear Seatback (FOR BENCH TYPE)
71131B Plate, Front Seat Cushion, NO.1
71236A Clamp, Rear Seat Cushion Spring
71298 Wire, Rear Seatback, Lower
71301C Link Sub-assy, Rear Seat Cushion
71305S Frame Sub-assy, Center Seatback
71308C Leg Sub-assy, Rear Seat, Front
71311B Bush (FOR FRONT SEAT HINGE PIN)
71315B Pin, Rear Seat Hinge
71334A Stopper, Rear Seat Leg
71350S Back Assy, Front Seat, Center
71365S Pad, Center Seatback
71398A Holder, Rear Seatback
71410S Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430S Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71434 Pin, Rear Seat Cushion Leg, Rear
71440S Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71485B Cover, Rear Seat Hinge
71491C Spring, Rear Seat Set
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537A Protector, Front Seat Cushion
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71587 Protector, Front Seatback Edge
71610S Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71611 Pad, Rear Seat Cushion
71620S Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71630S Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640S Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71650 Spring Assy, Rear Seat Cushion
71651B Pad, Rear Seatback(FOR BENCH TYPE)
71670 Spring Assy, Rear Seatback(FOR BENCH SEAT)
71739 Cushion, Seat Support
71811C Cover, Reclining Adjuster, RH
71812C Cover, Reclining Adjuster, LH
71832D Cover, Front Seat Hinge, LH
71848B Cap, Seat Adjuster Cover, RH
71875A Cover, Reclining Adjuster Inside, RH
71876 Cover, Reclining Adjuster Inside, LH
71910A Headrest Assy, Front Seat
71931A Support, Rear Seat Headrest
71940A Headrest Assy, Rear Seat
72050 Belt Assy, Rear Seat Hook
72110A Track Assy, Front Seat, Outer RH
72120 Track Assy, Front Seat, Outer LH
72130A Track Assy, Front Seat, Inner RH
72138B Cover, Seat Track, LH
72140A Track Assy, Front Seat,Inner LH
72213C Knob, Seat Track Adjusting Handle, LH
72213F Knob, Seat Track Adjusting Handle
72301A Wire Sub-assy, Seat Track Equalizing, RH
72301D Wire Sub-assy, Seat Track Equalizing, LH
72510 Adjuster Assy, Reclining Seatback, RH
72520 Adjuster Assy, Reclining Seatback, LH
72525A Handle, Reclining Adjuster Release, RH
72526 Handle, Reclining Adjuster Release, LH
72593B Knob, Reclining Remote Control Lever, RH
72594A Knob, Reclining Remote Control Lever, LH
72613B Striker, Rear Seat Lock
72630A Lock Assy, Rear NO.1 Seat
72630C Lock Assy, Rear Seatback, RH
72641 Pin, Rear Seatback Lock
72658B Knob, Rear Seat Lock Handle
72666 Cover, Rear Seatback Lock, LH
72750D Adjuster Assy, Lumbar Support, RH
72760D Adjuster Assy, Lumbar Support, LH
72791 Lever, Lumbar Support
72791A Ring, Shaft Snap(FOR LUMBER SUPPORT LEVER)
73178B Cap, Seat Belt Anchor Cover
78950 Band Assy, Fold Seat Stopper, NO.1
79191 Spring, NO.1 Seat Cushion, NO.1
79199 Holder, NO.1 Seat Leg Stopper
79951 Cover, NO.1 Seat Cushion
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
