Toyota Dyna

2001-07 → 2021-11 · chassis KDY22#,23#,25#,26#,LY2## · catalogue 731270 · Europe

Discontinued model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

16 part groups · 5 illustrations

Illustrations

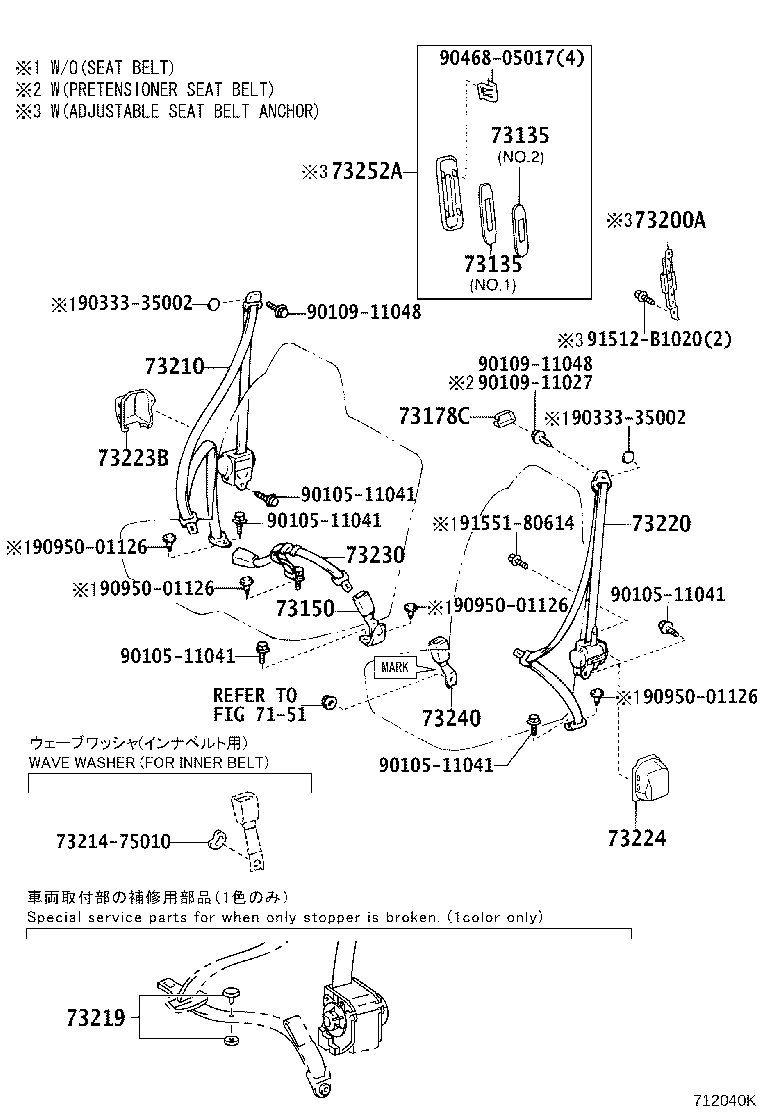

Figure 712151J 712151J 2001-07 → — Figure 712040K 712040K 2001-07 → — Figure 712277E 712277E 2001-07 → — Figure 712041E 712041E 2001-07 → — Figure 712152D 712152D 2001-08 → 2015-02

Part groups

PNCDescription
73135 Cover, Shoulder Belt Anchorage Plate
73150 Belt Assy, Front Seat Lap Type, Center
73178C Cap, Seat Belt Anchor Cover
73200A Adjuster Assy, Front Shoulder Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73223B Cover, Front Seat Belt Retractor, RH
73224 Cover, Front Seat Belt Retractor, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73252A Cover, Shoulder Belt Anchor Adjust
73360 Belt Assy, Rear Seat 3 Point Type, Outer RH
73370 Belt Assy, Rear Seat 3 Point Type, Outer LH
73380 Belt Assy, Rear Seat 3 Point Type, Inner, RH
73390 Belt Assy, Rear Seat 3 Point Type, Inner, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
