Toyota Dyna

2001-07 → 2021-11 · chassis KDY22#,23#,25#,26#,LY2## · catalogue 731270 · Europe

Discontinued model Data version 2022-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery Carrier

8 part groups · 4 illustrations

Illustrations

Figure 742463D

742463D 2001-07 → —

Figure 740907H

740907H 2001-07 → —

Figure 740967H

740967H 2001-08 → —

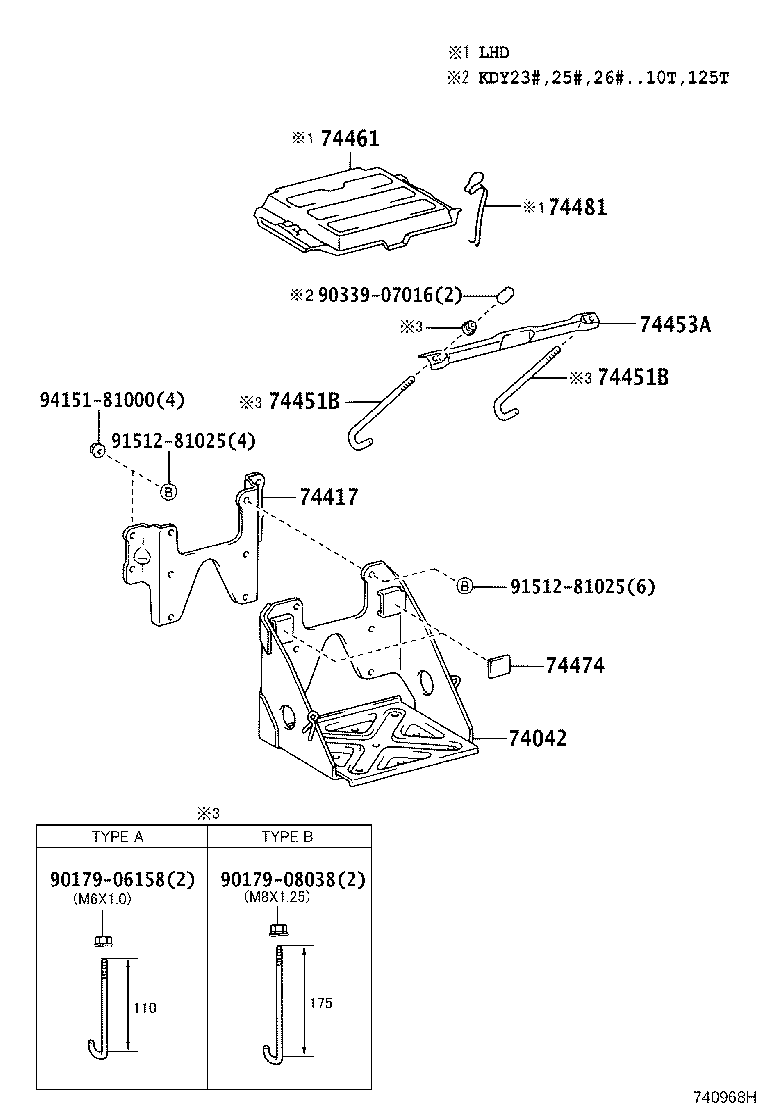

Figure 740968H

740968H 2001-08 → —

Part groups

PNC	Description
74042	Bracket Sub-assy, Battery
74417	Bracket, Battery Carrier
74421	Hanger, Battery
74451B	Bolt, Battery Clamp
74453A	Bar, Battery Set Plate
74461	Cover, Battery
74474	Pad, Battery
74481	Clamp, Battery Hold Down

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
