Toyota Dyna

2001-07 → 2021-11 · chassis KDY22#,23#,25#,26#,LY2## · catalogue 731270 · Europe

Discontinued model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

24 part groups · 8 illustrations

Illustrations

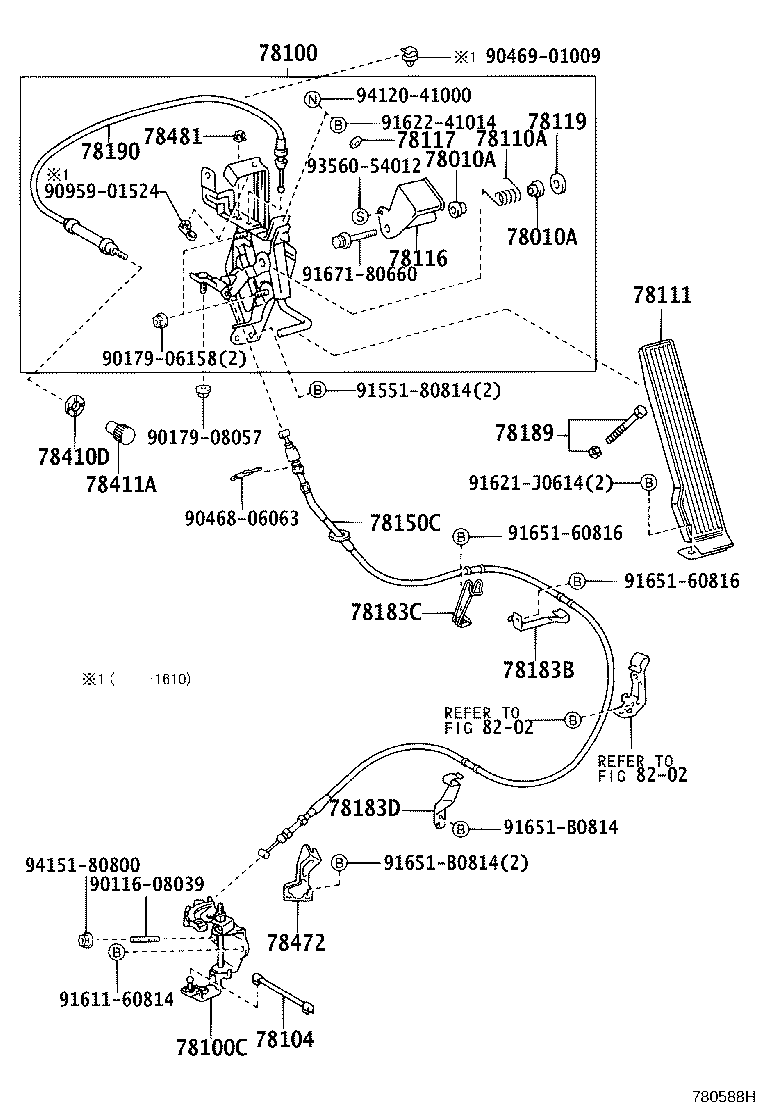

Figure 780587H 780587H 2001-07 → — Figure 780588H 780588H 2001-07 → — Figure 781226A 781226A 2001-07 → 2009-07 Figure 781226A 781226A 2006-09 → 2013-10 Figure 780606H 780606H 2001-08 → 2009-07 Figure 781252C 781252C 2009-07 → — Figure 781253B 781253B 2009-07 → — Figure 781253B 781253B 2013-10 → —

Part groups

PNCDescription
78010A Bush (FOR ACCELERATOR LINK)
78100 Link Assy, Accelerator
78100C Link Assy, Accelerator, NO.2
78104 Rod Sub-assy, Accelerator Connecting, NO.2
78110A Spring (FOR ACCELERATOR PEDAL ROD)
78111 Pedal, Accelerator
78116 Cover, Accelerator Pedal Rod
78117 Cushion (FOR ACCELERATOR ROD)
78118B Stopper, Accelerator Pedal
78119 Stopper, Accelerator Pedal Rod
78120G Rod Assy, Accelerator Pedal
78150C Wire Assy, Accelerator Flexible
78183B Clamp, Accelerator Control Cable
78183C Clamp, Accelerator Control Cable
78183D Clamp, Accelerator Control Cable
78183E Clamp, Accelerator Control Cable
78183F Clamp, Accelerator Control Cable
78189 Bolt, Accelerator Pedal Stopper
78190 Cable Assy, Accel Control W/Throttle
78291A Bracket, Accelerator Link
78410D Nut, Throttle
78411A Knob, Throttle Control Cable
78472 Support, Throttle Control Cable
78481 Clamp, Throttle Wire
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
