Toyota Dyna

2001-07 → 2021-11 · chassis KDY22#,23#,25#,26#,LY2## · catalogue 731270 · Europe

Discontinued model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

18 part groups · 6 illustrations

Illustrations

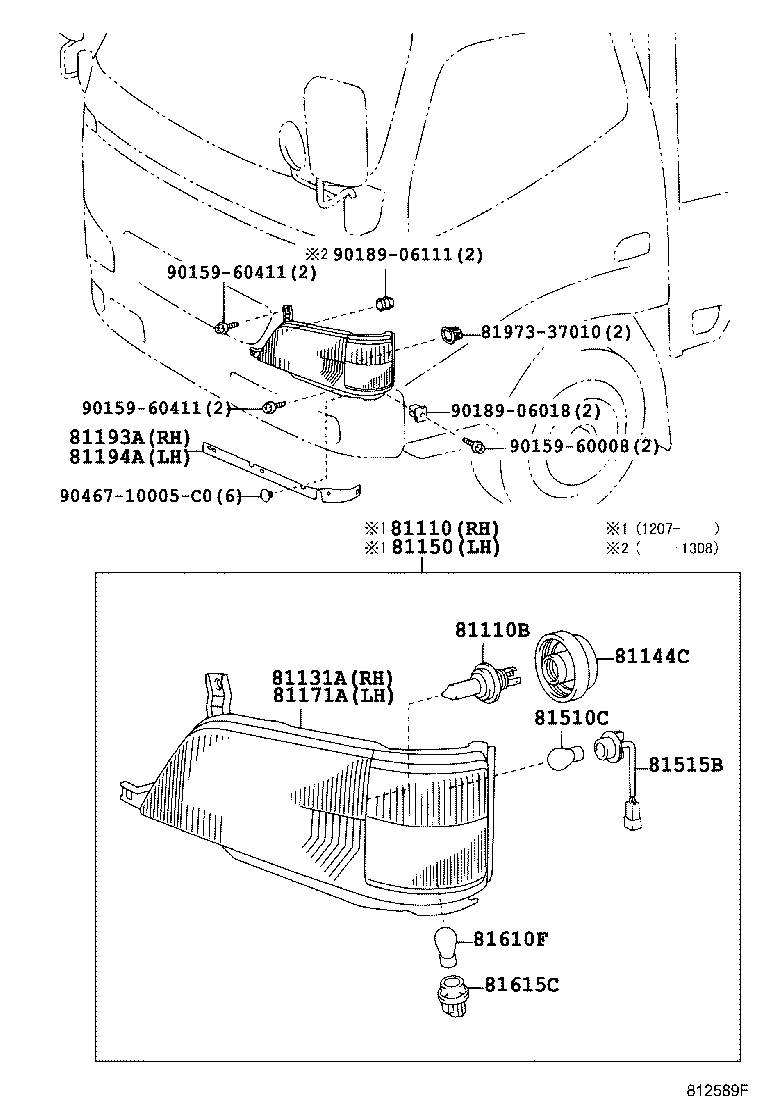

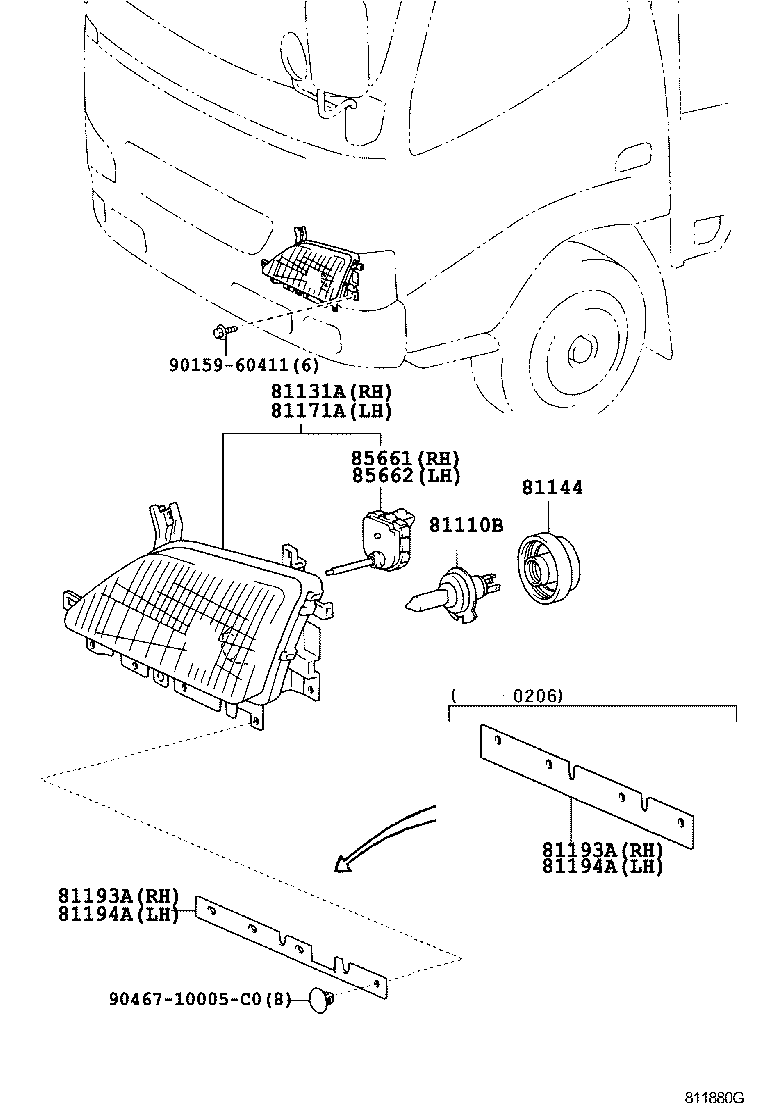

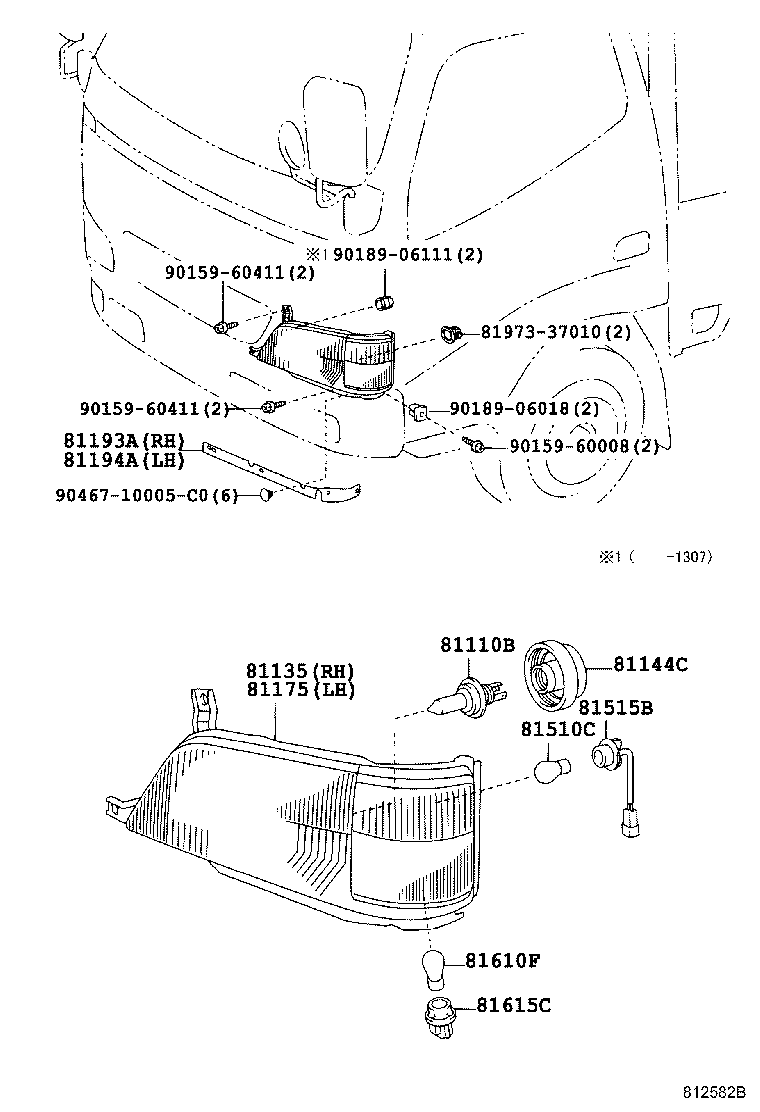

Figure 812072F 812072F 2001-07 → 2003-08 Figure 812072F 812072F 2003-08 → 2016-10 Figure 811880G 811880G 2001-07 → 2016-10 Figure 812582B 812582B 2003-08 → 2016-10 Figure 812589F 812589F 2003-08 → 2016-10 Figure 817712A 817712A 2016-10 → —

Part groups

PNCDescription
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81131A Unit, Headlamp, RH
81135 Unit Assy, Headlamp, RH
81144 Cover, Headlamp, NO.1
81144C Cover, Headlamp Socket
81150 Headlamp Assy, LH
81171A Unit, Headlamp, LH
81175 Unit Assy, Headlamp, LH
81193A Protector, Headlamp, RH
81194A Protector, Headlamp, LH
81510C Bulb (FOR FRONT TURN SIGNAL LAMP)
81515B Socket, Front Turn Signal Lamp
81610F Bulb(FOR CLEARANCE LAMP)
81615C Socket & Wire, Clearance Lamp
81615D Socket, Clearance Lamp
85661 Motor, Headlamp Leveling, RH
85662 Motor, Headlamp Leveling, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
