Toyota Dyna

2001-07 → 2021-11 · chassis KDY22#,23#,25#,26#,LY2## · catalogue 731270 · Europe

Discontinued model Data version 2022-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

37 part groups · 13 illustrations

Illustrations

Figure 822585D

822585D 2001-07 → —

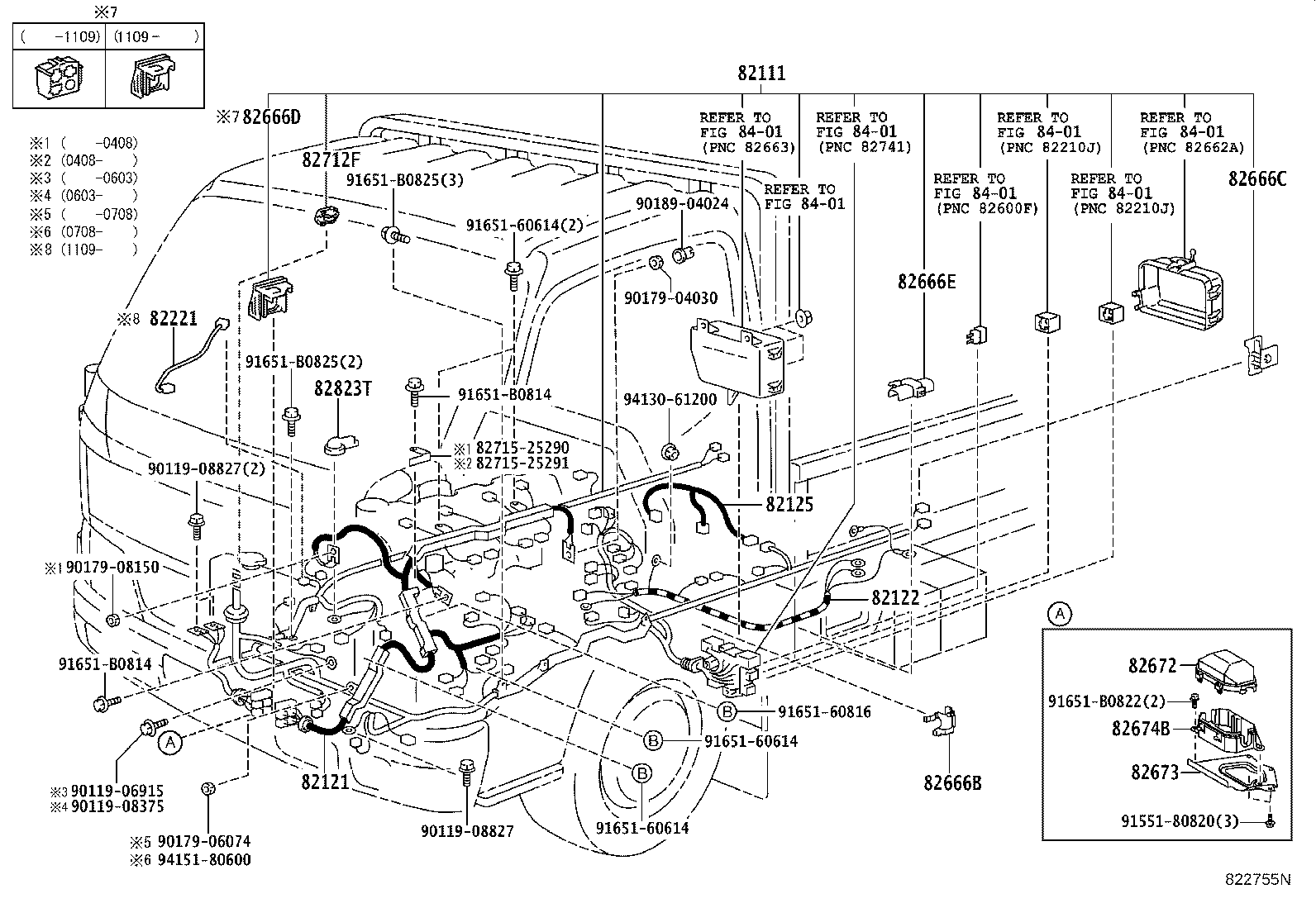

Figure 822755N

822755N 2001-08 → —

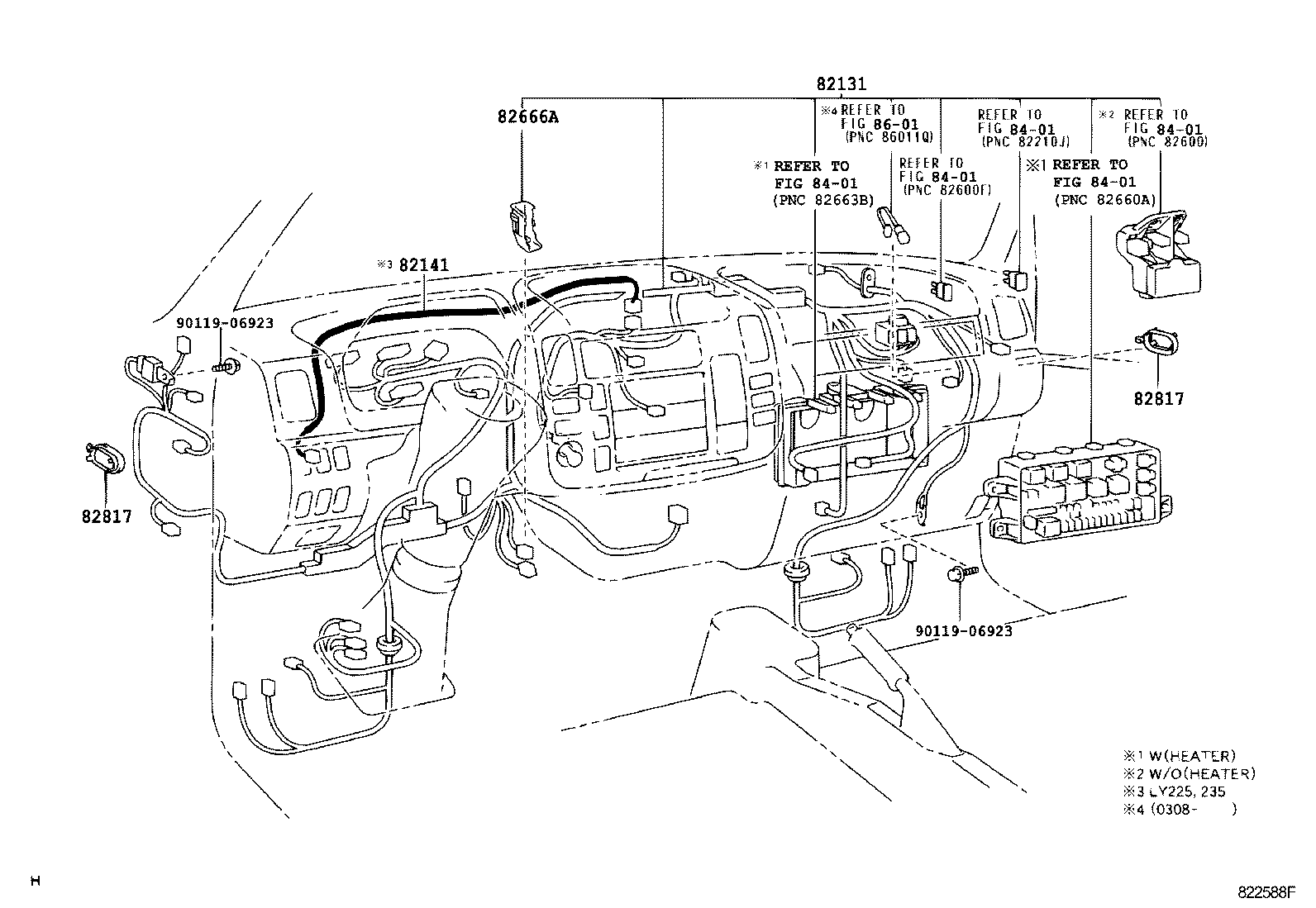

Figure 822588F

822588F 2001-07 → 2016-10

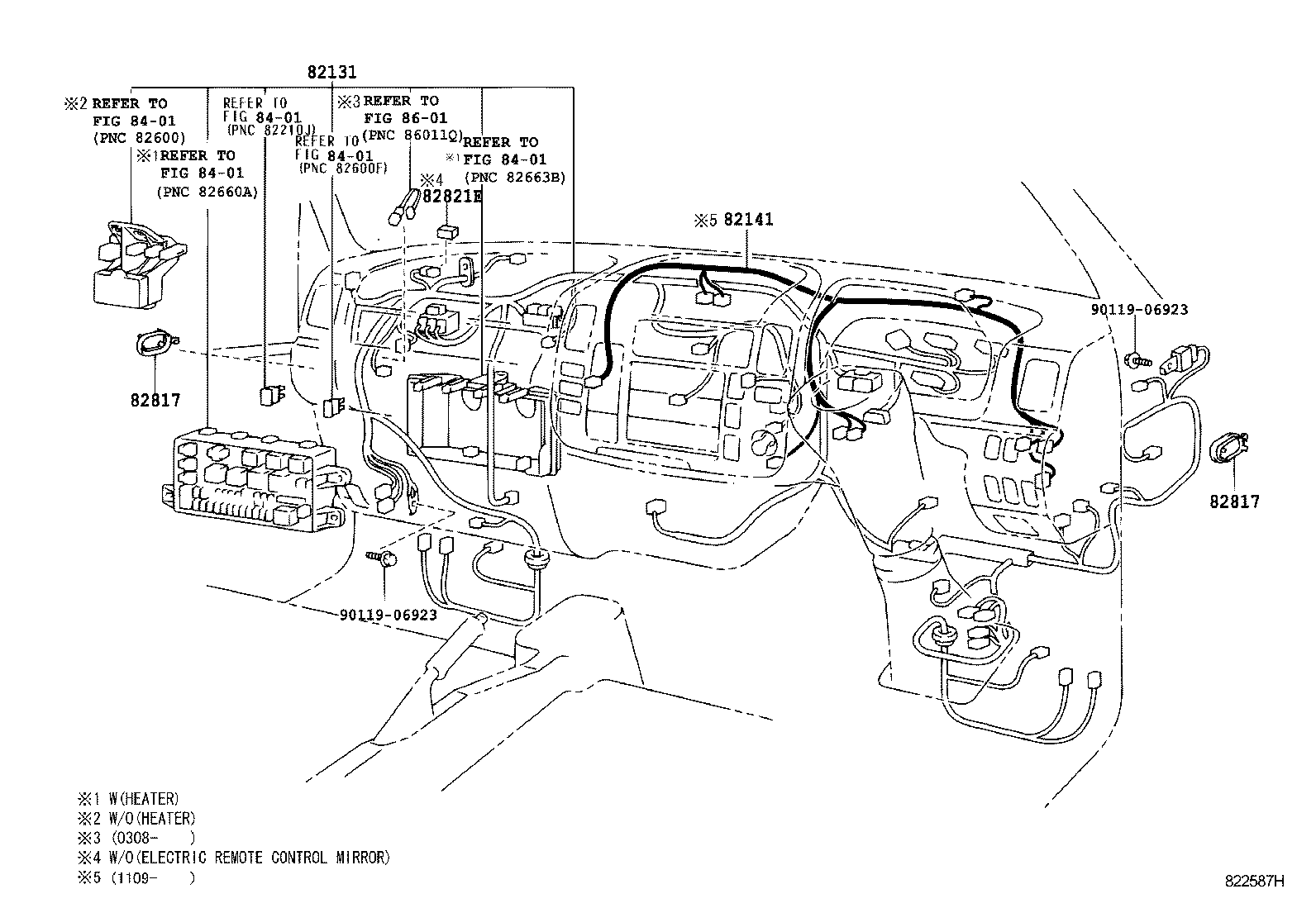

Figure 822587H

822587H 2001-07 → 2016-10

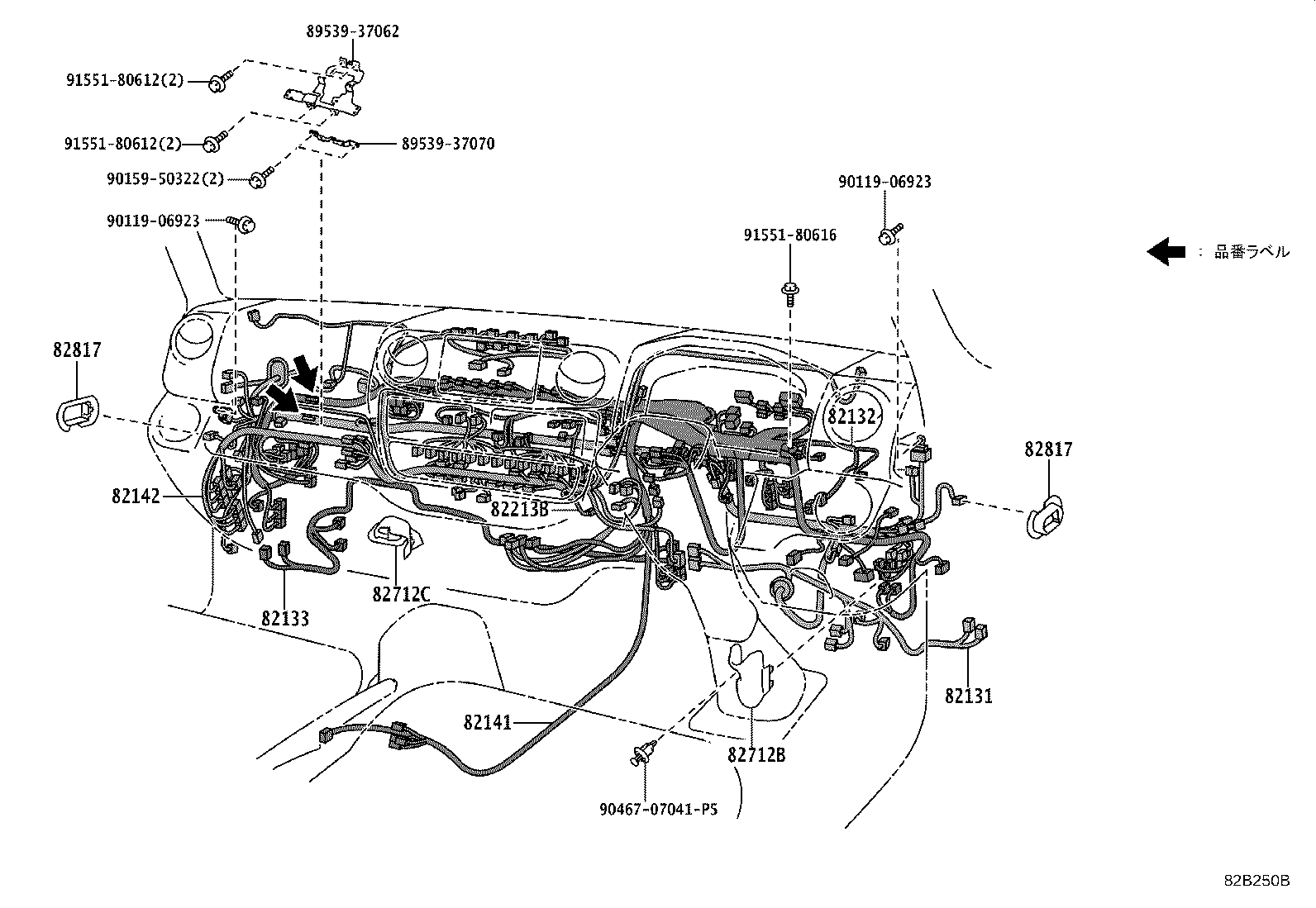

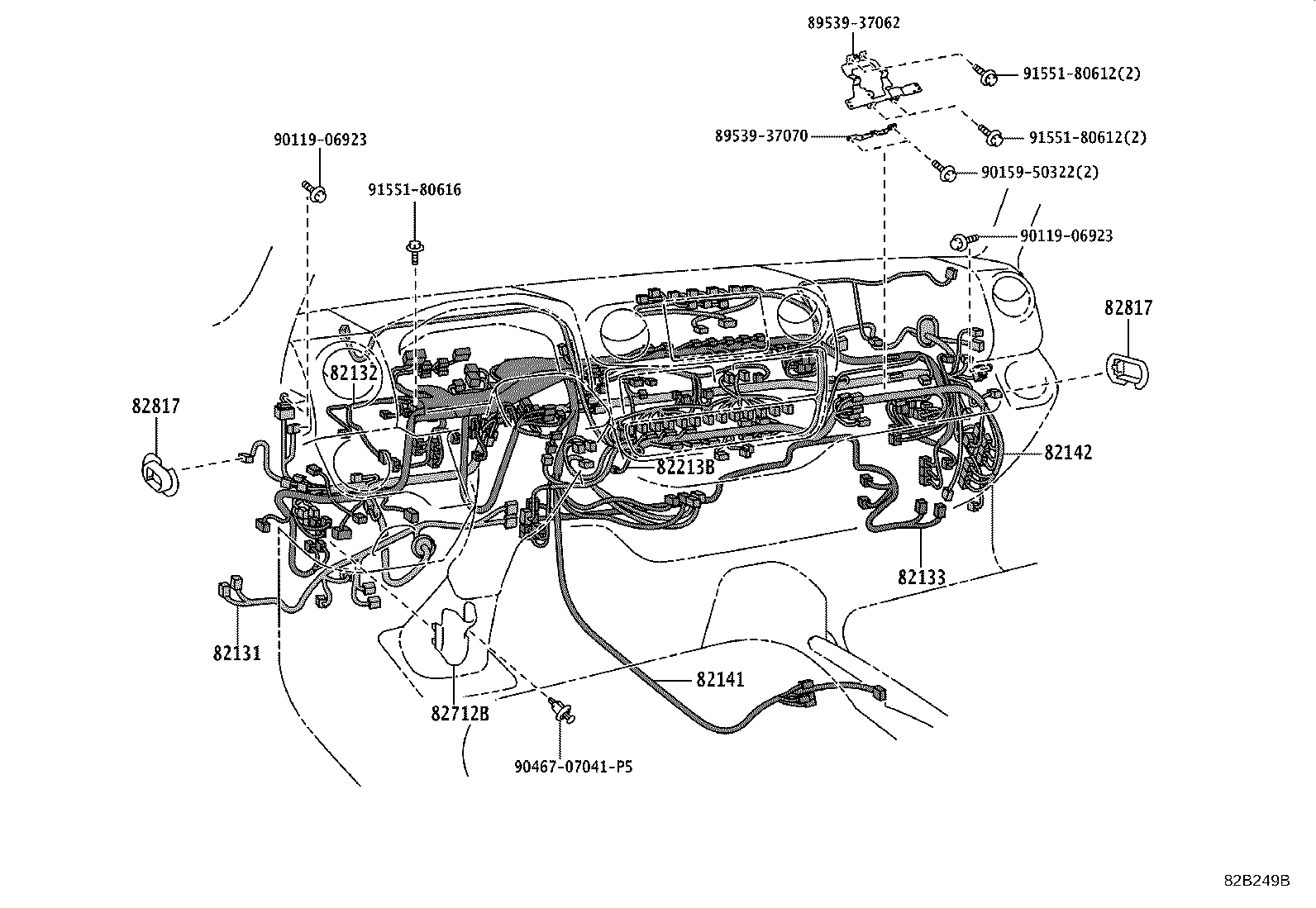

Figure 82B249B

82B249B 2016-10 → —

Figure 82B250B

82B250B 2016-10 → —

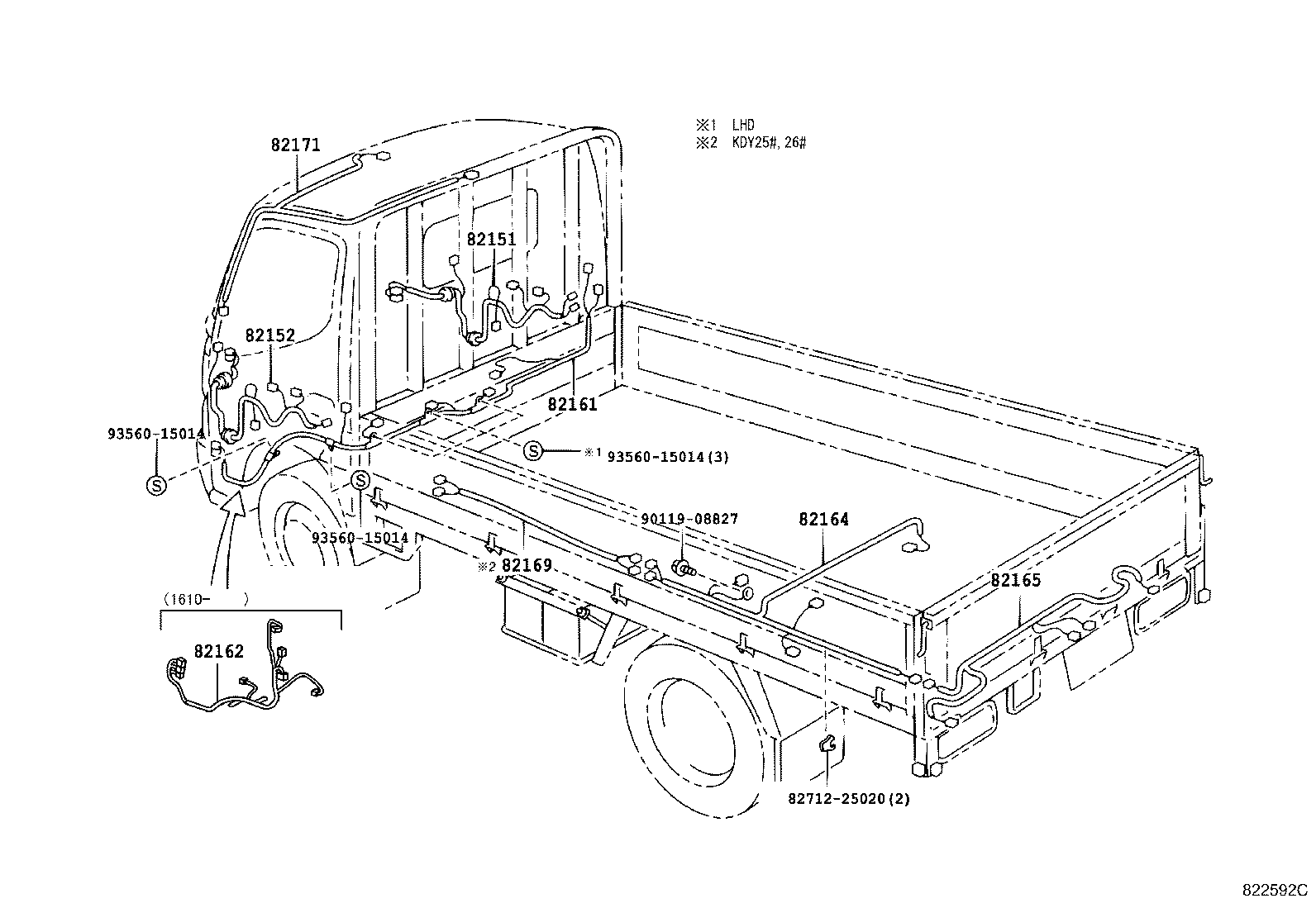

Figure 822592C

822592C 2001-07 → —

Figure 822592C

822592C 2001-08 → —

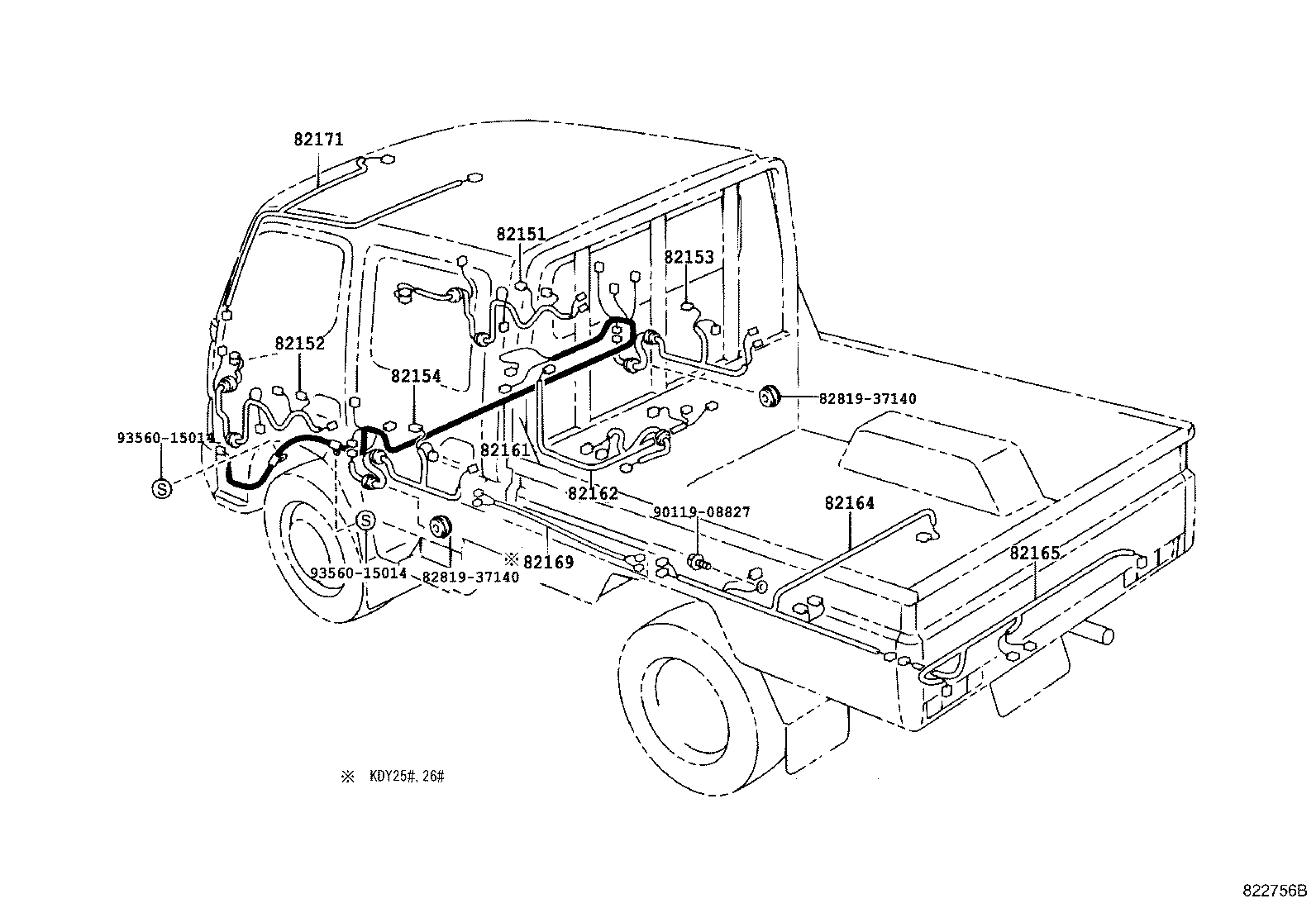

Figure 822756B

822756B 2001-08 → —

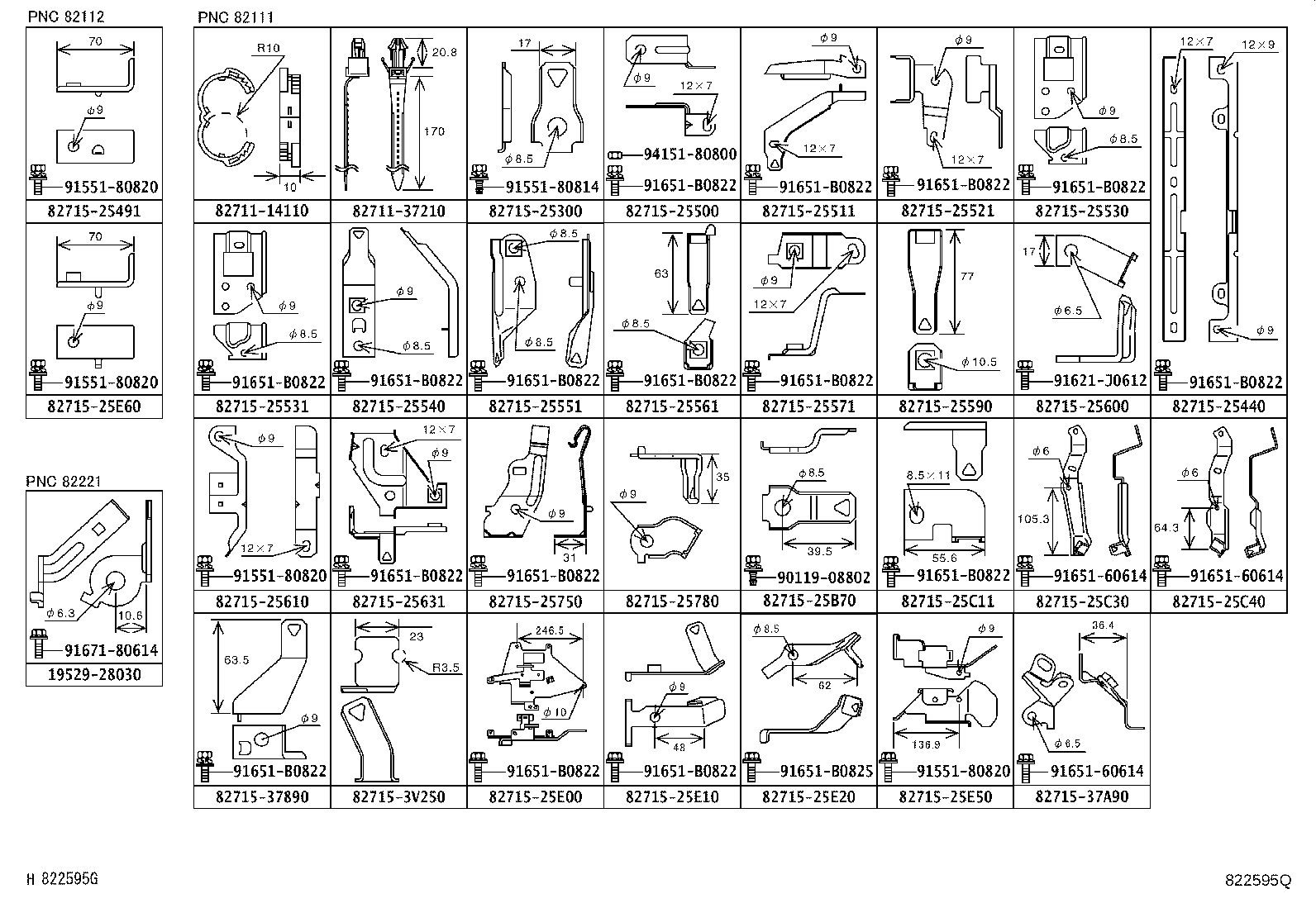

Figure 822595Q

822595Q 2001-07 → —

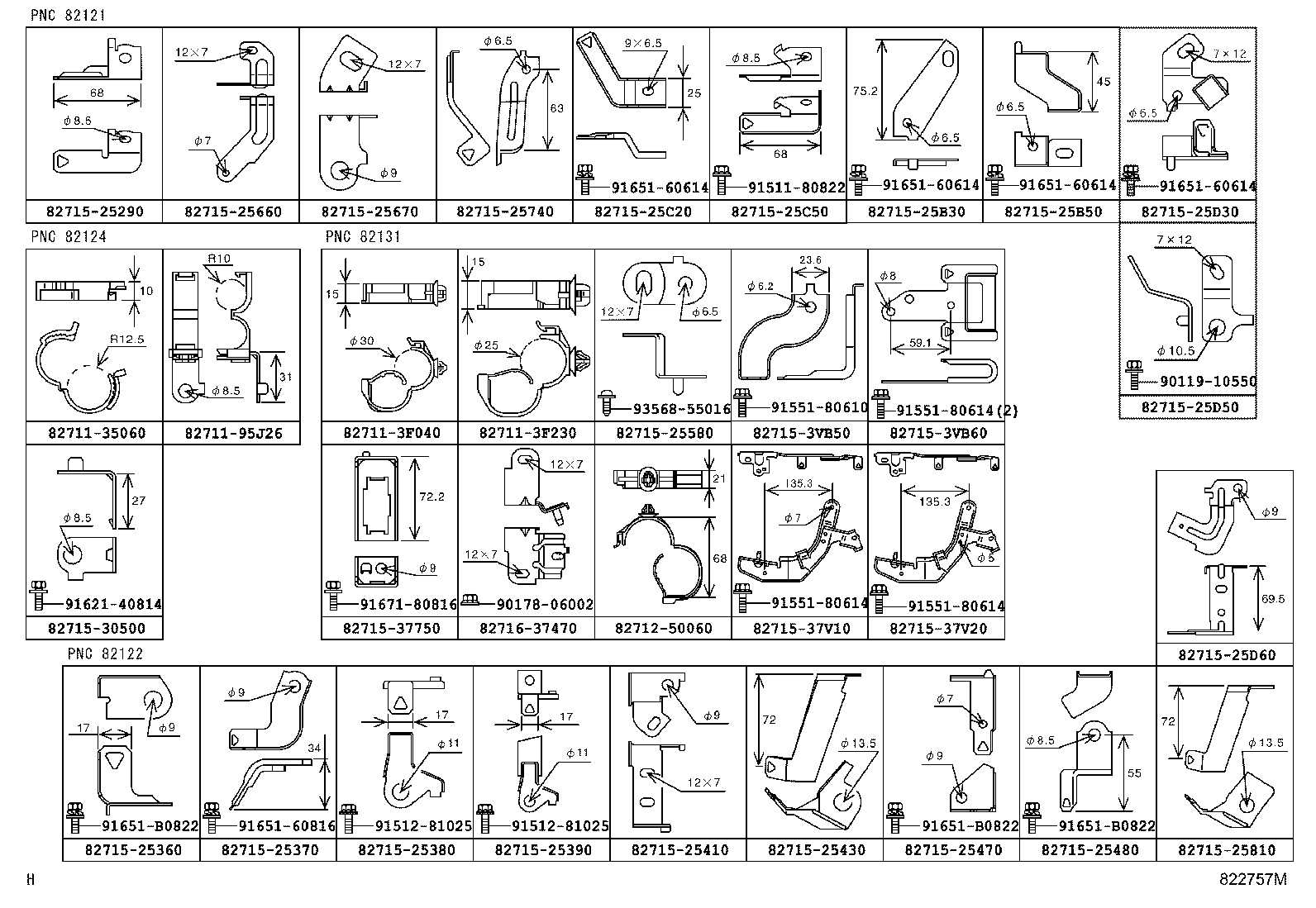

Figure 822757M

822757M 2001-07 → —

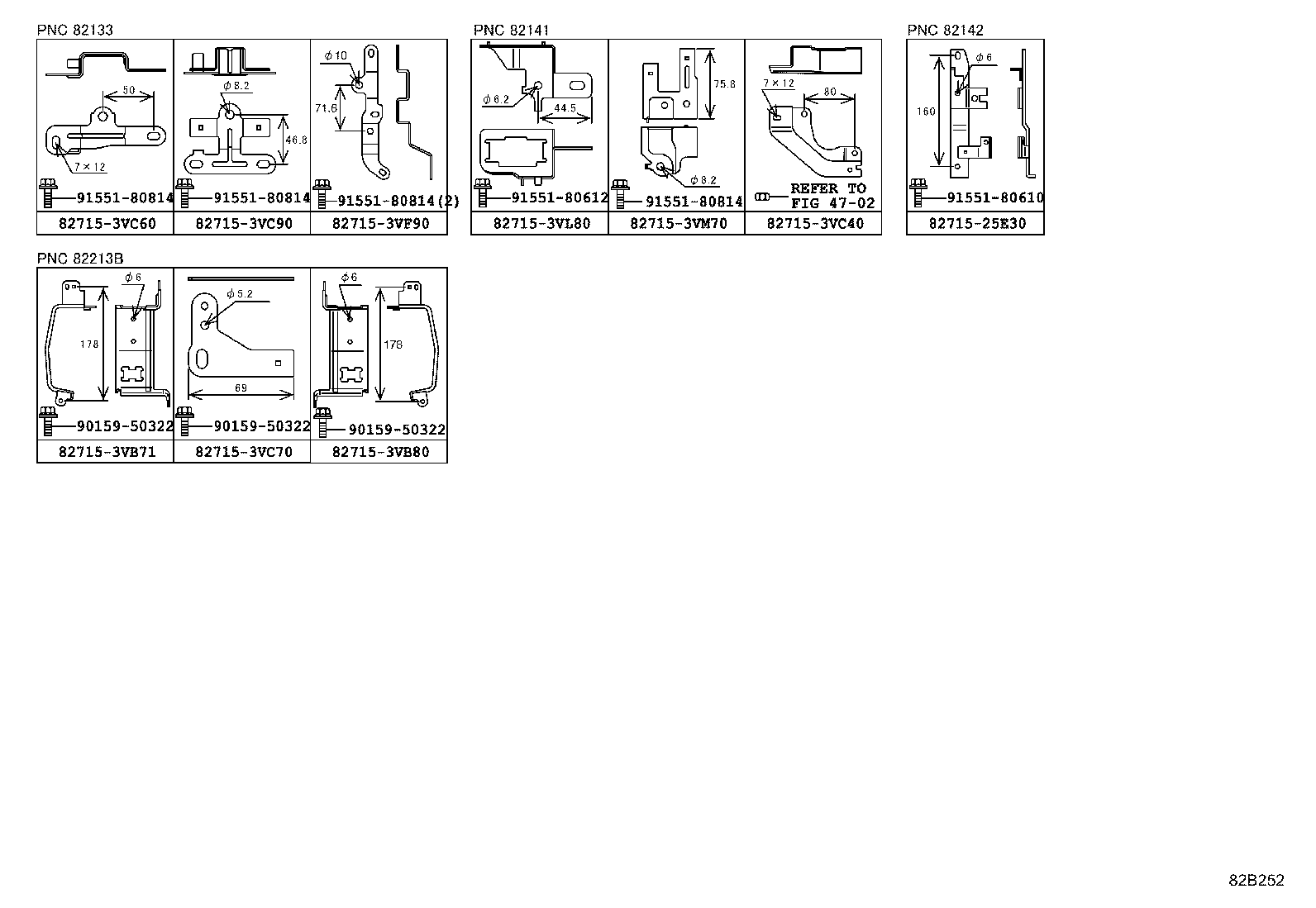

Figure 82B252

82B252 2001-07 → —

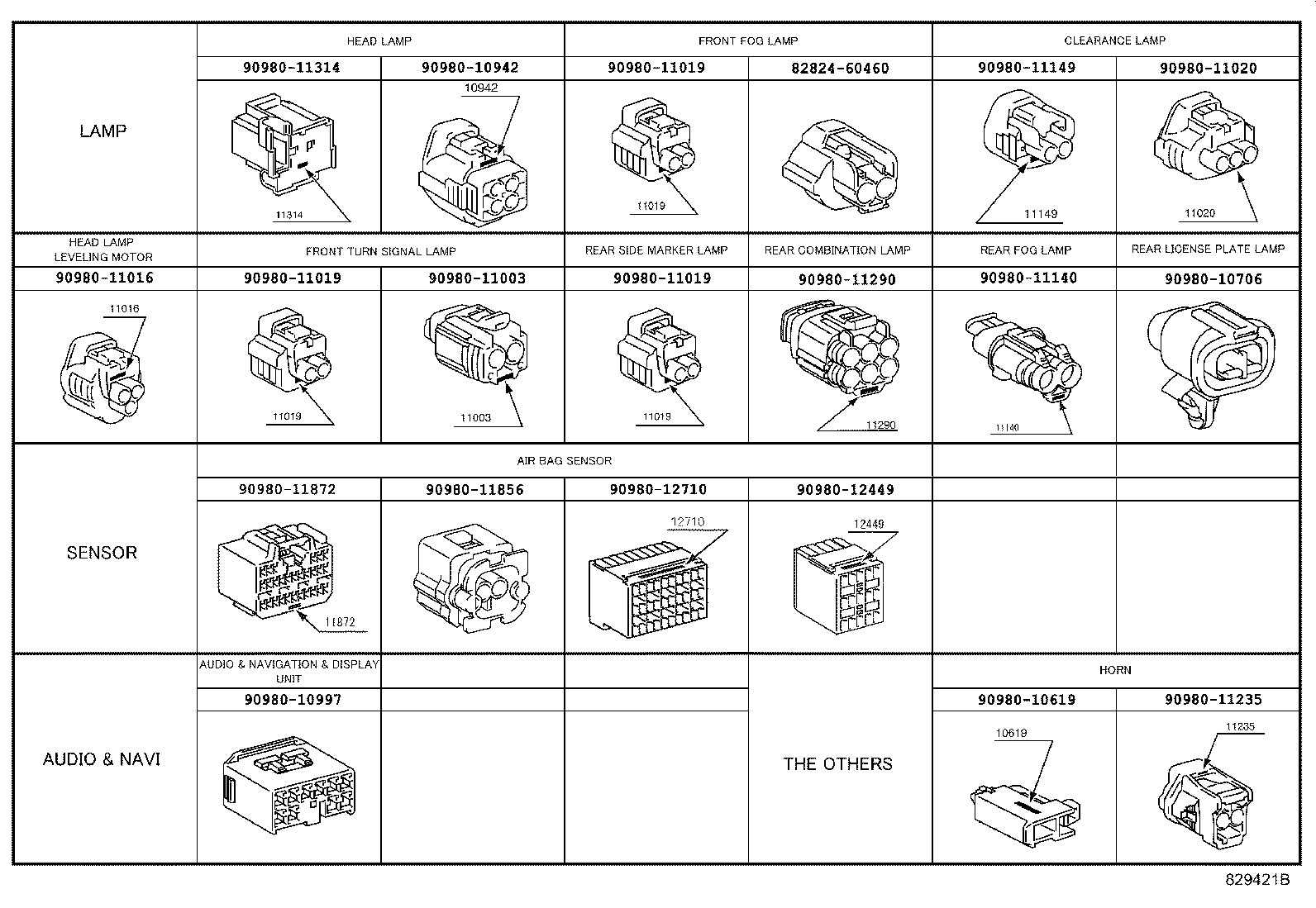

Figure 829421B

829421B 2001-07 → —

Part groups

PNC	Description
82111	Wire, Engine Room Main
82112	Wire, Engine Room, NO.2
82121	Wire, Engine
82122	Wire, Engine, NO.2
82124	Wire, Engine, NO.4
82125	Wire, Transmission
82131	Wire, Cowl
82132	Wire, Cowl, NO.2
82133	Wire, Cowl, NO.3
82141	Wire, Instrument Panel
82142	Wire, Instrument Panel, NO.2
82151	Wire, Front Door, RH
82152	Wire, Front Door, LH
82153	Wire, Rear Door, NO.1
82154	Wire, Rear Door, NO.2
82161	Wire, Floor
82162	Wire, Floor, NO.2
82164	Wire, Frame
82165	Wire, Frame, NO.2
82169	Wire Frame, NO.3
82171	Wire, Roof, NO.1
82213B	Wire, Heater
82221	Wire, Oil Pressure Switch
82666A	Holder, Connector NO.2
82666B	Holder, Connector NO.3
82666C	Holder, Connector NO.4
82666D	Holder, Connector NO.5
82666E	Holder, Connector NO.6
82672	Cover, Junktion Block
82673	Bracket, Junction Block
82674B	Cover, Junction Block, Lower
82712B	Support, Wiring Harness
82712C	Support, Wiring Harness, NO.1
82712F	Support, Wiring Harness
82817	Protector, Wiring Harness, NO.1
82821E	Cover, Connector
82823T	Cap, Alternator Terminal

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
