Toyota Dyna

2001-07 → 2021-11 · chassis KDY22#,23#,25#,26#,LY2## · catalogue 731270 · Europe

Discontinued model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Controled Diesel (ECD)

19 part groups · 8 illustrations

Illustrations

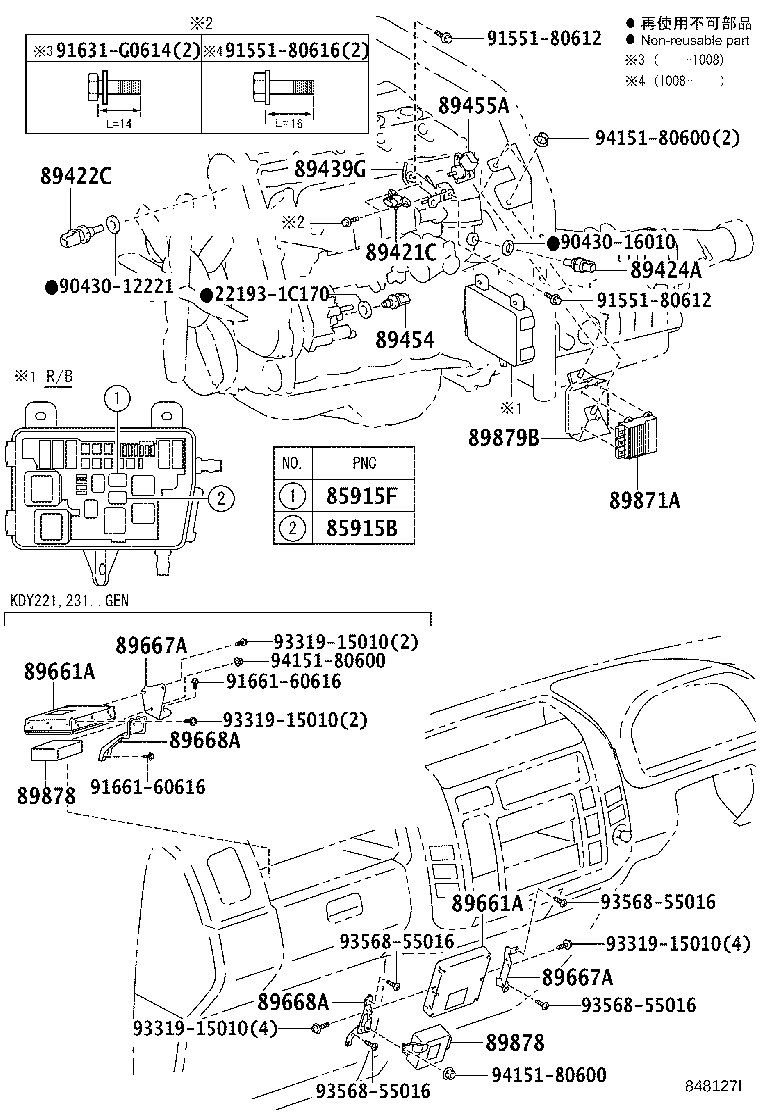

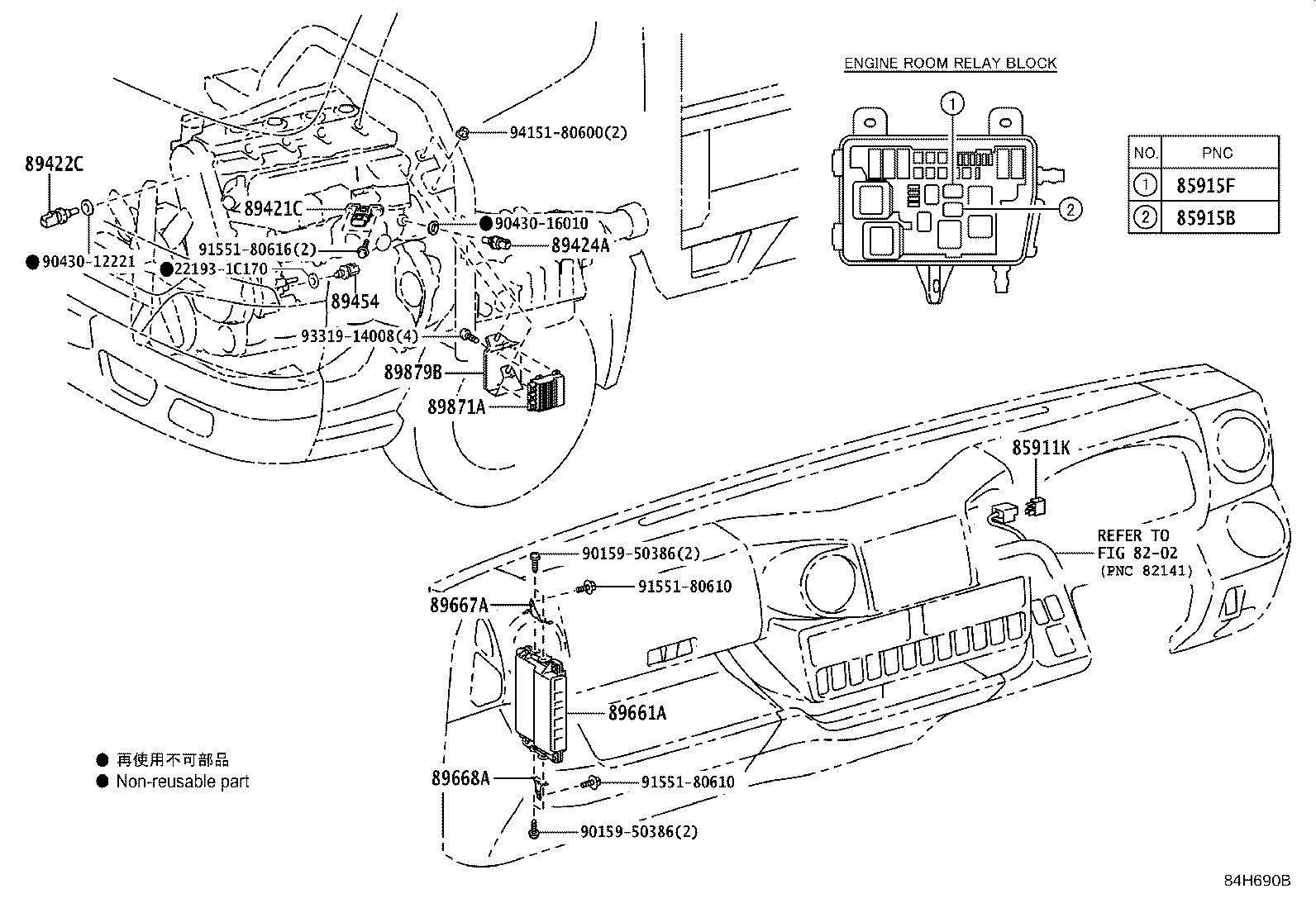

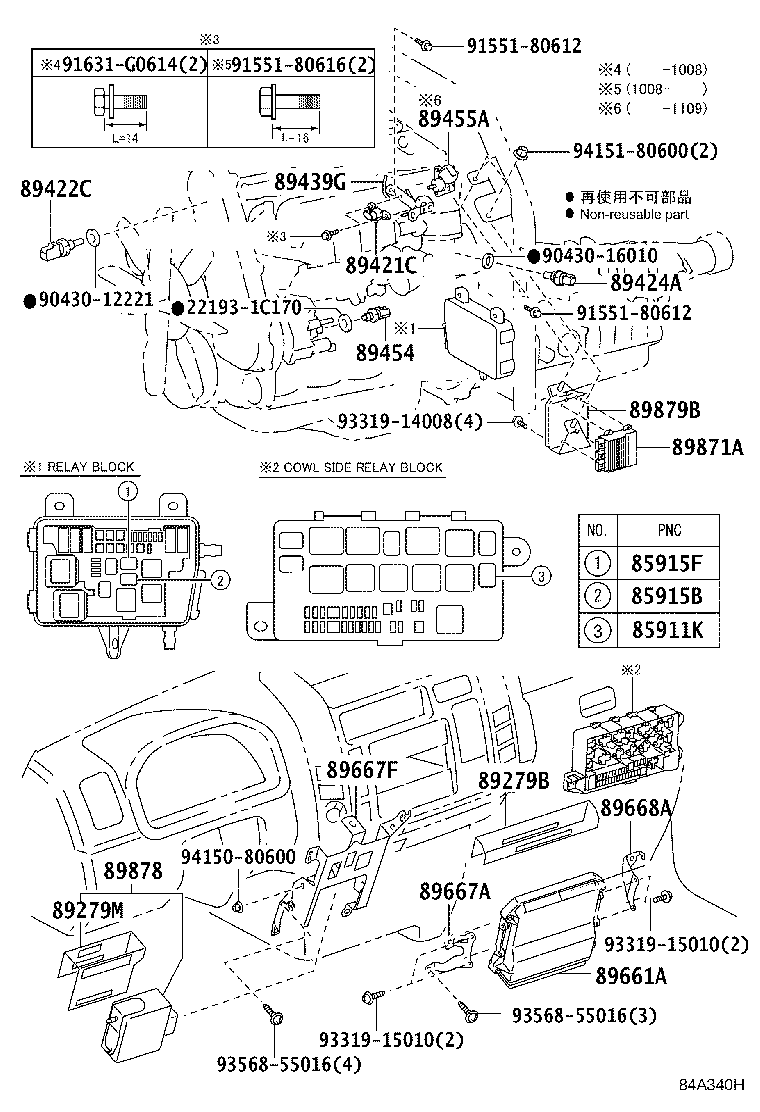

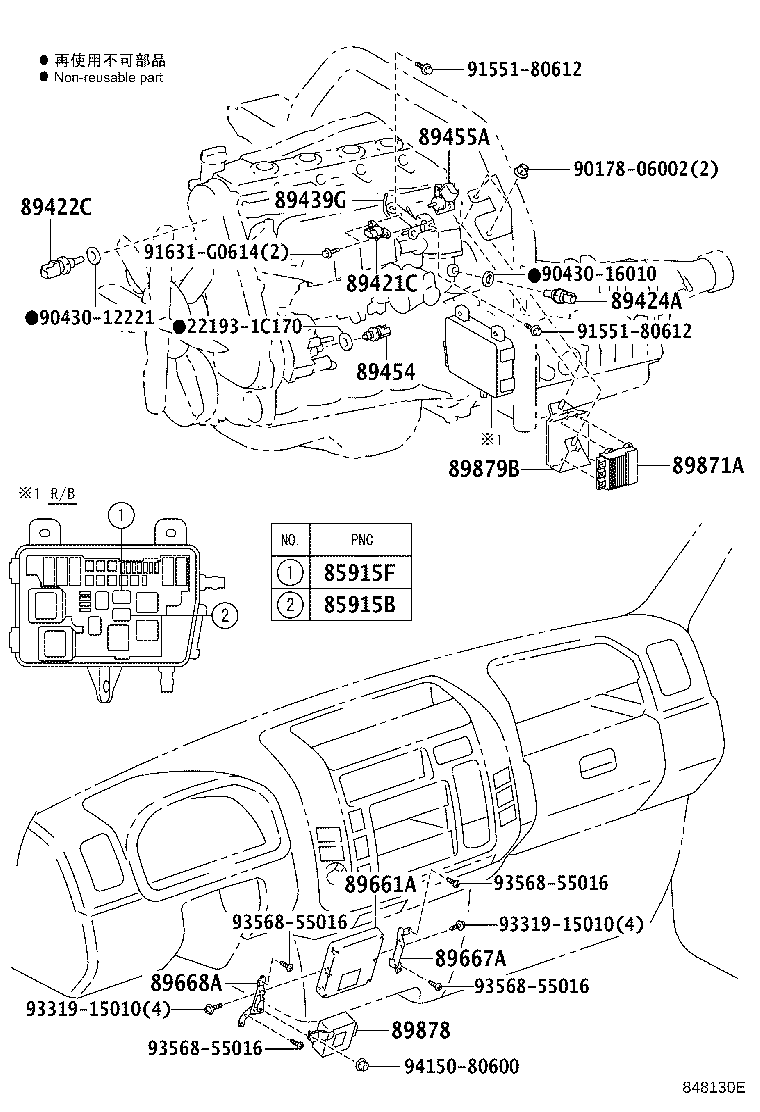

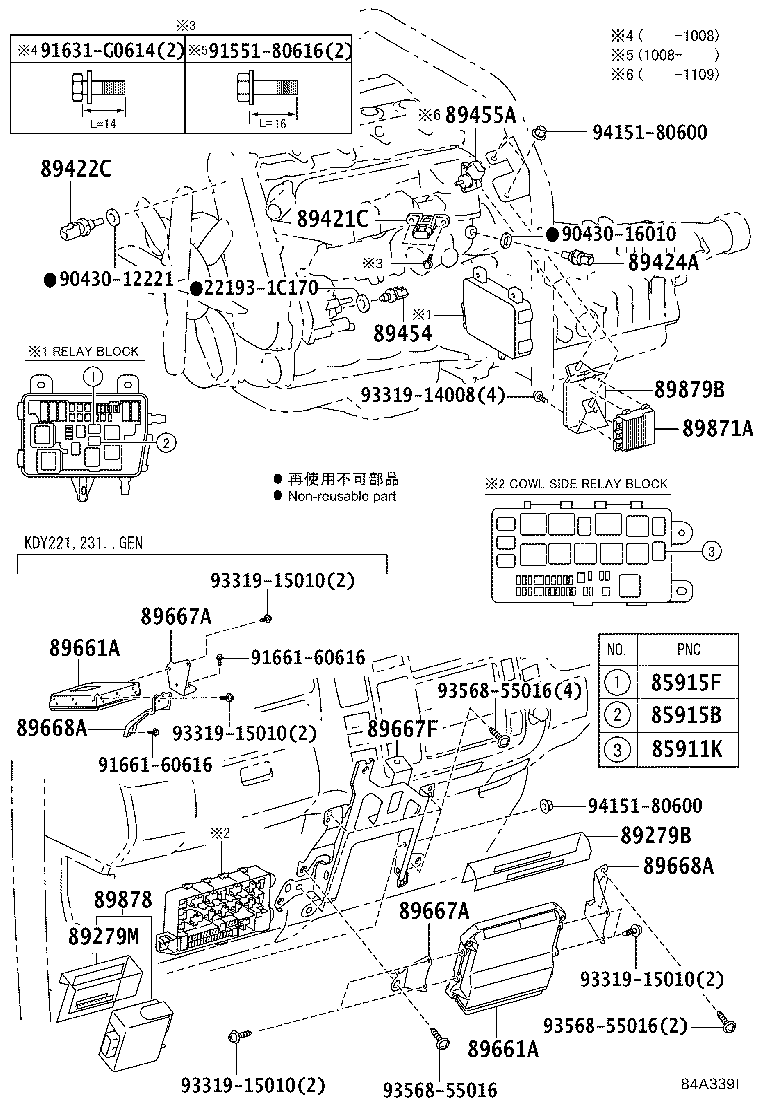

Figure 844403G 844403G 2001-08 → 2006-10 Figure 848127I 848127I 2006-09 → 2009-07 Figure 848127I 848127I 2006-09 → 2013-10 Figure 84A339I 84A339I 2009-07 → 2016-10 Figure 84A339I 84A339I 2013-10 → 2016-10 Figure 848130E 848130E 2006-09 → 2009-07 Figure 84A340H 84A340H 2009-07 → 2015-02 Figure 84H690B 84H690B 2016-10 → —

Part groups

PNCDescription
85911K Relay, Heater(FOR AIR FUEL RATIO SENSOR)
85915B Relay, Main (FOR DIESEL TURBO)
85915F Relay, Spill Valve
89279B Cover, Diesel Engine Control Computor
89279M Cover
89421C Sensor, Turbo Pressure (FOR DIESEL TURBO)
89422C Sensor, Diesel Engine Water Temperature
89424A Sensor, Inlet Air Temperature (FOR DIESEL TURBO)
89439G Bracket, Sensor
89454 Sensor, Fuel Temperature
89455A Sensor, Egr Valve Position
89661A Computer, Engine Control
89667A Bracket, Engine Control Computer, NO.1
89667F Bracket, Engine Control Computer, NO.1
89668A Bracket, Engine Control Computer, NO.2
89870 Driver Assy, Spill Valve Control
89871A Driver, Injector
89878 Driver, Turbo Motor
89879B Bracket, Injector Driver
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
