Toyota Dyna
2001-07 → 2021-11 · chassis KDY22#,23#,25#,26#,LY2## · catalogue 731270 · Europe
Discontinued model
Data version 2022-11

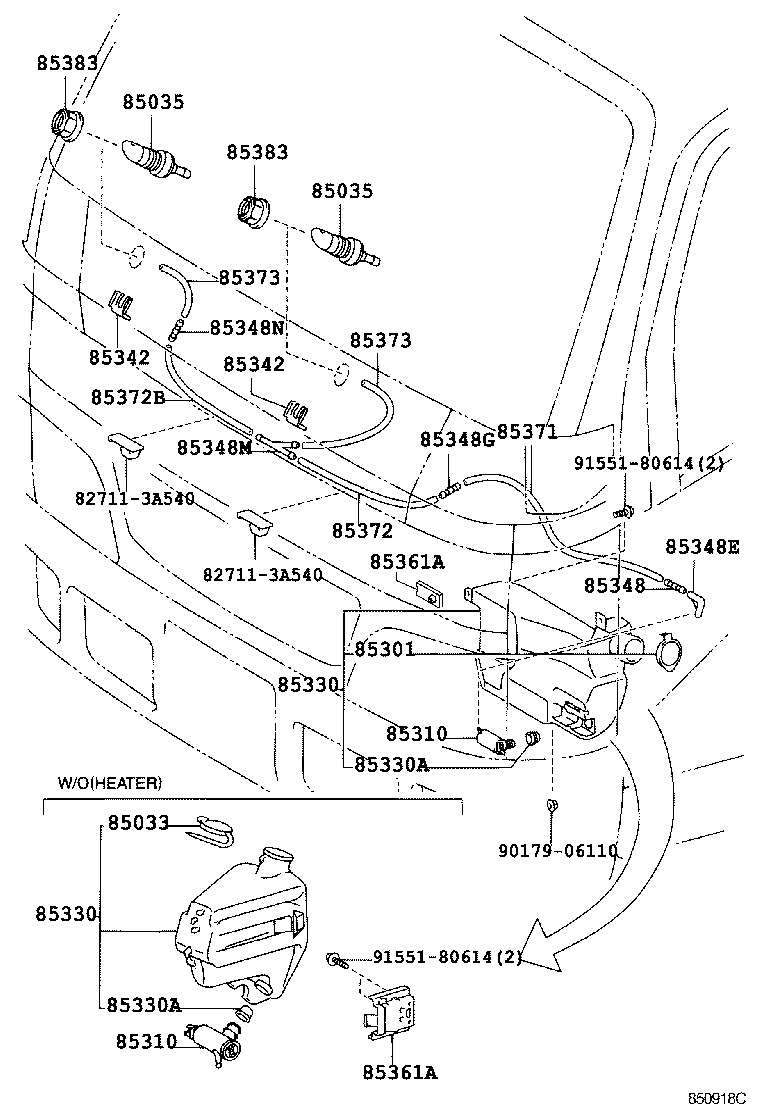

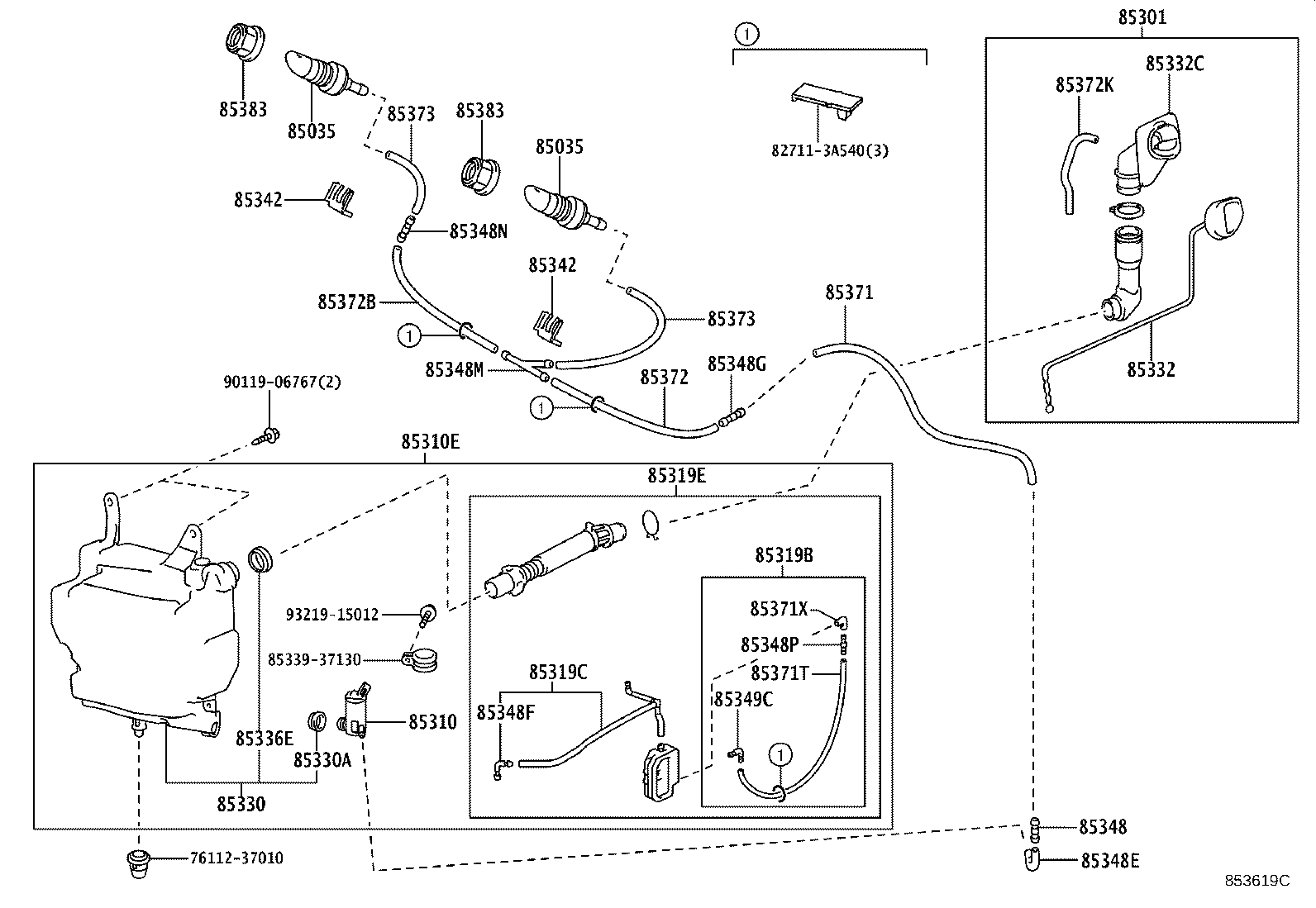

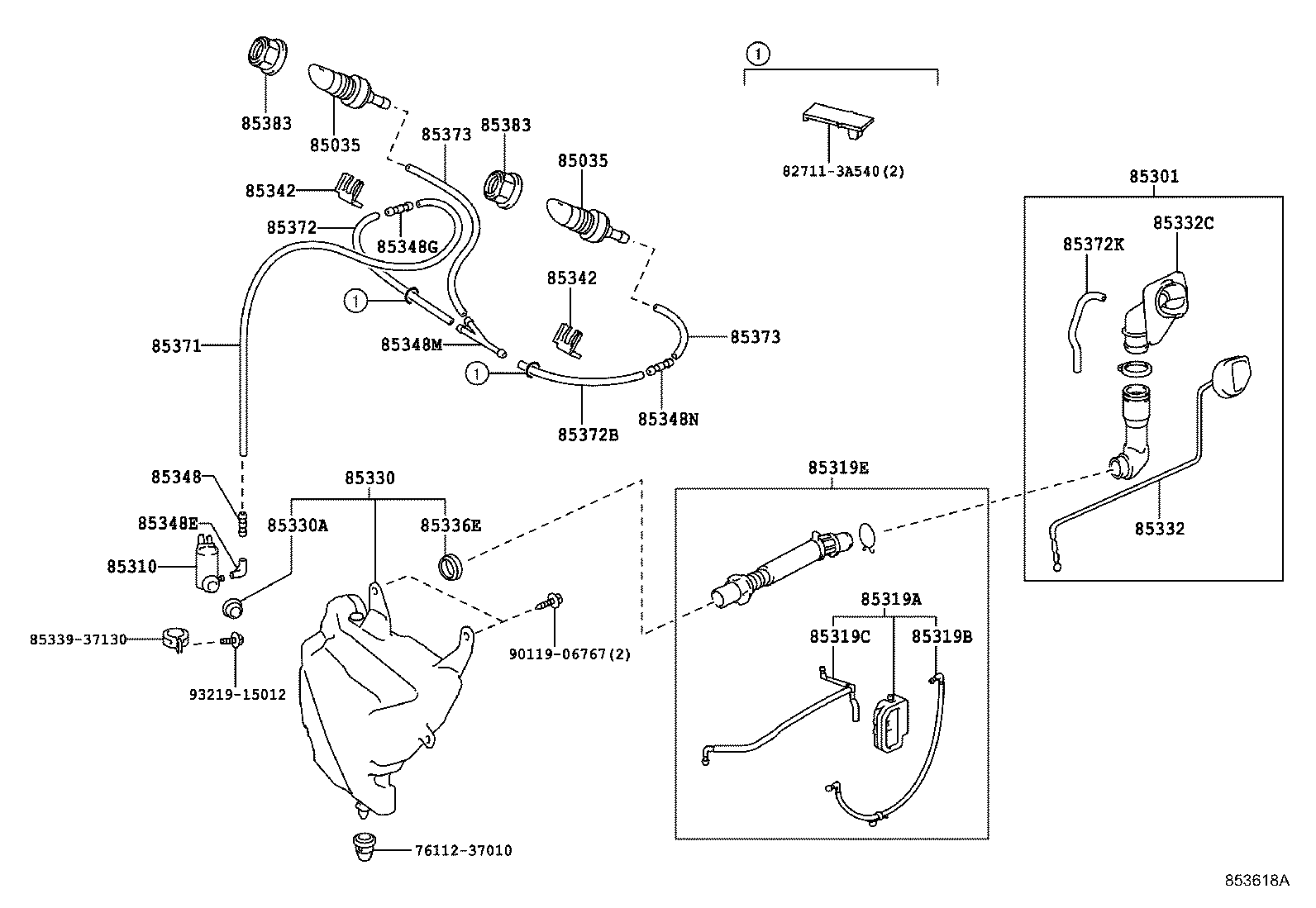

Windshield Washer
32 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 85033 | Cap Assy, Windshield Washer |
| 85035 | Nozzle Sub-assy, Washer |
| 85301 | Inlet Sub-assy, Washer |
| 85310 | Motor And Pump Assy, Windshield Washer |
| 85310E | Jar & Pump Assy, Washer |
| 85319A | Hose, Inlet |
| 85319B | Hose, Window Washer |
| 85319C | Hose, Washer |
| 85319E | Inlet Washer |
| 85330 | Jar Assy, Windshield Washer |
| 85330A | Bush, Windshield Washer Jar |
| 85332 | Cap, Windshield Washer Jar |
| 85332C | Cap, Front Washer Tank |
| 85336E | Packing, Windshield Washer Inlet Hose |
| 85342 | Holder, Washer Nozzle |
| 85348 | Joint, Windshield Washer Hose, NO.1 |
| 85348E | Joint, Windshield Washer Elbow, NO.2 |
| 85348F | Joint, Windshield Washer Elbow, NO.3 |
| 85348G | Joint, Windshield Washer Hose, NO.2 |
| 85348M | Joint, Windshield Washer Hose, NO.3 |
| 85348N | Joint, Windshield Washer Hose, NO.4 |
| 85348P | Joint, Windshield Washer Hose, NO.1 |
| 85349C | Joint, Windshield Washer Elbow, NO.4 |
| 85361A | Bracket, Windshield Washer, NO.1 |
| 85371 | Hose, Windshield Washer (FROM MOTOR TO JOINT) |
| 85371T | Hose, Windshield Washer (FROM JOINT TO JOINT) |
| 85371X | Hose, Windshield Washer(FROM JOINT TO TOINT) |
| 85372 | Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1 |
| 85372B | Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2 |
| 85372K | Hose, Windshield Washer (FROM JOINT TO JOINT), NO.5 |
| 85373 | Hose, Windshield Washer (FROM JOINT TO NOZZLE) |
| 85383 | Holder, Front Washer Nozzle |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
