Toyota Dyna

2001-07 → 2021-11 · chassis KDY22#,23#,25#,26#,LY2## · catalogue 731270 · Europe

Discontinued model Data version 2022-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

4 part groups · 3 illustrations

Illustrations

Figure 861407C

861407C 2001-07 → 2016-10

866686 2016-10 → —

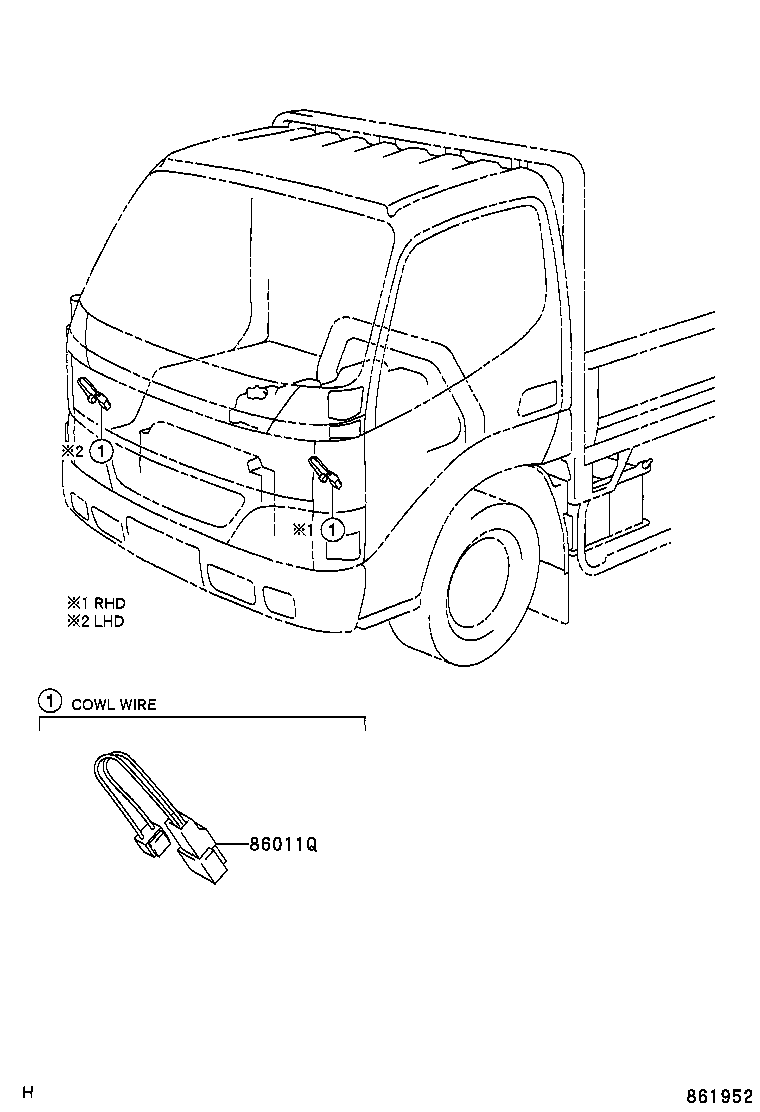

861952 2003-08 → 2016-10

Part groups

PNC	Description
86011Q	Condenser, Radio Setting
86120	Receiver Assy, Radio
86211	Bracket, Radio, NO.1
86212	Bracket, Radio, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
